Bosch FLM-420-RHV-S FLM-420-RHV Relay High Voltage Interface Modules Interface module relay high-volt surface F.01U.508.710

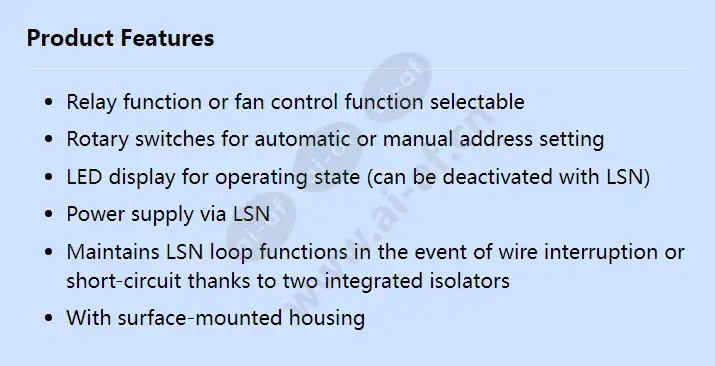

Relay function or fan control function selectable Rotary switches for automatic or manual address setting LED display for operating state (can be deactivated with LSN) Power supply via LSN Maintains LSN loop functions in the event of wire interruption or short-circuit thanks to two integrated isolators With surface-mounted housing Class of equipment (IEC 62368-1) II Color White Dimensions (H x W x D) (mm) 126 x 126 x 71 mm Input voltage (VDC) 15 – 33 VDC LSN current consumption (mA) 17.15 mA Material Plastic Operating temperature (°C) -20 – 50 °C Storage temperature (°C) -25 – 85 °C Weight (g) 390 g
