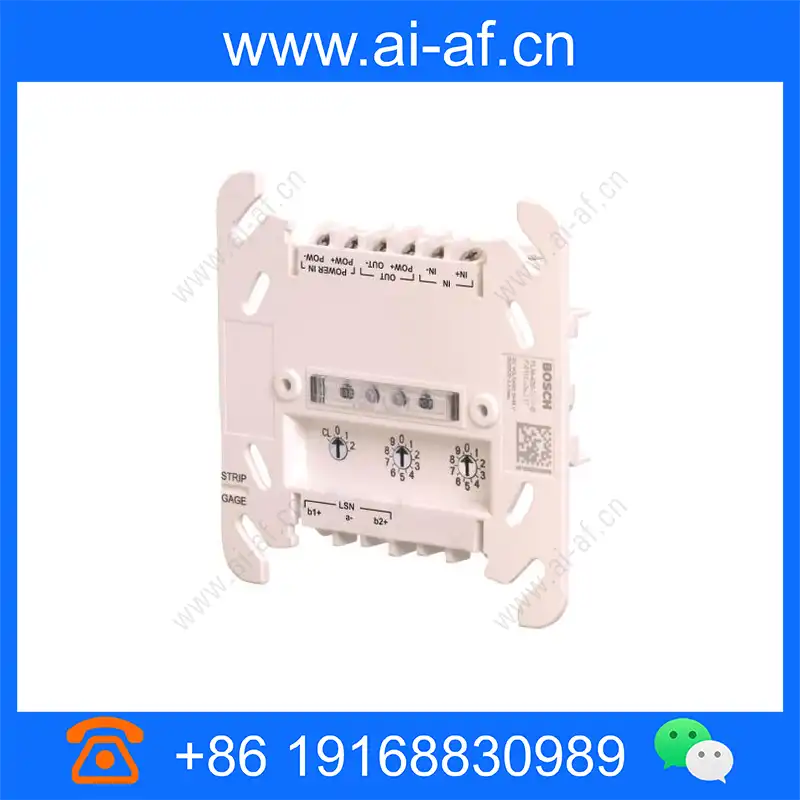

Bosch FLM-420-O1I1-D FLM-420-O1I1 Output-input Interface Modules Output-input interface module rail-mount F.01U.033.256

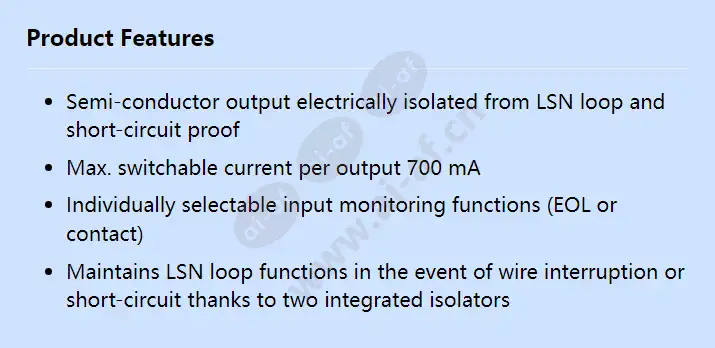

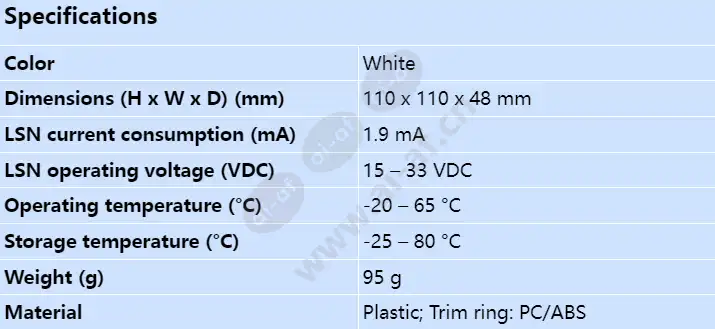

Semi-conductor output electrically isolated from LSN loop and short-circuit proof Max. switchable current per output 700 mA Individually selectable input monitoring functions (EOL or contact) Maintains LSN loop functions in the event of wire interruption or short-circuit thanks to two integrated isolators Color White Dimensions (H x W x D) (mm) 110 x 110 x 48 mm LSN current consumption (mA) 1.9 mA LSN operating voltage (VDC) 15 – 33 VDC Material Plastic; Trim ring: PC/ABS Operating temperature (°C) -20 – 65 °C Storage temperature (°C) -25 – 80 °C Weight (g) 95 g
