Bosch FLM-420-NAC-S FLM-420-NAC Signaling Device Interface Modules Interface module notific. app. surface F.01U.508.715

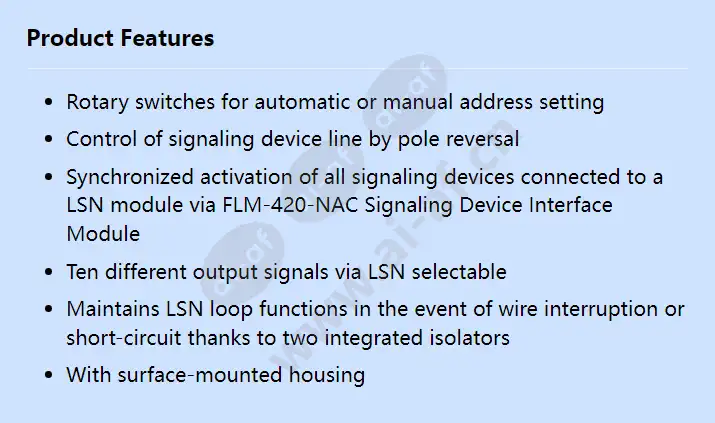

Rotary switches for automatic or manual address setting Control of signaling device line by pole reversal Synchronized activation of all signaling devices connected to a LSN module via FLM-420-NAC Signaling Device Interface Module Ten different output signals via LSN selectable Maintains LSN loop functions in the event of wire interruption or short-circuit thanks to two integrated isolators With surface-mounted housing Class of equipment (IEC 62368-1) III Color White Dimensions (H x W x D) (mm) 126 x 126 x 71 mm Input voltage (VDC) 15 – 33 VDC Material Plastic; Trim ring: PC/ABS Operating temperature (°C) -20 – 50 °C Storage temperature (°C) -25 – 80 °C
