Bosch FLM-420-RLV1-D FLM-420-RLV1 Relay Interface Modules Low Voltage Relay interf. module low-volt rail-mount F.01U.012.594

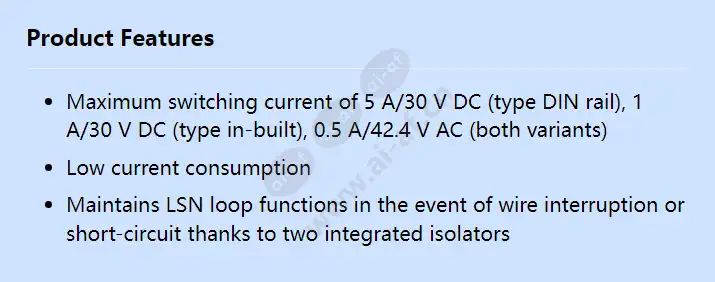

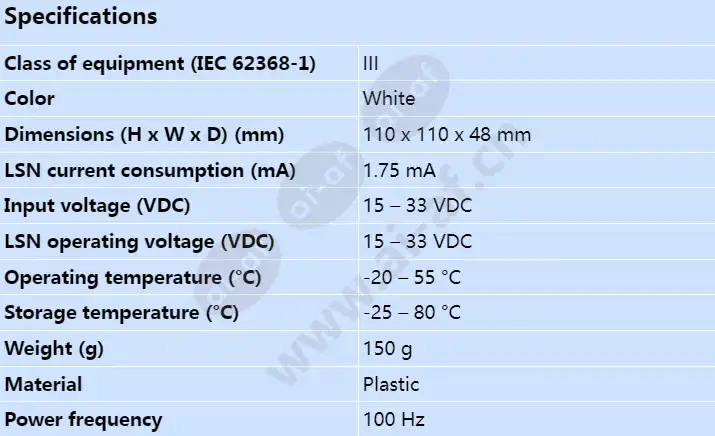

Maximum switching current of 5 A/30 V DC (type DIN rail), 1 A/30 V DC (type in-built), 0.5 A/42.4 V AC (both variants) Low current consumption Maintains LSN loop functions in the event of wire interruption or short-circuit thanks to two integrated isolators Class of equipment (IEC 62368-1) III Color White Dimensions (H x W x D) (mm) 110 x 110 x 48 mm Input voltage (VDC) 15 – 33 VDC LSN current consumption (mA) 1.75 mA LSN operating voltage (VDC) 15 – 33 VDC Material Plastic Operating temperature (°C) -20 – 55 °C Power frequency 100 Hz Storage temperature (°C) -25 – 80 °C Weight (g) 150 g
