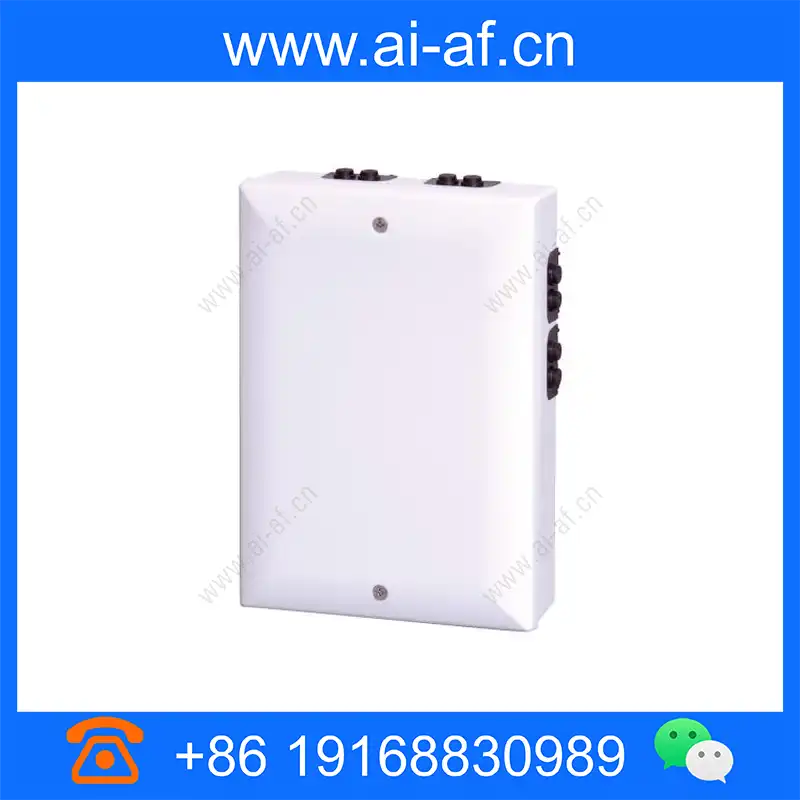

Bosch FLM-420-RLV8-S Octo-relay interface module low-voltage F.01U.033.247

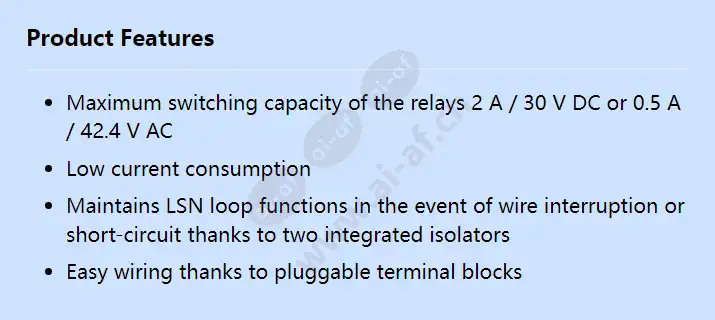

Maximum switching capacity of the relays 2 A / 30 V DC or 0.5 A / 42.4 V AC Low current consumption Maintains LSN loop functions in the event of wire interruption or short-circuit thanks to two integrated isolators Easy wiring thanks to pluggable terminal blocks Class of equipment (IEC 62368-1) III Color White Dimensions (H x W x D) (mm) 200 x 140 x 48 mm Input voltage (VDC) 15 – 33 VDC LSN current consumption (mA) 3.55 mA Material Trim ring: PC/ABS Operating temperature (°C) -20 – 65 °C Storage temperature (°C) -25 – 80 °C Weight (g) 490 g
