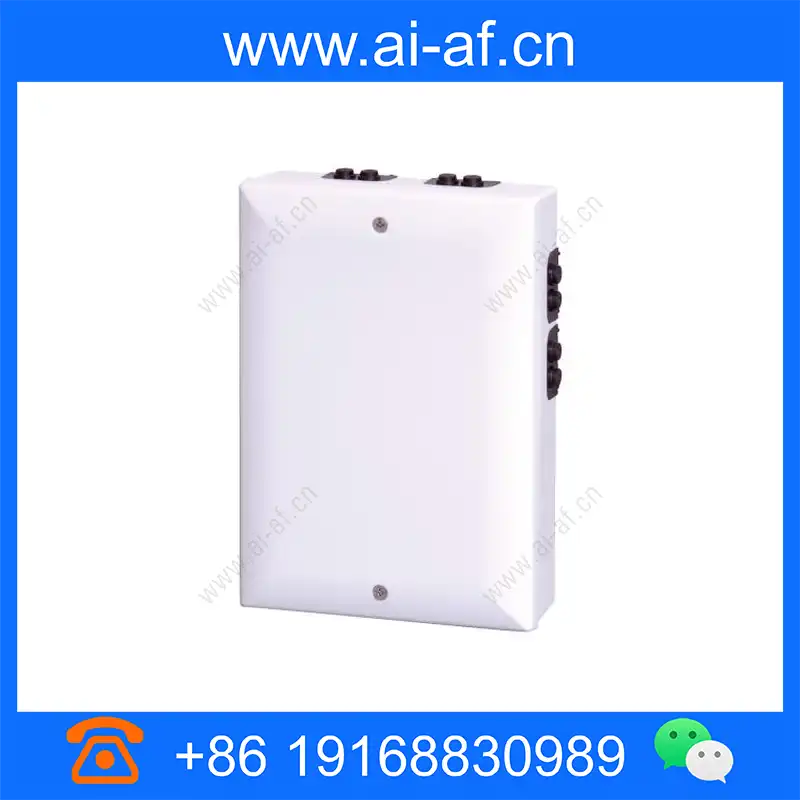

Bosch FLM-420-O8I2-S Octo-output interface module 2-input F.01U.033.255

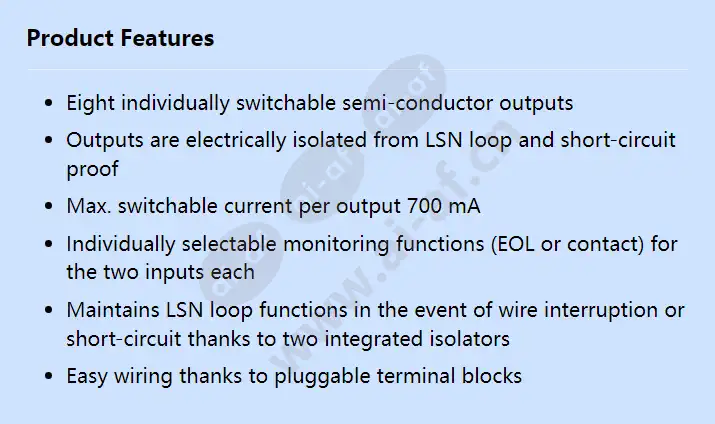

Eight individually switchable semi-conductor outputs Outputs are electrically isolated from LSN loop and short-circuit proof Max. switchable current per output 700 mA Individually selectable monitoring functions (EOL or contact) for the two inputs each Maintains LSN loop functions in the event of wire interruption or short-circuit thanks to two integrated isolators Easy wiring thanks to pluggable terminal blocks Color White Dimensions (H x W x D) (mm) 200 x 140 x 48 mm LSN current consumption (mA) 5.5 mA LSN operating voltage (VDC) 15 – 33 VDC Material Trim ring: PC/ABS Operating temperature (°C) -20 – 65 °C Storage temperature (°C) -25 – 80 °C Weight (g) 480 g
