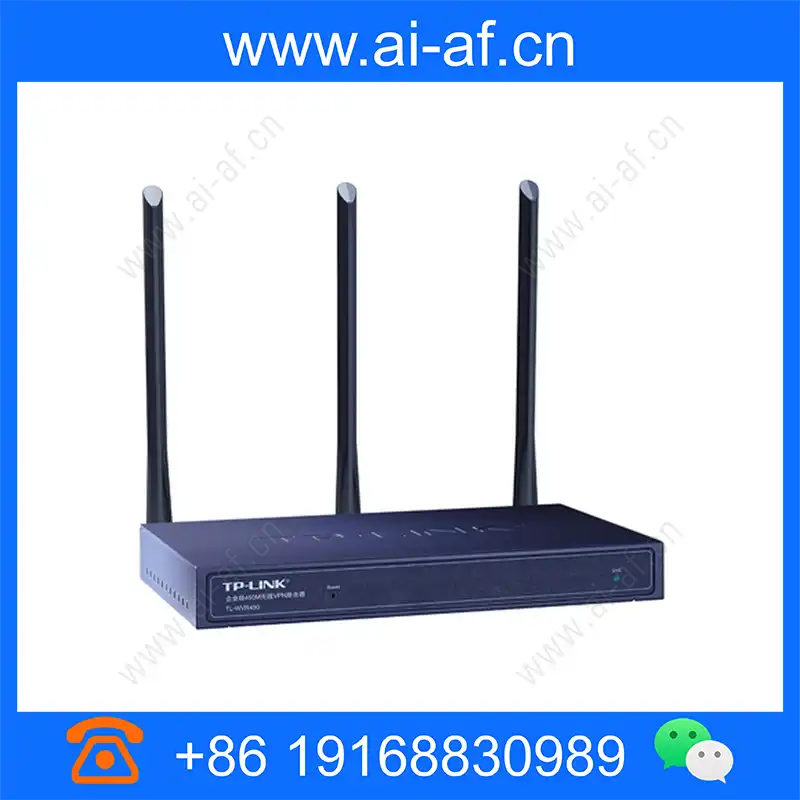

TP-LINK TL-WVR450 450M wireless VPN Router 5 ports with machine capacity 50 manage 10 APs
Brand: TP-LINK
Model: TL-WVR450
Dimensions: 126mm x 209mm x 26mm
1 10/100M fixed WAN port, 3 10/100M WAN / LAN variable interfaces, 1 10/100M fixed LAN port 3x3 MIMO architecture, wireless transmission rate up to 450Mbps IPSec VPN、PPTP VPN、L2TP VPN Internet behavior management (application restriction, website filtering, URL filtering, web security, access control list) ARP protection, attack protection, intelligent bandwidth control, and connection limit Support web authentication multiple authentication methods Support TP-LINK business cloud APP remote view / management port 1 10/100M RJ45 WAN port 3 10/100M RJ45 WAN/LAN optional ports 1 10/100M RJ45 LAN port Wireless rate 450Mbps antenna 3 external 5dBi omniDirectional high gain antennas Indicator light Per port: Link/Act Per device: SYS Dimensions 209(w)x126(D)x26(H) mm Input power 100~240V AC
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| port | 1 10/100M RJ45 WAN port 3 10/100M RJ45 WAN/LAN optional ports 1 10/100M RJ45 LAN port |
| Wireless rate | 450Mbps |
| antenna | 3 external 5dBi omniDirectional high gain antennas |
| Indicator light | Per port: Link/Act Per device: SYS |
| Dimensions | 209(w)x126(D)x26(H) mm |
| Input power | 100~240V AC,50/60Hz |
| Cooling method | Natural cooling |
| Use environment | Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing |
| Network protocol | TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS |
| WAN port settings | Connection method: dynamic IP, static IP, PPPoE MAC address: MAC address cloning, MAC address modification Balance mode: bandwidth balance, connection balance ISP routing |
| LAN port settings | DHCP server LAN port IP settings Client list Static address assignment |
| wireless setting | SSID broadcast Up to 7 Multi-SSIDs Support WPA, WPA2, WPA-PSK, WPA2-PSK wireless encryption Inter-SSID isolation, AP internal isolation, guest network Wireless bridging Wireless MAC address filtering Wireless host status |
| AP management | AP settings Wireless network settings AP database upgrade |
| Application control | Social software: WeChat/QQ/Web QQ/Fetion/Alibaba Want/TencentTM/Multiplay YY/Enterprise QQ/Momo/Sina Weibo/Zhuhu Video Software: Tencent Video/PPStream/PPTV/Quickcast/Fengxing/Pi Pi/UUSee/CNTV/iQiyi/Betta Live/Sohu Video/Youku Video Music Software: Kugou Music/Cool Music/QQ Music/Baidu Music/NetEase Cloud Music Shopping and Leisure Software: Mobile Jingdong/Taobao News Information Software : ZAKER/Toutiao/NetEase News P2P Software: Thunder and Thunder Look/Bit Comet/E-Donkey/QQ Tornado/FlashGet Financial Software: Straight Flush/Great Wisdom and Analyst/Qianlong/Compass/Securities Star/China Merchants Securities/ Galaxy Securities/Guotai Junan Securities/Yimeng Trader/Oriental Fortune/Huatai Securities Online Game: QQ Game/Thunder Game Box/Lianzhong World/Huofang Platform/Fantasy Westward Journey/World of Warcraft/Run Karting/QQ Farm App Store: PP Assistant/Pea The basic application of Pod/Application Po: HTTP/HTTPS/MMS/RTSP |
| Access control | Website grouping: website filtering, URL filtering File download: filtering specified file extension types Bandwidth limit: bandwidth allocation/connection number limit |
| Safety management | IP and MAC address binding, ARP protection, MAC address filtering, anti-DoS, scanning, and suspicious packets. |
| VPN | IPSec L2TP PPTP user management |
| Certification Management | Web authentication Authentication status Authentication user management |
| Advanced Features | Routing settings: policy routing/static routing/system routing NAT settings: NAPT/one-to-one NAT/ALG virtual server dynamic DNS UPnP IP traffic statistics port monitoring |
| Management and maintenance | Chinese Web network management, remote management configuration backup and import configuration system software upgrade online detection, ping, tracert diagnostic tool system log |
