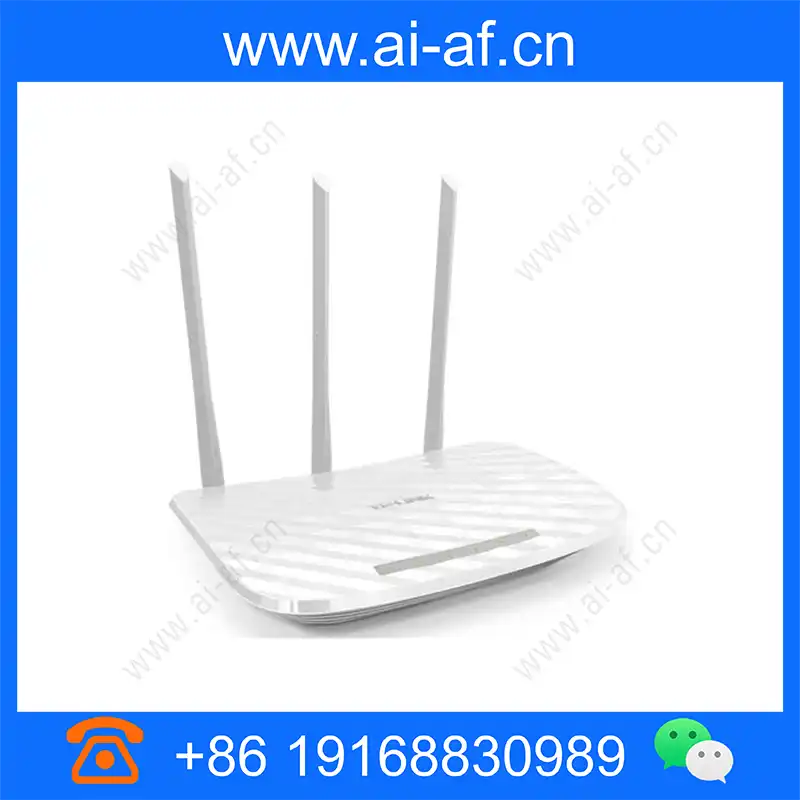

TP-LINK TL-WVR450A 450M Wireless Advertising Router
Brand: TP-LINK
Model: TL-WVR450A
Dimensions: 230mm x 144mm x 35mm
Protocol standard IEEE 802.11n、IEEE 802.11g、IEEE 802.11b; IEEE 802.3、IEEE 802.3u; Wireless rate 450Mbps interface 4 10/100M adaptive LAN ports, support automatic flip (Auto MDI/MDIX); 1 10/100M adaptive WAN port, support automatic flip (Auto MDI/MDIX); Button Reset button LED SYS system instruction; Link/Act instruction of each port; antenna 3 external fixed omniDirectional antennas size 230mm x 144mm x 35mm(L x W x H) basic skills SSID broadcast switch; channel selection: 1-13; band bandwidth selectable: 20MHz, 40MHz, automatic; wireless mode selectable: 11n only, 11 bgn mixed, 11 bg mixed, 11g only, 11b only; wireless power adjustable; wireless Client restrictions; Wireless security Wireless encryption function switch; WPA-PSK/WPA2-PSK security mechanism; wireless MAC address filtering;
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE 802.11n、IEEE 802.11g、IEEE 802.11b; IEEE 802.3、IEEE 802.3u; |
| Wireless rate | 450Mbps |
| interface | 4 10/100M adaptive LAN ports, support automatic flip (Auto MDI/MDIX); 1 10/100M adaptive WAN port, support automatic flip (Auto MDI/MDIX); |
| Button | Reset button |
| LED | SYS system instruction; Link/Act instruction of each port; |
| antenna | 3 external fixed omniDirectional antennas |
| size | 230mm x 144mm x 35mm(L x W x H) |
| basic skills | SSID broadcast switch; channel selection: 1-13; band bandwidth selectable: 20MHz, 40MHz, automatic; wireless mode selectable: 11n only, 11 bgn mixed, 11 bg mixed, 11g only, 11b only; wireless power adjustable; wireless Client restrictions; |
| Wireless security | Wireless encryption function switch; WPA-PSK/WPA2-PSK security mechanism; wireless MAC address filtering; internal isolation of wireless network; |
| Advertising push | Support advertisement push, can automatically push advertisement pages to users who access the advertising wireless network; support three advertisement positions, can be pushed periodically and cyclically; support advertisement production, through template editing, local upload, external link, USB upload, etc. Create and update advertisement content; support advertisement time setting, can adjust advertisement countdown time, free Internet time, timeout disconnection time, advertisement rotation period, etc.; support wired port free authentication and exception MAC setting; |
| WeChat authentication | Support authentication link setting; support reminder page setting, you can add WeChat public account, QR code, reminder text; support authentication jump page setting, you can jump to the default page, you can also jump to a custom advertising image or external URL ; Support wired port free authentication and exception MAC policy setting; Support authentication time setting, you can adjust the free Internet time, timeout disconnection time, etc.; |
| Network settings | WAN port connection type support: PPPoE dial-up Internet access, automatic IP address acquisition, fixed IP address; Dial-up mode type: automatic dialing; MAC address modification and cloning; static routing; |
| DHCP settings | DHCP server; DHCP client; client list; static address assignment; |
| NAT settings | One-to-one NAT; NAPT; virtual server; port trigger; ALG service; DMZ host; |
| QoS | Bandwidth control; connection number limitation; connection number monitoring; |
| Safety management | ARP protection (IP/MAC binding, GARP) DoS type, suspicious packet attack protection; MAC address filtering; access strategy; |
| VPN | IPSec VPN; PPTP VPN; L2TP VPN |
| Behavior control | Application restrictions, QQ black and white lists; URL classification filtering; web page security; behavior audit; |
| system service | Dynamic DNS (Peanut Shell, 3322, Comay); UPnP; |
| Management and maintenance | Local Web management; remote management; traffic statistics; system logs; diagnostic tools (ping detection, routing detection), online detection; backup import and export; Web software upgrade; |
| Packaging accessories | 450M wireless advertising router TL-WVR450A; power adapter; installation manual, user manual; warranty card; |
| Use environment | Operating temperature: 0°C to 40°C; Storage temperature: -40°C to 70°C; Operating humidity: 10% to 90%RH non-condensing; Storage humidity: 5% to 90%RH non-condensing; |
