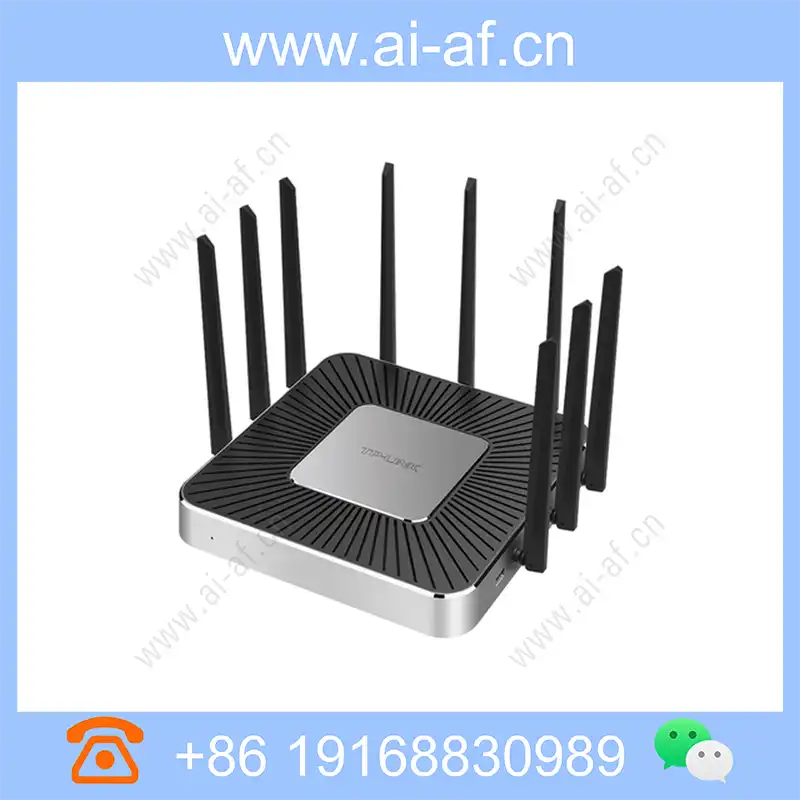

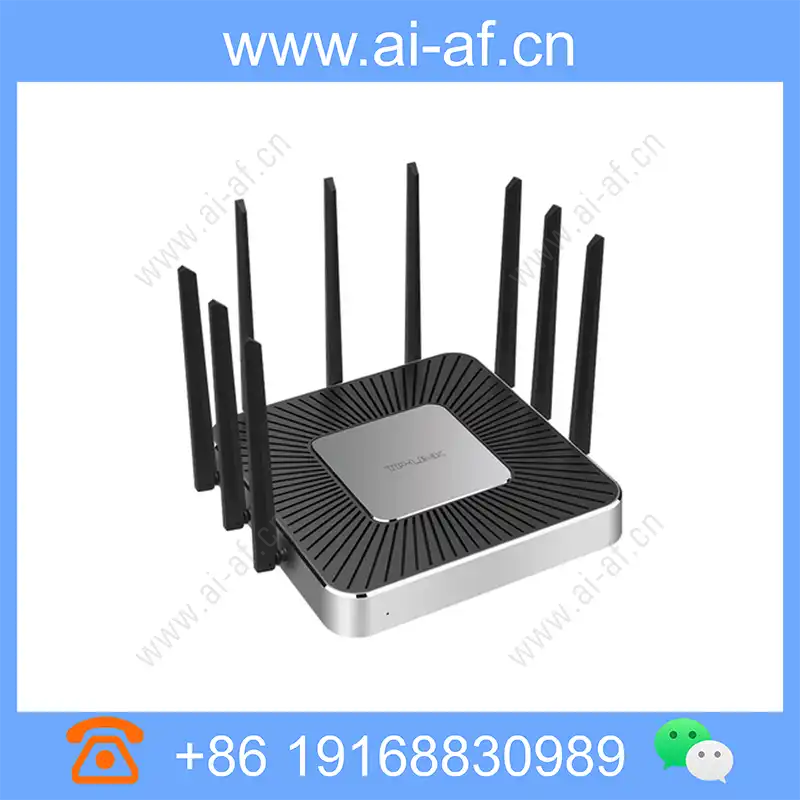

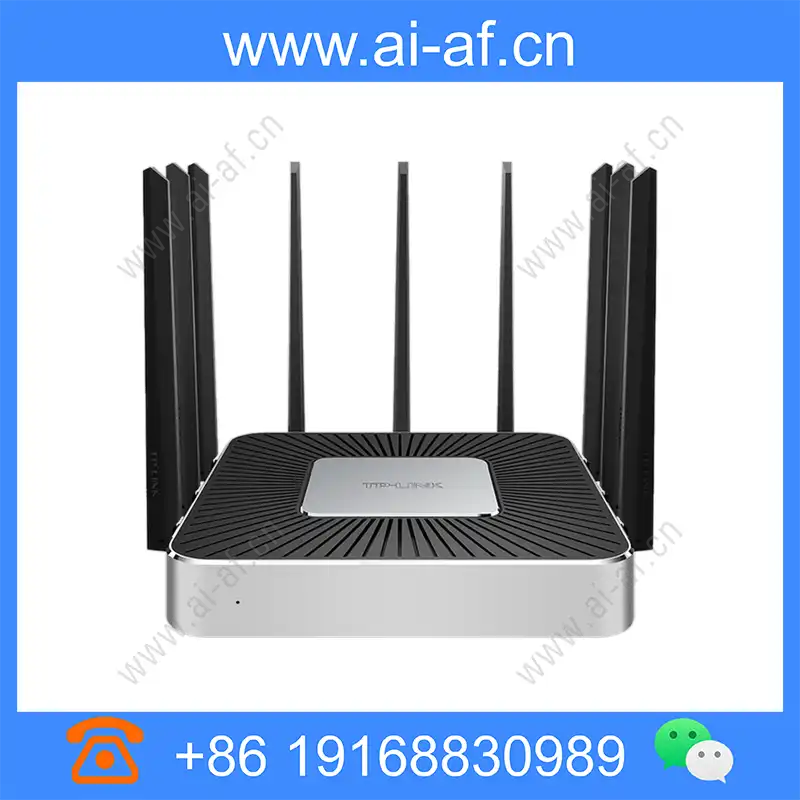

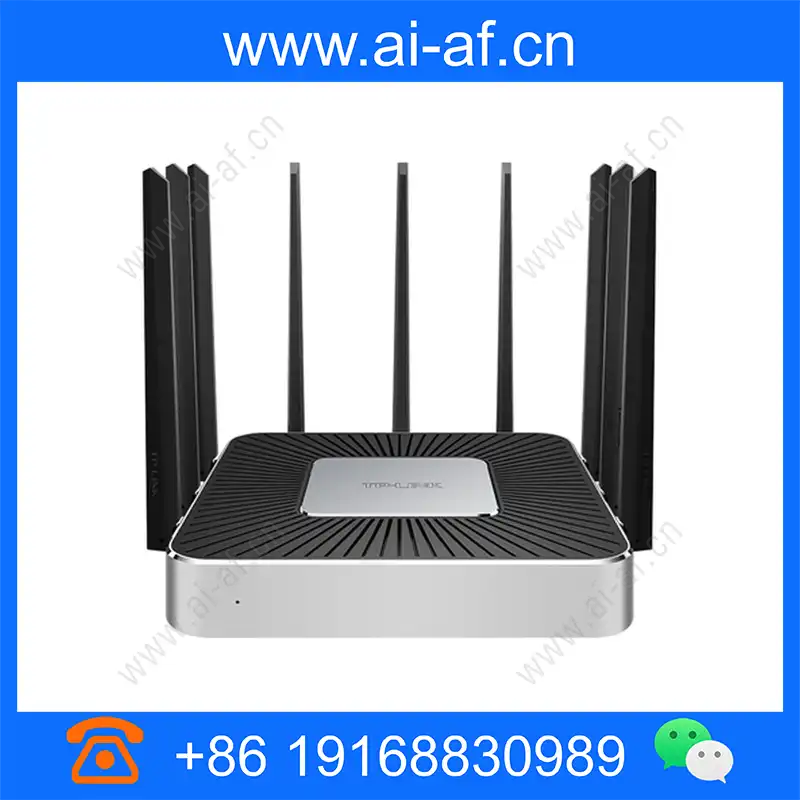

TP-LINK TL-WVR3200L AC3200 tri-band wireless VPN Router 5 ports with machine capacity 250 manage 10 APs
Brand: TP-LINK
Model: TL-WVR3200L
Dimensions: 263mm x 263mm x 47mm
11AC tri-band concurrent, maximum wireless rate up to 3200Mbps, higher capacity Enterprise-level performance, stable operation in multi-user/large-space/high-load environments 1 Gigabit WAN port, 1 Gigabit LAN port, 3 WAN/LAN Gigabit variable ports, support multiple broadband mixed access Supports enterprise-level software functions such as AP management, authentication, and DDNS Support IPSec, L2TP, PPTP multiple VPN functions to ensure user data security Support online behavior management such as application restrictions, website filtering, intelligent bandwidth, web page security, access control lists, etc. Support multiple network security functions such as ARP protection, Dos protection, scanning attack protection, etc. Support TP-LINK commercial network cloud platform/APP
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|

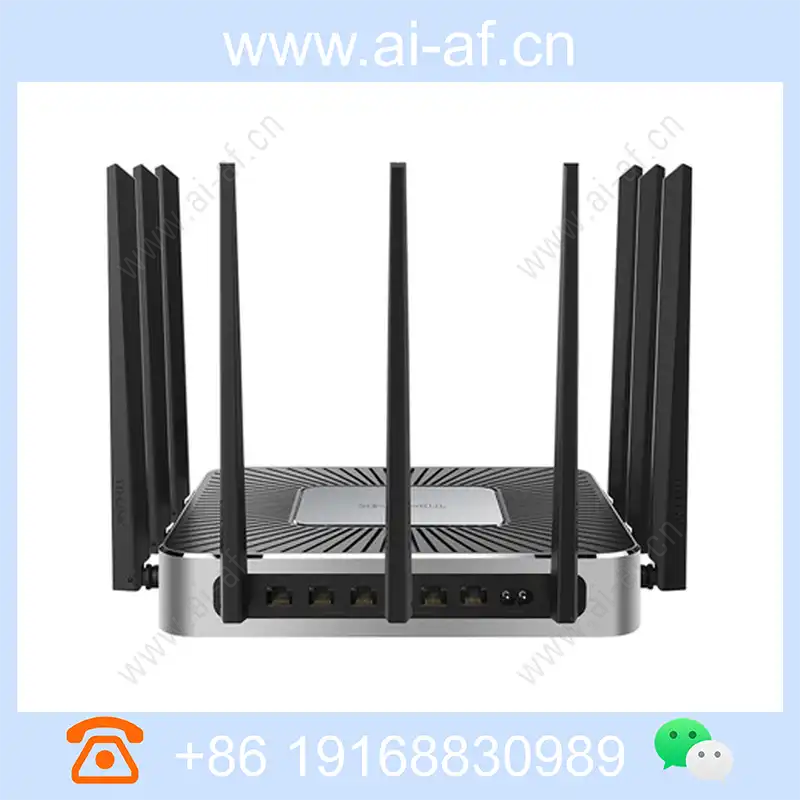

| port | 1 10/100/1000M RJ45 WAN port 3 10/100/1000M RJ45 WAN/LAN optional ports 1 10/100/1000M RJ45 LAN port 1 USB interface |
| Wireless rate | 2.4G:600Mbps 5G1:1300Mbps 5G2:1300Mbps |
| antenna | 3 2.4G 5Bi omniDirectional high gain antennas 6 5G 5Bi omniDirectional high gain antennas |
| Indicator light | Per port: Link/Act Per device: SYS |
| Dimensions | 263*263*47mm |
| Input power | 100~240V AC,50/60Hz |
| Cooling method | Thermally conductive silicone + natural heat dissipation |
| Use environment | Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing |
| Network protocol | TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS |
| WAN port settings | Connection method: dynamic IP, static IP, PPPoE MAC address: MAC address cloning, MAC address modification Balance mode: bandwidth balance, connection balance ISP routing |
| LAN port settings | DHCP server LAN port IP settings Client list Static address assignment |
| wireless setting | SSID broadcast Up to 19 Multi-SSIDs Support WPA, WPA2, WPA-PSK, WPA2-PSK wireless encryption Inter-SSID isolation, AP internal isolation, guest network Wireless bridging Wireless MAC address filtering Wireless host status |
| AP management | AP settings Wireless network settings AP database upgrade |
| Application control | Social software: WeChat/QQ/Web QQ/Fetion/Alibaba Want/TencentTM/Multiplay YY/Enterprise QQ/Momo/Sina Weibo/Zhuhu Video Software: Tencent Video/PPStream/PPTV/Quickcast/Fengxing/Pi Pi/UUSee/CNTV/iQiyi/Betta Live/Sohu Video/Youku Video Music Software: Kugou Music/Cool Music/QQ Music/Baidu Music/NetEase Cloud Music Shopping and Leisure Software: Mobile Jingdong/Taobao News Information Software : ZAKER/Toutiao/NetEase News P2P Software: Thunder and Thunder Look/Bit Comet/E-Donkey/QQ Tornado/FlashGet Financial Software: Straight Flush/Great Wisdom and Analyst/Qianlong/Compass/Securities Star/China Merchants Securities/ Galaxy Securities/Guotai Junan Securities/Yimeng Trader/Oriental Fortune/Huatai Securities Online Game: QQ Game/Thunder Game Box/Lianzhong World/Huofang Platform/Fantasy Westward Journey/World of Warcraft/Run Karting/QQ Farm App Store: PP Assistant/Pea The basic application of Pod/Application Po: HTTP/HTTPS/MMS/RTSP |
| Access control | Website grouping: website filtering, URL filtering File download: filtering specified file extension types Bandwidth limit: bandwidth allocation/connection number limit |
| Safety management | IP and MAC address binding, ARP protection, MAC address filtering, anti-DoS, scanning, and suspicious packets. |
| VPN | IPSec L2TP PPTP user management |
| Certification Management | Web authentication Authentication status Authentication user management |
| Advanced Features | Routing settings: policy routing/static routing/system routing NAT settings: NAPT/one-to-one NAT/ALG virtual server dynamic DNS UPnP IP traffic statistics port monitoring file sharing |
| Management and maintenance | Chinese Web network management, remote management configuration backup and import configuration system software upgrade online detection, ping, tracert diagnostic tool system log |
