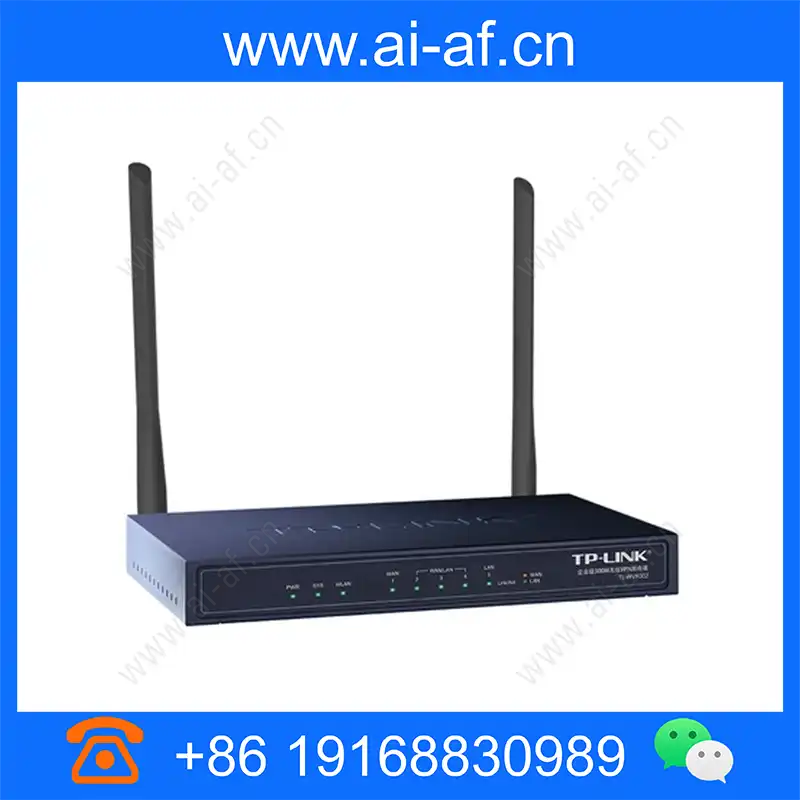

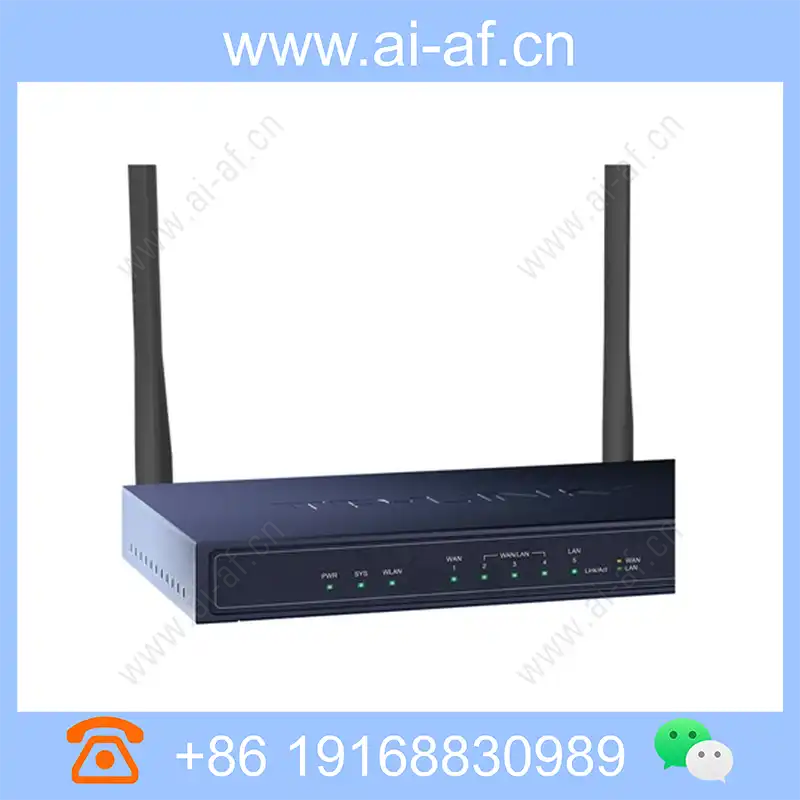

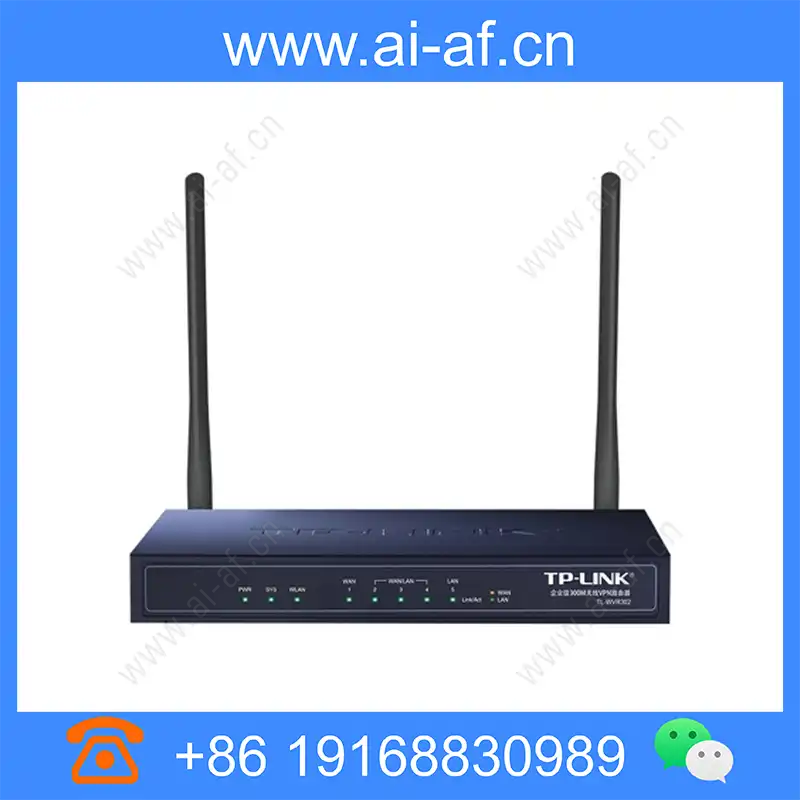

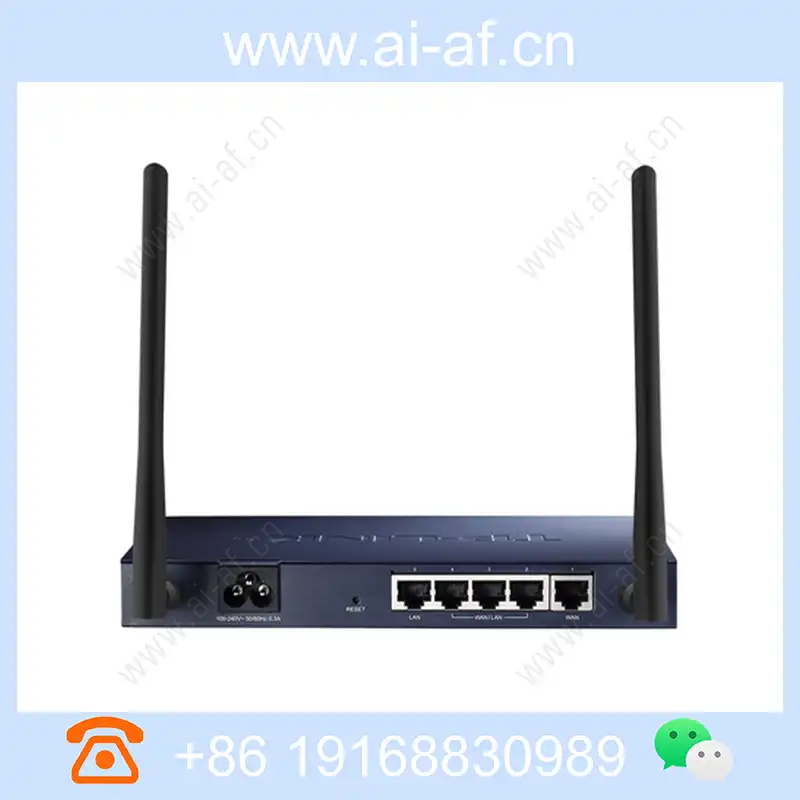

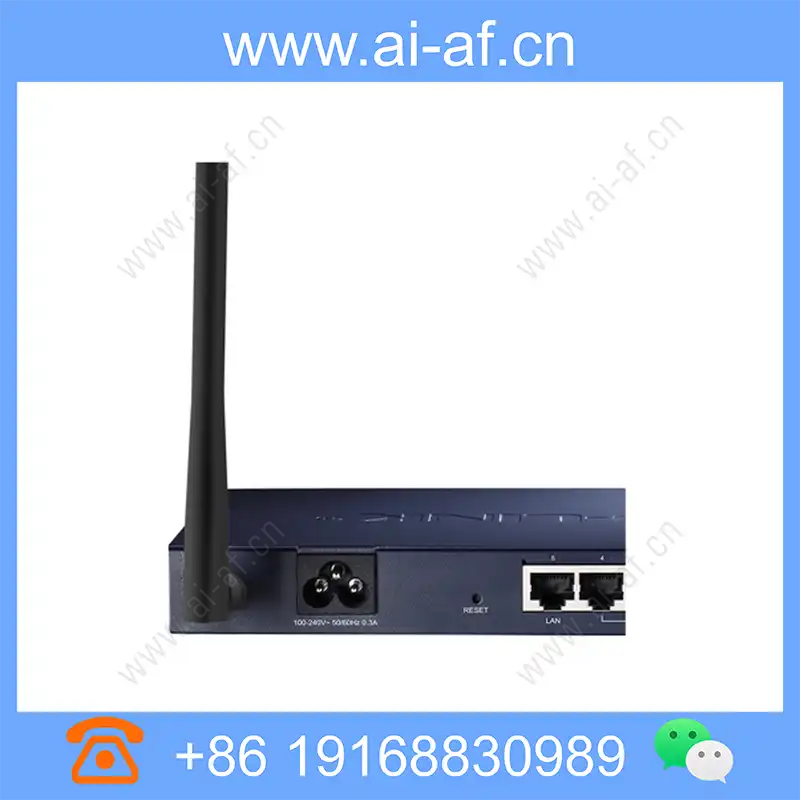

TP-LINK TL-WVR302 300M wireless VPN Router 5 ports with machine capacity 30 manage 10 APs
port 1 10/100M RJ45 fixed WAN port 3 10/100M RJ45 WAN/LAN variable ports 1 10/100M RJ45 fixed LAN port Wireless rate 300Mbps antenna 2 external 5dBi high gain omniDirectional antennas Indicator light Per port: Link/Act Per device: PWR, SYS, WLAN Dimensions 209(w)x126(D)x26(H) mm Input power 100~240V AC,50/60Hz Cooling method Natural cooling Use environment Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing Network protocol TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS Access method Dynamic IP, static IP, PPPoE, L2TP, PPTP LAN port settings DHCP server LAN port IP settings MAC address setting LAN / WAN port MAC address modification, WAN port MAC address cloning Switch settings
Technical Specifications
| Property Description | Property Value |
|---|---|
| port | 1 10/100M RJ45 fixed WAN port 3 10/100M RJ45 WAN/LAN variable ports 1 10/100M RJ45 fixed LAN port |
| Wireless rate | 300Mbps |
| antenna | 2 external 5dBi high gain omniDirectional antennas |
| Indicator light | Per port: Link/Act Per device: PWR, SYS, WLAN |
| Dimensions | 209(w)x126(D)x26(H) mm |
| Input power | 100~240V AC,50/60Hz |
| Cooling method | Natural cooling |
| Use environment | Operating temperature: 0°C~40°C, operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C, storage humidity: 5%~90%RH non-condensing |
| Network protocol | TCP/IP、DHCP、ICMP、NAT、PPPoE、SNTP、HTTP、DNS、H.323、SIP、DDNS |
| Access method | Dynamic IP, static IP, PPPoE, L2TP, PPTP |
| LAN port settings | DHCP server LAN port IP settings |
| MAC address setting | LAN / WAN port MAC address modification, WAN port MAC address cloning |
| Switch settings | Port statistics, port monitoring, port traffic limit Port Vlan |
| wireless function | SSID broadcast Support up to 4 Multi-SSID WDS wireless bridges Support WPA, WPA2, WPA-PSK, WPA2-PSK wireless encryption Inter-SSID isolation, AP internal isolation Wireless MAC address filtering |
| Transmission control | One-to-one NAT mapping, multi-segment NAT virtual server port trigger FTP ALG, H.323 ALG, SIP ALG, IPSEC ALG, PPTP ALG IP bandwidth control, connection number control, flow/connection number monitoring Maximum concurrent connections: 10000 Static routing |
| ARP protection | Support ARP scanning, ARP list, free GARP, support up to 50 IP MAC binding |
| Attack protection | Anti-DoS, Scanning, and Suspicious Packets |
| Access control | Support setting MAC address filtering black and white list Website filtering, URL filtering and access control list Support for prohibiting page submission and filtering specified file extension types |
| Application control | IM restrictions: QQ/Web QQ/MSN/ Fetion/Alibaba/Skype P2P restrictions: Thunder/Thunderbolt/bit comet/eMule/QQLive/PPStream/PPTV financial software restrictions: Great Wisdom/Analyst/Tonghuashun/Qianlong/ Compass/Star of Securities/China Merchants Securities/Guangfa Securities Game Restrictions: QQ Games/Thunder Games/Lianzhong World/Huofang Platform/Fantasy Westward Journey/World of Warcraft/Run Kart/Happy Farm/QQ Farm Basic Application Restrictions: http Submit/http/ https/mms/rtsp proxy limitation: http proxy/socks4 proxy/socks5 proxy QQ/MSN black and white list application feature database upgrade |
| VPN | 5 IPsec VPN tunnels 10 L2TP VPN tunnels 10 PPTP VPN tunnels |
| system service | Peanut shell dynamic DNS UPnP service |
| Management and maintenance | Chinese Web network management, CLI management, remote management Configuration backup and import configuration System software upgrade Interface traffic statistics, IP traffic statistics Online detection, ping, tracert diagnostic tool System logs |
