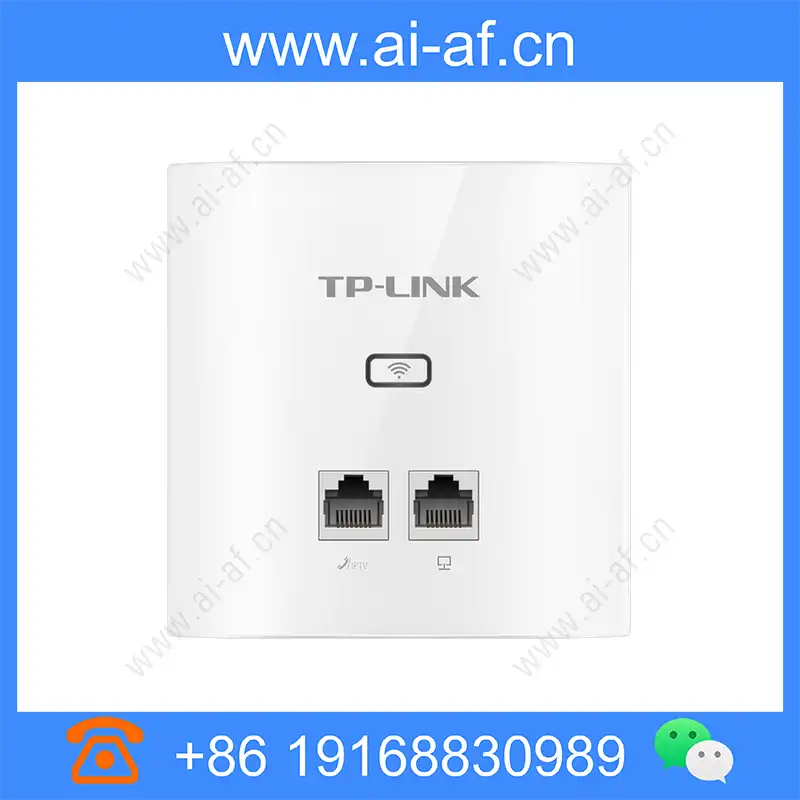

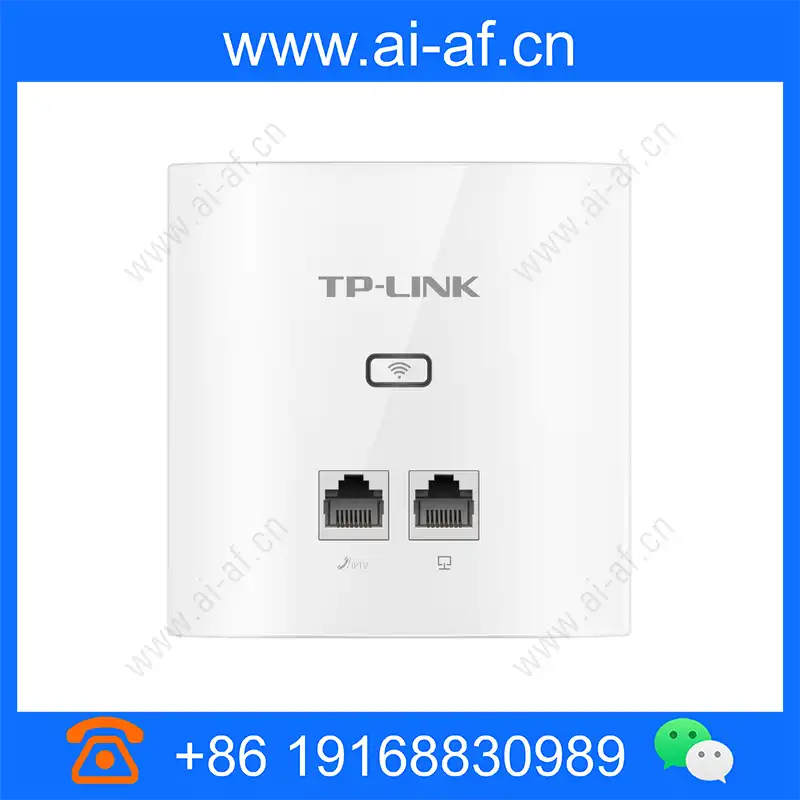

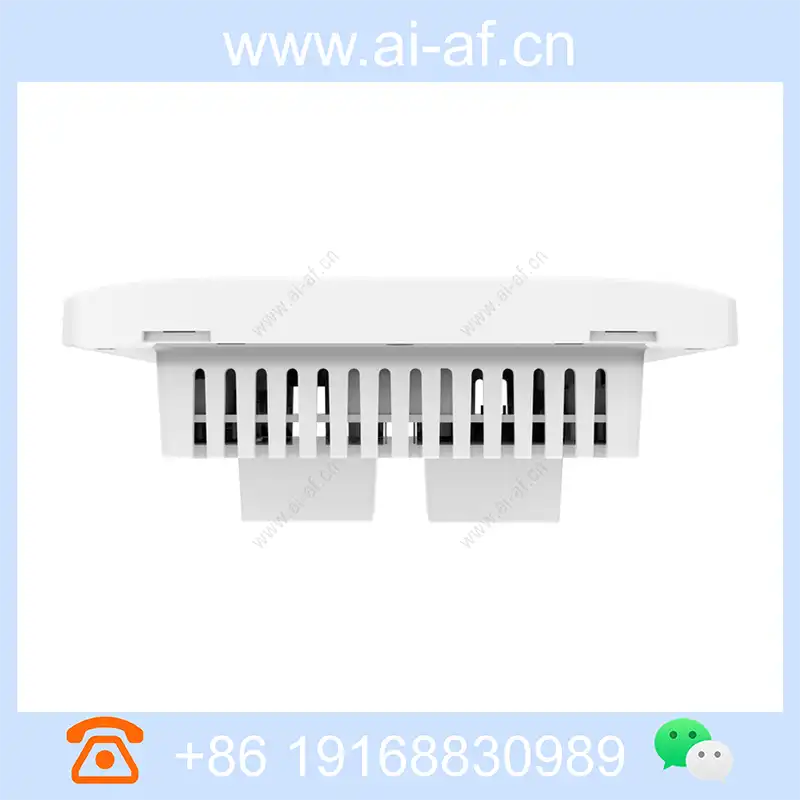

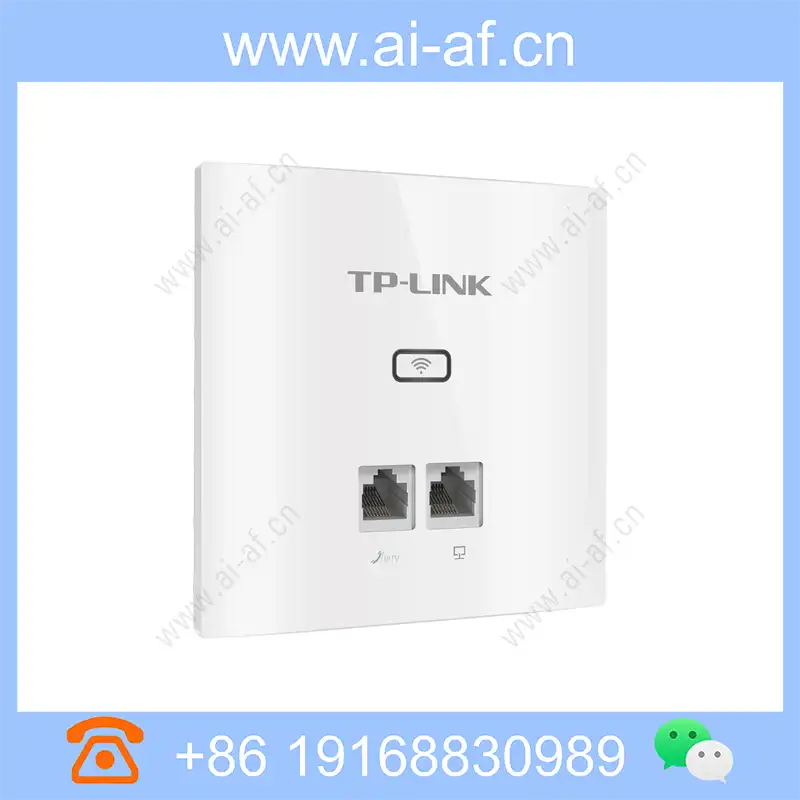

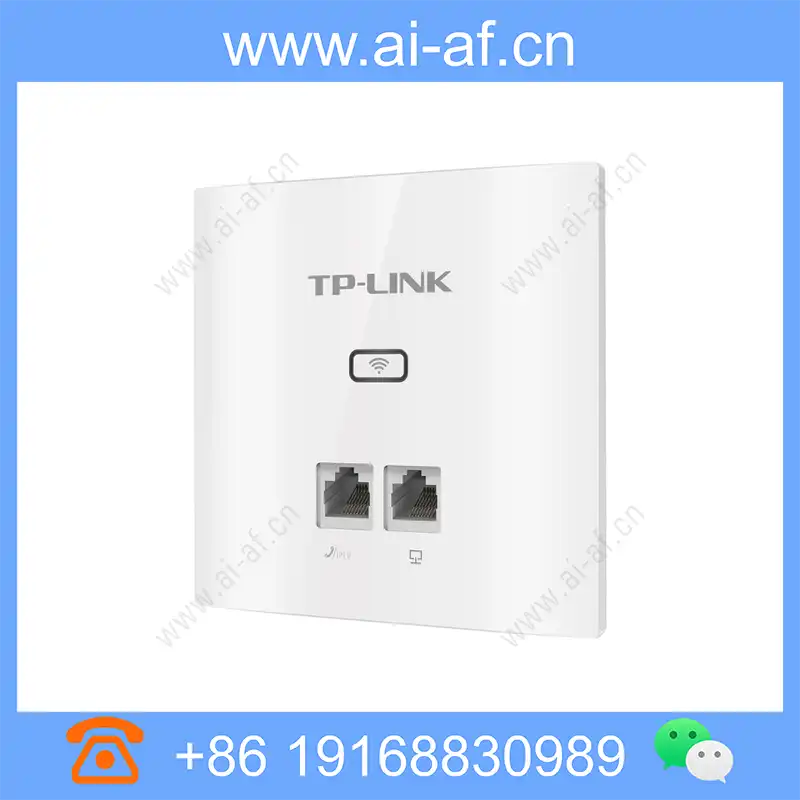

TP-LINK TL-AP300I-PoE thin section (square) 2.4GHz 300M single frequency wireless panel AP
11N wireless technology, 300Mbps wireless rate 86 type panel design, ultra-thin shell, stylish appearance WiFi/LED lights can be turned off 802.3af/at standard PoE network cable power supply, no external power supply required Support weak signal elimination, prohibit weak signal equipment access function Fat and thin, you can choose different modes according to different application environments Support TP-LINK business cloud APP remote view / management Product model TL-AP300I-PoE thin section (square) Installation method Install directly into national standard 86 type network connection cassette size 86*87.5*33mm wireless Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 300Mbps port Front: 2 10/100M RJ45 ports (one of which penetrates) Back: 2 10/100M RJ45 ports (of which
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP300I-PoE thin section (square) |
| Installation method | Install directly into national standard 86 type network connection cassette |
| size | 86*87.5*33mm |
| wireless | Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 300Mbps |
| port | Front: 2 10/100M RJ45 ports (one of which penetrates) Back: 2 10/100M RJ45 ports (of which one penetrates) |
| antenna | Built-in antenna |
| Indicator light | 1 system indicator |
| Button | 1 WiFi/LED/Reset multiplexing button 1 FAT/FIT mode toggle switch 1 Reset button |
| power supply | Standard PoE power supply |
| Maximum power consumption of the whole machine | 3.62W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID amount: 4 (support Chinese SSID) Number of network types: Guest network, host network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Wireless network isolation, AP internal isolation wireless MAC address Filtering: support whitelist VLAN settings: support SSID and Tag VLAN binding transmit power settings: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM prohibit weak signal equipment access: support to remove weak signal equipment: stand by |
| Maximum number of connectable clients | 16 |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
