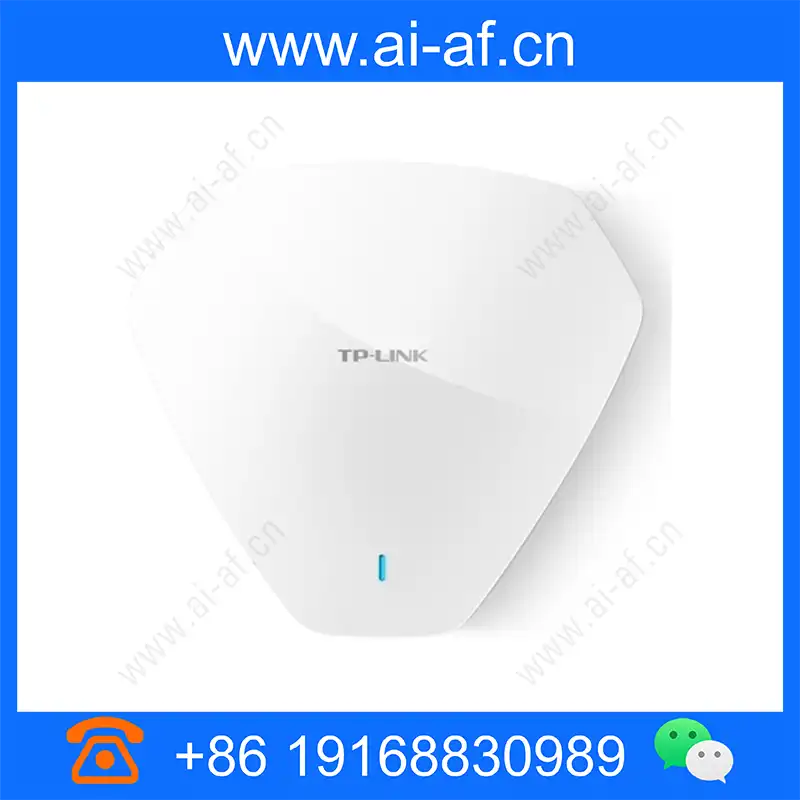

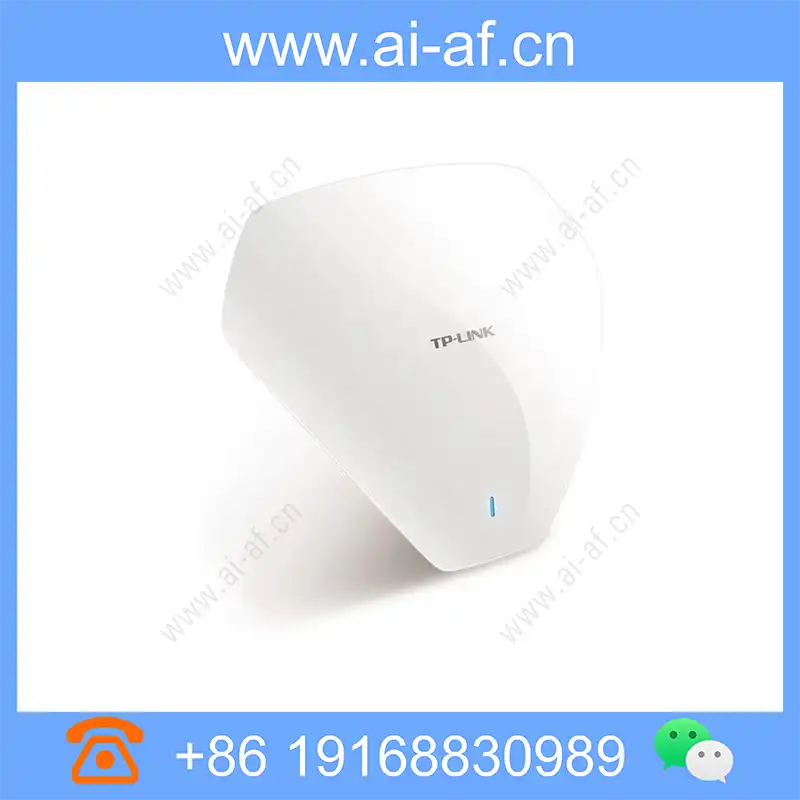

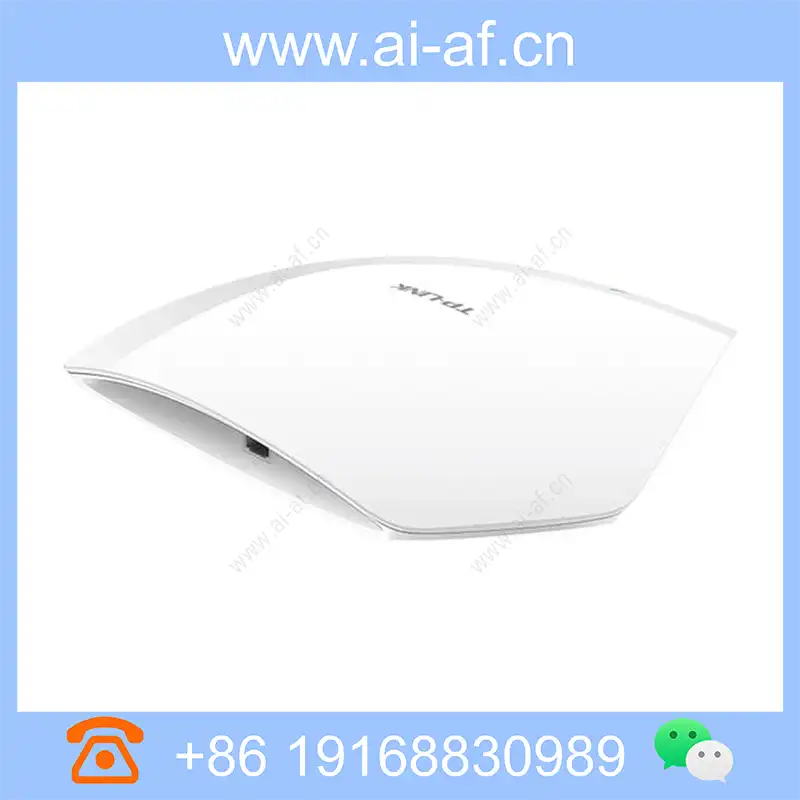

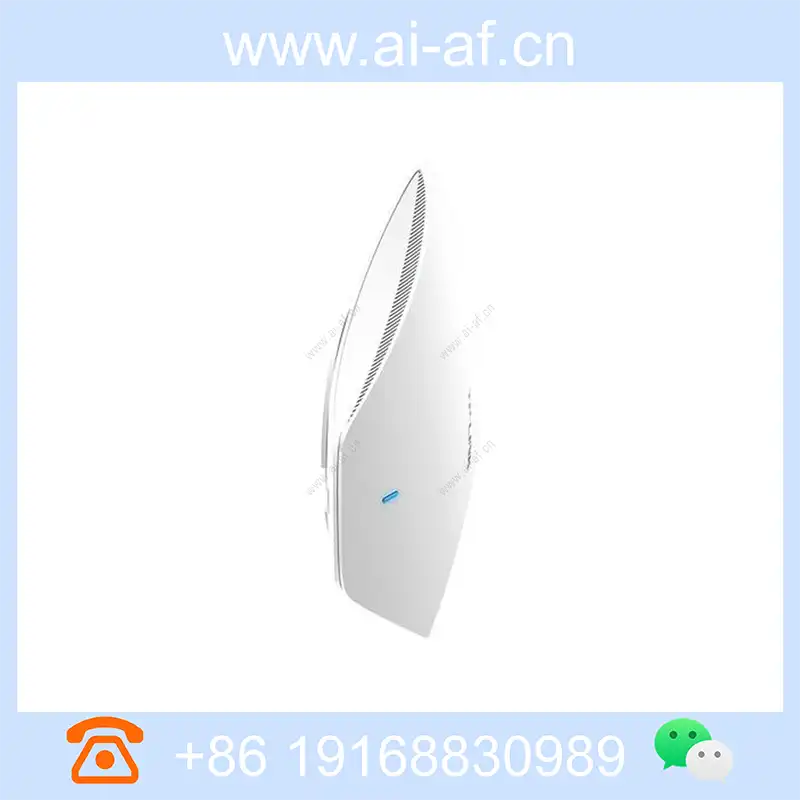

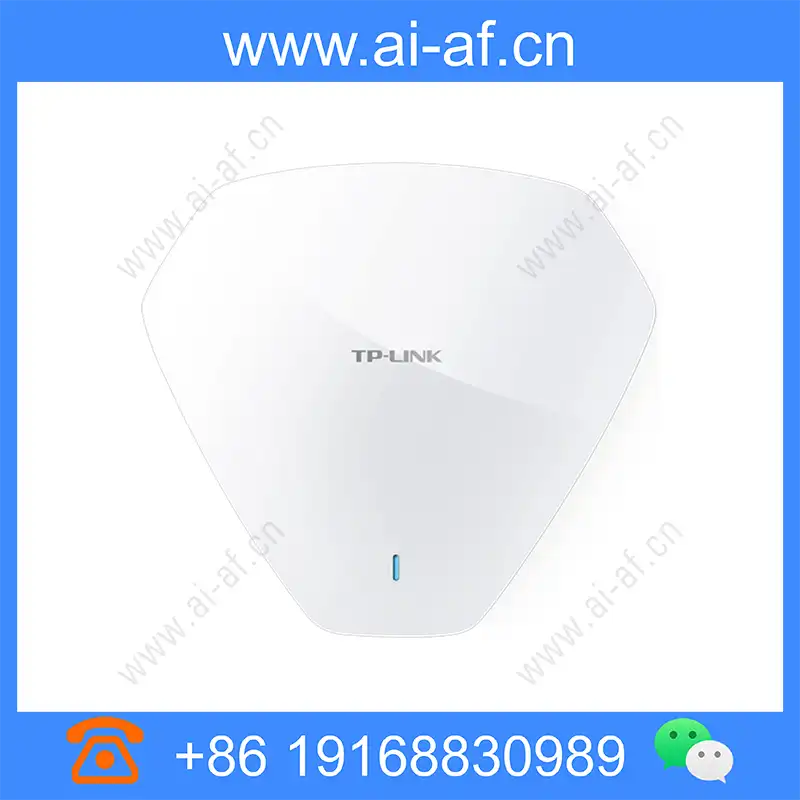

TP-LINK TL-AP300C-PoE 2.4GHz 300M single frequency wireless ceiling AP
11N wireless technology, 300Mbps wireless rate Built-in professional antenna to improve the signal quality of the coverage area The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Simple ceiling installation, 802.3af/at standard PoE network cable power supply Fat and thin, choose different working modes in different environments Support 8 SSIDs, easily divide the wireless network Built-in hardware watchdog circuit, easy maintenance Support TP-LINK Business Network Cloud Platform / Business Cloud App Remote View / Manage * Product model TL-AP300C-PoE 2.0/3.0 Installation method Ceiling installation size 264*241*55mm wireless Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 300Mbps port 1 10/100M RJ45 port Indicator
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP300C-PoE 2.0/3.0 |
| Installation method | Ceiling installation |
| size | 264*241*55mm |
| wireless | Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 300Mbps |
| port | 1 10/100M RJ45 port |
| Indicator light | 1 system indicator |
| Button | 1 Reset button 1 FAT/FIT mode toggle switch |
| Power supply | 802.3af/at standard PoE power supply |
| Maximum machine power consumption | 5.38W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (support Chinese SSID) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Wireless network isolation, AP internal isolation Wireless MAC address filtering : Support whitelist (50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM kick out weak signal devices, prohibit weak signal devices from connecting Entry: Support |
| Maximum number of connectable clients | 100 |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
