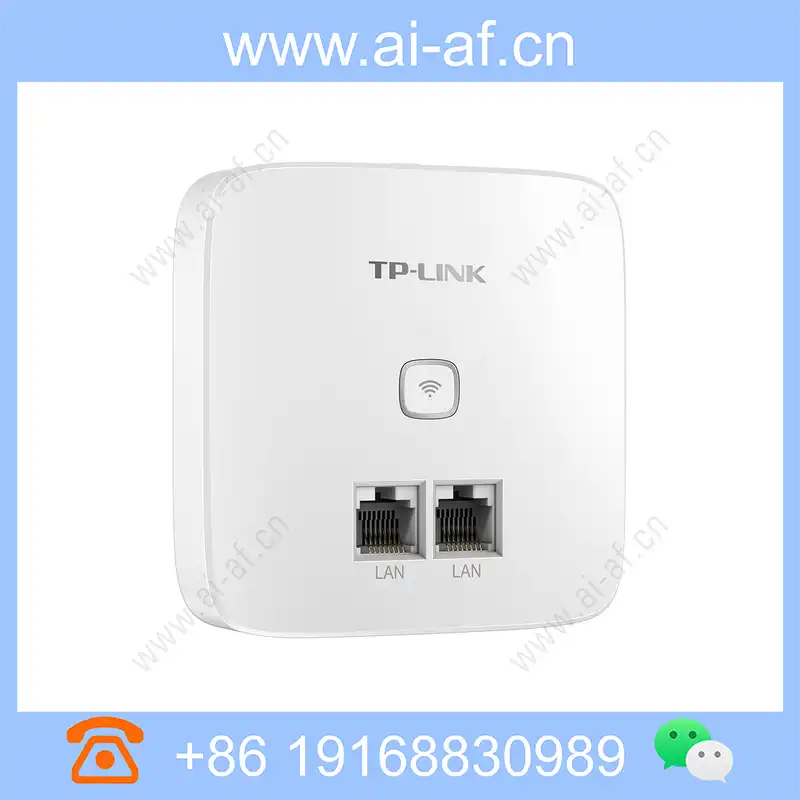

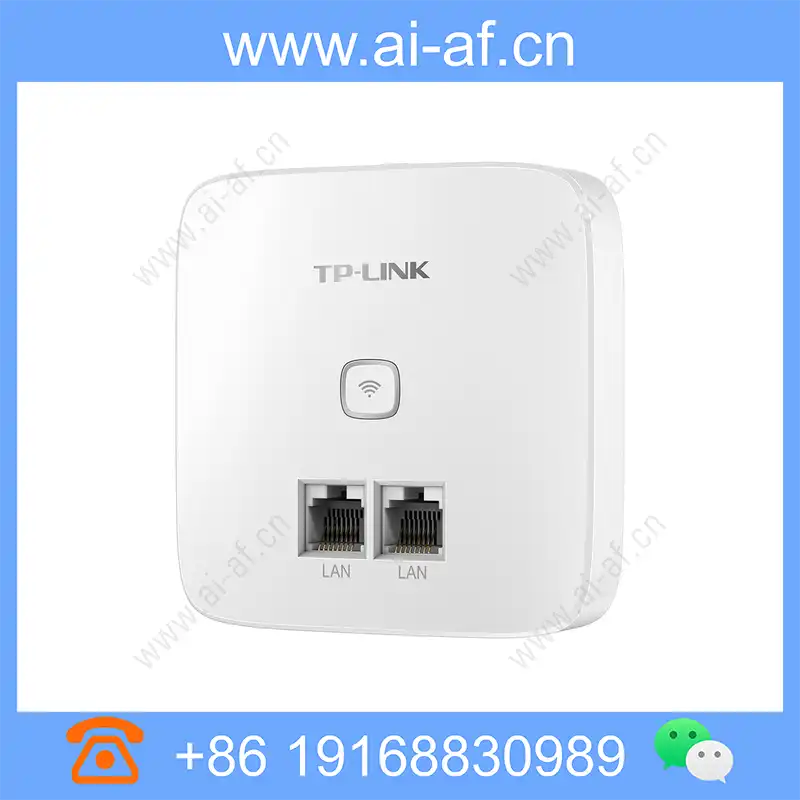

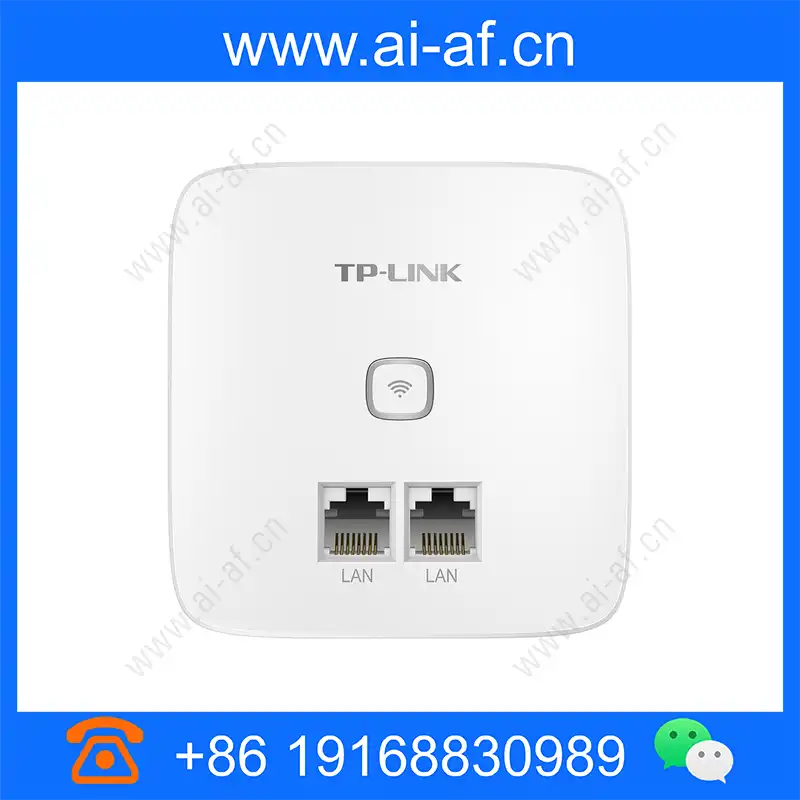

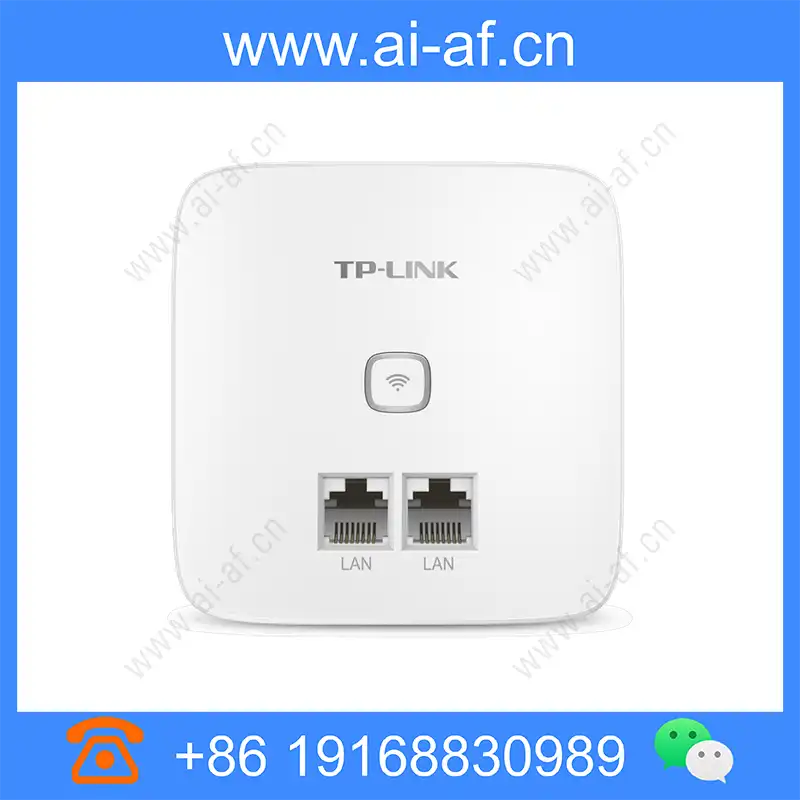

TP-LINK TL-AP300S-DC 2.4GHz 300M single frequency wireless panel AP
11N wireless technology, 300Mbps wireless rate Fat and thin, choose different modes according to different environments 86 type panel design, directly installed into 86 type network connection cassette 9VDC/0.6A power adapter for power supply, no additional PoE switch is needed, and the networking cost is low RJ45 and RJ11 ports are used on the back to make installation easier Automatic channel selection, linear power adjustable Support up to 8 SSIDs, set different SSIDs for different network permissions Support TP-LINK business cloud APP remote view / management Product model TL-AP300S-DC Installation method Install directly into national standard 86 type network connection cassette size 86*86*34mm wireless Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 300Mbps port
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP300S-DC |
| Installation method | Install directly into national standard 86 type network connection cassette |
| size | 86*86*34mm |
| wireless | Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 300Mbps |
| port | Front: 2 10/100M RJ45 ports, 1 DC port |
| antenna | Built-in antenna |
| Indicator light | 1 system indicator |

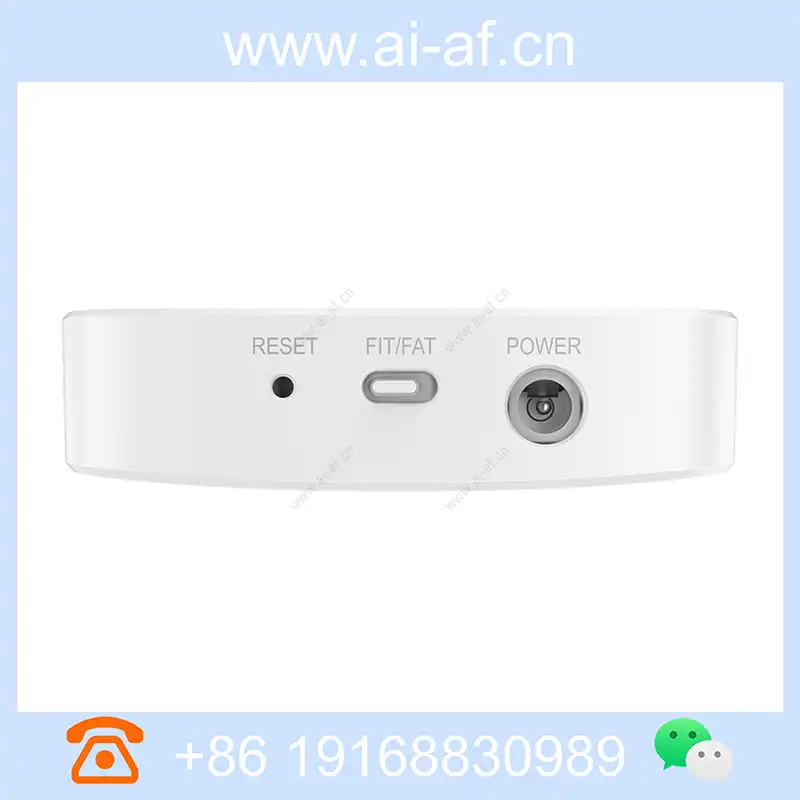

| Button | 1 Reset button 1 FAT/FIT mode toggle switch |
| power supply | 9VDC/0.6A |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 4 (support Chinese SSID) Network type: host network, guest network Wireless encryption: WEP, WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: wireless network isolation, AP internal isolation wireless MAC Address filtering: support whitelist VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM |
| Maximum number of connectable clients | 16 |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
