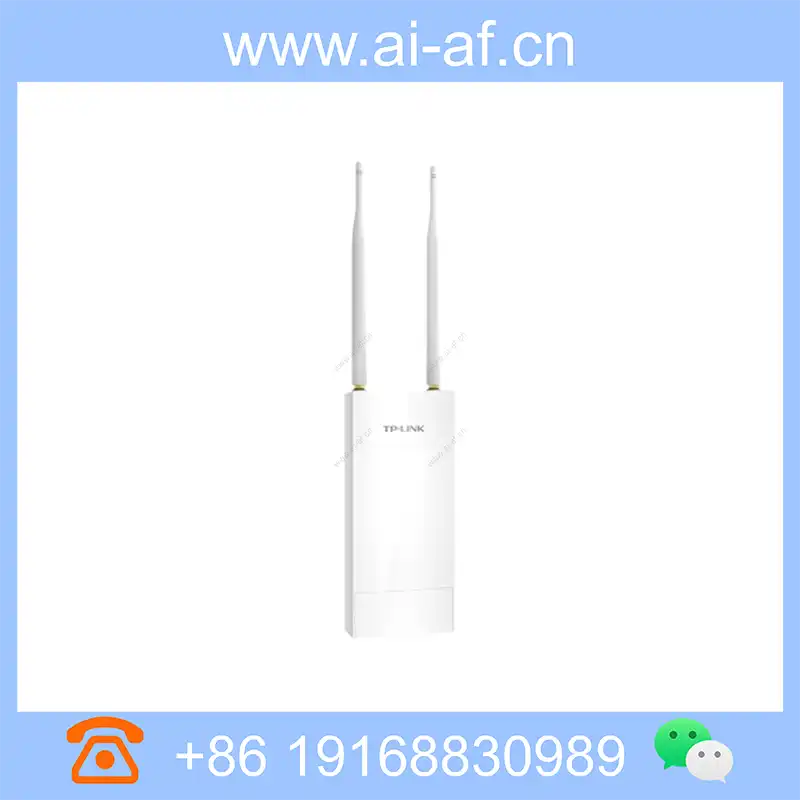

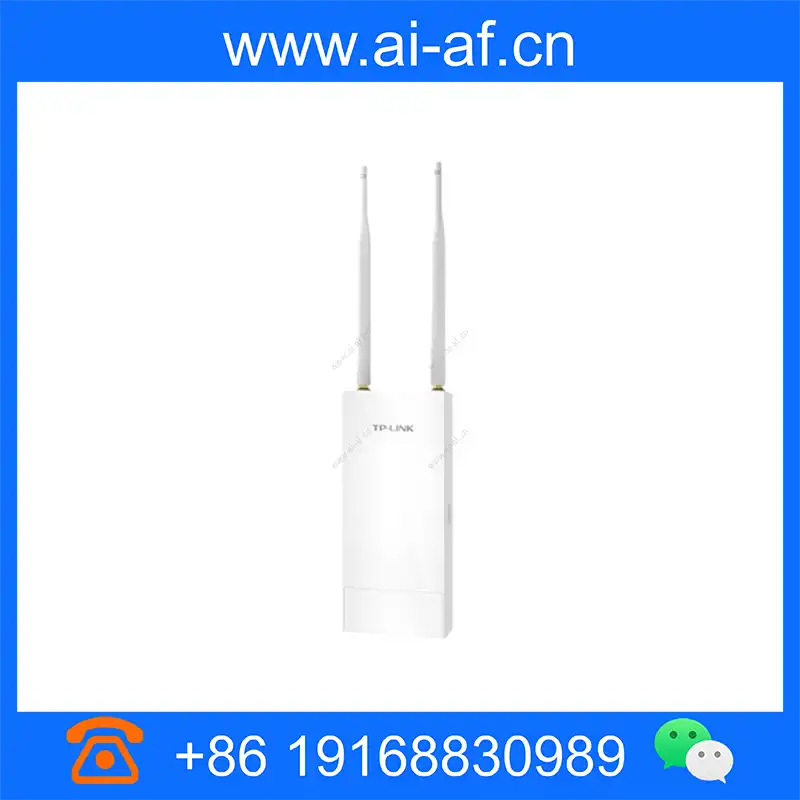

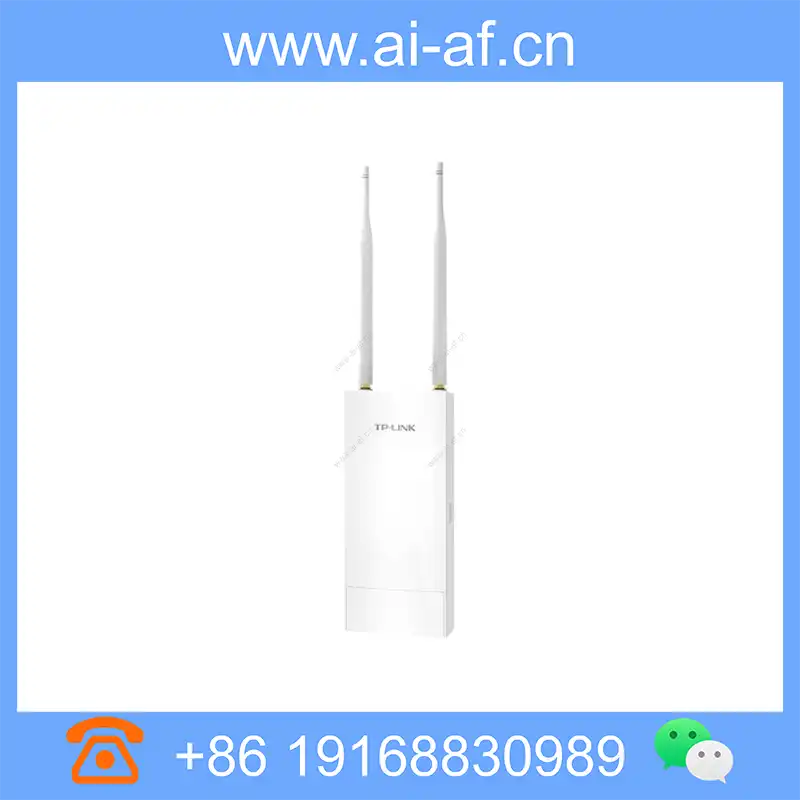

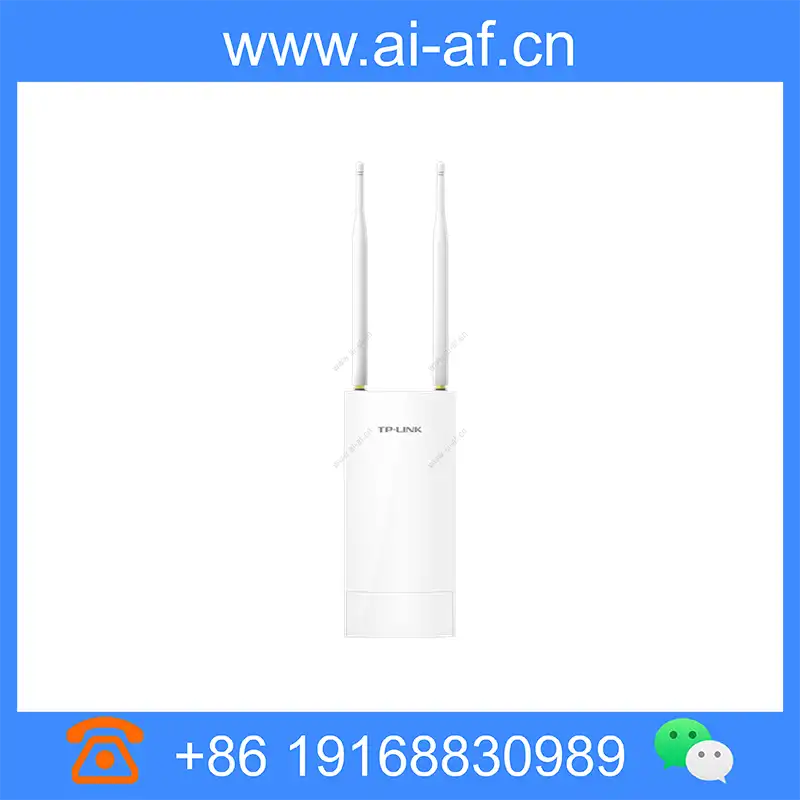

TP-LINK TL-AP301P 2.4GHz 300M single frequency outdoor high power wireless AP

Brand: TP-LINK

Model: TL-AP301P

Dimensions: 209mm x 95mm x 43mm

300M wireless, external 5dBi omniDirectional waterproof antenna, outdoor professional omniDirectional wireless coverage Professional outdoor shell design, adapt to various harsh environments Independent radio frequency circuit design, improve signal transmission and reception performance, better adapt to outdoor long-distance, wide-range wireless coverage Automatic selection of suitable channels, smooth and stable network Linear adjustable power, effectively reducing mutual interference between APs Automatically remove weak signal devices to avoid dragging the entire network and improve wireless network performance Independent hardware protection circuit can automatically recover abnormal AP Up to 8 SSIDs can be set, supporting dual-code Chinese SSIDs, stylish and practical Passive PoE

Product Features

300M wireless, external 5dBi omniDirectional waterproof antenna, outdoor professional omniDirectional wireless coverage

Professional outdoor shell design, adapt to various harsh environments

Independent radio frequency circuit design, improve signal transmission and reception performance, better adapt to outdoor long-distance, wide-range wireless coverage

Automatic selection of suitable channels, smooth and stable network

Linear adjustable power, effectively reducing mutual interference between APs

Automatically remove weak signal devices to avoid dragging the entire network and improve wireless network performance

Independent hardware protection circuit can automatically recover abnormal AP

Up to 8 SSIDs can be set, supporting dual-code Chinese SSIDs, stylish and practical

Passive PoE network cable power supply, flexible deployment

Pole/wall installation, flexible and simple

Fat and thin integrated, wireless networks of different sizes can be efficiently managed

Technical Specifications

Property Description	Property Value
Product model	TL-AP301P
Installation method	Pole / wall mounting
size	2099543mm
wireless	Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 300Mbps

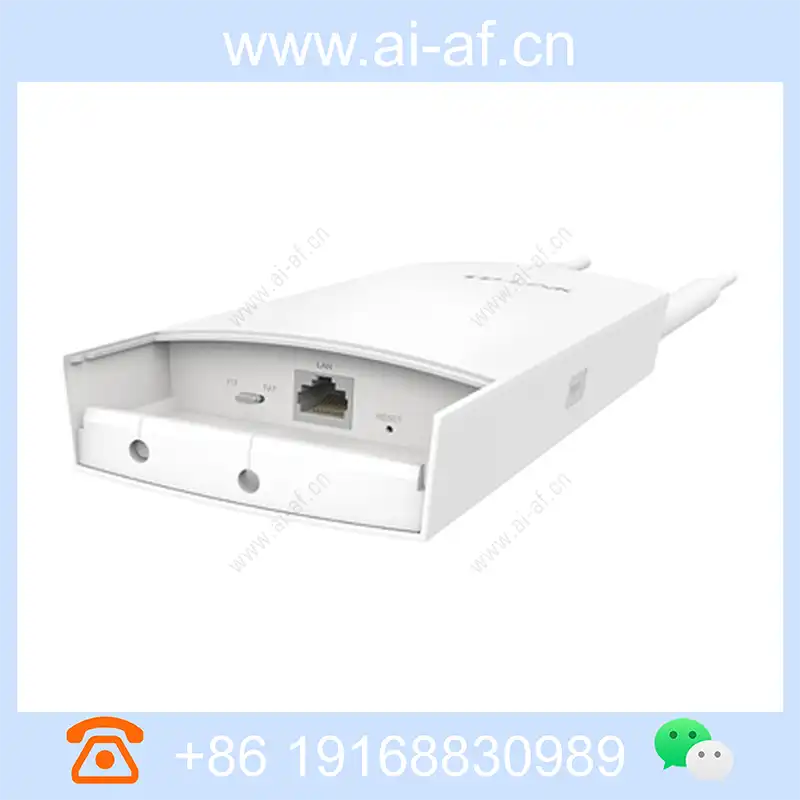

port	1 10/100Mbps RJ45 port
antenna	5dBi omniDirectional detachable waterproof antenna
Antenna coverage angle	360°
Indicator light	1 system indicator
Button	1 RESET button 1 FAT/FIT mode toggle switch
power supply	24VDC / 0.7A Passive PoE power supply, power supply distance up to 60M
management	FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management
Environmental protection	ASA engineering plastic casing, IP65 dustproof and waterproof
Use environment	Operating temperature: -30°C~70°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing
wireless function	SSID broadcast: Support SSID quantity: 8 (support Chinese SSID) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Wireless network isolation, AP internal isolation Wireless MAC address filtering : Support whitelist (50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM kick out weak signal devices, prohibit weak signal devices from connecting Entry: Support
Maximum number of connectable clients	100
System Management	Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support
