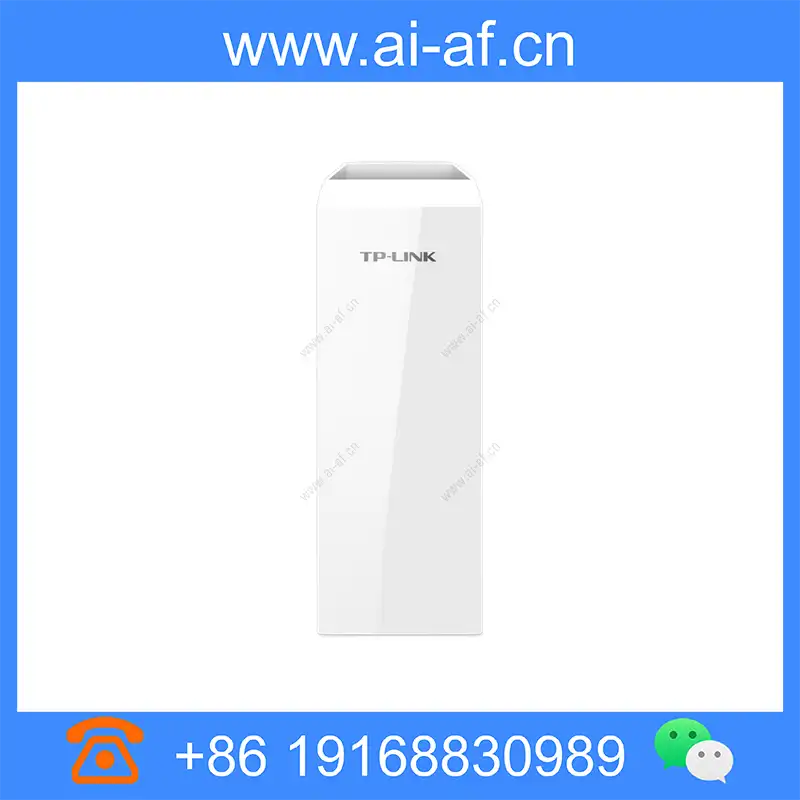

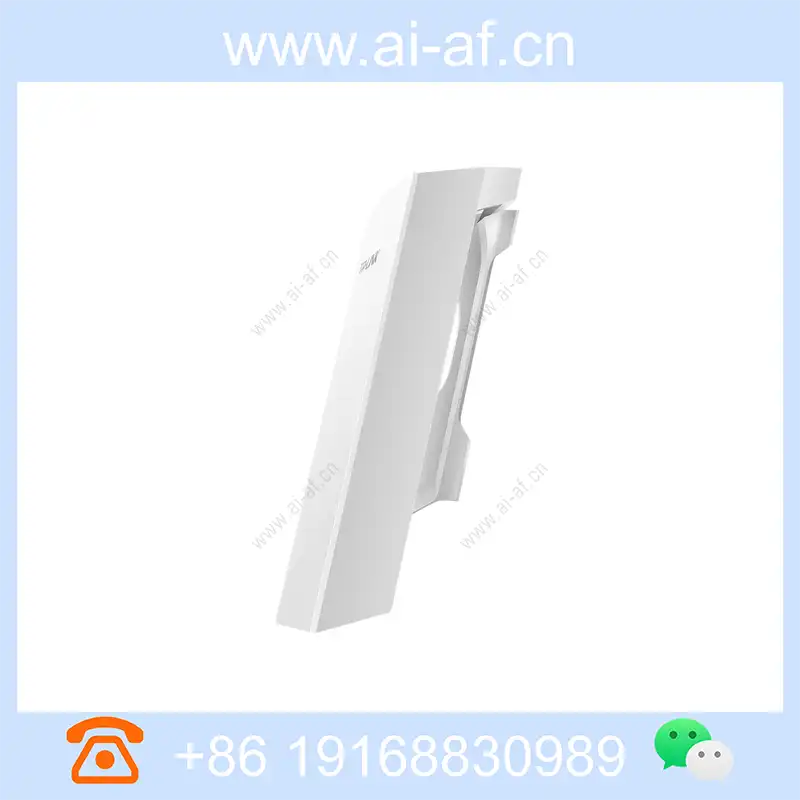

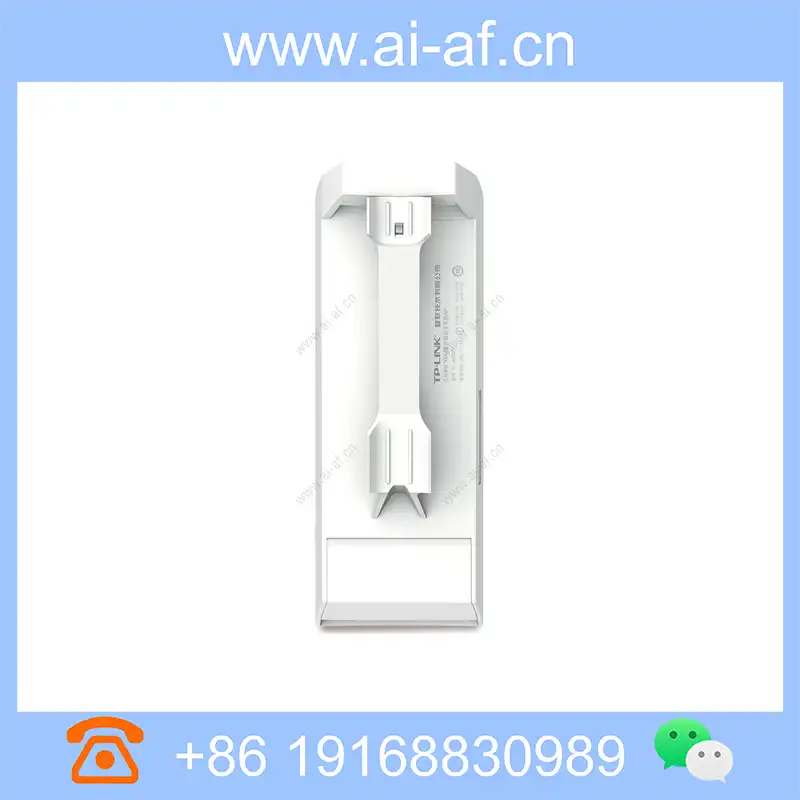

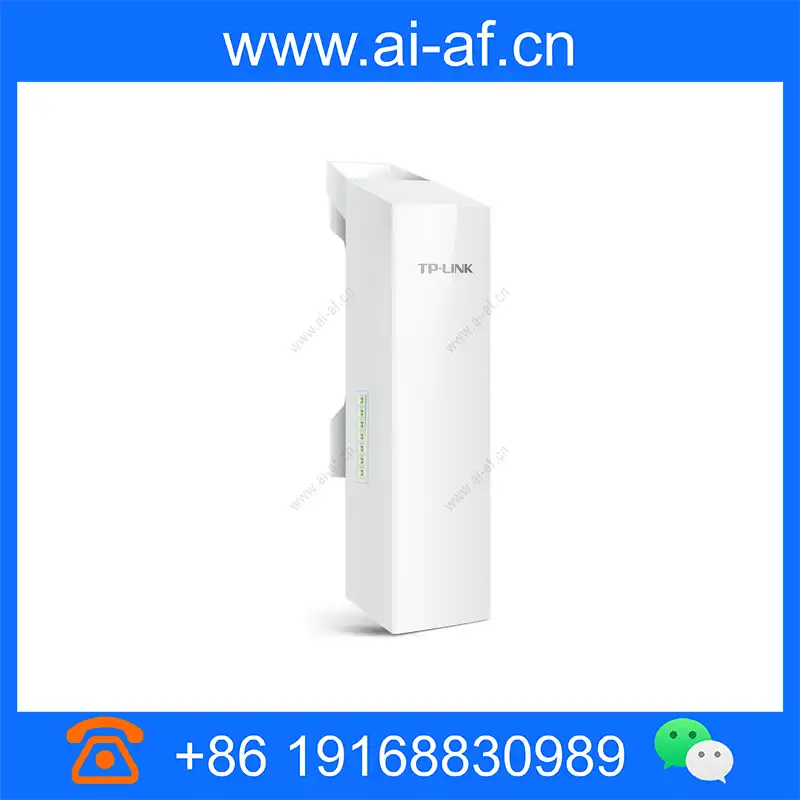

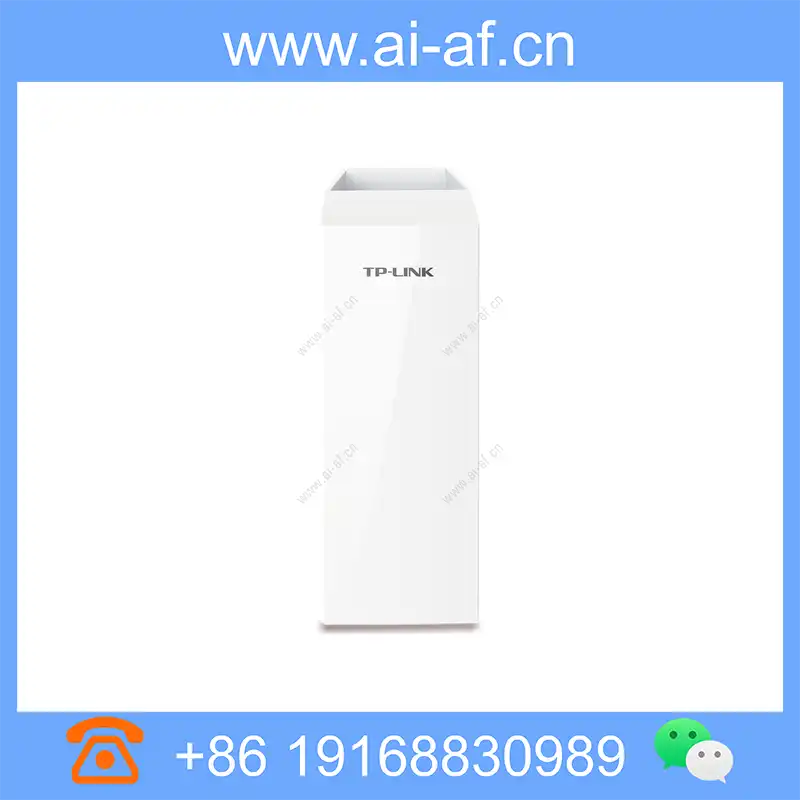

TP-LINK TL-AP300P 2.4GHz 300M single frequency outdoor high power wireless AP
300M wireless, built-in high-gain dual-polarized antenna, providing high-performance wireless Professional outdoor shell design, adapt to various harsh environments Passive PoE network cable power supply, flexible deployment Automatic channel selection, linear power adjustable, adapt to different networking environments Support 8 SSIDs, easily divide the wireless network Unified management by TP-LINK wireless controller (AC), simple maintenance Product model TL-AP300P Installation method Pole mounting size 224*79*60mm wireless Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 300Mbps port 1 10/100Mbps shielded RJ45 port (LAN0/POE) 1 10/100Mbps shielded RJ45 port (LAN1) antenna Built-in 9dBi dual-polarized antenna Antenna coverage angle Horizontal Direction: 65° Vertical
Product Features |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP300P |
| Installation method | Pole mounting |
| size | 224*79*60mm |
| wireless | Working frequency band: 2.4GHz-2.483GHz (China) Wireless speed: 300Mbps |
| port | 1 10/100Mbps shielded RJ45 port (LAN0/POE) 1 10/100Mbps shielded RJ45 port (LAN1) |
| antenna | Built-in 9dBi dual-polarized antenna |
| Antenna coverage angle | Horizontal Direction: 65° Vertical Direction: 35° |
| Indicator light | PWR、LAN0、LAN1、FIT、FAT、RESET |
| Button | 1 SET button (RESET and FAT / FIT mode switching multiplex button) |
| power supply | 24VDC / 1A Passive PoE power supply, power supply distance up to 60M |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Environmental protection | 6kV lightning protection, 15kV ESD protection ASA engineering plastic shell, IP55 dustproof and waterproof |
| Use environment | Operating temperature: -30°C~70°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (support Chinese SSID) Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Wireless network isolation, AP internal isolation Wireless MAC address filtering : Support whitelist (50) VLAN setting: support SSID and Tag VLAN binding transmit power setting: support 1dBm linear adjustment WDS function: support wireless client number limit: support QoS: WMM |
| Maximum number of connectable clients | 100 |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
