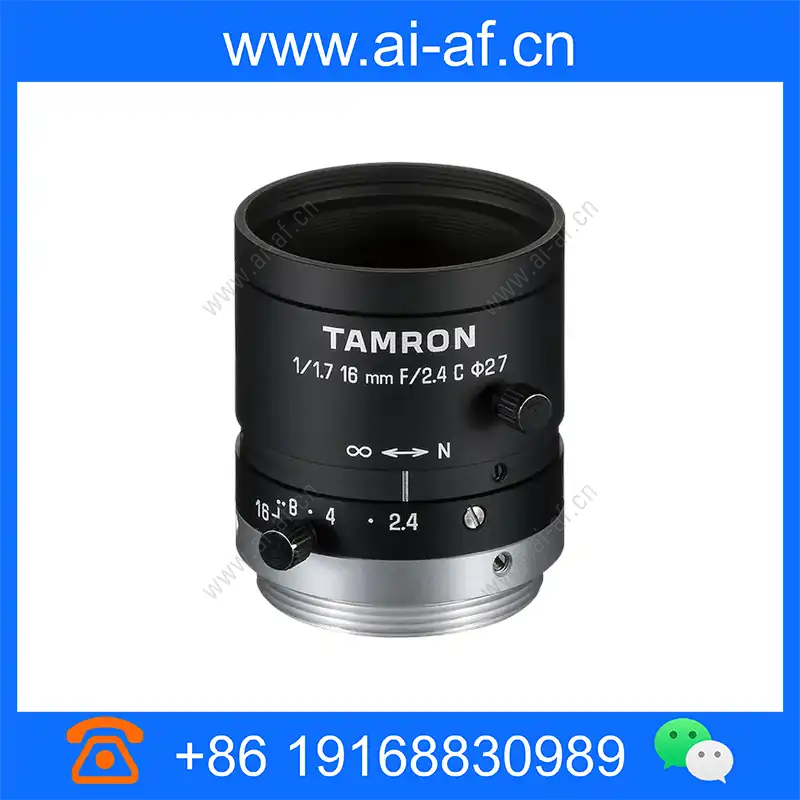

TAMRON M117FM16 1/1.7" 16mm F/2.4-16 Manual Iris FA and Machine Vision Lens C Mount

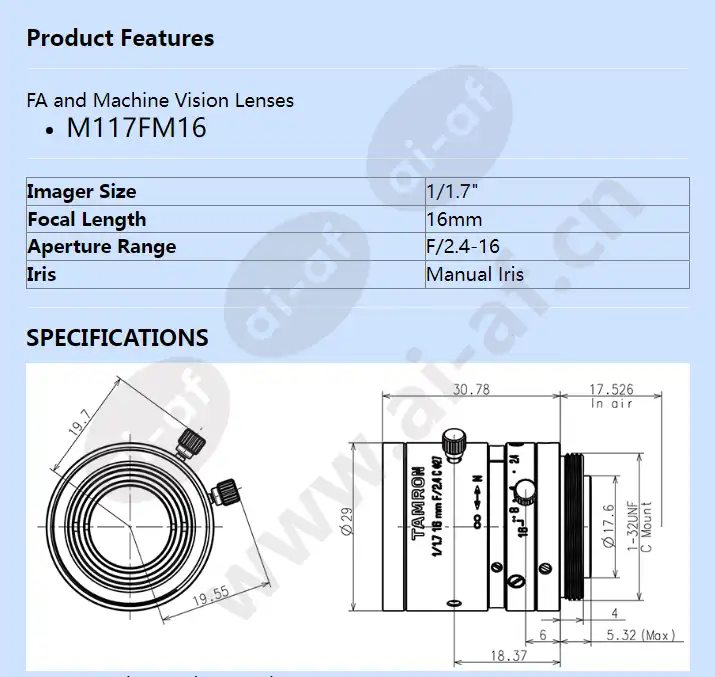

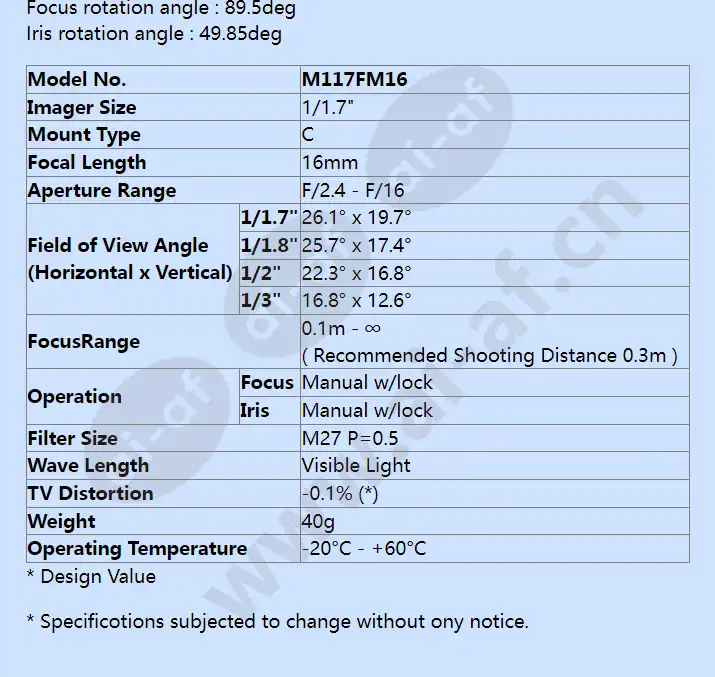

FA and Machine Vision Lenses M117FM16 Imager Size 1/1.7" Focal Length 16mm Aperture Range F/2.4-16 Iris Manual Iris SPECIFICATIONS Focus rotation angle : 89.5deg Iris rotation angle : 49.85deg Model No. M117FM16 Imager Size 1/1.7" Mount Type C Focal Length 16mm Aperture Range F/2.4 - F/16 Field of View Angle (Horizontal x Vertical) 1/1.7" 26.1° x 19.7° 1/1.8" 25.7° x 17.4° 1/2" 22.3° x 16.8° 1/3" 16.8° x 12.6° FocusRange 0.1m - ∞ ( Recommended Shooting Distance 0.3m ) Operation Focus Manual w/lock Iris Manual w/lock Filter Size M27 P=0.5 Wave Length Visible Light TV Distortion -0.1% (*) Weight 40g Operating Temperature -20°C - +60°C * Design Value * Specificotions subjected to change without ony notice.
