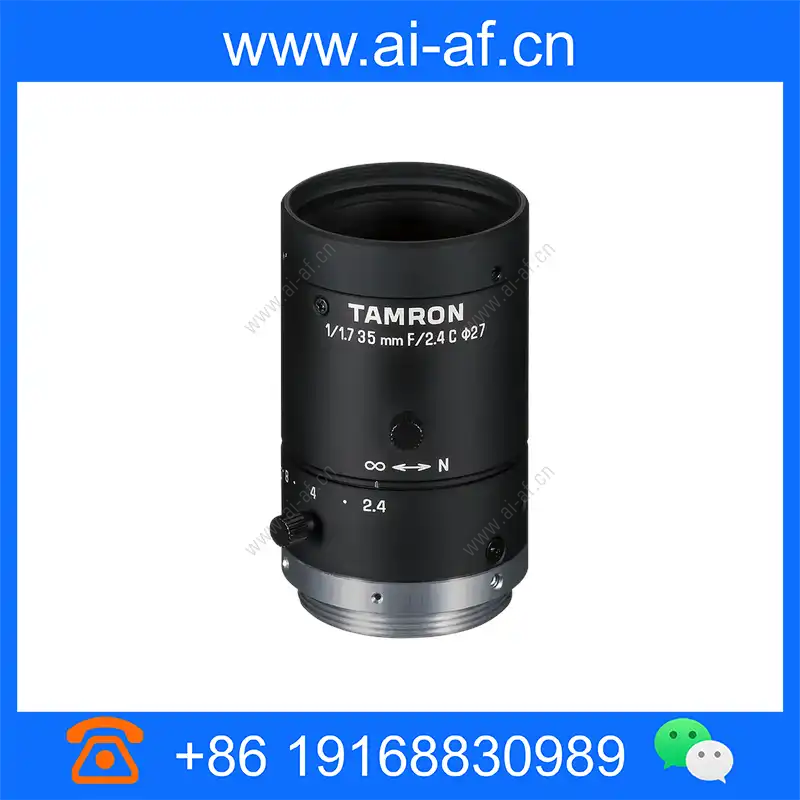

TAMRON M117FM35 1/1.7" 35mm F/2.4-16 Manual Iris FA and Machine Vision Lens C Mount

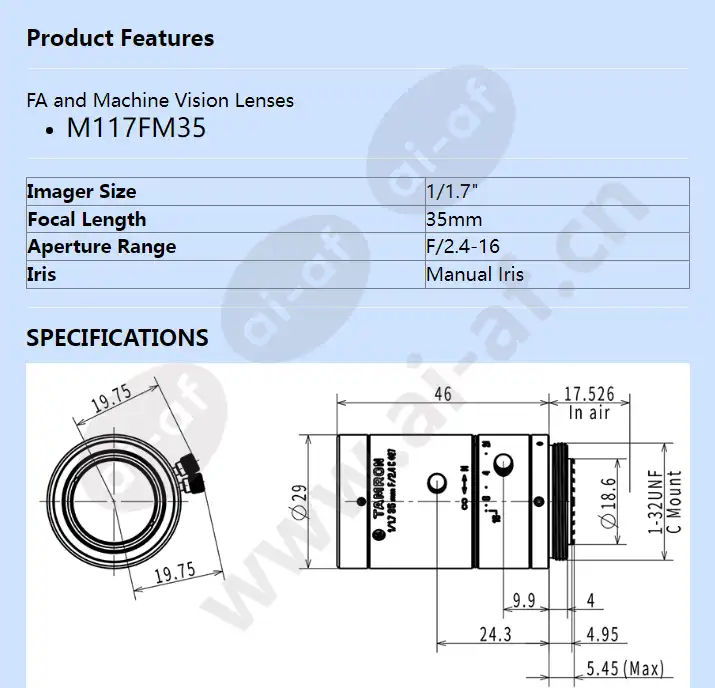

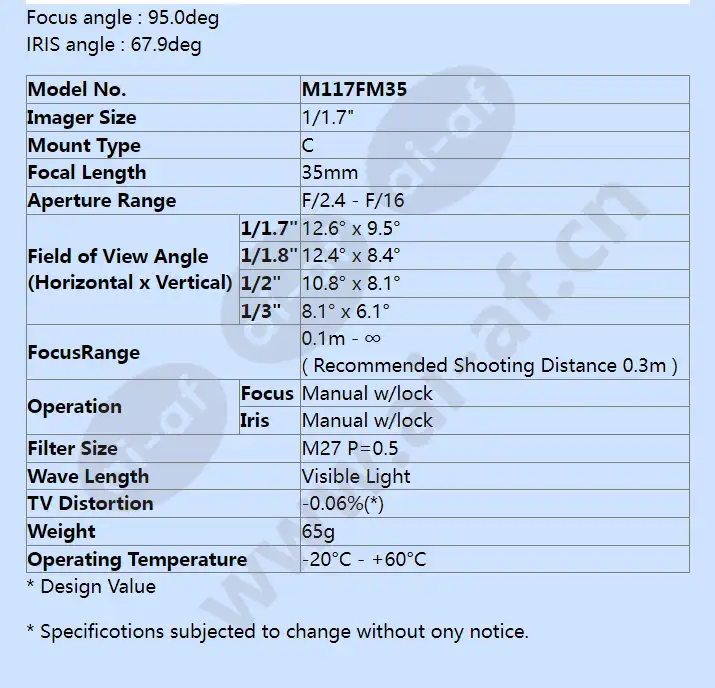

FA and Machine Vision Lenses M117FM35 Imager Size 1/1.7" Focal Length 35mm Aperture Range F/2.4-16 Iris Manual Iris SPECIFICATIONS Focus angle : 95.0deg IRIS angle : 67.9deg Model No. M117FM35 Imager Size 1/1.7" Mount Type C Focal Length 35mm Aperture Range F/2.4 - F/16 Field of View Angle (Horizontal x Vertical) 1/1.7" 12.6° x 9.5° 1/1.8" 12.4° x 8.4° 1/2" 10.8° x 8.1° 1/3" 8.1° x 6.1° FocusRange 0.1m - ∞ ( Recommended Shooting Distance 0.3m ) Operation Focus Manual w/lock Iris Manual w/lock Filter Size M27 P=0.5 Wave Length Visible Light TV Distortion -0.06%(*) Weight 65g Operating Temperature -20°C - +60°C * Design Value * Specificotions subjected to change without ony notice.
