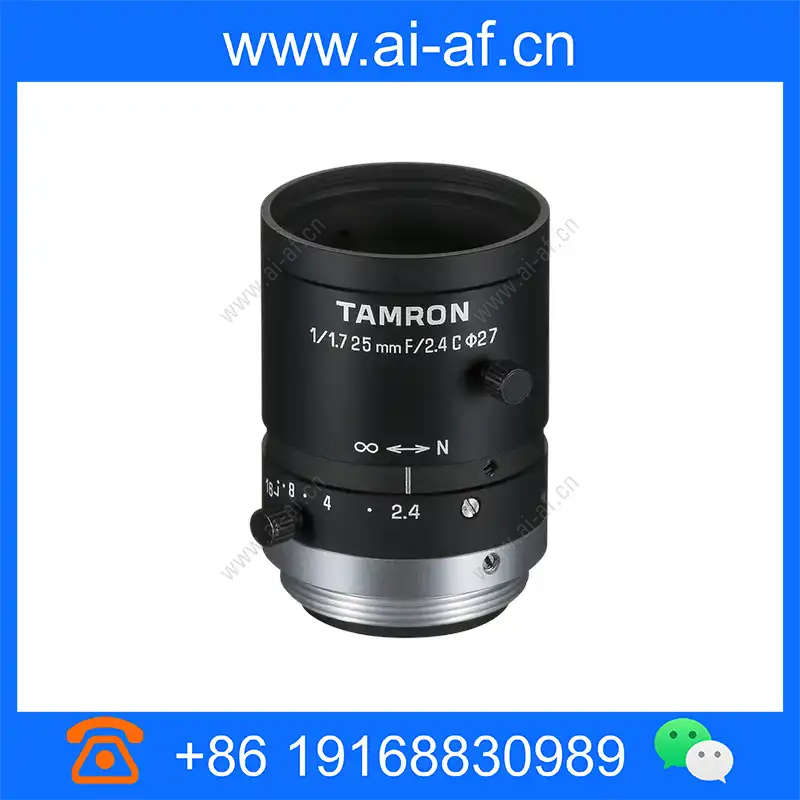

TAMRON M117FM25 1/1.7" 25mm F/2.4-16 Manual Iris FA and Machine Vision Lens C Mount

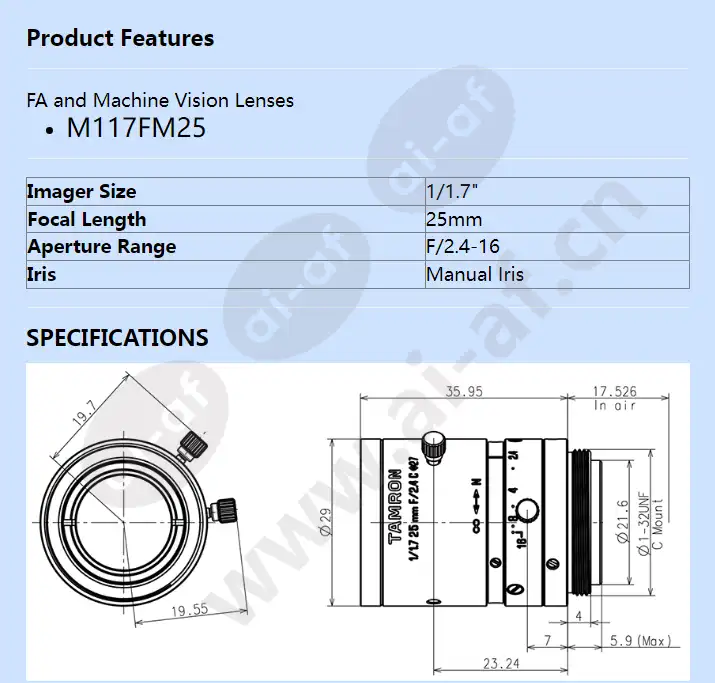

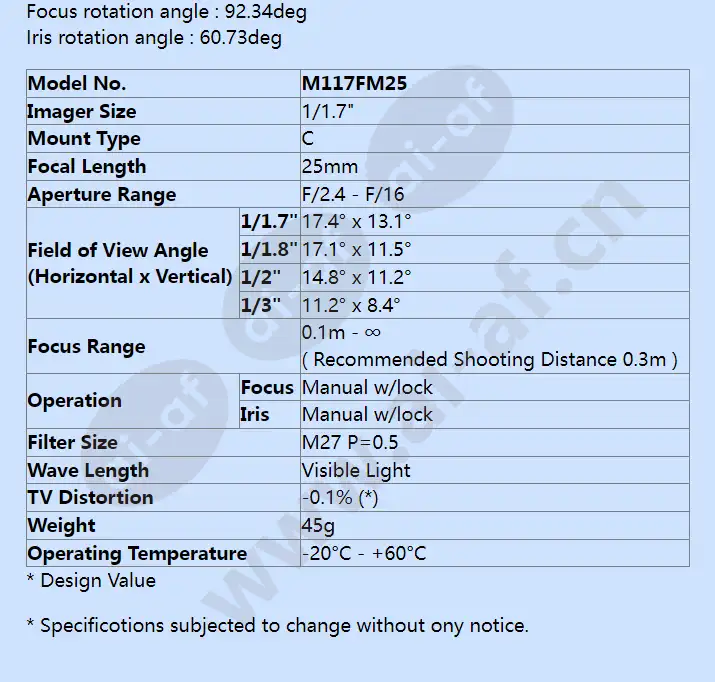

FA and Machine Vision Lenses M117FM25 Imager Size 1/1.7" Focal Length 25mm Aperture Range F/2.4-16 Iris Manual Iris SPECIFICATIONS Focus rotation angle : 92.34deg Iris rotation angle : 60.73deg Model No. M117FM25 Imager Size 1/1.7" Mount Type C Focal Length 25mm Aperture Range F/2.4 - F/16 Field of View Angle (Horizontal x Vertical) 1/1.7" 17.4° x 13.1° 1/1.8" 17.1° x 11.5° 1/2" 14.8° x 11.2° 1/3" 11.2° x 8.4° Focus Range 0.1m - ∞ ( Recommended Shooting Distance 0.3m ) Operation Focus Manual w/lock Iris Manual w/lock Filter Size M27 P=0.5 Wave Length Visible Light TV Distortion -0.1% (*) Weight 45g Operating Temperature -20°C - +60°C * Design Value * Specificotions subjected to change without ony notice.
