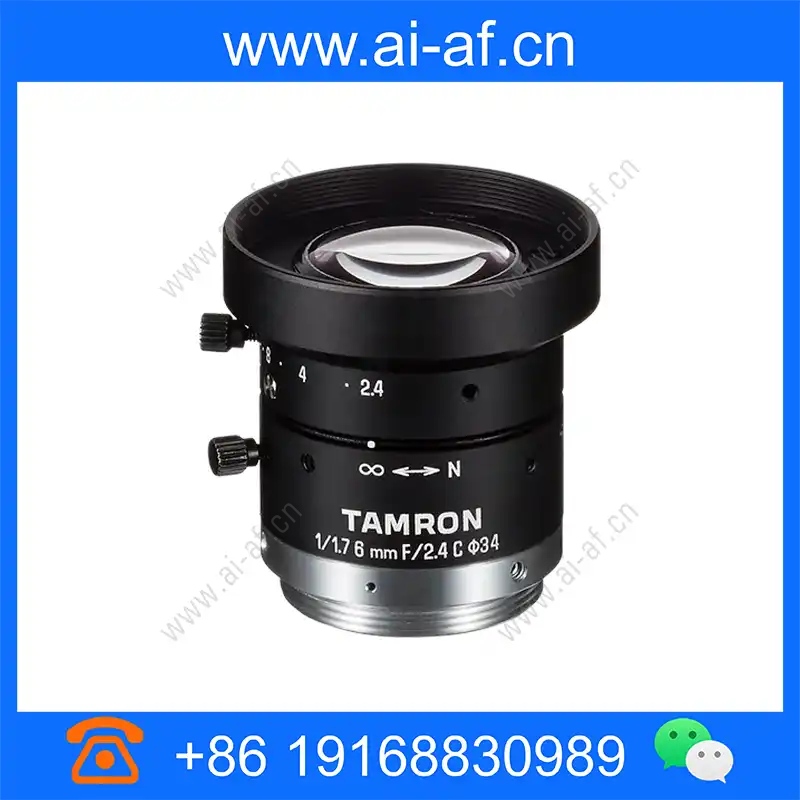

TAMRON M117FM06 1/1.7" 6mm F/2.4-16 Manual Iris FA and Machine Vision Lens C Mount

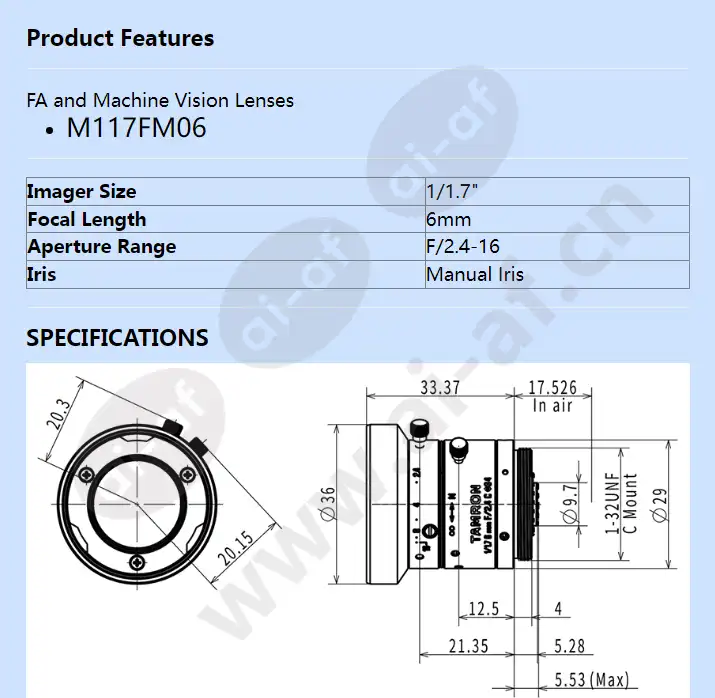

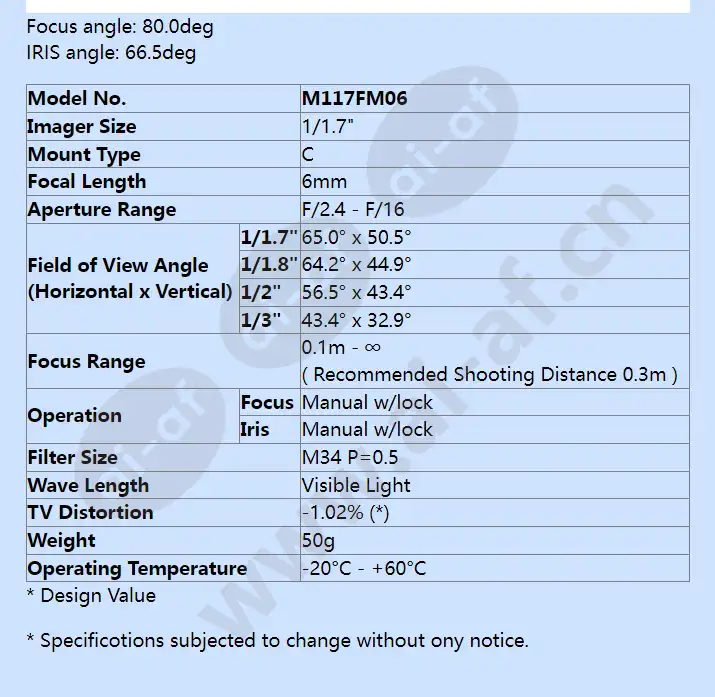

FA and Machine Vision Lenses M117FM06 Imager Size 1/1.7" Focal Length 6mm Aperture Range F/2.4-16 Iris Manual Iris SPECIFICATIONS Focus angle: 80.0deg IRIS angle: 66.5deg Model No. M117FM06 Imager Size 1/1.7" Mount Type C Focal Length 6mm Aperture Range F/2.4 - F/16 Field of View Angle (Horizontal x Vertical) 1/1.7" 65.0° x 50.5° 1/1.8" 64.2° x 44.9° 1/2" 56.5° x 43.4° 1/3" 43.4° x 32.9° Focus Range 0.1m - ∞ ( Recommended Shooting Distance 0.3m ) Operation Focus Manual w/lock Iris Manual w/lock Filter Size M34 P=0.5 Wave Length Visible Light TV Distortion -1.02% (*) Weight 50g Operating Temperature -20°C - +60°C * Design Value * Specificotions subjected to change without ony notice.
