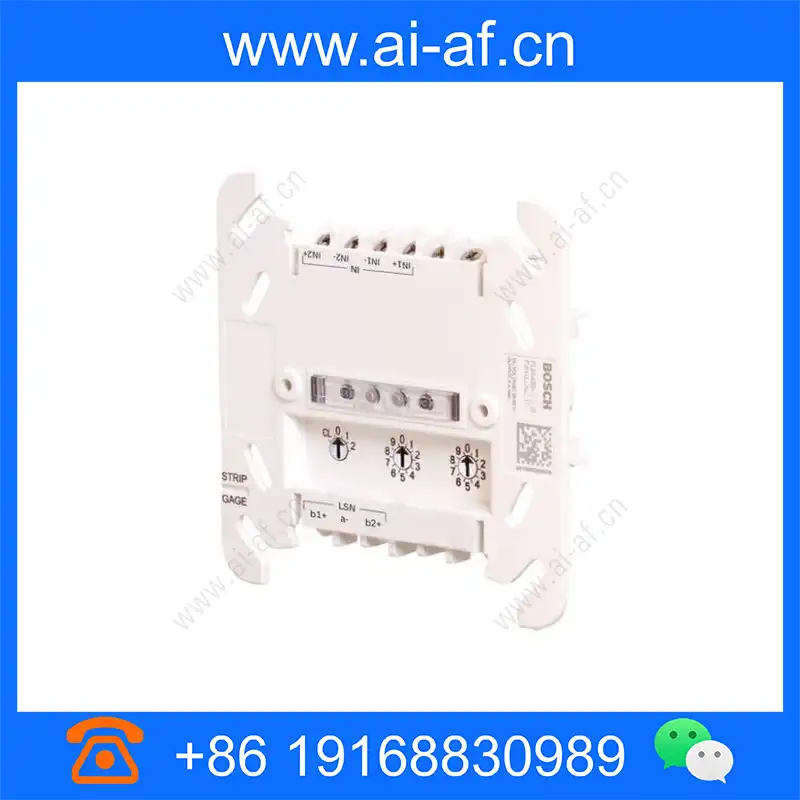

Bosch FLM-420-I2-D FLM-420-I2 Input Interface Modules Input Interface module rail-mount F.01U.012.578

Brand: Bosch

Model: FLM-420-I2-D

Weight: 150g

Dimensions: 110mm x 110mm x 48mm

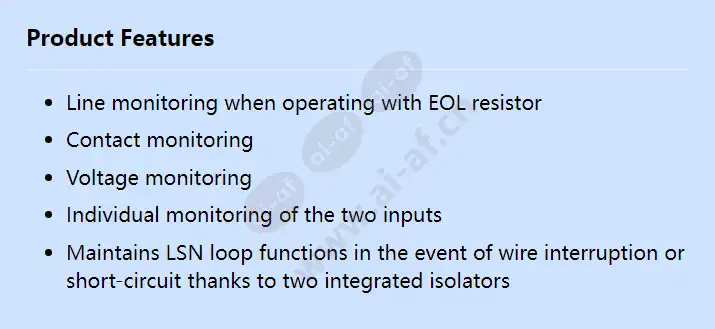

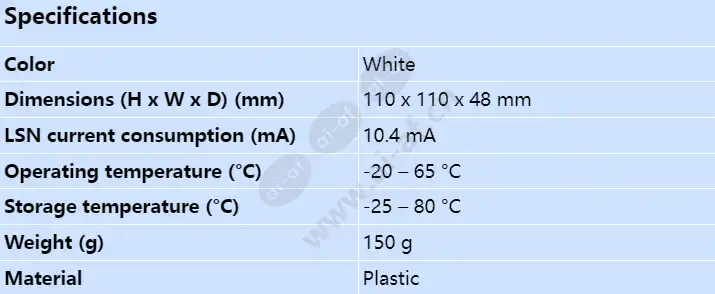

Line monitoring when operating with EOL resistor Contact monitoring Voltage monitoring Individual monitoring of the two inputs Maintains LSN loop functions in the event of wire interruption or short-circuit thanks to two integrated isolators Color White Dimensions (H x W x D) (mm) 110 x 110 x 48 mm LSN current consumption (mA) 10.4 mA Material Plastic Operating temperature (°C) -20 – 65 °C Storage temperature (°C) -25 – 80 °C Weight (g) 150 g
