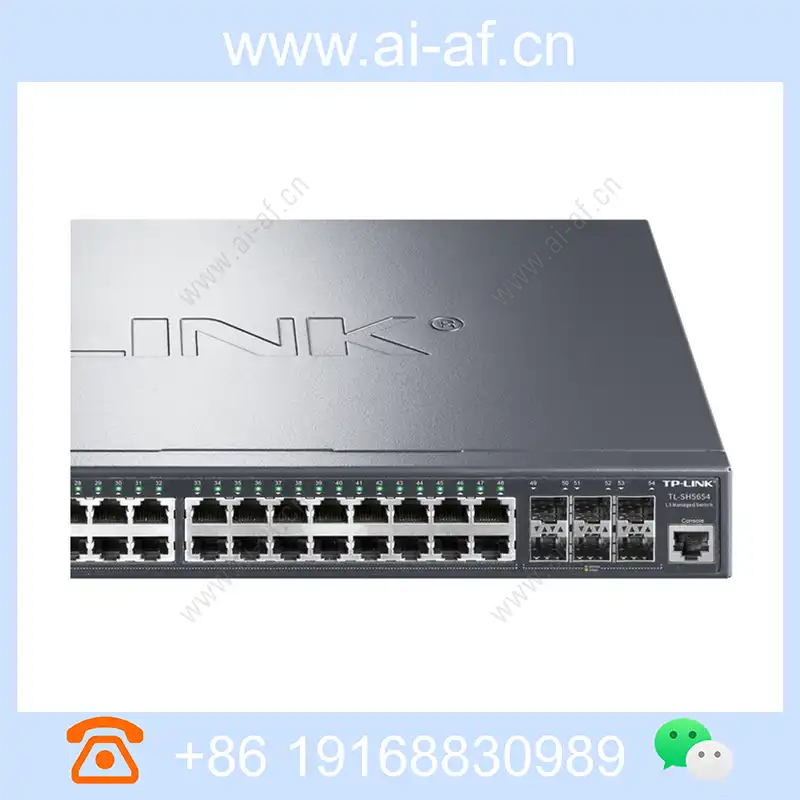

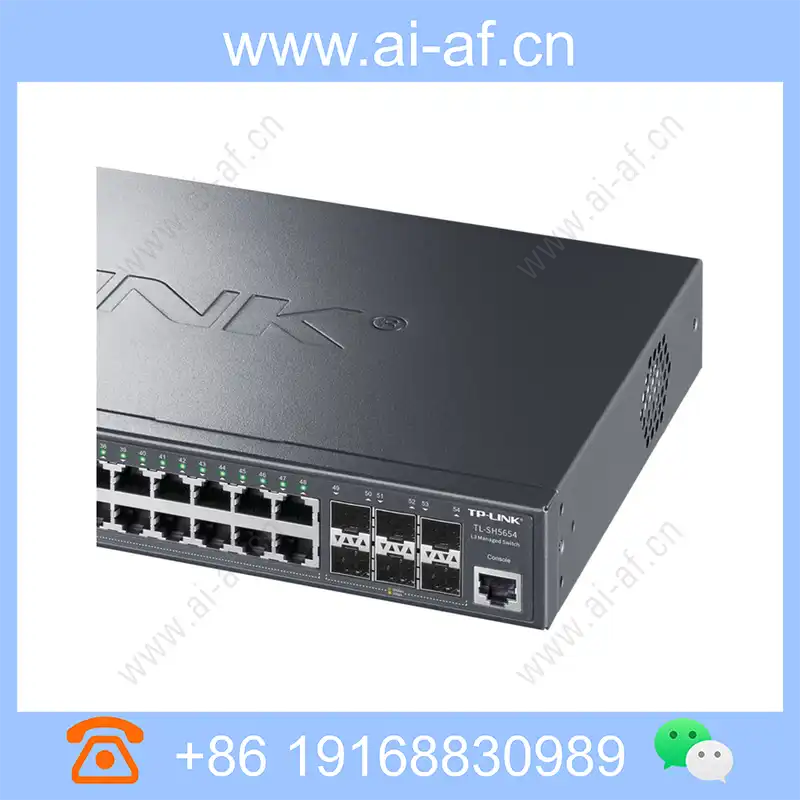

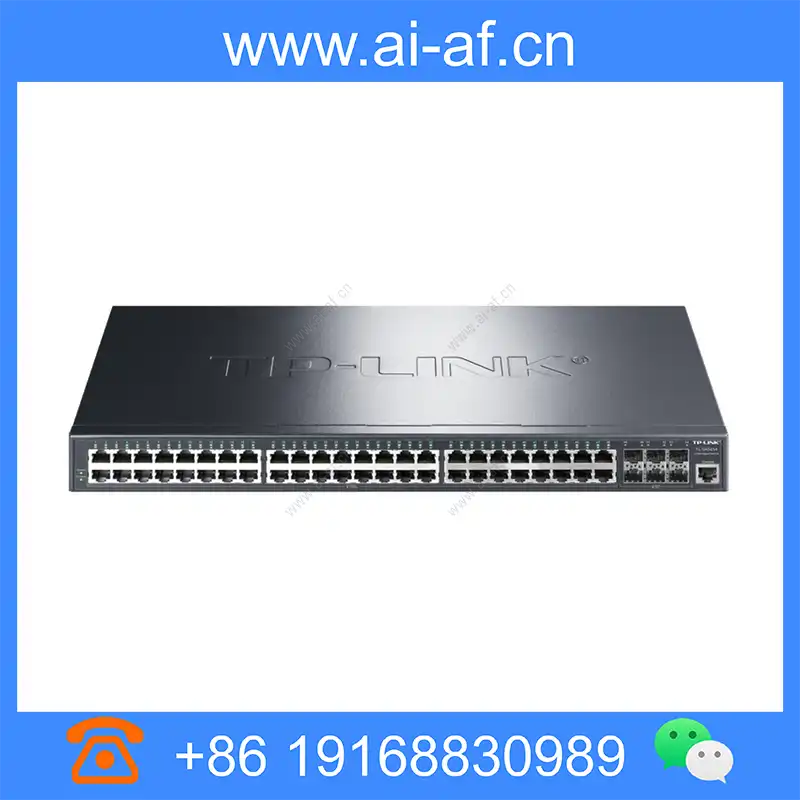

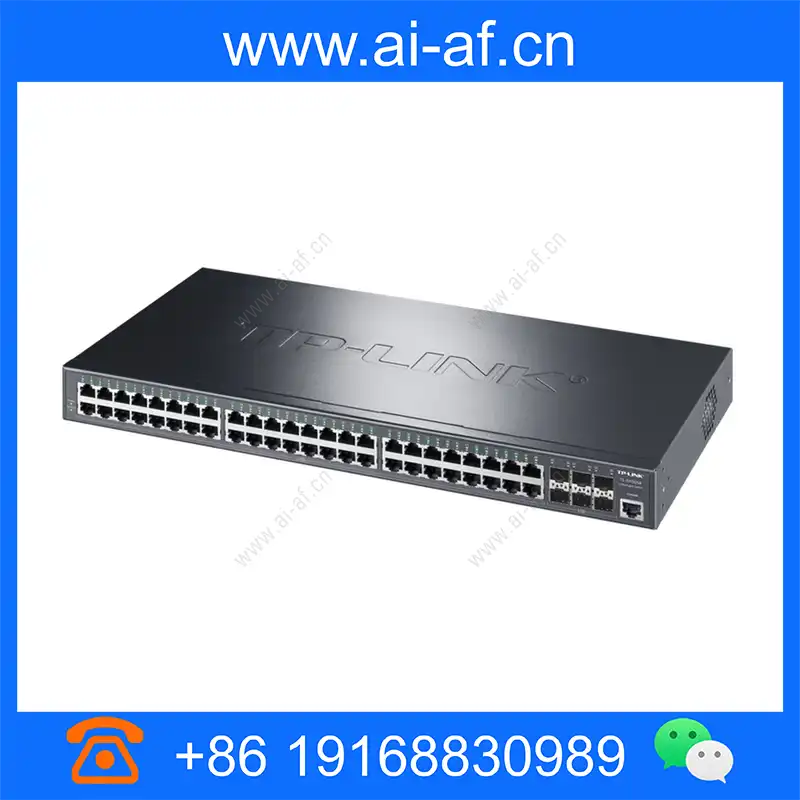

Product Features
- 48 10/100/1000Base-T RJ45 ports
- 6 10 Gigabit SFP+ port
- Support TP-LINK commercial cloud platform remote management, support mobile APP management
- Support intelligent deployment, automatic configuration of networking, and graphical topology display
- Support RIP dynamic routing, static routing
- Support DHCP server, DHCP relay, DHCP Snooping
- Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication
- Support VLAN, QoS, ACL, spanning tree, multicast, IPv6
- Support Web network management, CLI command line, SNMP
Product model | TL-SH8452 | TL-SH5654F | TL-SH5654 | TL-SG5452 | Exchange capacity | 432Gbps | 432Gbps | 432Gbps | 432Gbps | Packet forwarding rate | 144Mpps | 161Mpps | 161Mpps | 87Mpps | Gigabit RJ45 port | 48 | 0 | 48 | 48 | Gigabit SFP port | 4 (multiplexed) | 48 | 0 | 4 (independent) | 10G SFP+ port | 4 | 6 | 6 | 0 | RJ45 Console port | 1 | 1 | 1 | 1 | Micro USB Console port | 1 | 0 | 0 | 0 | USB storage port | 1 | 0 | 0 | 0 | Management management port | 1 | 1 | 0 | 0 | Hot-swappable power modules | stand by | not support | not support | not support | Stack | Support (8 stacking units) | not support | not support | not support | MAC address capacity | 32K | 32K | 32K | 16K | TP-LINK commercial cloud platform | stand by | stand by | stand by | stand by | routing | ·Support BGP dynamic routing ·Support OSPF dynamic routing ·Support RIP V1/V2 dynamic routing ·Support static routing ·Support ARP proxy | ·Support RIP V1/V2 dynamic routing ·Support static routing ·Support ARP proxy | ·Support RIP V1/V2 dynamic routing ·Support static routing ·Support ARP proxy | ·Support RIP V1/V2 dynamic routing ·Support static routing ·Support ARP proxy | DHCP | ·Support DHCP server ·Support DHCP relay ·Support DHCP Snooping ·Support Option138, Option82, Option60 | VLAN | ·Supports 4K VLANs ·Support 802.1Q VLAN, MAC VLAN, Protocol VLAN, Private VLAN ·Support Guest VLAN, Voice VLAN ·Support VLAN VPN (QinQ) ·Support GVRP protocol ·Support 1:1 and N:1 VLAN Mapping function | MAC address table | ·Follow IEEE 802.1d standard ·Support MAC address automatic learning and aging ·Support static, dynamic, filtering address table | Safety features | ·Based on user-level management and password protection ·Support to restrict user access based on port number, IP address, MAC address ·Support HTTPS, SSL V3, TLS V1, SSH V1/V2 ·Support IP-MAC-PORT-VLAN quaternary binding ·Support ARP protection, IP source protection, DoS protection ·Support DHCP Snooping, DHCP attack protection ·Support 802.1X authentication, AAA ·Support port security, port isolation ·Support CPU protection function | Access Control (ACL) | ·Support L2(Layer 2)~L4(Layer 4) packet filtering function ·Support port mirroring, port redirection, flow rate limit, QoS remarking | Quality of Service (QoS) | ·Supports 8 port queues ·Support port priority, 802.1P priority, DSCP priority ·Support SP, WRR, SP+WRR, Equ priority scheduling algorithm | Spanning tree | ·Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols ·Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering | Multicast | ·Support PIM-DM, PIM-SM, static multicast routing ·Support IGMP v1/v2/v3 Snooping ·Support MLD v1/v2 Snooping ·Support quick leave mechanism ·Support multicast VLAN ·Support multicast filtering, packet statistics, unknown multicast discard | ·Support IGMP v1/v2/v3 Snooping ·Support MLD v1/v2 Snooping ·Support quick leave mechanism ·Support multicast VLAN ·Support multicast filtering, packet statistics, unknown multicast discard | ·Support IGMP v1/v2/v3 Snooping ·Support MLD v1/v2 Snooping ·Support quick leave mechanism ·Support multicast VLAN ·Support multicast filtering, packet statistics, unknown multicast discard | ·Support IGMP v1/v2/v3 Snooping ·Support MLD v1/v2 Snooping ·Support quick leave mechanism ·Support multicast VLAN ·Support multicast filtering, packet statistics, unknown multicast discard | Management and maintenance | ·Support TP-LINK commercial cloud platform ·Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) ·Support CLI (Telnet, SSH V1/V2, local serial port) ·Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs ·Support LLDP, RMON ·Support CPU monitoring, memory monitoring ·Support system logs, graded warnings ·Support Ping, Tracert detection, cable detection | Shell size (mm) | 440×420×44 | 440×220×44 | 440×220×44 | 440×220×44 | Input power | 100~240VAC, 50/60Hz | Use environment | ·Working temperature: 0℃~40℃ ·Storage temperature: -40℃~70℃ ·Working humidity: 10% ~ 90% RH without condensation ·Storage humidity: 5% to 90% RH without condensation |
Recommended for supporting optical module/electrical port module| Module type | Product model | rate | distance | Transmission medium | Center wavelength | Working temperature of housing | | Optical module | TL-SM512LS-10KM | 10Gbps | 10km | SMF, double fiber LC | 1310nm | 0~70℃ | | TL-SM512LS-5KM | 10Gbps | 5km | SMF, double fiber LC | 1310nm | 0~70℃ | | TL-SM512LM-300m | 10Gbps | 300m | OM3 MMF, Double Fiber LC | 850nm | 0~70℃ | | TL-SM311LSA/B-20KM | 1.25Gbps | 20km | SMF, single fiber LC | A:1550/1310nm
B:1310/1550nm | 0~70℃ | | TL-SM311LSA/B-2KM | 1.25Gbps | 2km | SMF, single fiber LC | A:1550/1310nm
B:1310/1550nm | 0~70℃ | | TL-SM311SSA/B-2KM | 1.25Gbps | 2km | SMF, Single Fiber SC | A:1550/1310nm
B:1310/1550nm | 0~70℃ | | TL-SM312LS-40KM | 1.25Gbps | 40km | SMF, double fiber LC | 1310nm | 0~70℃ | | TL-SM312LS-20KM | 1.25Gbps | 20km | SMF, double fiber LC | 1310nm | 0~70℃ | | TL-SM312LS-20KM Industrial Grade | 1.25Gbps | 20km | SMF, double fiber LC | 1310nm | -40~85℃ | | TL-SM311LM | 1.25Gbps | 550m | OM2 MMF, Double Fiber LC | 850nm | 0~70℃ | | Electrical port module | TL-SM510U | 10Gbps | 30m | Super six network cable | — | 0~70℃ | | TL-SM310U | 1Gbps | 100m | Super five network cable | — | 0~70℃ |
|
