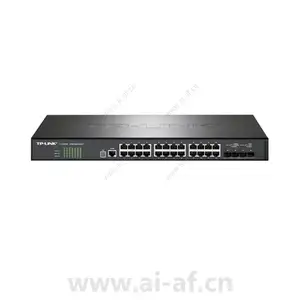

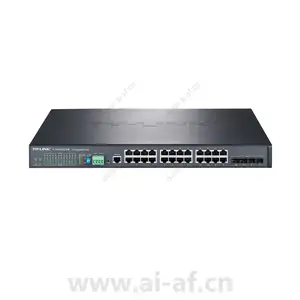

TP-LINK TL-SH6428 Industrial Grade Ring Network Layer 3 Network Management Ethernet Switch
Brand: TP-LINK
Model: TL-SH6428-Industrial
Dimensions: 440mm x 330mm x 44mm
24 10/100/1000Base-T RJ45 ports 4 x 10 Gig SFP+ ports Support TP-LINK commercial cloud platform management Support OSPF, RIP dynamic routing, static routing Support DHCP server, DHCP relay, DHCP Snooping Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication Support VLAN, QoS, ACL, spanning tree, multicast, IPv6 Support Web network management, CLI command line, SNMP Support stacking, up to 8 stacking units Product model TL-SH8434F TL-SH8434 TL-SH7428F TL-SH7428 TL-SH6428 Exchange capacity 432Gbps 432Gbps 432Gbps 432Gbps 336Gbps Packet forwarding rate 167Mpps 167Mpps 120Mpps 120Mpps 120Mpps Gigabit RJ45 port 4 (independent) 28 8 (multiplexed) 24 24 Gigabit SFP port 24 4 (multiplexed) 24 4 (multiplexed) 0 10G SFP+ port 4 4 4 4 4 QSFP+ stacking port 2 2 0 0 0 RJ45 Console
Product Features
Recommended for supporting optical module/electrical port module |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Gigabit RJ45 port | 24 |
| Gigabit SFP port | 0 |
| 10G SFP+ port | 4 |
| QSFP+ stacking port | 0 |
| Interface module expansion card slot | 0 |
| RJ45 Console port | 1 |
| Micro USB Console port | 0 |
| USB storage port | 0 |
| Management management port | 0 |
| Hot-swappable power modules | not support |
| RPS interface | not support |
| Stack | Support (6 stacking units) |
| MAC address capacity | 16K |
| routing | Support RIP V1/V2 dynamic routing; support static routing; support ARP proxy |
| DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping Support Option138, Option82, Option60 |
| VLAN | Support 4K VLANs Support 802.1Q VLAN, MAC VLAN, protocol VLAN, Private VLAN Support Guest VLAN, Voice VLAN Support VLAN VPN (QinQ) Support GVRP protocol Support 1:1 and N:1 VLAN Mapping function |
| MAC address table | Comply with IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic and filtered address table |
| Safety features | Based on user hierarchical management and password protection Support based on port number, IP address, MAC address to restrict user access Support HTTPS, SSL V3, TLS V1, SSH V1/V2 Support IP-MAC-PORT-VLAN four yuan binding Support ARP protection, IP Source protection, DoS protection support DHCP Snooping, DHCP attack protection support 802.1X authentication, AAA support port security, port isolation support CPU protection function |
| Access Control (ACL) | Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function Support port mirroring, port reDirection, flow rate limiting, QoS re-marking |
| Quality of Service (QoS) | Support 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, Equ priority scheduling algorithm |
| Spanning tree | Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering |
| Multicast | Support IGMP v1/v2/v3 Snooping; support MLD v1/v2 Snooping; support fast leave mechanism; support multicast VLAN; support multicast filtering, packet statistics, unknown multicast drop |
| Management and maintenance | Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs Support LLDP, RMON Support CPU Monitoring, memory monitoring support system logs, graded warning support Ping, Tracert detection, cable detection |
| Shell size (mm) | 440x220x44 |
| Input power | 100~240VAC,50/60Hz |
| Use environment | Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing |
