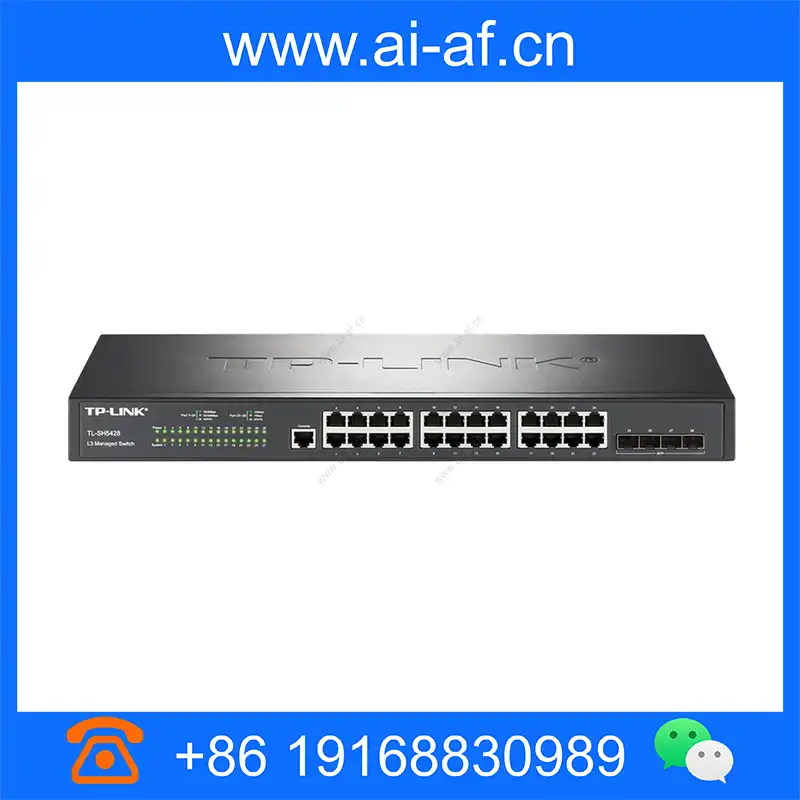

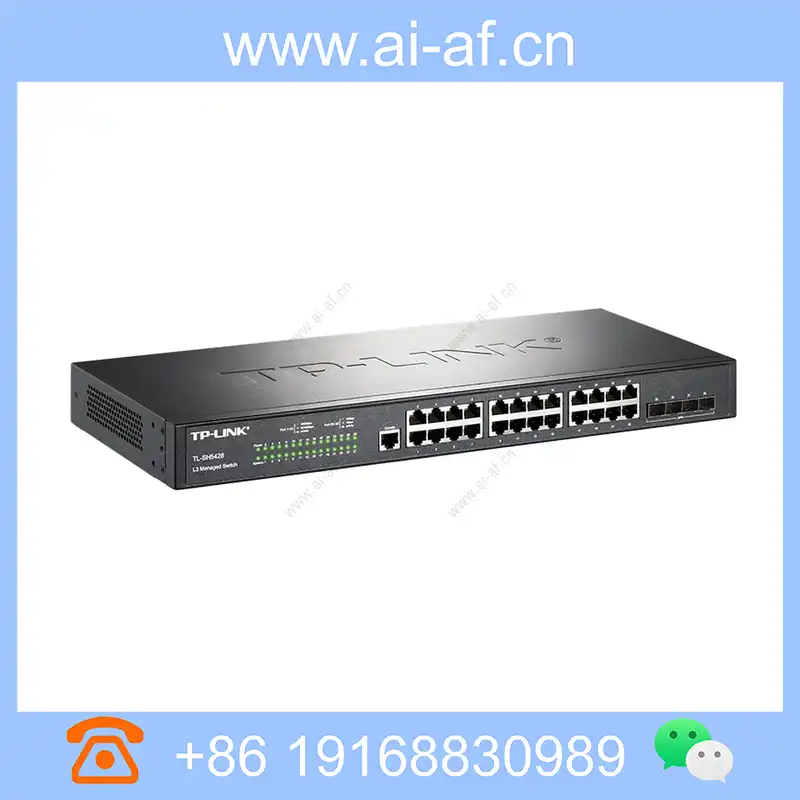

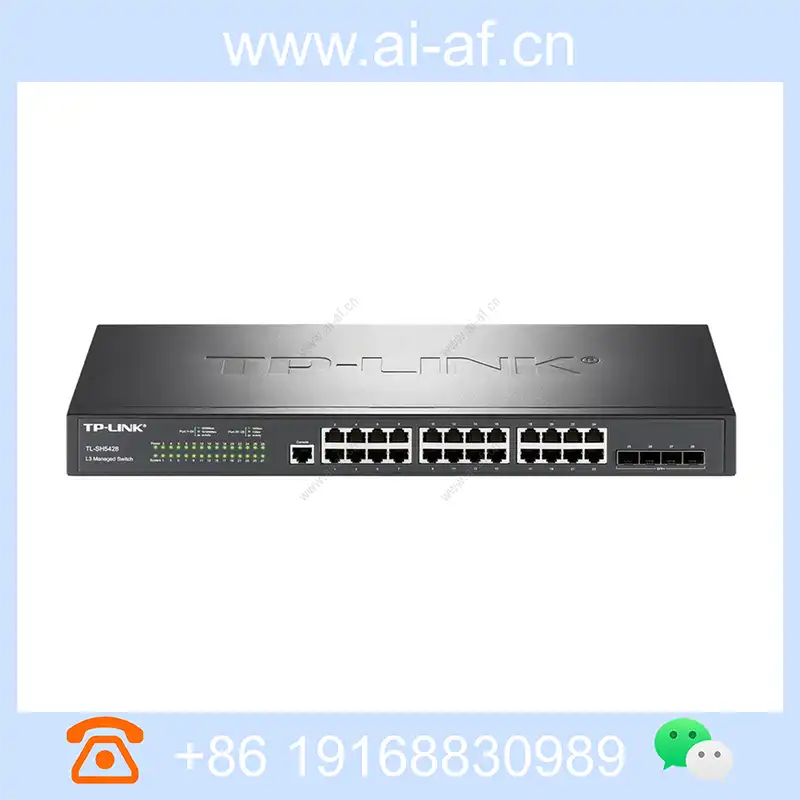

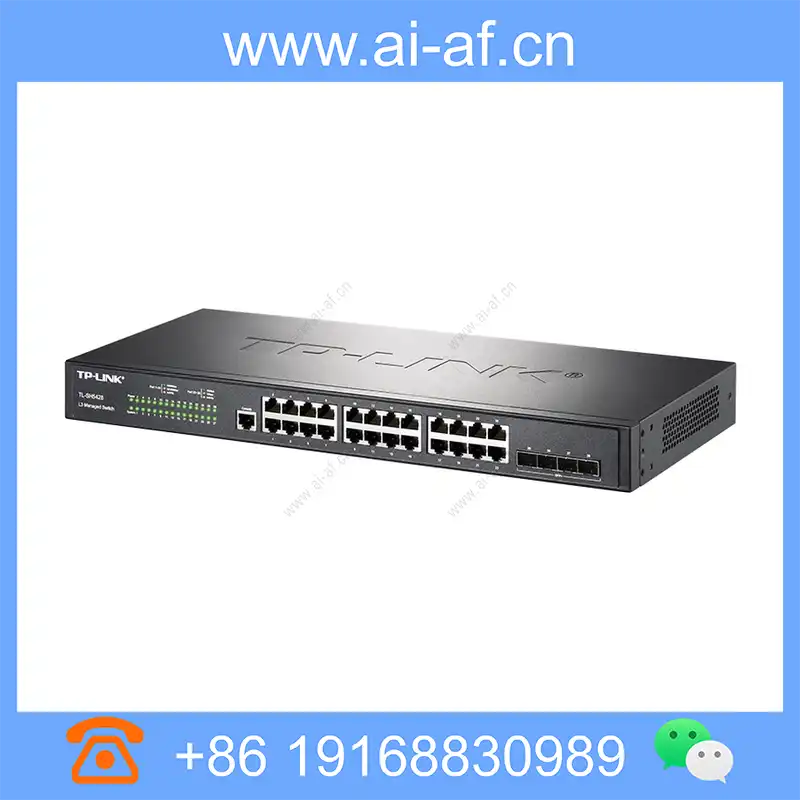

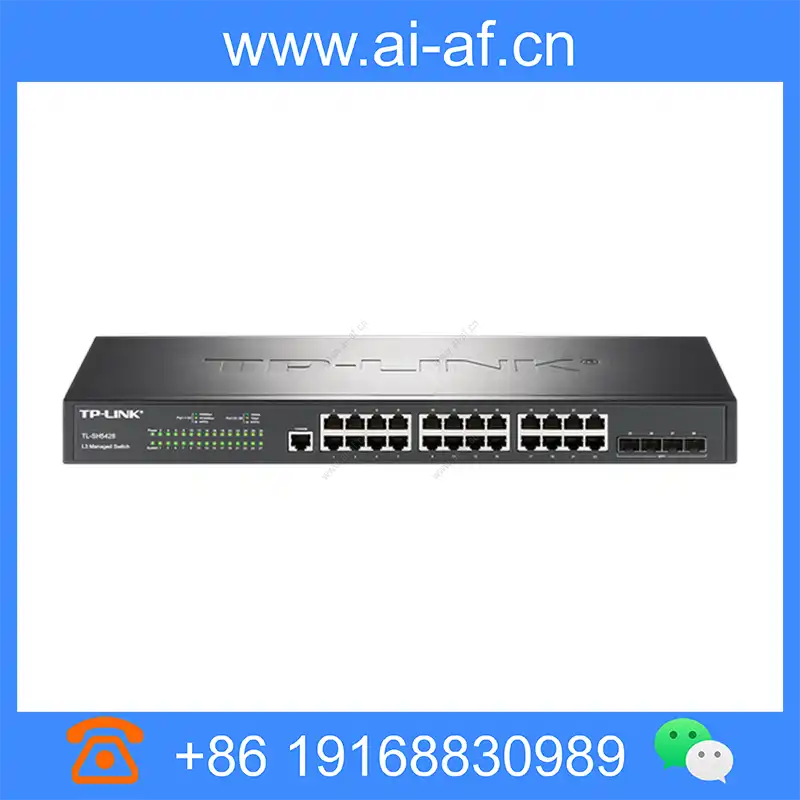

TP-LINK TL-SH5428MP Uplink Layer 3 Network Management Switch

Brand: TP-LINK

Model: TL-SH5428

Dimensions: 440mm x 220mm x 44mm

24 Gigabit RJ45 ports, 4 10 Gigabit SFP+ ports Support TP-LINK commercial cloud platform remote management, support mobile APP management Support intelligent deployment, automatic configuration of networking, and graphical topology display Support RIP dynamic routing, static routing, ARP proxy, DHCP Server Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication Support VLAN, QoS, ACL, spanning tree, multicast, IPv6 Product model TL-SH6428 Exchange capacity 336Gbps
Packet forwarding rate 120Mpps
Gigabit RJ45 port 24 10G SFP+ port 4 RJ45 Console port 1 Stack Support (6 stacking units) MAC address capacity 16K TP-LINK commercial cloud platform stand by routing

Support OSPF Dynamic Routing

Support RIP V1 / V2 Dynamic Routing

Support Static

Product Features

24 Gigabit RJ45 ports, 4 10 Gigabit SFP+ ports
Support TP-LINK commercial cloud platform remote management, support mobile APP management
Support intelligent deployment, automatic configuration of networking, and graphical topology display
Support RIP dynamic routing, static routing, ARP proxy, DHCP Server
Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication
Support VLAN, QoS, ACL, spanning tree, multicast, IPv6

Technical Specifications

Property Description	Property Value
Product model	TL-SH6428
Exchange capacity	336Gbps
Packet forwarding rate	120Mpps
Gigabit RJ45 port	24
10G SFP+ port	4
RJ45 Console port	1
Stack	Support (6 stacking units)
MAC address capacity	16K
TP-LINK commercial cloud platform	stand by
routing	Support OSPF Dynamic Routing Support RIP V1 / V2 Dynamic Routing Support Static Routing Support ARP Agent
DHCP	Support DHCP server support DHCP relay support DHCP snooping support Option138, option82, option60
VLAN	support 4K VLAN support 802.1Q VLAN, Mac VLAN, protocol VLAN, Private VLAN support guest VLAN, Voice VLAN support VLAN VPN (Qinq) Support GVRP protocol support 1: 1 and n: 1 VLAN mapping function
MAC address table	Follow IEEE 802.1D Standard Support MAC address automatic learning and aging support static, dynamic, filter address table
Safety features	Based on user hierarchical management and password protection support port number, IP address, MAC address restriction user access support HTTPS, SSL V3, TLS V1, SSH V1 / V2 Support IP-MAC-Port-VLAN quad-binding support ARP protection, IP source protection, DOS protection support DHCP Snooping, DHCP attack protection support 802.1x authentication, AAA support port security, port isolation support CPU protection
Access Control (ACL)	Supports L2 (Layer 2) ~ L4 (Layer 4) Pack filter function support port image, port reDirection, flow limit, QoS heavy mark
Quality of Service (QoS)	Supports 8 port queues support port priority, 802.1p priority, DSCP priority support SP, WRR, SP + WRR, EQU priority scheduling algorithm < / li>
Spanning tree	Supports STP (IEEE 802.1D), RSTP (IEEE 802.1W) and MSTP (IEEE 802.1s) protocol support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering < / li>
Multicast	Supports PIM-DM, PIM-SM, Static Multicast Routing Support IGMP V1/V2/V3 Snooping Support fast leaving mechanism support Multicast VLAN support multicast filtering, packet statistics, unknown multicast discard
Management and maintenance	Support TP-LINK Commercial Cloud Platform Support Web Network Management (HTTP, HTTPS, SSL V3, TLS V1) support CLI (Telnet, SSH V1 / V2, local serial port Support SNMP V1/V2/V3, compatible public MIBS and TP-LINK private mibs support LLDP, RMON support CPU monitoring, memory monitoring / li> Support system log, classification warning support ping, tracert detection, cable detection
Shell size (mm)	440x220x44
Input power	100~240VAC, 50/60Hz
Use environment	operating temperature: 0°C ~ 40°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH does not condense Storage humidity: 5% ~ 90% RH does not condense
