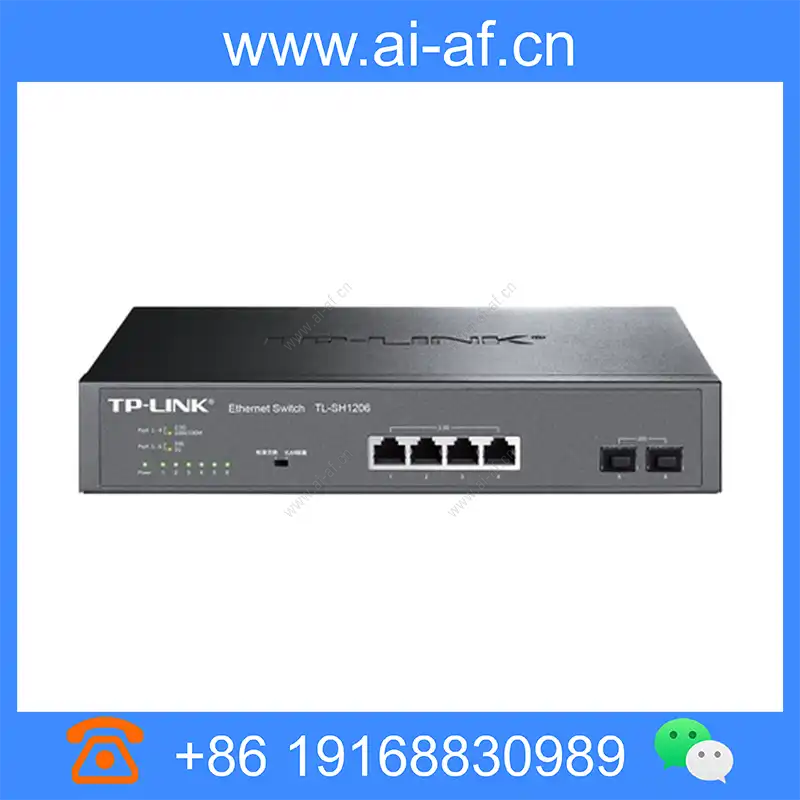

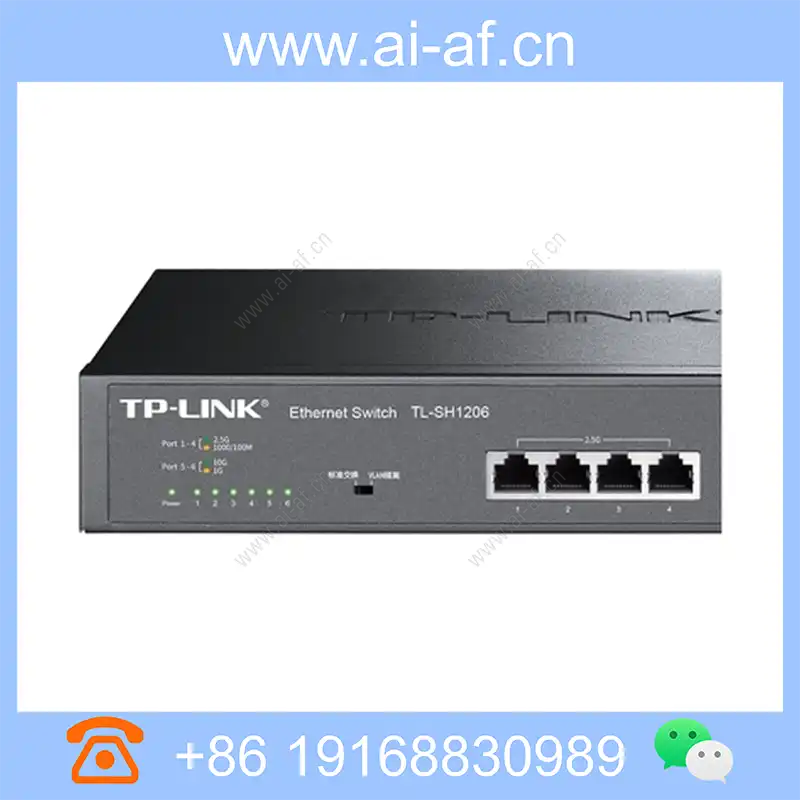

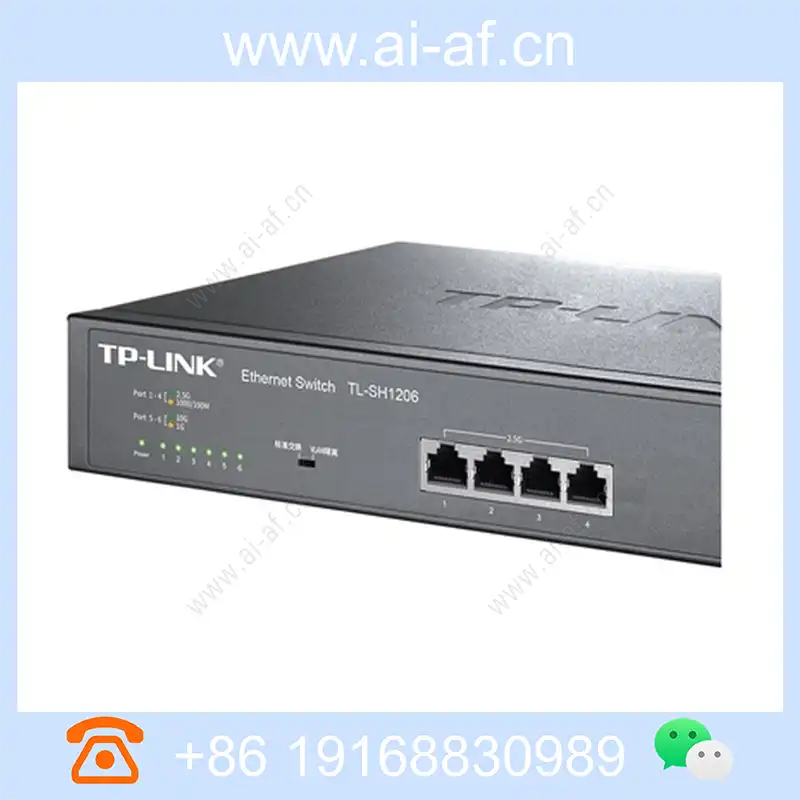

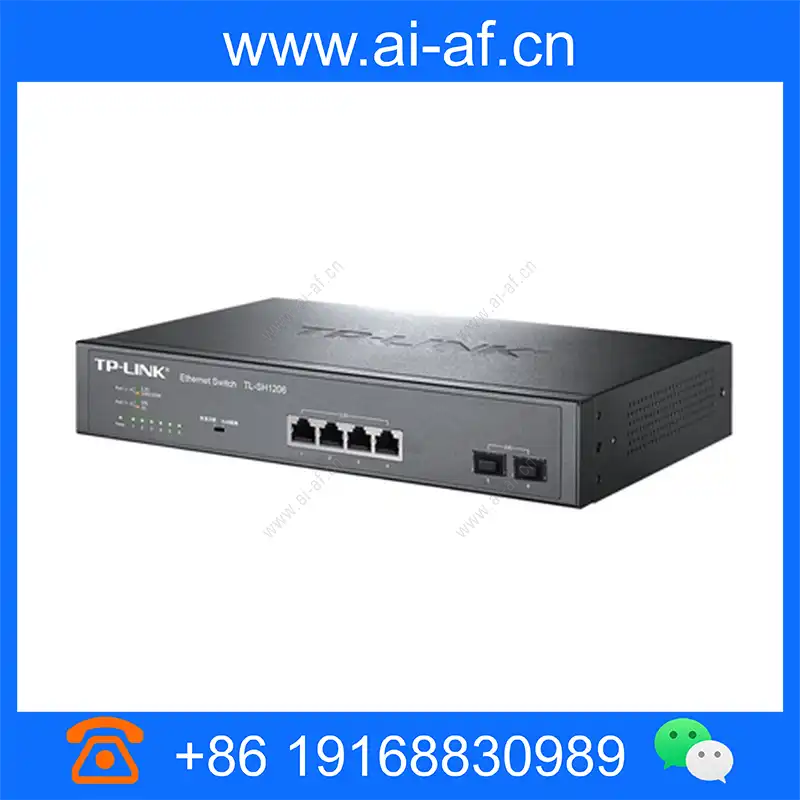

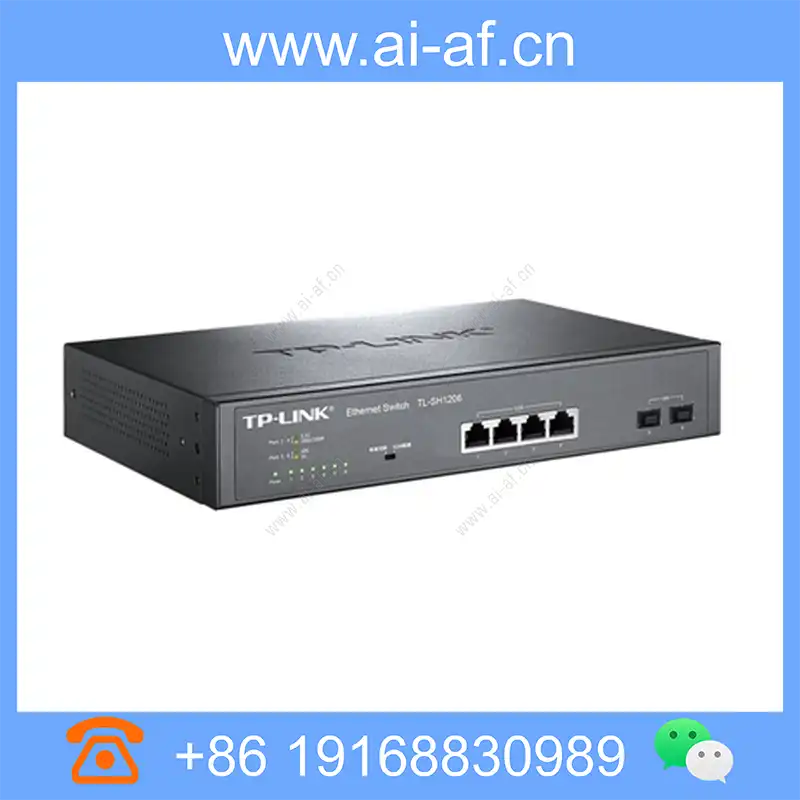

TP-LINK TL-SH1206 gigabit uplink unmanaged switch 4GE 2SFP+ iron shell layer 2 supports port isolation

Brand: TP-LINK
Model: TL-SH1206
Dimensions: 250mm x 158mm x 44mm

Provides four 2.5G / 1Gbps RJ45 ports Provides two 10 Gigabit uplink SFP+ optical ports All ports support wire-speed forwarding and automatic rollover Support standard switching, VALN isolated working mode Plug and play, can be racked Support IEEE 802.3ae, 802.3bz, 802.3ab protocols Network Standard IEEE 802.3 、IEEE 802.3 i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3 z,IEEE 802.3x port 4 2.5G/1Gbps RJ45 ports 2 10 Gigabit SFP+ optical ports Indicator light 1 Speed/Link/Ack indicator per port 1 Power indicator per device performance Store and Forward Support 16K MAC address table depth Use environment Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH, non-condensing Storage humidity: 5%~90%RH, non-condensing Input power 100-240V~ 50/60Hz Dimensions (L x

Product Features


    • Provides four 2.5G / 1Gbps RJ45 ports
    • Provides two 10 Gigabit uplink SFP+ optical ports
    • All ports support wire-speed forwarding and automatic rollover
    • Support standard switching, VALN isolated working mode
    • Plug and play, can be racked
    • Support IEEE 802.3ae, 802.3bz, 802.3ab protocols

Technical Specifications

Property DescriptionProperty Value
Network StandardIEEE 802.3 、IEEE 802.3 i、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3 z,IEEE 802.3x
port4 2.5G/1Gbps RJ45 ports 2 10 Gigabit SFP+ optical ports
Indicator light1 Speed/Link/Ack indicator per port 1 Power indicator per device
performanceStore and Forward Support 16K MAC address table depth
Use environmentOperating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90%RH, non-condensing Storage humidity: 5%~90%RH, non-condensing
Input power100-240V~ 50/60Hz
Dimensions (L x W x H)250mm x 158mm x 44mm
Three mode switchingStandard switching, VLAN isolation
