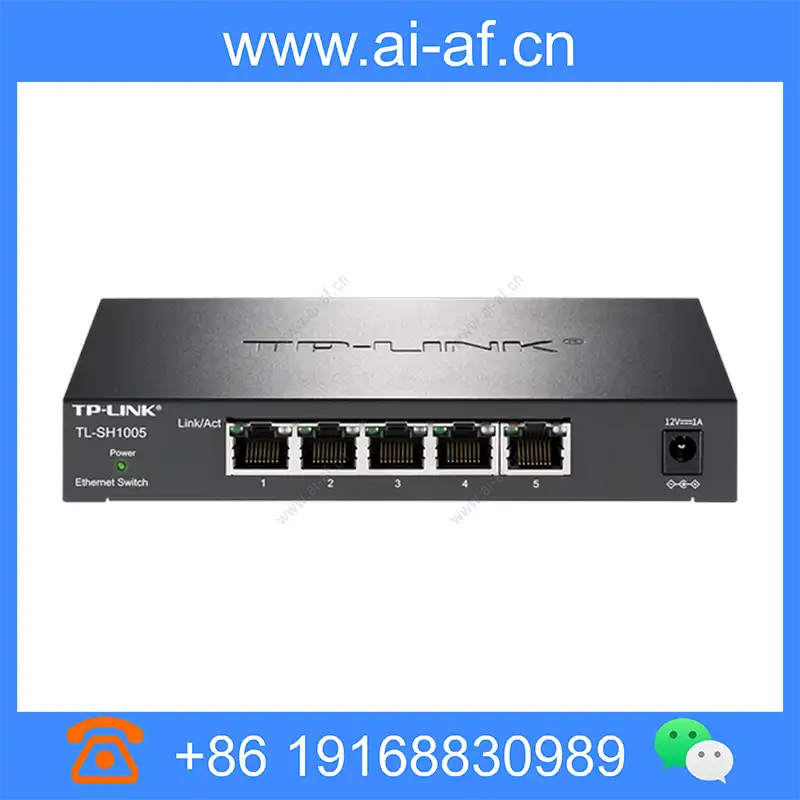

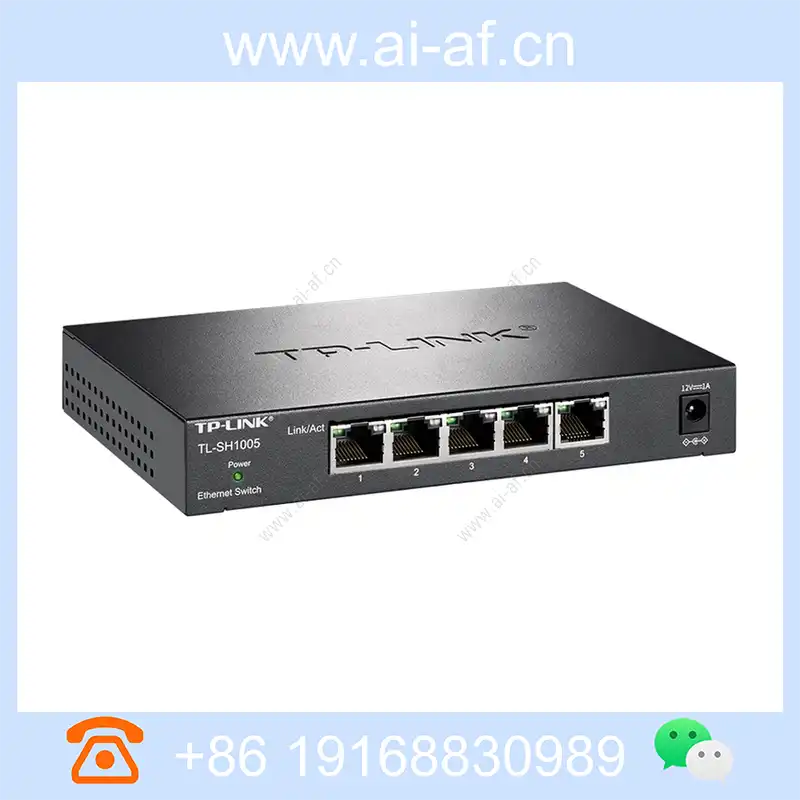

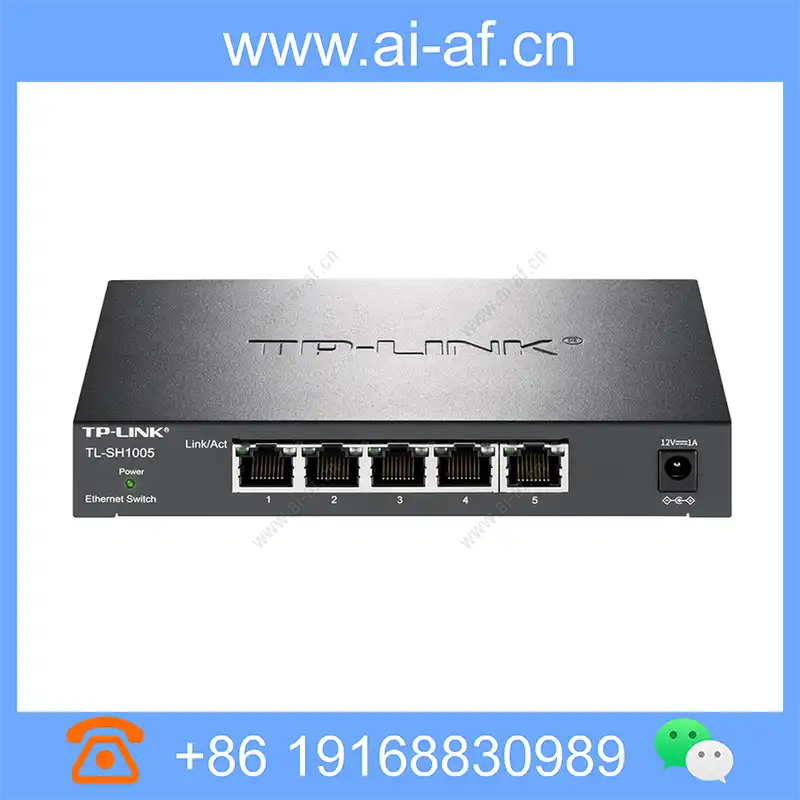

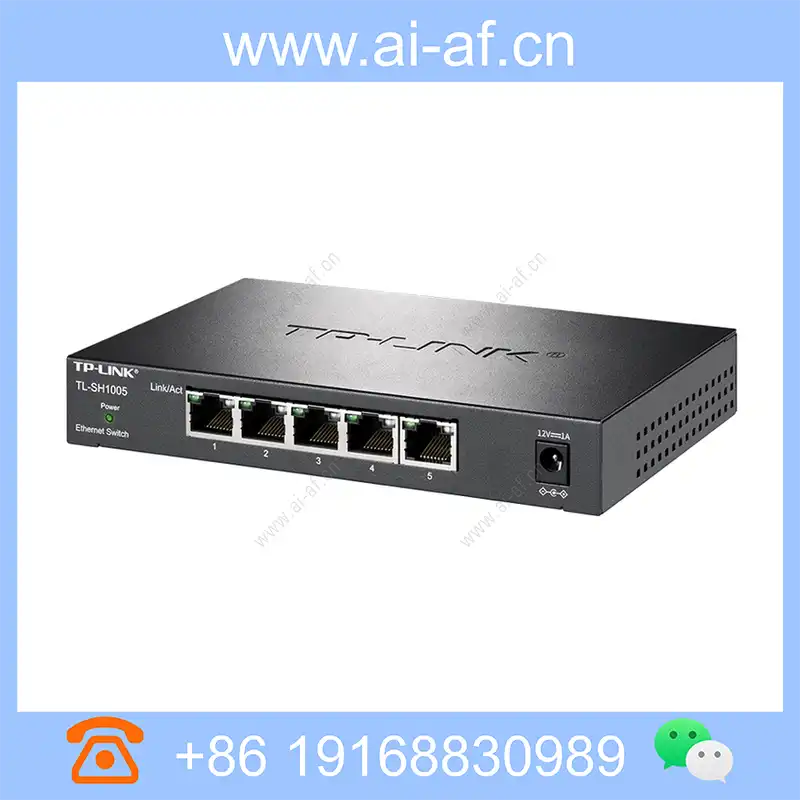

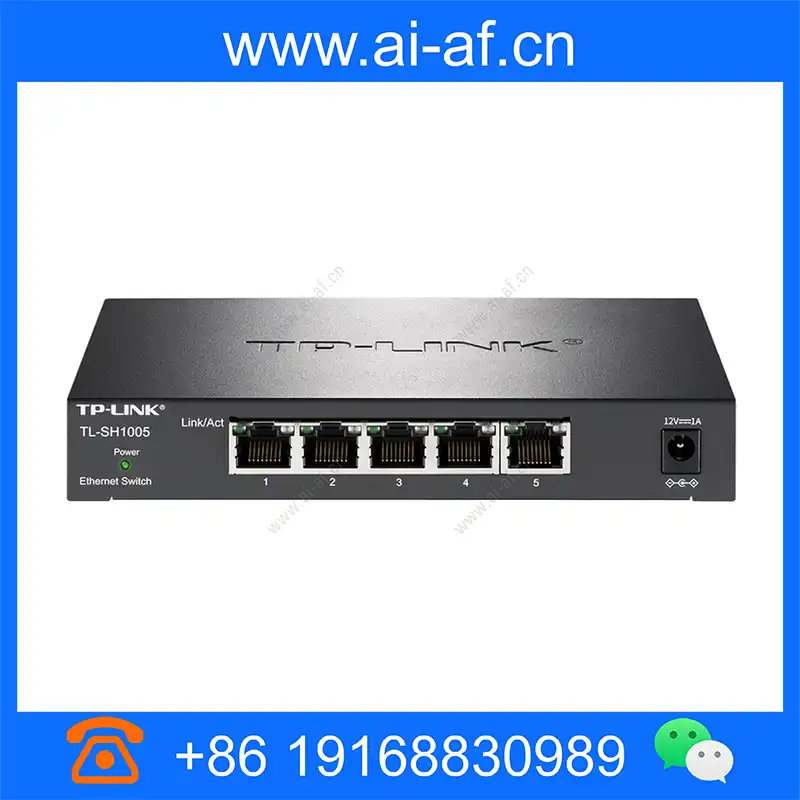

TP-LINK TL-SH1005 2.5GBPS Ethernet Switch

Brand: TP-LINK

Model: TL-SH1005

Dimensions: 158mm x 100mm x 25mm

Provide 5 2.5GBPS network ports All ports have wire-speed forwarding capabilities Plug and play, no configuration required Support IEEE 802.3AB, 802.3Bz standard technical standard

IEEE 802.3、IEEE802.3u、IEEE 802.3ab、IEEE 802.3bz、IEEE 802.3x

port

5 2.5Gbps network port

Indicator light

link / act: The left indicator green flag port works in 2.5G rate; the right side indicator green flag port works at 1G rate; yellow mark works at 100M rate

performance

Storage Forwarded
Support 16K MAC address table depth

Use environment

operating temperature: 0°C ~ 40°C
storage temperature: -40°C ~ 70°C
Working humidity: 10% ~ 90% RH does not condense

Product Features

Provide 5 2.5GBPS network ports
All ports have wire-speed forwarding capabilities
Plug and play, no configuration required
Support IEEE 802.3AB, 802.3Bz standard

Technical Specifications

Property Description	Property Value
technical standard	IEEE 802.3、IEEE802.3u、IEEE 802.3ab、IEEE 802.3bz、IEEE 802.3x
port	5 2.5Gbps network port
Indicator light	link / act: The left indicator green flag port works in 2.5G rate; the right side indicator green flag port works at 1G rate; yellow mark works at 100M rate Power: Power indicator
performance	Storage Forwarded Support 16K MAC address table depth
Use environment	operating temperature: 0°C ~ 40°C storage temperature: -40°C ~ 70°C Working humidity: 10% ~ 90% RH does not condense Storage humidity: 5% ~ 90% RH does not condense
Input power	12V/1A
size	158mm x 100mm x 25mm
