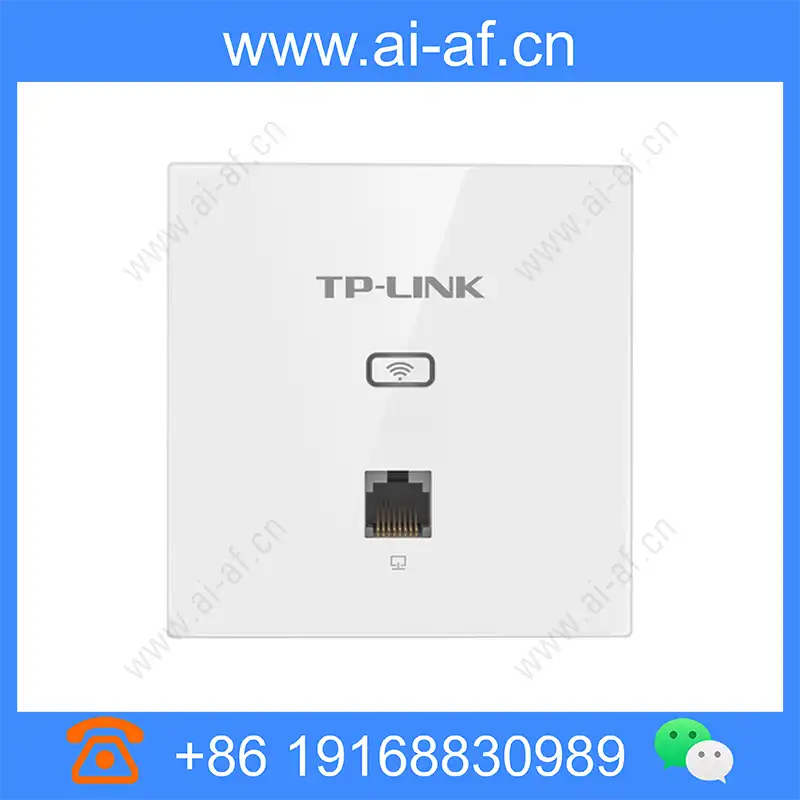

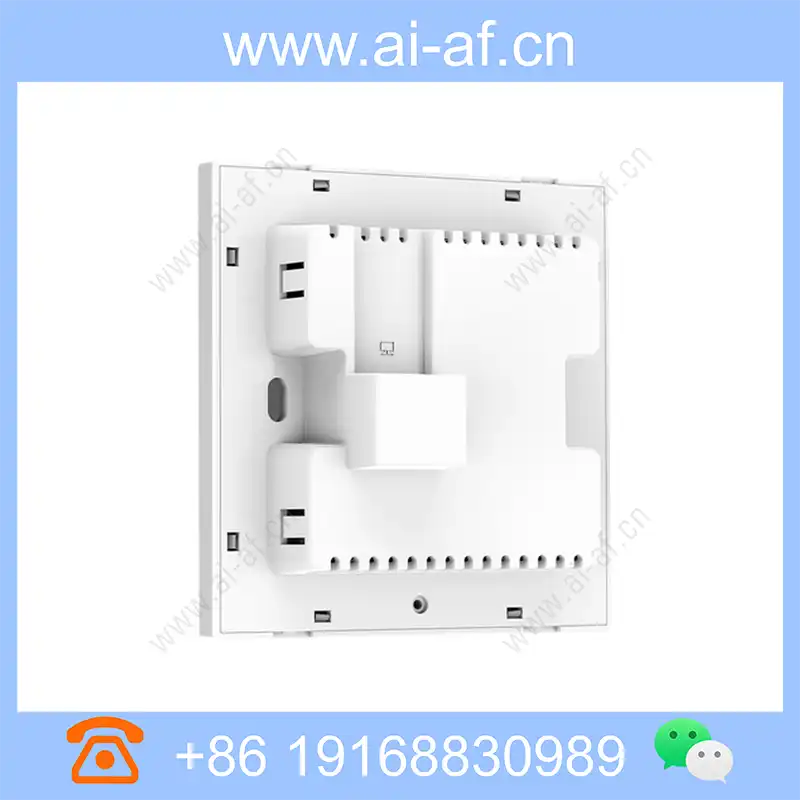

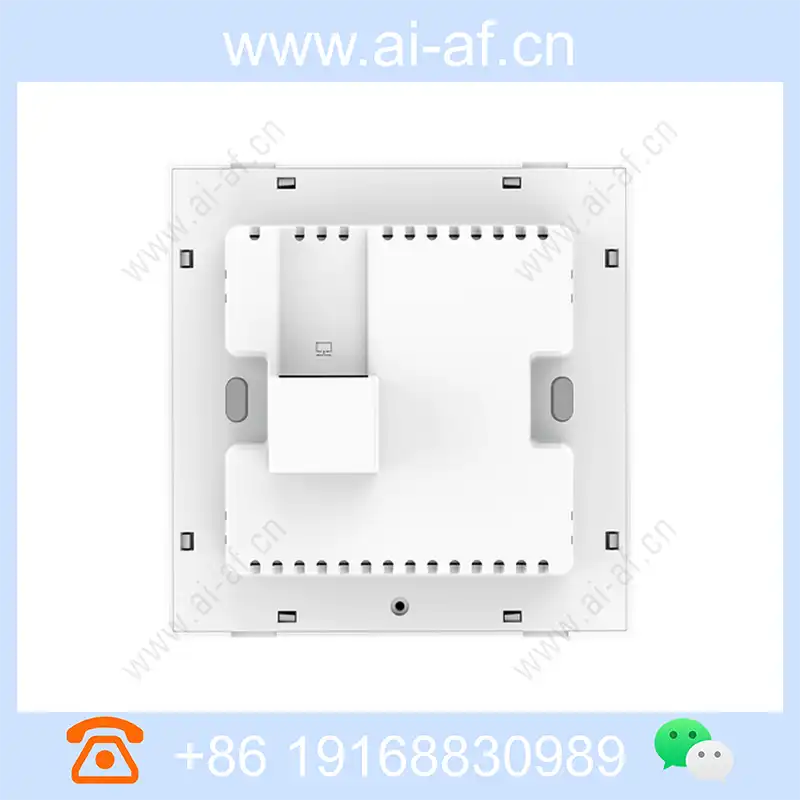

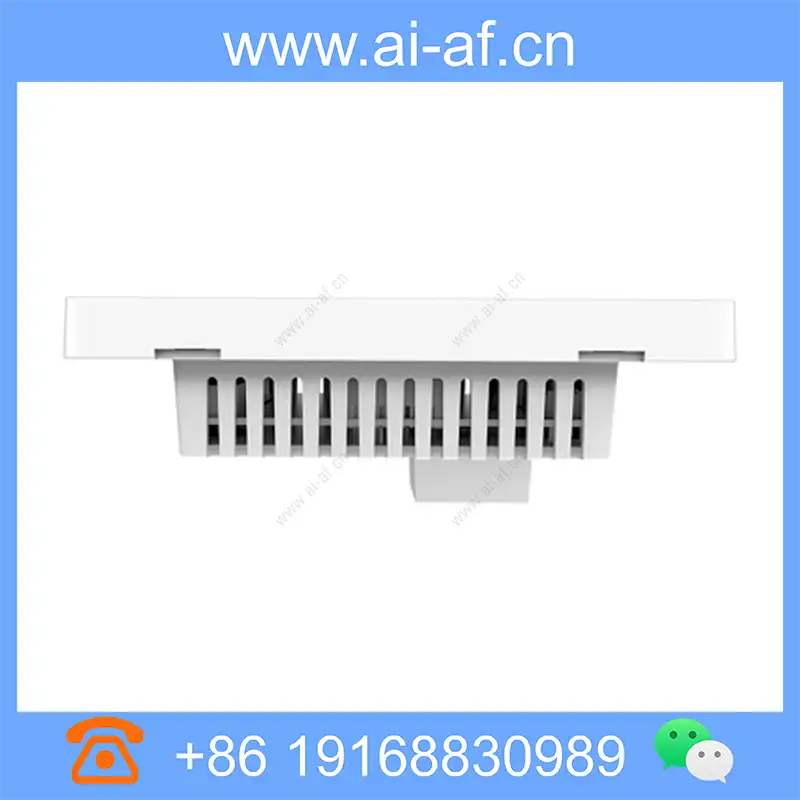

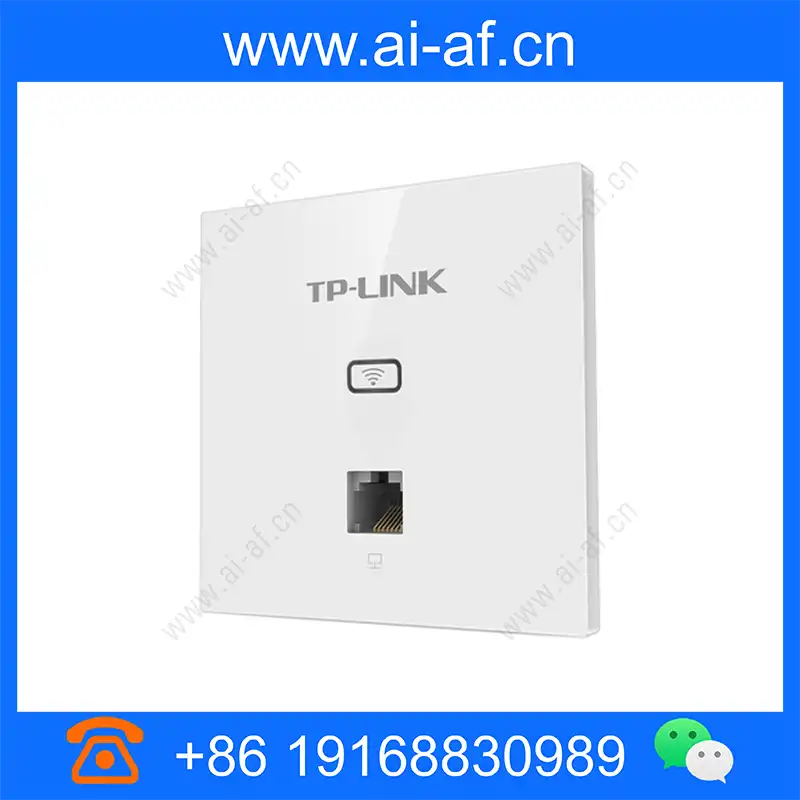

TP-LINK TL-NAP450-I1-P 450M Wireless Panel AP

Brand: TP-LINK
Model: TL-NAP450-I1-P
Dimensions: 86mm x 87.50mm x 33mm

11N wireless technology, 450Mbps wireless rate 86 type panel design, ultra-thin shell, stylish appearance WiFi/LED lights can be turned off 802.3af/at standard PoE network cable power supply, no external power supply required Support weak signal elimination, prohibit weak signal equipment access function Fat and thin, you can choose different modes according to different application environments New appearance housing, simple fashion Support TP-LINK business cloud APP remote view / management National standard 86 panel design, PoE power supply, easy installation, simple use National standard 86 panel design, can replace the original network panel without re-wiring, does not destroy the original decoration. Support 802.3af/at standard PoE network cable power supply, each AP requires only

Product Features


  • 11N wireless technology, 450Mbps wireless rate
  • 86 type panel design, ultra-thin shell, stylish appearance
  • WiFi/LED lights can be turned off
  • 802.3af/at standard PoE network cable power supply, no external power supply required
  • Support weak signal elimination, prohibit weak signal equipment access function
  • Fat and thin, you can choose different modes according to different application environments
  • New appearance housing, simple fashion
  • Support TP-LINK business cloud APP remote view / management

National standard 86 panel design, PoE power supply, easy installation, simple use

  • National standard 86 panel design, can replace the original network panel without re-wiring, does not destroy the original decoration. Support 802.3af/at standard PoE network cable power supply, each AP requires only one network cable, not subject to the electricity conditions, simple AP deployment, convenient construction.

Automatic selection of suitable channels, smooth and stable network

  • Automatically select appropriate channels according to the use of wireless channels in the AP, avoid co-frequency interference, and ensure wireless stability.

Fat and thin integrated, wireless networks of different sizes can be efficiently managed

  • Fat AP (FAT AP) mode (suitable for small area wireless coverage): No need to use the TP-LINK wireless controller (AC), AP can work independently, and the wireless network cost is low;
  • Thin AP (FIT AP) mode (suitable for large-area wireless coverage): Use the TP-LINK Wireless Controller (AC) to manage all APs through the AC to reduce wireless management difficulties.

Automatic radio frequency, optimize wireless network overall performance

  • Supports automatic radio frequency tuning, automatic computing of neighbor relationships between the AP in the network, and automatically adjusts the wireless transmit power and channel according to the real-time interference, load conditions of the nearby equipment, ensuring that the overall wireless network is always at high speed, high performance.

A variety of unified management, support remote management

  • Support centralized management of TP-LINK commercial network cloud platform
  • Support TP-LINK network management system centralized management
  • Support TP-LINK business cloud APP remote view / management





Technical Specifications

Property DescriptionProperty Value
Product model
  • TL-NAP450-I1-P
Installation method
  • directly install it to the national standard 86 network wiring box
size
  • 86*87.5*33mm
wireless
  • operating frequency band: 2.4GHz-2.483GHz (China)
  • wireless rate: 450Mbps
port
  • front: 1 10/100M RJ45 port
  • Back: 1 10/100M RJ45 port
antenna
  • Built-in antenna
Indicator light
  • 1 system indicator
Button
  • 1 WiFi / LED / RESET multiplex button
  • 1 FAT / FIT mode Dial switch
  • 1 Reset button
power supply
  • standard PoE power supply
Maximum power consumption of the whole machine
  • 3.91W
management
  • FIT AP mode: Manage
  • FAT AP mode by TP-LINK Wireless Controller (AC): Independent Web Page Management
Use environment
  • operating temperature: 0°C ~ 40°C
  • Working humidity: 10% ~ 90% RH does not condense
  • storage temperature: -40°C ~ 70°C
  • Storage humidity: 5% ~ 90% RH does not condense
wireless function
  • SSID broadcast: Support
  • SSID Quantity: 8 (Support Chinese SSID)
  • Network Type: Visitor Network, Master Network
  • Wireless Encryption : WPA, WPA2, WPA-PSK, WPA2-PSK
  • User Isolation: Wi-Fi interval, internal isolation of AP
  • wireless MAC address filter: Support White list
  • VLAN settings: Support SSID and TAG VLAN Bind
  • Transmission power setting: Support 1DBM linear adjustment
  • WDS function: support
  • wireless client quantity limit : Support
  • QoS: WMM
  • Prohibition of weak signal access: Support
  • snipping weak signal device: Support
Maximum number of connectable clients
  • 50
System Management
  • device management: full Chinese Web Management
  • restore factory setting: Support
  • backup configuration: support
  • Import configuration: Support
  • software upgrade: support
  • ping watchdog: Support
