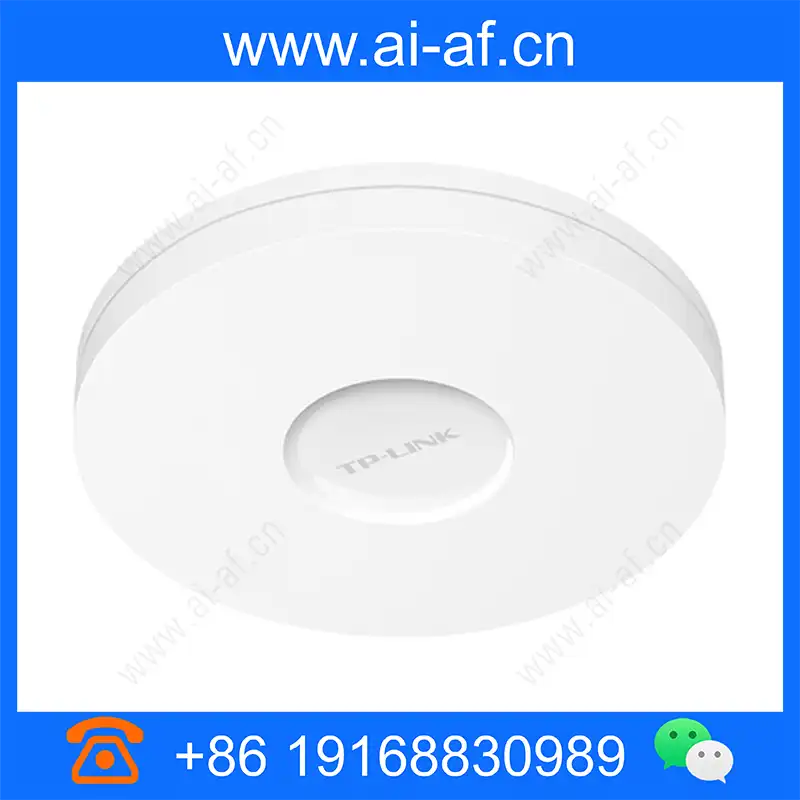

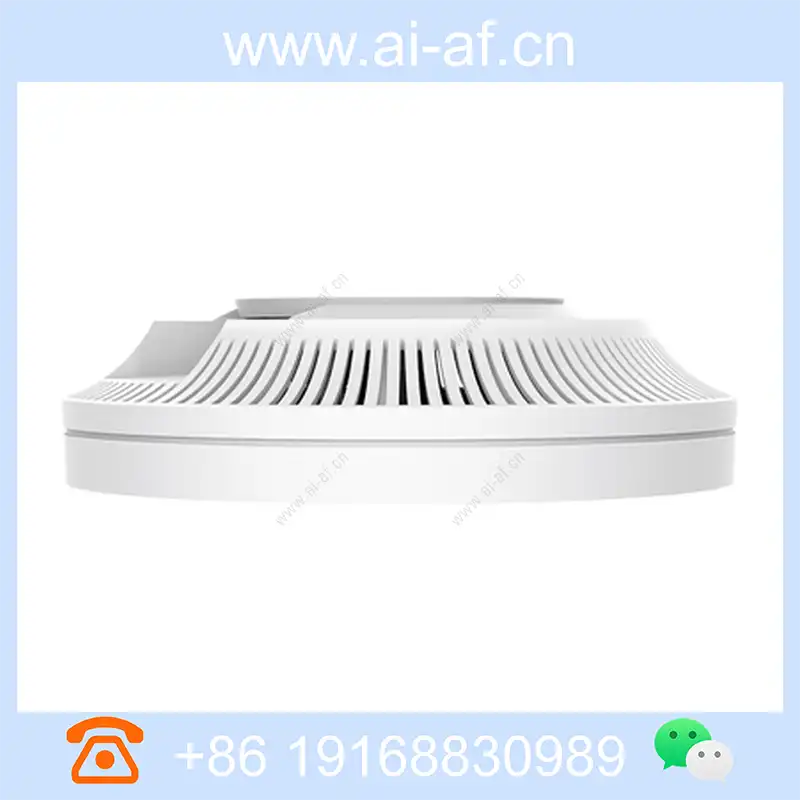

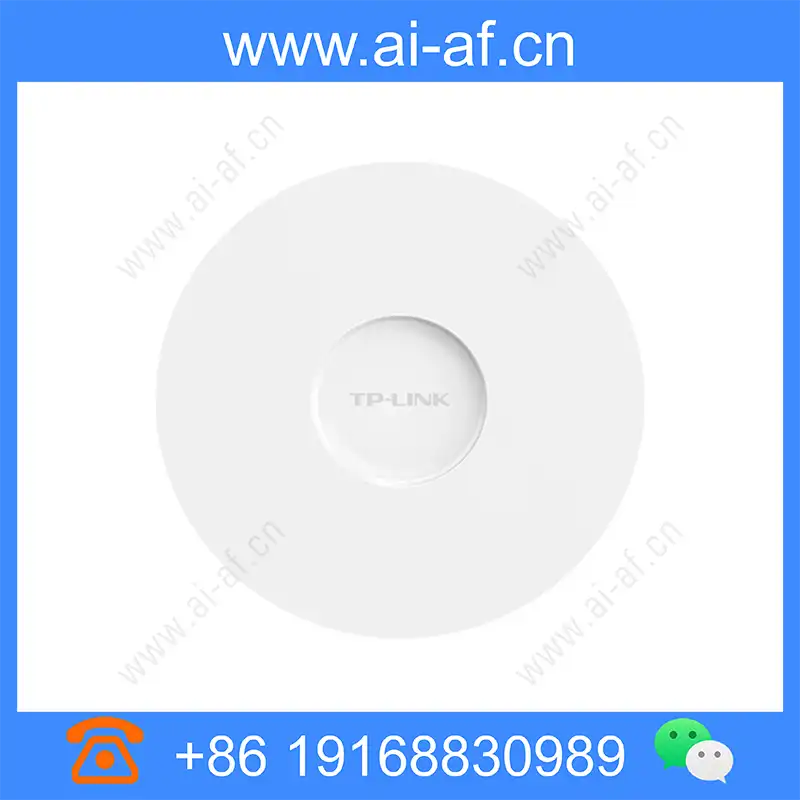

TP-LINK TL-NAP1900-GC2-PD AC1900 Dual Band Gigabit Wireless Ceiling AP

• 11AC dual-band concurrent, the highest wireless rate can reach 1900Mbps
• The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs
• Professional dual-band antenna to improve the signal quality of the coverage area
• Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance
• Simple ceiling installation, 802.3af/at standard PoE network cable power supply

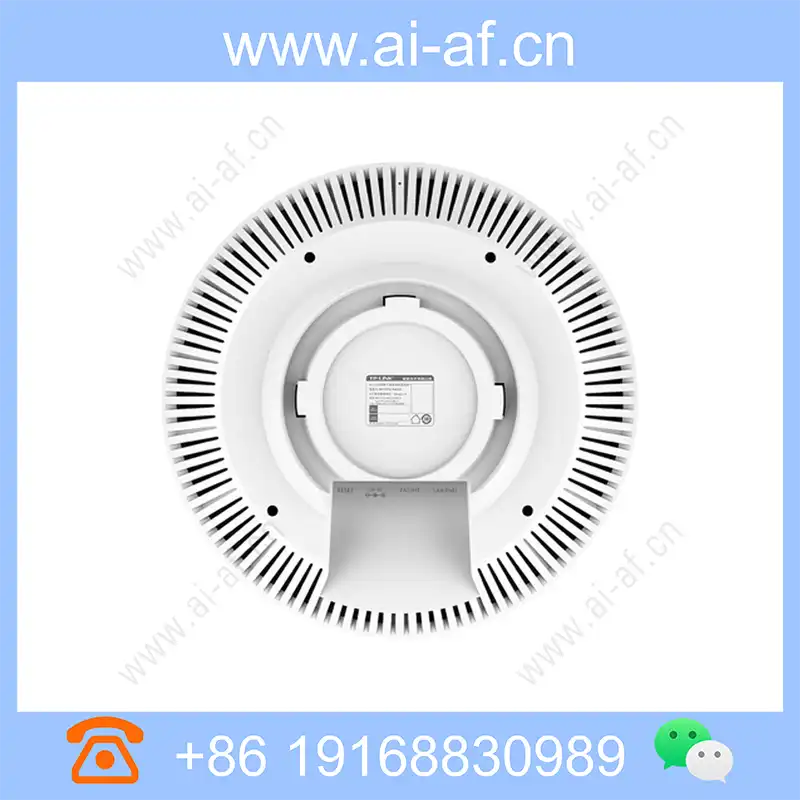

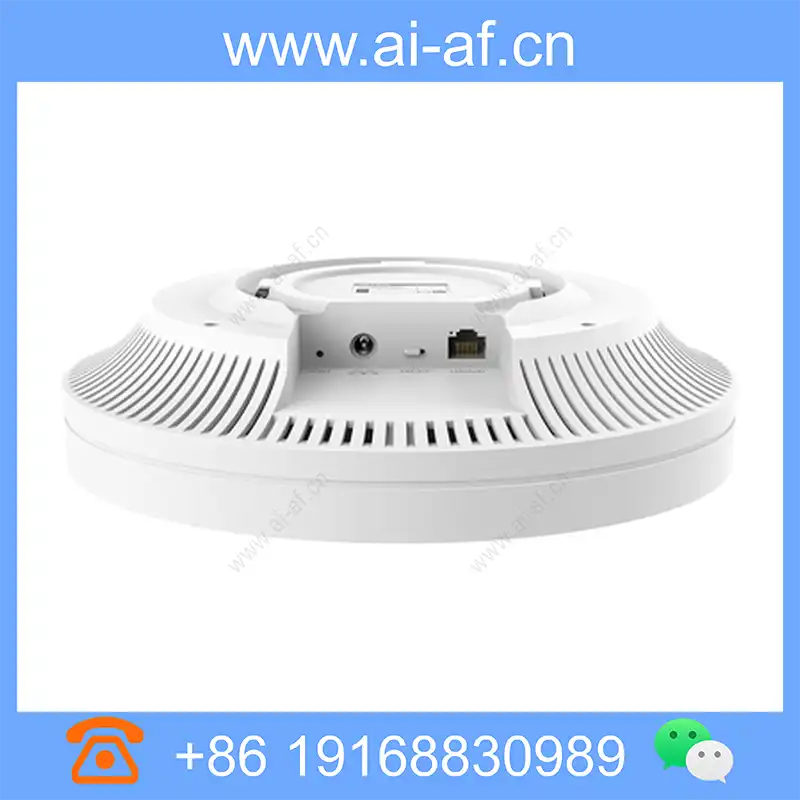

• The port is hidden in the shell, and the wiring is beautiful
• Fat and thin, choose different working modes in different environments
• Independent hardware protection circuit can automatically recover abnormal AP
• FIT mode supports radio frequency automatic tuning function
• FIT mode supports intelligent roaming technology
• Support centralized management of TP-LINK commercial network cloud platform
• Support TP-LINK business cloud APP remote view / management

Dual frequency concurrent, 1900Mbps wireless rate

Support 2.4G / 5G dual-frequency concurrent, 2.4GHz band provides 600MBPS wireless transmission rate, 5GHz band provides 1300 mbps wireless transmission rate, built-in full high gain bipolarization antenna.

Second, professional hardware, software design

Automatic RF tuning to optimize overall performance

Supports automatic radio frequency tuning, automatic computing of neighbor relationships between the AP in the network, and automatically adjusts the wireless transmit power and channel according to the real-time interference, load conditions of the nearby equipment, ensuring that the overall wireless network is always at high speed, high performance.

Smart kicking weak signal equipment, upgrading wireless quality

Weak signal intensity thresholds, intelligent identification, and disabled, kicking the signal intensity below the threshold. Do not let the weak signal devices drag network efficiency and improve the roaming quality of the entire wireless network.

Intelligent roaming technology to enhance the wireless experience of each user

Using intelligent roaming technology based on 802.11 kV protocol, in a high-density environment such as a multi-AP such meeting room / office area / bar / KTV, a terminal device such as mobile device is automatically accessed to the best AP, implementation Quick roaming, effectively enhance the experience of each user and the overall performance of the wireless network.

Third, high performance interface

Gigabit network port, net online

With a 1000Mbps network port, compared to the 100M network, the rate is greatly improved, so that the wired interface will no longer become the bottleneck wireless transmission, meet the high-speed Internet access in the high-band wide field.

Fourth, convenient construction, simple management, safe care

Multiple power supply

a, standard PoE power supply, more convenient construction

Powered by standard PoE, no external power supply, each AP requires only one network cable, which is convenient.

Note: You need to match the PoE power supply such as a PoE switch, standard PoE power electrical appliance.

b, support 12V DC power supply, no need to purchase a PoE switch, reduce the network cost.

Note: This product is not delivered to the DC power adapter.

Multiple installation methods

At the same time, the ceiling, wall mounting, easy installation, adapt to more scenes.

TP-LINK Commercial Cloud Platform Unified Management

Remote centralized management multiple projects, efficient and convenient

In real time monitoring equipment, the alarm is timely and accurate

Analysis of chart data, at a glance

Support mobile phone app, management, anytime, anywhere

Independent hardware protection circuit, automatic recovery work exception AP

When the built-alone hardware protection circuit, the AP work is abnormal, it can be automatically recovered without manual intervention, ensuring that the Wi-Fi signal is stably covered, and the later maintenance is more worry-free.
