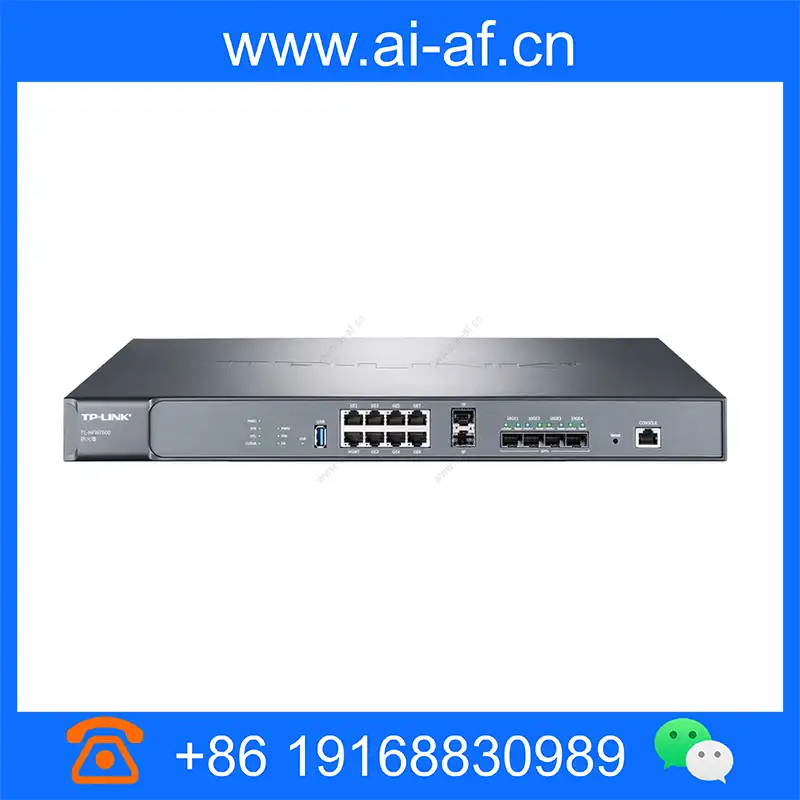

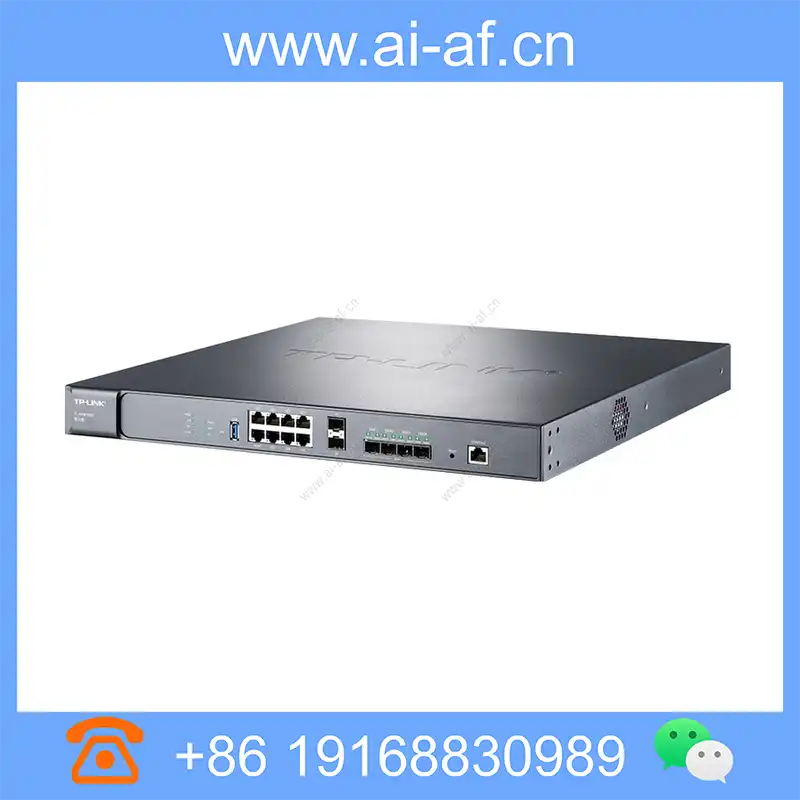

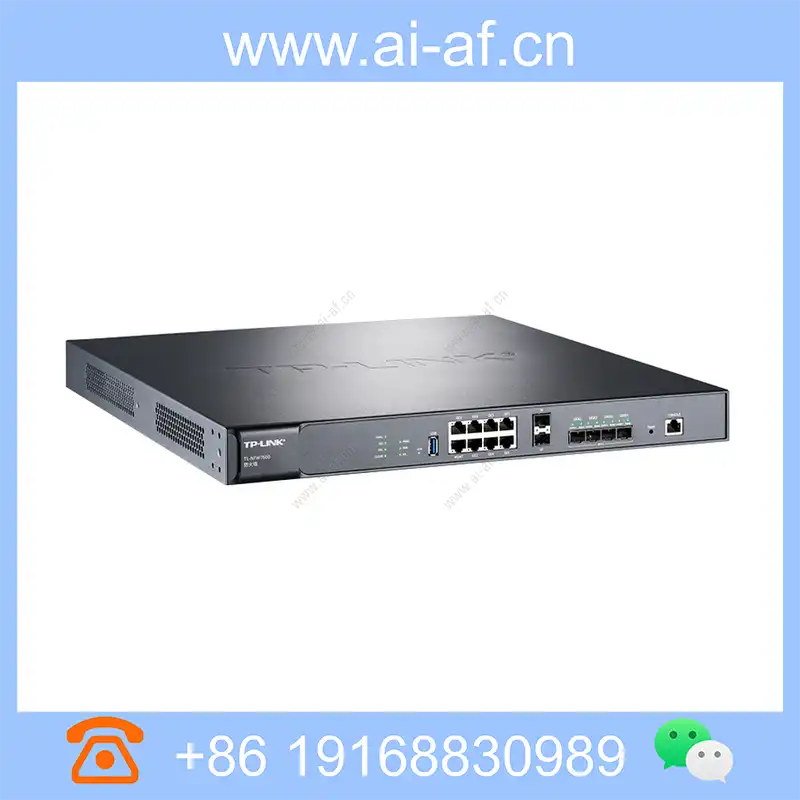

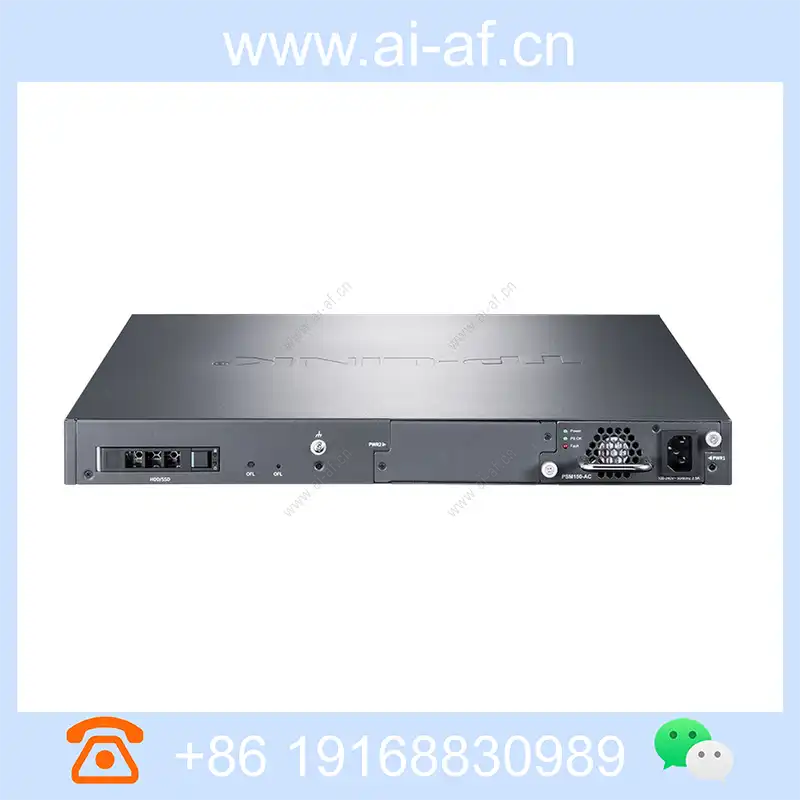

TP-LINK TL-NFW7600 Enhanced Firewall

Brand: TP-LINK

Model: TL-NFW7600

Dimensions: 440mm x 420mm x 44mm

Sixteen-core 64-bit network dedicated processor, single-core frequency 1.5GHz, 8GB DDRIV high-speed memory 4 x 10 Gig SFP+ ports, 2 x Gigabit SFP ports (Combo) 7 10/100/1000M RJ45 ports Support configuration security policies, audit strategies, bandwidth policies, NAT policies, etc. Support expanded integrated DPI deep security (intrusion defense, anti-virus, file filtering, malicious domain remote query, application behavior control) Support rich strategic objects (security zone, address, application, black and white list, security profile, intrusion defense, audit profile, etc.) Support rich network functions, static routing, policy routing, intelligent balance, VPN (IPSec/PPTP/L2TP VPN), DDNS, etc. Multiple administrator roles, fine-grained authority management port

4 10G

Product Features

Sixteen-core 64-bit network dedicated processor, single-core frequency 1.5GHz, 8GB DDRIV high-speed memory
4 x 10 Gig SFP+ ports, 2 x Gigabit SFP ports (Combo)
7 10/100/1000M RJ45 ports
Support configuration security policies, audit strategies, bandwidth policies, NAT policies, etc.
Support expanded integrated DPI deep security (intrusion defense, anti-virus, file filtering, malicious domain remote query, application behavior control)
Support rich strategic objects (security zone, address, application, black and white list, security profile, intrusion defense, audit profile, etc.)
Support rich network functions, static routing, policy routing, intelligent balance, VPN (IPSec/PPTP/L2TP VPN), DDNS, etc.
Multiple administrator roles, fine-grained authority management

Technical Specifications

Property Description	Property Value
port	4 10G SFP+ port 7 10/100/1000M RJ45 port 2 10/100/1000M SFP port (Combo) 1 management port 1 USB storage port 1 console port 1 HDD / SSD card slot
processor	Sixteen-core 64-bit MIPS network dedicated processor, single-core frequency 1.5GHz
RAM	DDRIV 8GB
FLASH	32MB NOR+1GB NAND
Indicator light	port: LINK / ACT, SPEED, USB devices: PWR1, PWR2, SYS, OFL, Cloud, Fan, Ha
Dimensions	440 x 420 x 44 mm
Input power	100~240V AC,50/60Hz
Cooling method	fan
Use environment	operating temperature: 0°C ~ 40°C, Working humidity: 10% ~ 90% RH does not condense storage temperature: -40°C ~ 70°C, storage humidity: 5% ~ 90 % RH does not condense
Policy configuration	Security Policy, Audit Policy Detection Policy (Encrypted Traffic Detection) Bandwidth Policy (Bandwidth Control, Connection Limit, Connection Monitoring) NAT strategy (NAPT, One-on-one NAT, Virtual Server, NAT-DMZ, UPNP) ALG Policy (FTP ALG, H.323 ALG, PPTP ALG, SIP ALG)
Strategy Object	security zone, address, user, service, website, application, black and white list, intrusion defense security profile (URL filtering, file filtering, application behavior control, mail content filtering, anti Virus) audit profile (HTTP behavior audit, FTP behavior audit, email auditing, IM audit)
Attack protection	support ARP protection, such as ARP spoof, ARP attack support a variety of common attack protection, such as DDoS attack, network scan, suspicious pack attack support Mac Address filtering, blocking access to illegal hosts
Integrated DPI depth security	Support intrusion defense support anti-virus support malicious domain remote query support application behavior identification support Filter file expansion type
Network function	Static route, policy routing intelligent balance VPN (IPSEC / PPTP / L2TP VPN) Dynamic DNS (peanut shell, department Mai, 3322)
System Management	support Chinese web management, remote management support multiple management roles support configuration backup and import support system software upgrade Supports a variety of logs, reports, diagnostic centers, panel status support CLI management, license management and hard disk management support feature library upgrade
Western data	WD5000LPCX WD10SPZX WD20SPZX
Toshiba	MQ01ABF050 MQ04ABF100 MQ04ABD200
