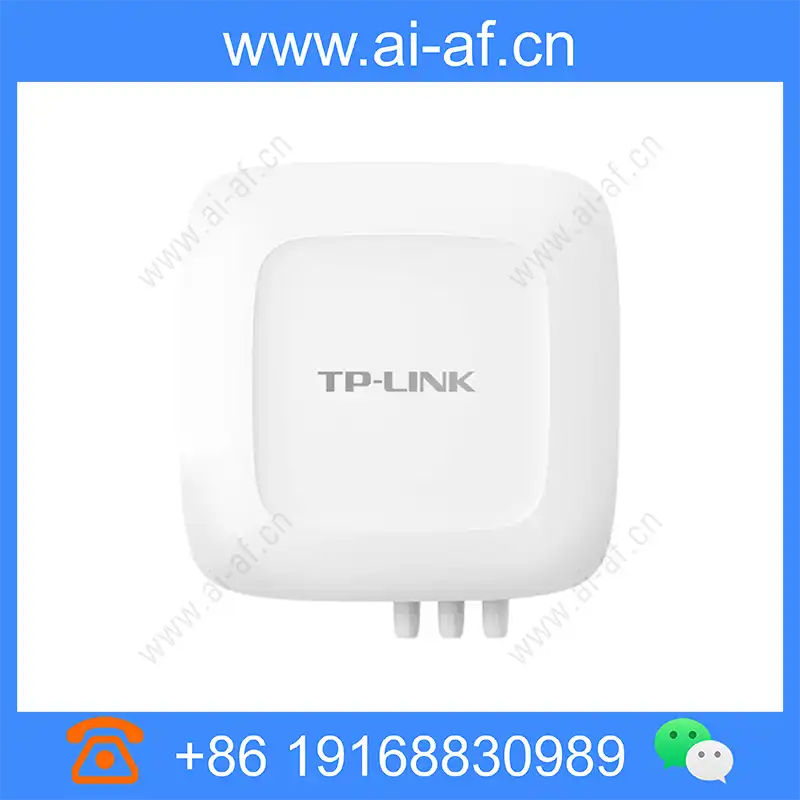

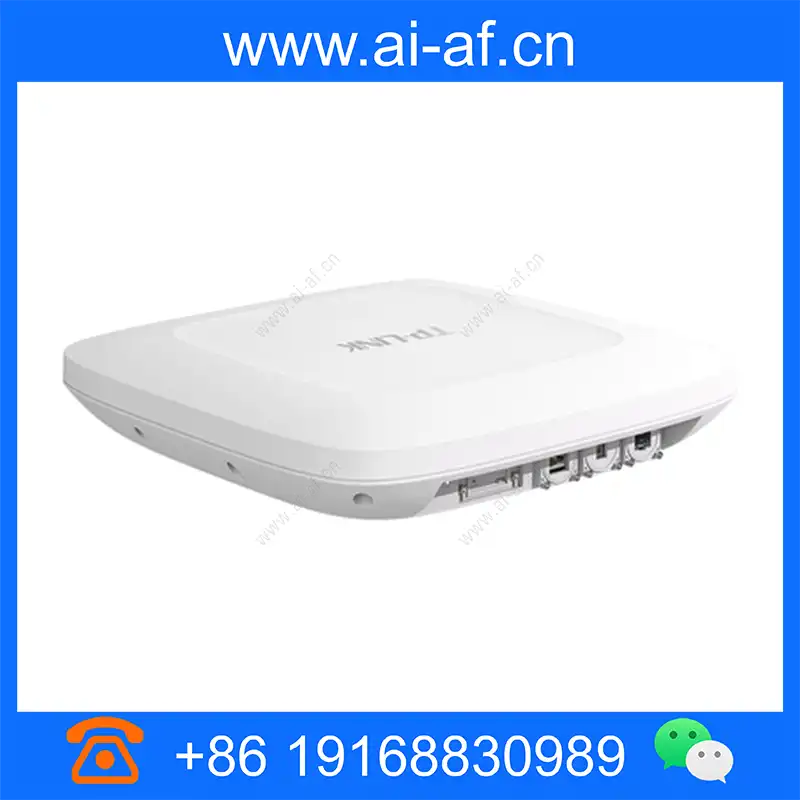

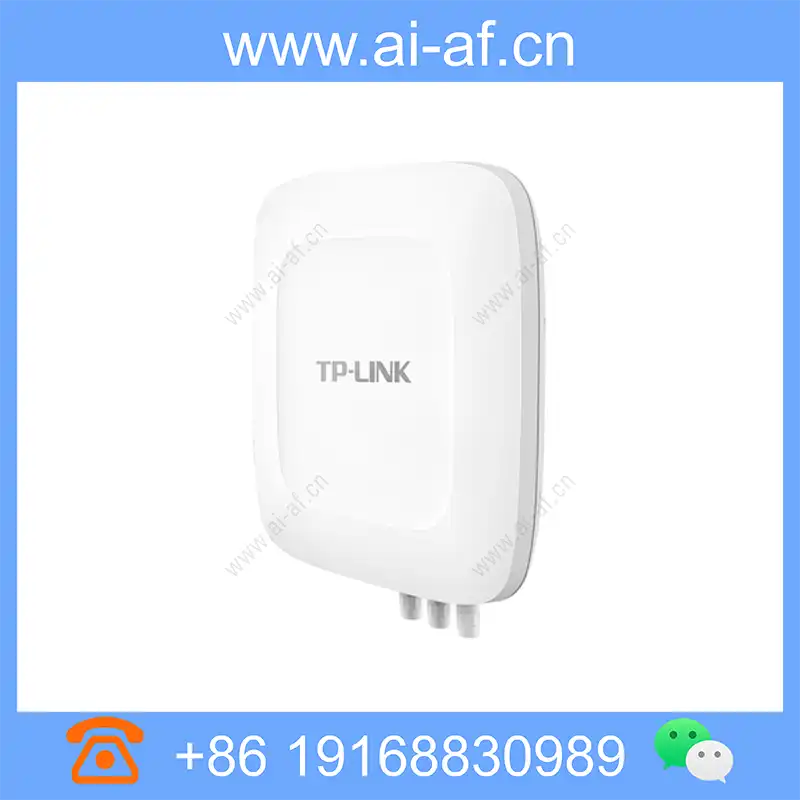

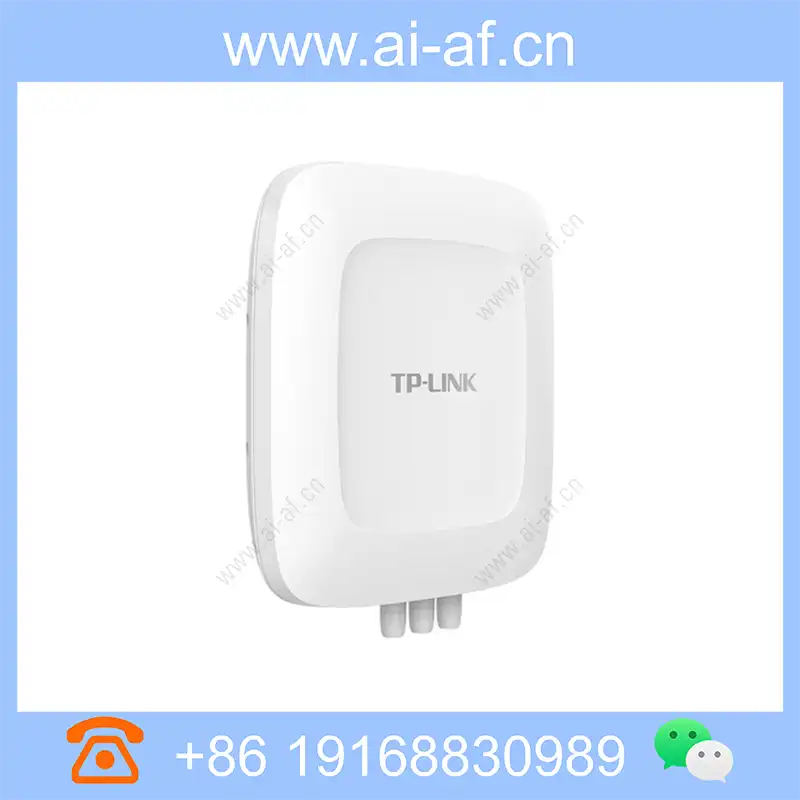

TP-LINK TL-NAP3800-GP4 AC3800 Quad-band High Density Outdoor High-power Wireless AP

First, use 11ac wireless technology

Quad frequency concurrent, 3800Mbps wireless rate

Support 2.4G / 5G four-frequency concurrent, the wireless belt machine is doubled, meets the wireless coverage requirements of the human flow intensive place, the 2.4GHz band provides 1200MBPS wireless transmission rate, 5GHz band provides 2600Mbps wireless transmission rate, built-in full high gain bipolarization antenna .

Second, professional hardware, software design

Independent power amplifier circuit to increase the transmission power

External Independent Amplifier (PA: POWER AMPLIFIER) and low noise power delivery circuit (LNA: Low noise amplifier) further increasing wireless transmit power, reducing wireless signal reception noise interference, wider coverage.

Automatic RF tuning to optimize overall performance

Supports automatic radio frequency tuning, automatic computing of neighbor relationships between the AP in the network, and automatically adjusts the wireless transmit power and channel according to the real-time interference, load conditions of the nearby equipment, ensuring that the overall wireless network is always at high speed, high performance.

Smart kicking weak signal equipment, upgrading wireless quality

Weak signal intensity thresholds, intelligent identification, and disabled, kicking the signal intensity below the threshold. Do not let the weak signal devices drag network efficiency and improve the roaming quality of the entire wireless network.

Intelligent roaming technology to enhance the wireless experience of each user

With intelligent roaming technology based on 802.11 kVR protocol, in high-density environments such as multi-APs such as conference room / office / bar / KTV, to help mobile phones, PAD, computers automatically access to signal quality, the best AP, implementation Quick roams within 50ms, effectively enhance the experience of each user and the overall performance of the wireless network.

Third, high performance interface

Gigabit network port, net online

With Gigabit network port, compared to 100M port, the rate is greatly improved, so that the wired interface will no longer become the bottleneck of wireless transmission, meet multi-user, high-band wide field view, high-speed Internet access requirements.

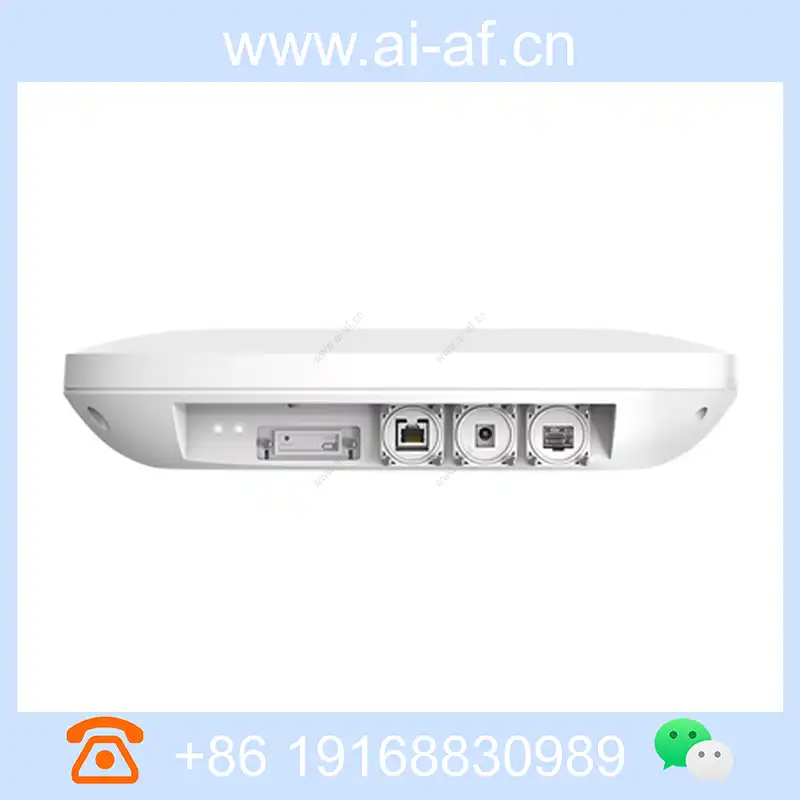

Gigabit SFP optical port, direct connection is more convenient

A Gigabit SFP fiber module slot can be installed to install the SFP fiber module. With fiber optic direct connection AP, it is possible to effectively solve the wiring challenge when the AP and the machine room are far.

Fourth, convenient construction, simple management, safe care

Multiple power supply

a, standard PoE power supply, more convenient construction

Powered by standard PoE, no external power supply, each AP requires only one network cable, which is convenient.

Note: You need to match the PoE power supply such as a PoE switch, standard PoE power electrical appliance.

b, PASSIVE POE power supply, power transmission distance can reach 100 meters

Supports PASSIVE POE power supply, power supply transmission distance can reach 100 meters, solve the problem of power access difficulties in an outdoor environment, and flexibly based on demand.

c, support 12V ~ 53.5V DC power supply, no need to purchase a PoE switch to reduce the network cost.

Note: This product is factory distributed DC power adapter and non-standard PoE power supply module.

Multiple installation methods

At the same time, it supports the hug rod, the wall mounting, horizontal, and vertical angles can be adjusted, easy to install, and adapt to more scenes.

IP68 dust-proof waterproof

Provides IP68 dustproof, waterproof, and can work normally in extreme environments as low as -30°C to 65°C, no fear, sun, rain.

TP-LINK Commercial Cloud Platform Unified Management

• Remote centralized management multiple projects, efficient and convenient
• In real time monitoring equipment, the alarm is timely and accurate
• Analysis of chart data, at a glance
• Support mobile phone app, management, anytime, anywhere

Independent hardware protection circuit, automatic recovery work exception AP

When the built-alone hardware protection circuit, the AP work is abnormal, it can be automatically recovered without manual intervention, ensuring that the Wi-Fi signal is stably covered, and the later maintenance is more worry-free.
