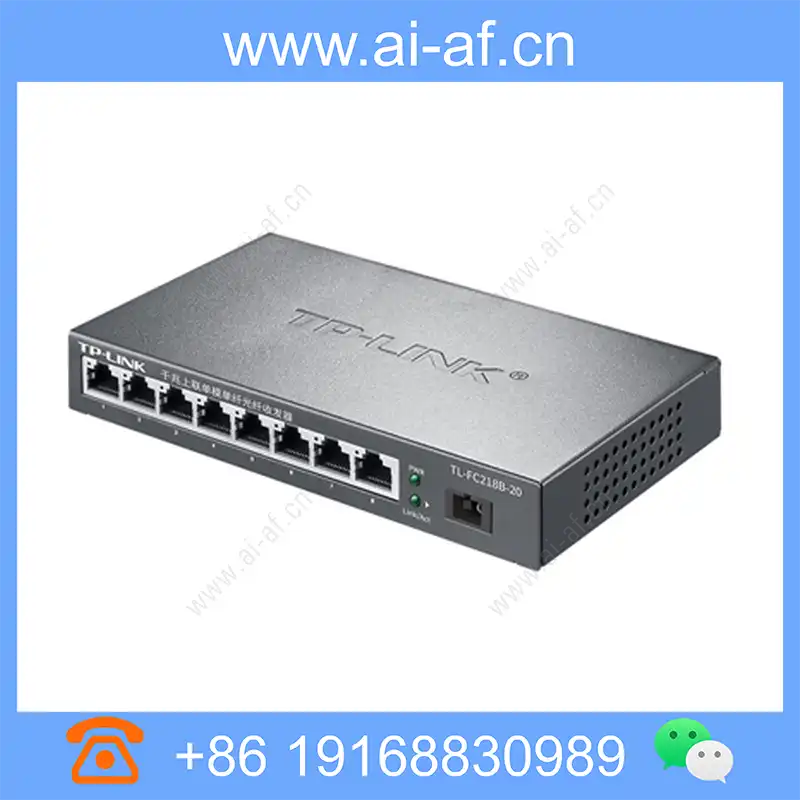

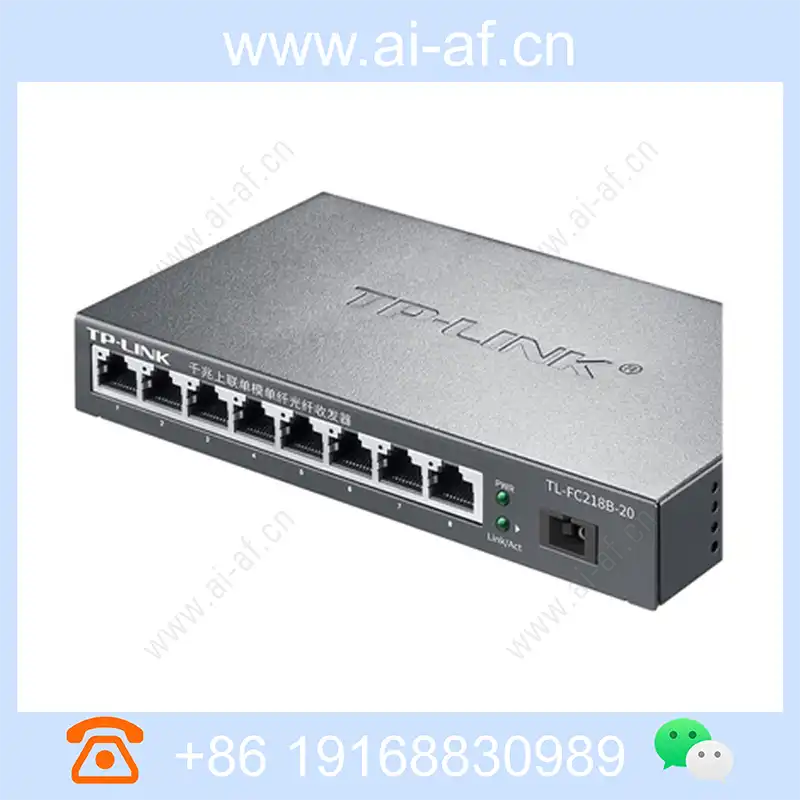

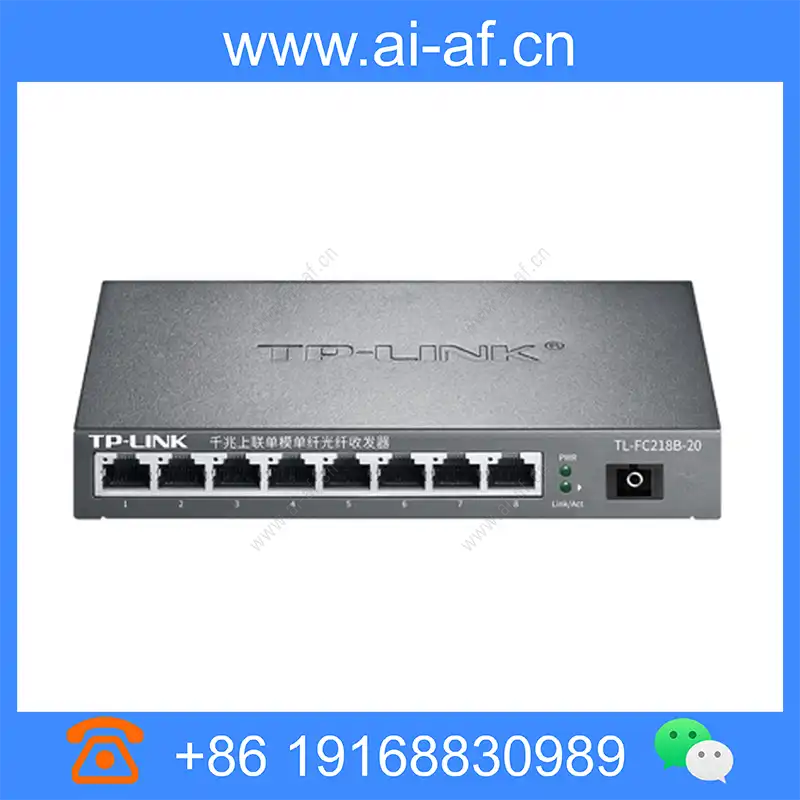

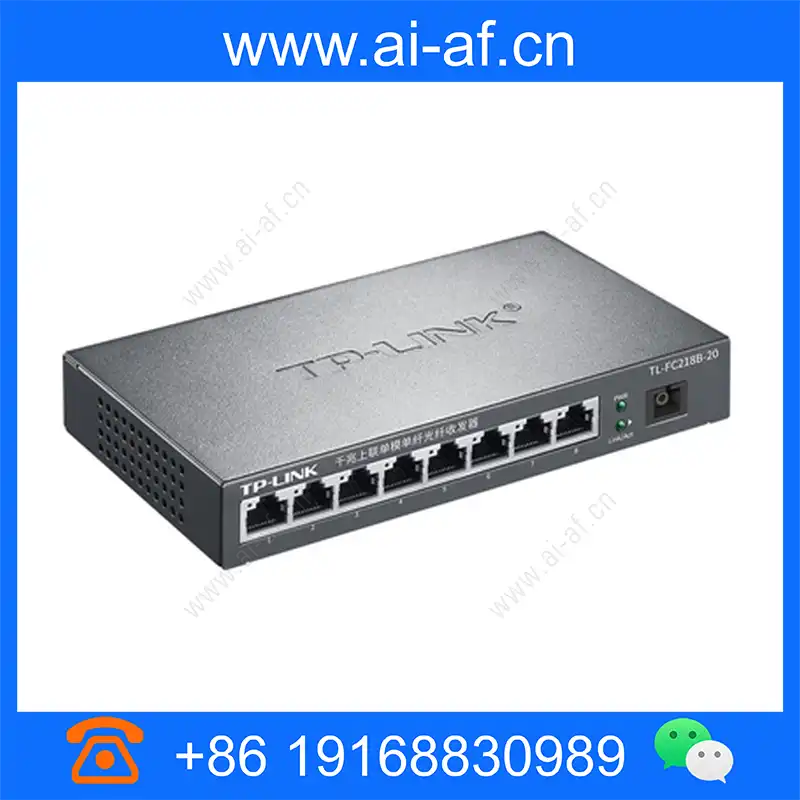

TP-LINK TL-FC218B-20 Fiber Transceiver Gigabit Uplink Single Mode Single Fiber 1SC 8FE 20KM
1 Gigabit SC optical port, 8 100M RJ45 network ports Based on wavelength division multiplexing technology, single-mode single-fiber transmission, the longest transmission distance is 20 kilometers Working wavelength: 1310nm (transmit), 1550nm (receive) TL-FC311B-20 industrial grade is an industrial-grade Gigabit single-mode single-fiber optical fiber transceiver that provides a 1000Mbps electrical port and a 1.25Gbps SC optical port, which can convert the electrical port signal and the optical port signal and pass the optical fiber For long-distance data transmission. TL-FC218B-20 is a Gigabit uplink single-mode single-fiber optical fiber transceiver that provides 8 100Mbps electrical ports and 1 1.25Gbps SC optical port, which can convert electrical signals and optical port signals
Product Features
TL-FC311B-20 industrial grade is an industrial-grade Gigabit single-mode single-fiber optical fiber transceiver that provides a 1000Mbps electrical port and a 1.25Gbps SC optical port, which can convert the electrical port signal and the optical port signal and pass the optical fiber For long-distance data transmission. TL-FC218B-20 is a Gigabit uplink single-mode single-fiber optical fiber transceiver that provides 8 100Mbps electrical ports and 1 1.25Gbps SC optical port, which can convert electrical signals and optical port signals through optical fiber For long-distance data transmission. TL-FC218B-20 uses wavelength division multiplexing technology, with a transmission wavelength of 1310nm and a reception wavelength of 1550nm. It can simultaneously receive and send data through a single-mode fiber, and the maximum transmission distance is 20 kilometers. TL-FC218B-20 is recommended to be used with TL-FC311A-20 to give full play to product performance. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3、IEEE802.3i、IEEE 802.3u、IEEE 802.3z、IEEE 802.3x |
| interface | 1 1.25Gbps SC fiber interface 8 10/100M RJ45 ports |
| Transmission wavelength | TX:1310nm RX:1550nm |
| Transmission medium | Network cable: Category 5 or above UTP and STP fiber: 9/125um single-mode fiber |
| Indicator light | Optical and electrical ports Link / Act, PWR |

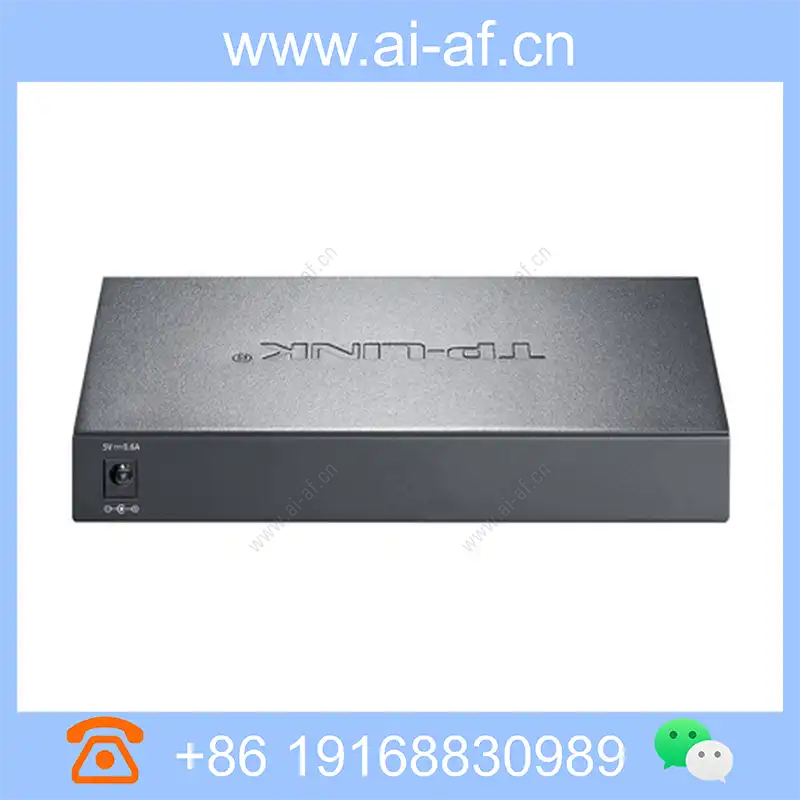

| power supply | 5VDC/0.6A |
| size | 171mm*98mm*27mm |
| Use environment | Operating temperature: -20°C~50°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90%RH non-condensing |
| Light parameter | Average transmit optical power: -9~0dBm Receive sensitivity: -22dBm |
| Data transmission rate per port | 200Mbps full duplex |
| Packet forwarding rate | 4Mpps |
| MAC address depth | 4K |
| Internal cache | 1.5Mbit |
