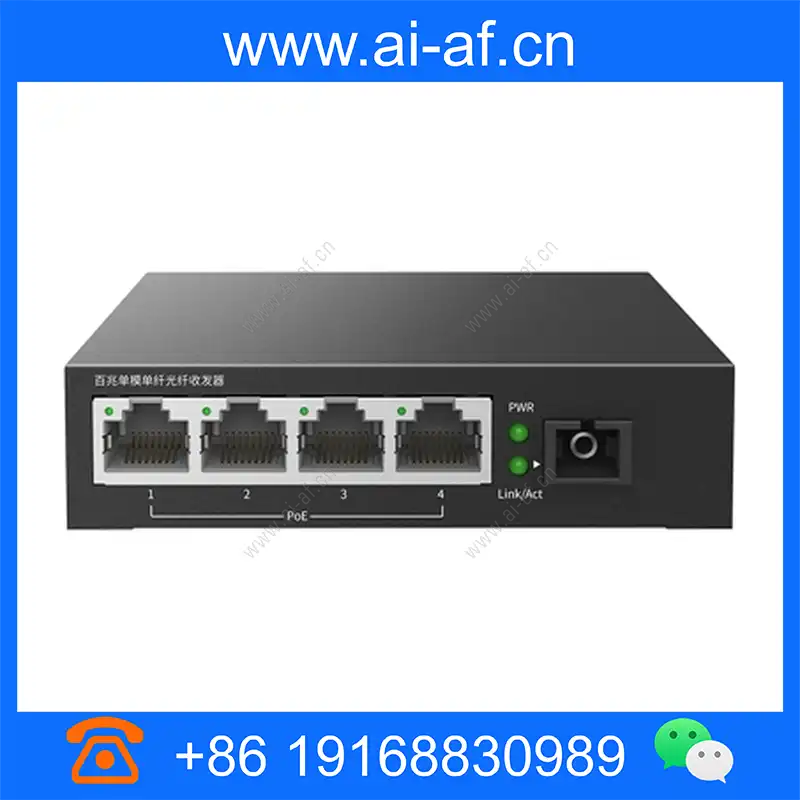

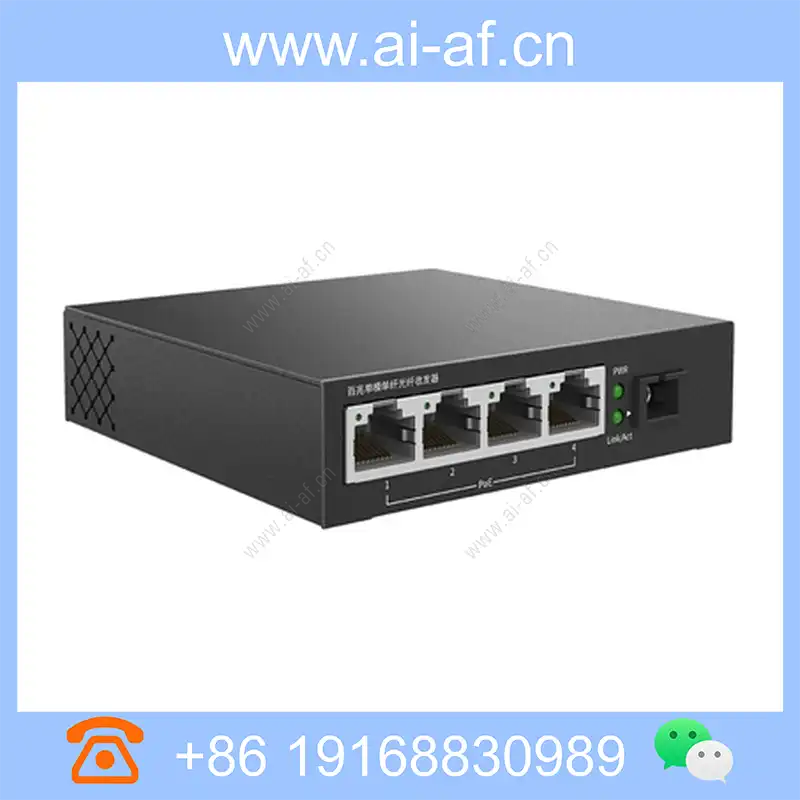

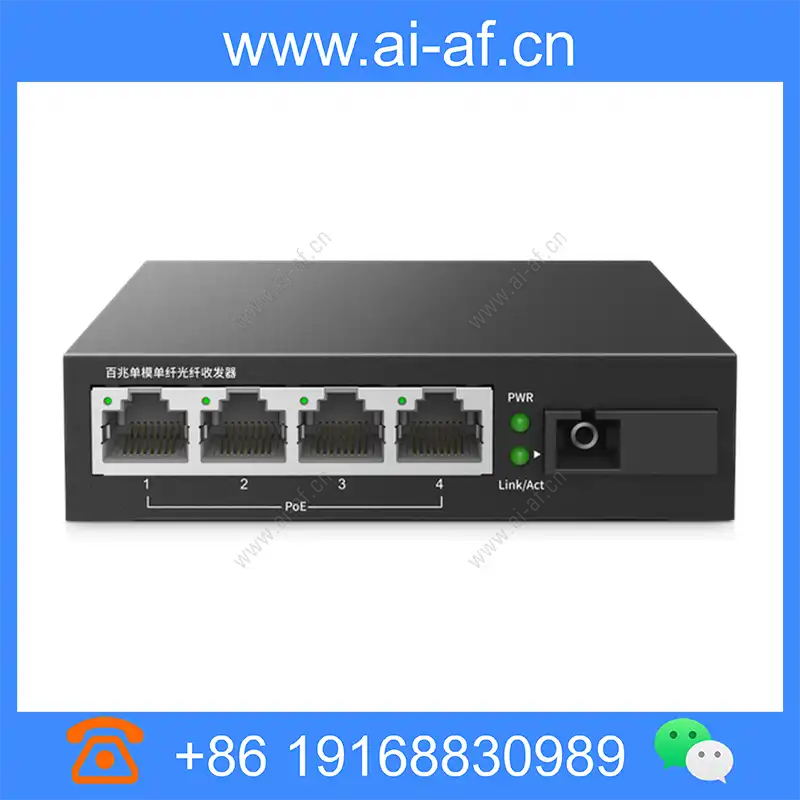

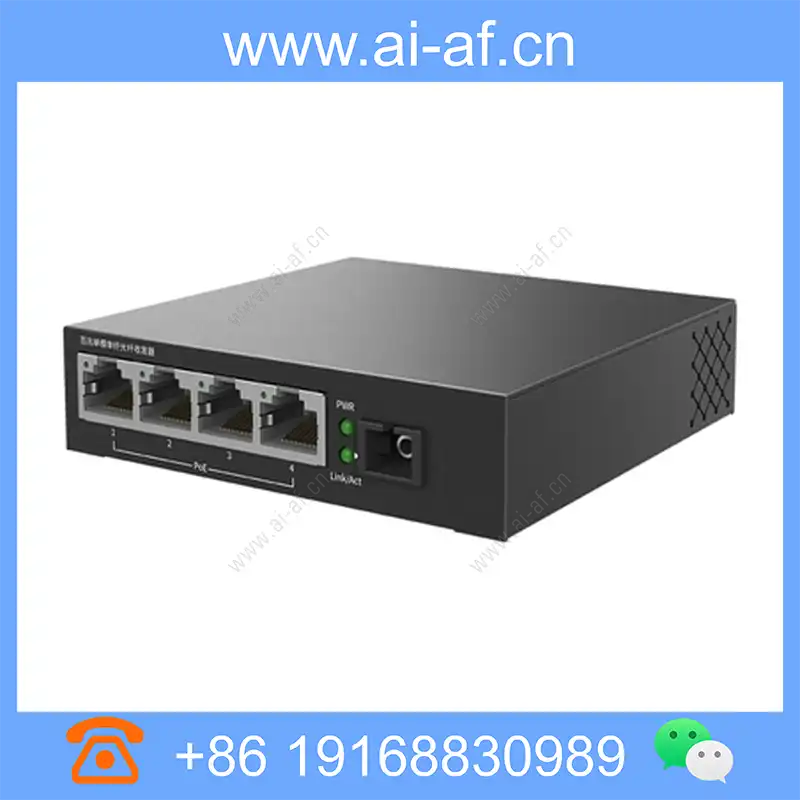

TP-LINK TL-FC114PB fiber transceiver 100M single-mode single-fiber 1SC 4FE PoE 20KM
1 100M SC optical port, 4 100M RJ45 network ports supporting PoE function Based on wavelength division multiplexing technology, single-mode single-fiber transmission, the longest transmission distance is 20 kilometers Working wavelength: 1310nm (transmit), 1550nm (receive) Support IEEE802.3at standard, compatible with IEEE802.3af powered devices The PoE output power of the whole machine is 57W, supports intelligent power management and port priority mechanism, and the maximum output of a single port can reach 30W TL-FC114PB is a Gigabit single-mode single-fiber optical fiber transceiver that supports PoE function. It provides four 100M electrical ports that support PoE function and one 100M SC optical port, which can perform the electrical port signal and optical port signal. Conversion
Product Features
TL-FC114PB is a Gigabit single-mode single-fiber optical fiber transceiver that supports PoE function. It provides four 100M electrical ports that support PoE function and one 100M SC optical port, which can perform the electrical port signal and optical port signal. Conversion, and long-distance data transmission through optical fiber. TL-FC114PB uses wavelength division multiplexing technology, with a transmission wavelength of 1310nm and a reception wavelength of 1550nm. It can simultaneously receive and send data through a single-mode fiber, and the maximum transmission distance is 20 kilometers. TL-FC114PB has a built-in dedicated PSE chip, supports multi-point detection technology, accurately samples real-time current, and provides safe and stable power supply for powered devices. TL-FC114PB supports intelligent power management. When the total power exceeds the rated standard, the power supply of the low-priority port can be disconnected intelligently according to the port priority, thereby avoiding the power supply overrun and ensuring the continuous and stable power supply of important ports. TL-FC114PB has a complete protection mechanism for over-current, over-voltage, surge, short circuit, etc. Each port is equipped with an independent circuit and a fuse, even if an individual line fails, it can still ensure that other ports work normally. TL-FC114PB is recommended to be used with TL-FC111A to give full play to product performance. |
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3、IEEE802.3i、IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| interface | 1 100Mbps SC optical fiber interface 4 10Mbps/100Mbps adaptive RJ45 ports (support PoE) |
| Transmission wavelength | TX:1310nm RX:1550nm |
| Transmission medium | Network cable: Category 5 or above UTP and STP fiber: 9/125um single-mode fiber |
| Indicator light | Optical and electrical ports Link / Act, PWR |

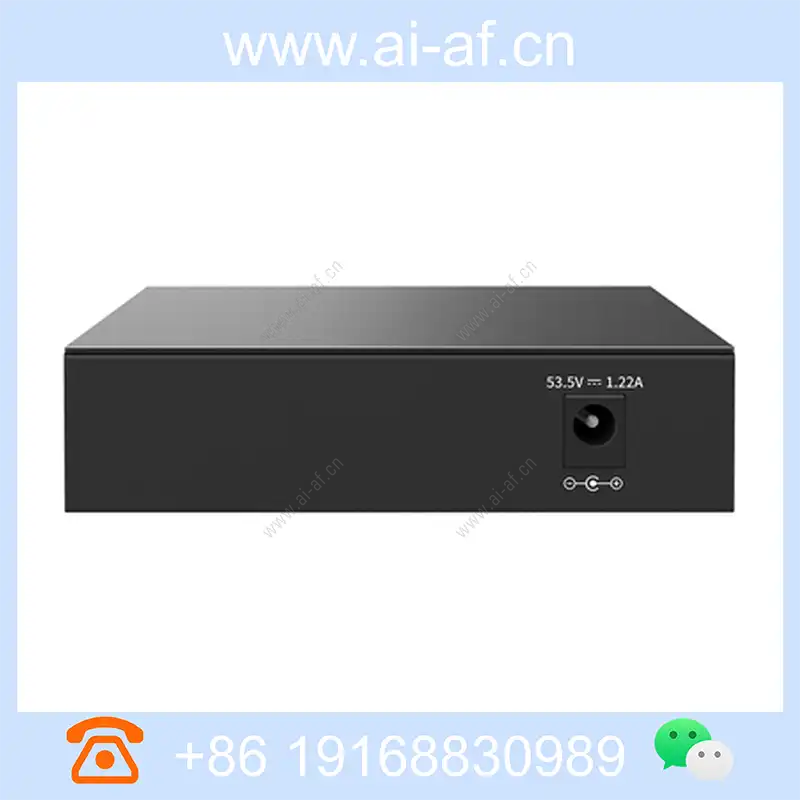

| power supply | 53.5VDC/1.13A |
| size | 100mm*98mm*25mm |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| Light parameter | Average transmit optical power: -15~-1dBm Receive sensitivity: -32dBm |
| Data transmission rate per port | 200Mbps full duplex |
| Packet forwarding rate | 0.7Mpps |
| MAC address depth | 2K |
| Internal cache | 768Kbit |
