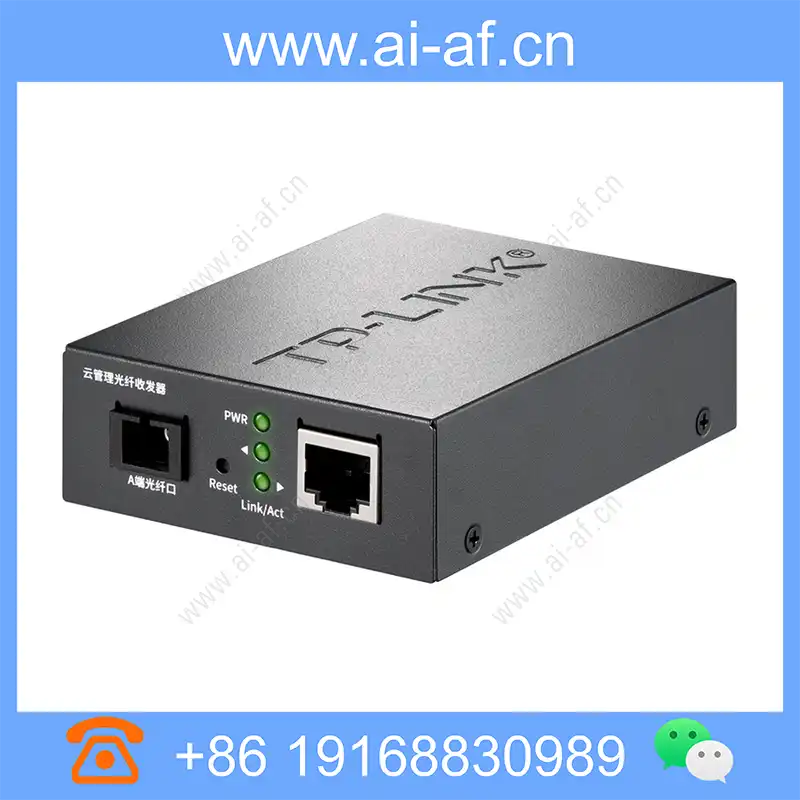

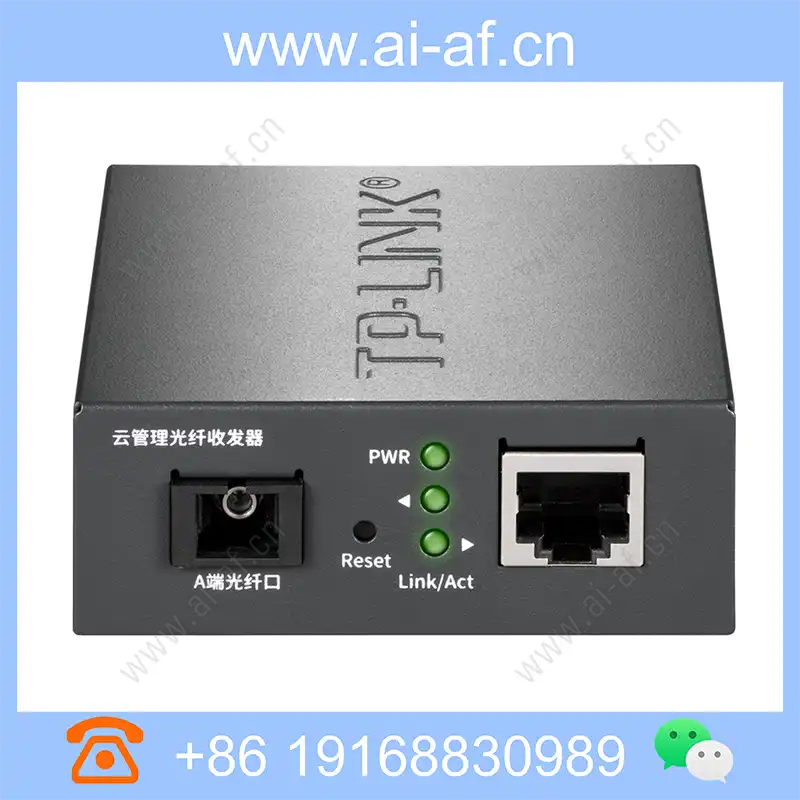

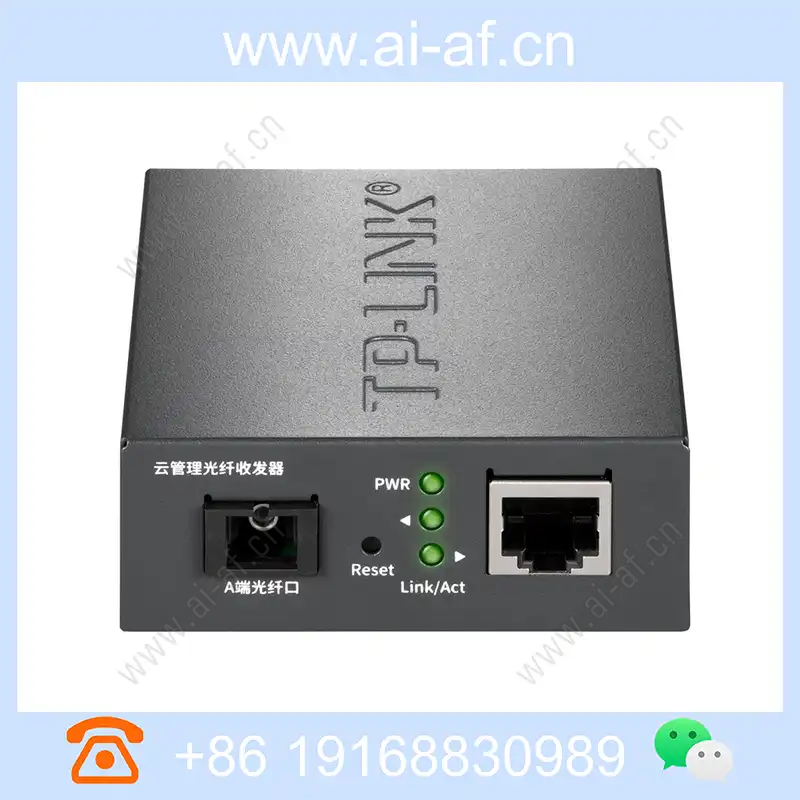

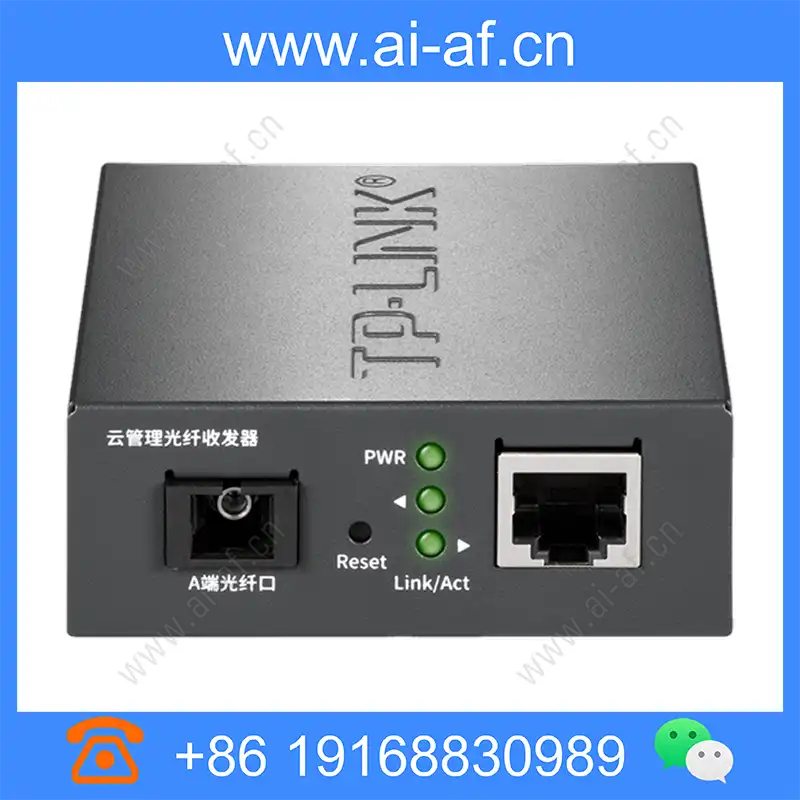

TP-LINK TL-FC2311A-20 Cloud Management Fiber Transceiver

Brand: TP-LINK
Model: TL-FC2311A-20
Dimensions: 94.50mm x 73mm x 27mm

1 100/1000Mbps SC fiber port, 1 10/100/1000Mbps RJ45 network port Based on wavelength division multiplexing technology (1550 nm emission wavelength, 1310 nm receiving wavelength), single mode single fiber transmission, farther distance up to 20 km Support Business Cloud APP end, web-side remote management and local Web management Support intelligent start, abnormal alarm, fast discharge Support QoS, bandwidth control, broadcast storm suppression Recommendations and TL-FC2311B-20 or TL-FC2314B-20 matching Supported standards

  • IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x、IEEE 802.1p
port
  • 1 100/1000Mbps SC Fiber Port
  • 1 10/100/1000Mbps RJ45 Net Port
Transmission wavelength
  • TX:1550nm
  • RX:1310nm

Product Features

    • 1 100/1000Mbps SC fiber port, 1 10/100/1000Mbps RJ45 network port
    • Based on wavelength division multiplexing technology (1550 nm emission wavelength, 1310 nm receiving wavelength), single mode single fiber transmission, farther distance up to 20 km
    • Support Business Cloud APP end, web-side remote management and local Web management
    • Support intelligent start, abnormal alarm, fast discharge
    • Support QoS, bandwidth control, broadcast storm suppression
    • Recommendations and TL-FC2311B-20 or TL-FC2314B-20 matching

Technical Specifications

Property DescriptionProperty Value
Supported standards
  • IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x、IEEE 802.1p
port
  • 1 100/1000Mbps SC Fiber Port
  • 1 10/100/1000Mbps RJ45 Net Port
Transmission wavelength
  • TX:1550nm
  • RX:1310nm
Transmission medium
  • fiber: Support 20km single mode single fiber
  • network cable: super five or more UTP and STP
Indicator light
  • optical port and network port LINK / ACT, PWR
Network management functions
  • supports remote management through business cloud app, business cloud network cloud platform (web end), local Web Management
  • support QoS, bandwidth control, storm suppression
Shell size
  • 94.5mm*73mm*27mm
Input power
  • 5VDC/0.6A
Use environment
  • operating temperature: -20° C ~ 60° C
  • storage temperature: -40° C ~ 70° C
  • Working humidity: 10% ~ 90% RH does not condense < / li>
  • storage humidity: 5% ~ 90% RH does not condense
