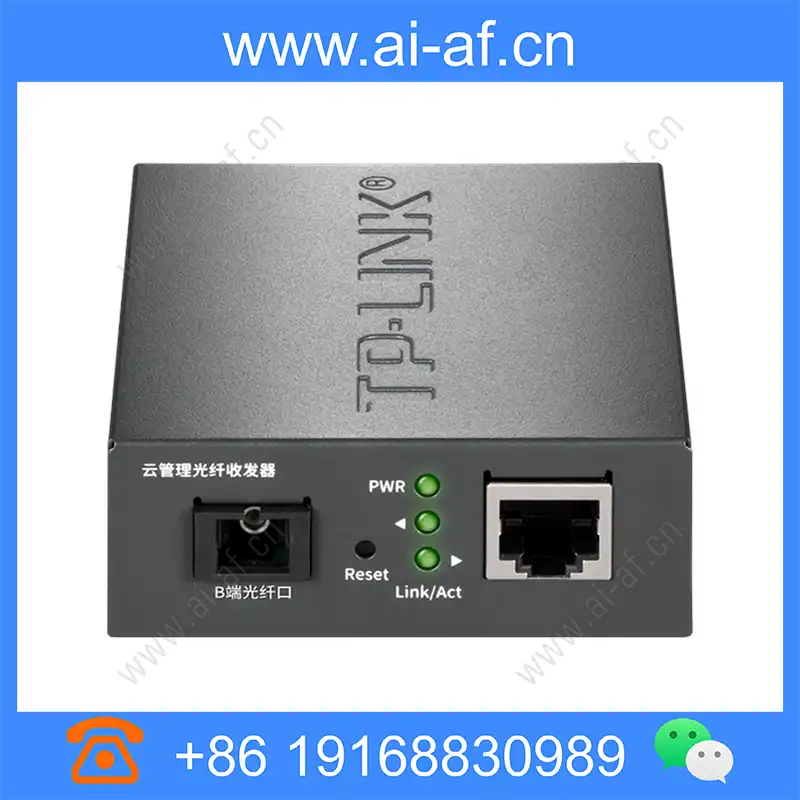

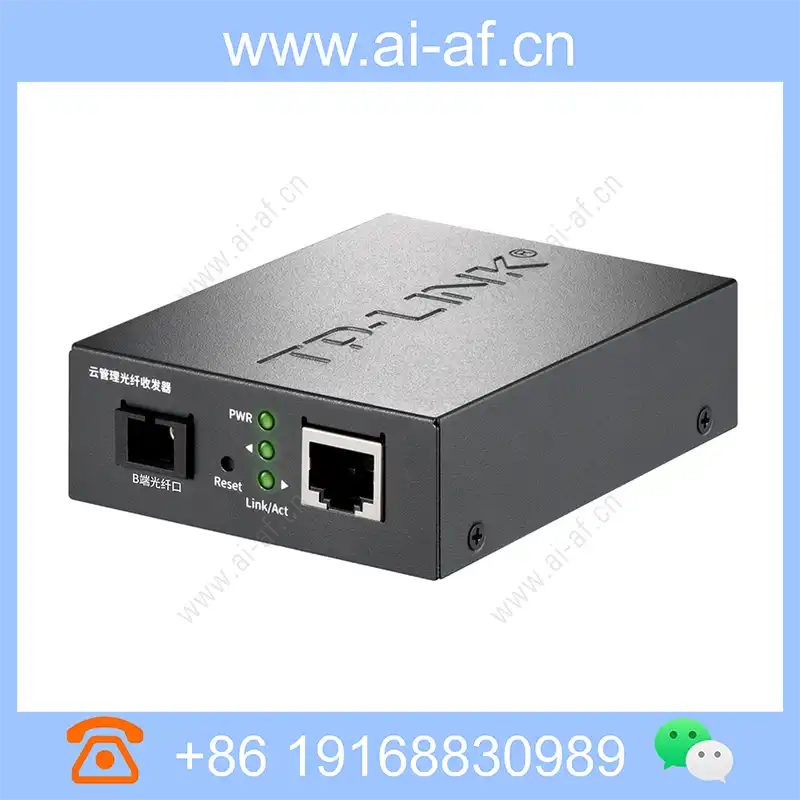

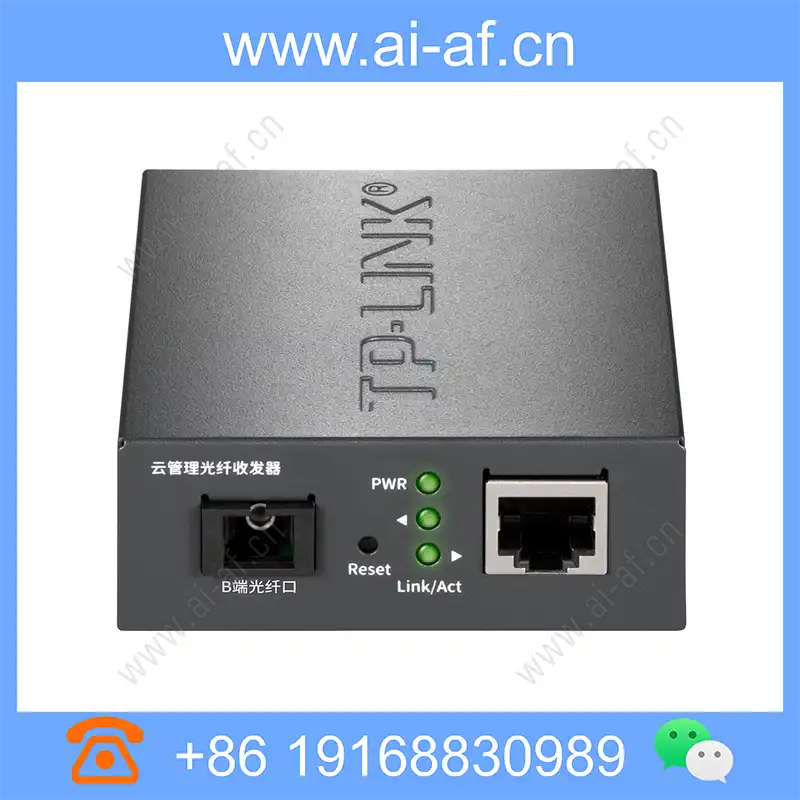

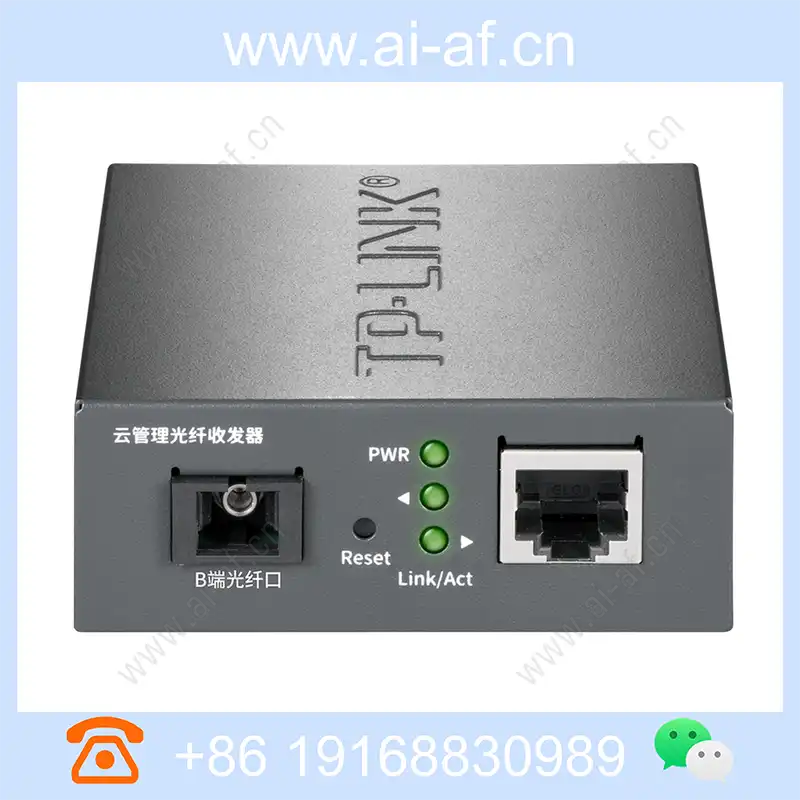

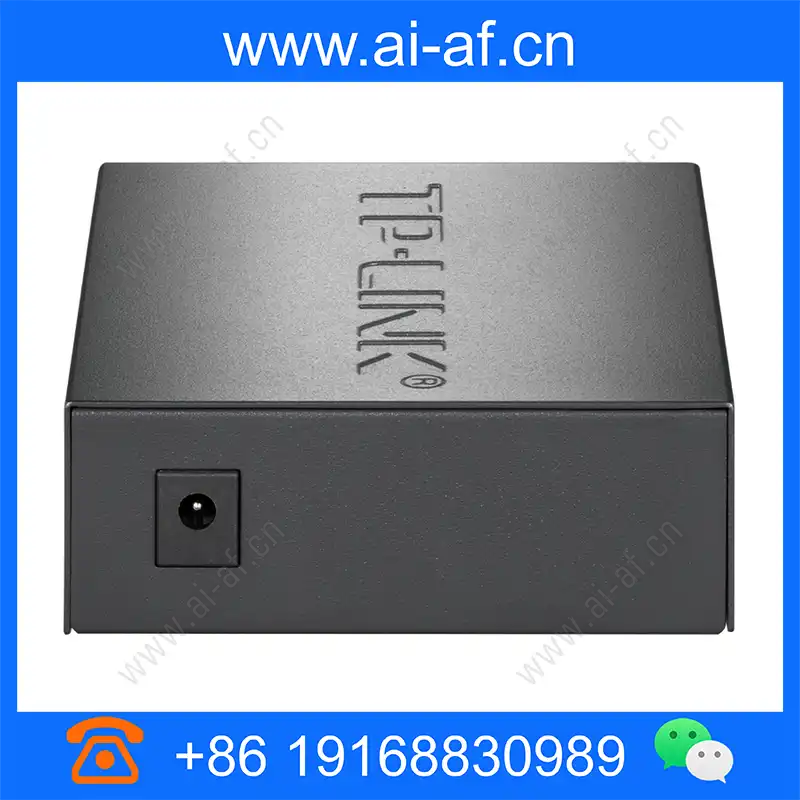

TP-LINK TL-FC2311B-3 Cloud Management Fiber Transceiver

Brand: TP-LINK

Model: TL-FC2311B-3

Dimensions: 94.50mm x 73mm x 27mm

1 100/1000Mbps SC fiber port, 1 10/100/1000Mbps RJ45 network port Based on wavelength division multiplexing technique (1310 nm emission wavelength, 1550 nm receiving wavelength), single mode single fiber transmission, farther distance up to 3 km Support Business Cloud APP end, web-side remote management and local Web management Support intelligent start, abnormal alarm, fast discharge Support QoS, bandwidth control, broadcast storm suppression Suggestions and TL-FC2311A-3 matching Supported standards

IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x、IEEE 802.1p

port

1 100/1000Mbps SC Fiber Port
1 10/100/1000Mbps RJ45 Net Port

Transmission wavelength

TX:1310nm
RX:1550nm

Transmission medium

Product Features

1 100/1000Mbps SC fiber port, 1 10/100/1000Mbps RJ45 network port
Based on wavelength division multiplexing technique (1310 nm emission wavelength, 1550 nm receiving wavelength), single mode single fiber transmission, farther distance up to 3 km
Support Business Cloud APP end, web-side remote management and local Web management
Support intelligent start, abnormal alarm, fast discharge
Support QoS, bandwidth control, broadcast storm suppression
Suggestions and TL-FC2311A-3 matching

Technical Specifications

Property Description	Property Value
Supported standards	IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z、IEEE 802.3x、IEEE 802.1p
port	1 100/1000Mbps SC Fiber Port 1 10/100/1000Mbps RJ45 Net Port
Transmission wavelength	TX:1310nm RX:1550nm
Transmission medium	fiber: support 3km single mode single fiber network cable: super five or more UTP and STP
Indicator light	optical port and network port LINK / ACT, PWR
Network management functions	supports remote management through business cloud app, business cloud network cloud platform (web end), local Web Management support QoS, bandwidth control, storm suppression
Shell size	94.5mm73mm27mm
Input power	5VDC/0.6A
Use environment	operating temperature: -20° C ~ 60° C storage temperature: -40° C ~ 70° C Working humidity: 10% ~ 90% RH does not condense < / li> storage humidity: 5% ~ 90% RH does not condense
