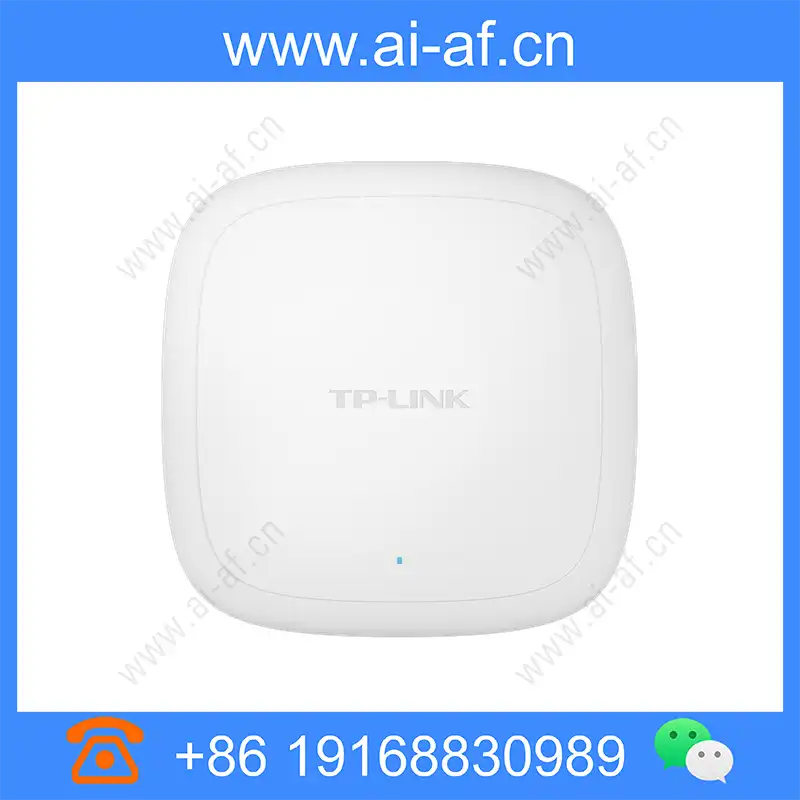

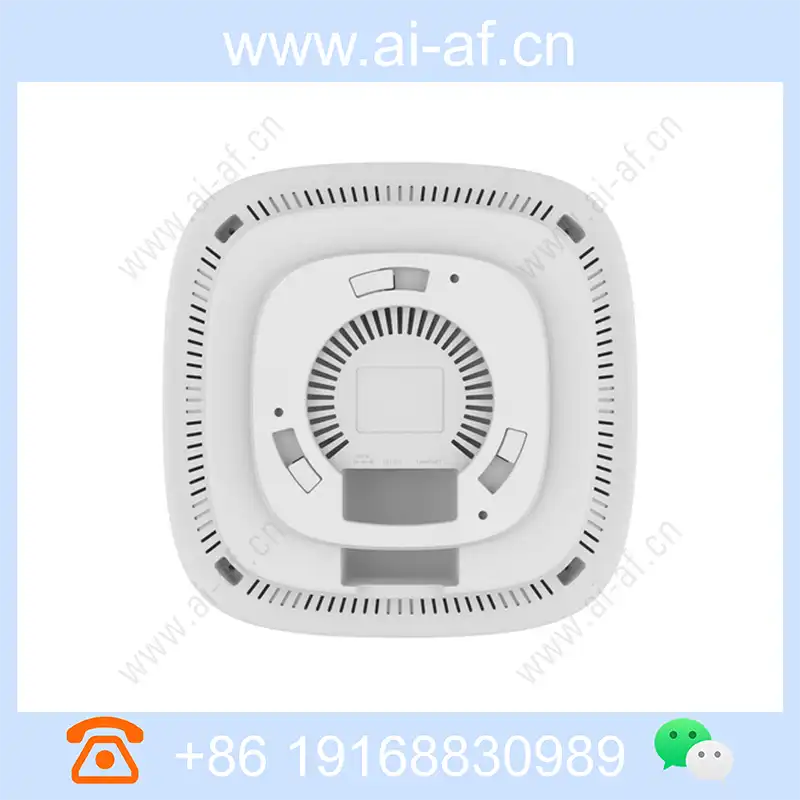

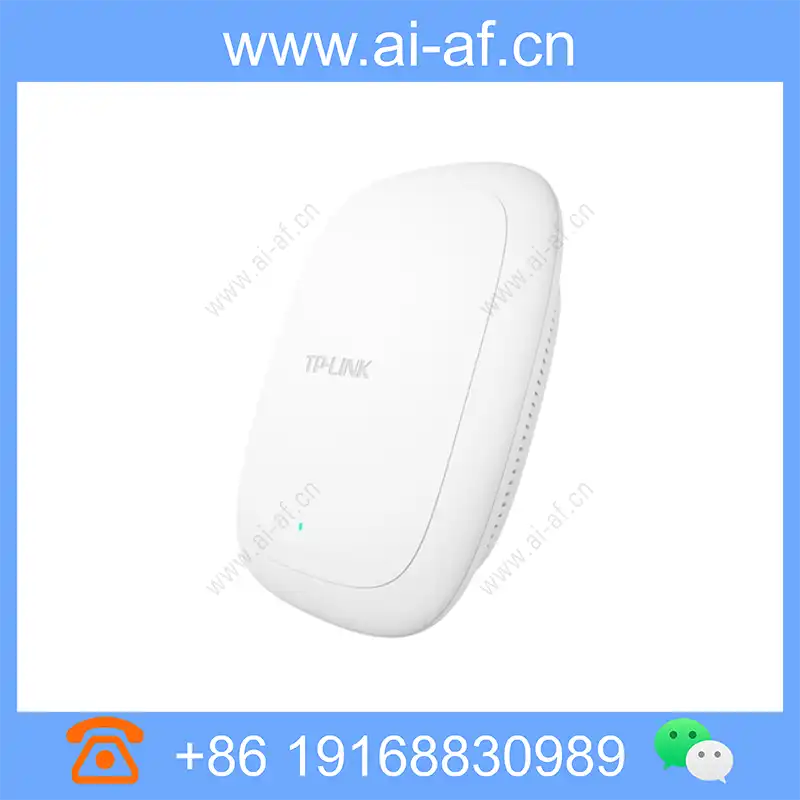

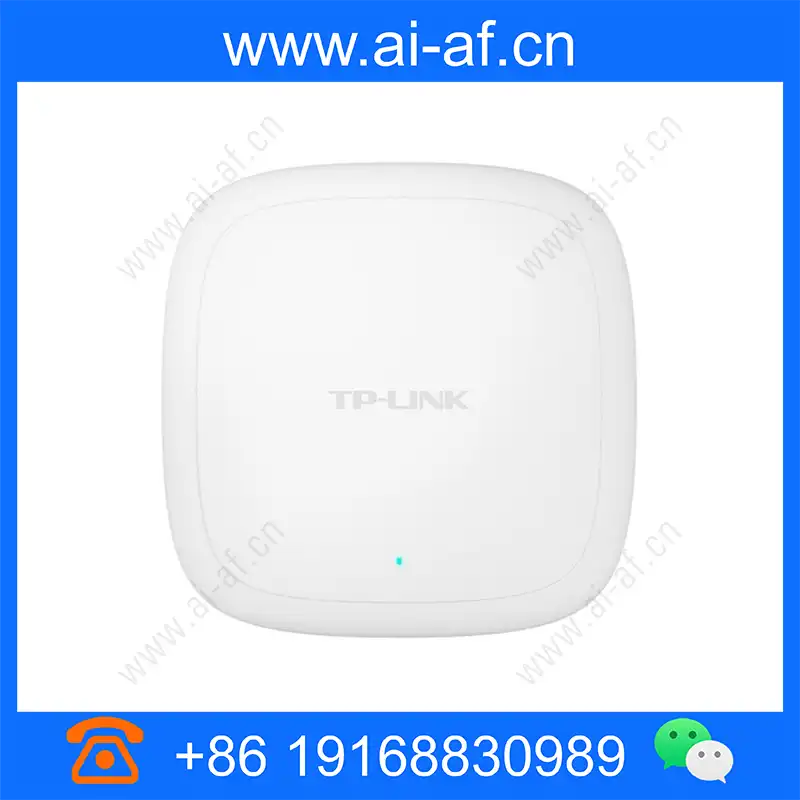

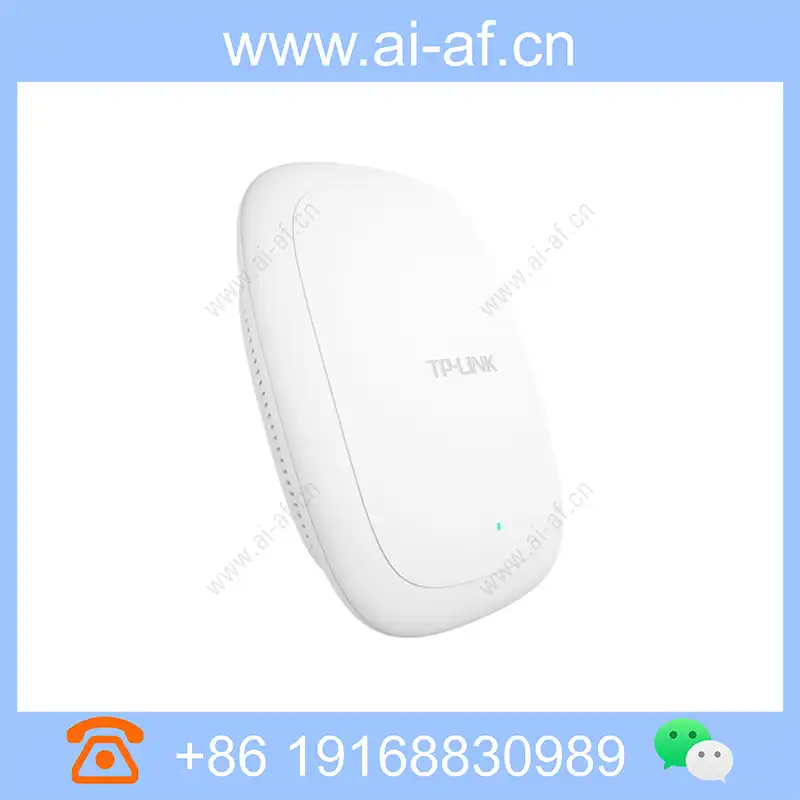

TP-LINK TL-AP2608GC-PoE/DC AC2600 dual frequency wireless ceiling AP
11AC dual frequency concurrent, AC2600 wireless specification The wireless transmission power is linearly adjustable, and the signal coverage is adjusted according to needs Professional dual-band antenna to improve the signal quality of the coverage area Spectrum navigation to guide dual-band clients to preferentially connect to the 5GHz frequency band to make the 2.4GHz and 5GHz frequency bands more balanced and ensure network performance Simple ceiling installation, supports 802.3at standard PoE, 12VDC two power supply modes Fat and thin, choose different working modes in different environments Support SSID and TAG VLAN binding Independent hardware protection circuit can automatically recover abnormal AP FIT mode supports automatic RF tuning FIT mode supports intelligent roaming Support
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Product model | TL-AP2608GC-PoE/DC |
| Installation method | Ceiling / wall mounting |
| size | 230*230*60mm |
| wireless | 2.4GHz band: 800Mbps 5GHz band (11AC): 1733Mbps |
| port | 1 10/100/1000M RJ45 port 1 DC port |
| Indicator light | 1 system indicator |
| Button | 1 Reset button 1 FAT/FIT mode toggle switch |
| Power supply | 802.3at standard PoE power supply 12V/2A DC power supply (no power adapter is shipped from the factory) |
| Maximum machine power consumption | 19W |
| management | FIT AP mode: unified management by TP-LINK wireless controller (AC) FAT AP mode: independent web page management |
| Use environment | Operating temperature: 0°C~40°C Operating humidity: 10%~90%RH non-condensing Storage temperature: -40°C~70°C Storage humidity: 5%~90%RH non-condensing |
| wireless function | SSID broadcast: Support SSID quantity: 8 (2.4GHz) + 8 (5GHz), support Chinese SSID Network type: Guest network, employee network Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK User isolation: Isolation between wireless networks , AP internal isolation wireless MAC address filtering: support whitelist (100) VLAN settings: support SSID and Tag VLAN binding transmit power settings: support 1dBm linear adjustment wireless client number limit: support QoS: WMM WDS: support spectrum navigation (5G Priority): Support kick out weak signal equipment, prohibit weak signal equipment access: support |
| Maximum number of connectable clients | 100(2.4GHz)+100(5GHz) |
| System Management | Device management: All Chinese WEB management System log: support Restore factory settings: support Backup configuration: support Import configuration: support Software upgrade: support Ping watchdog: support |
