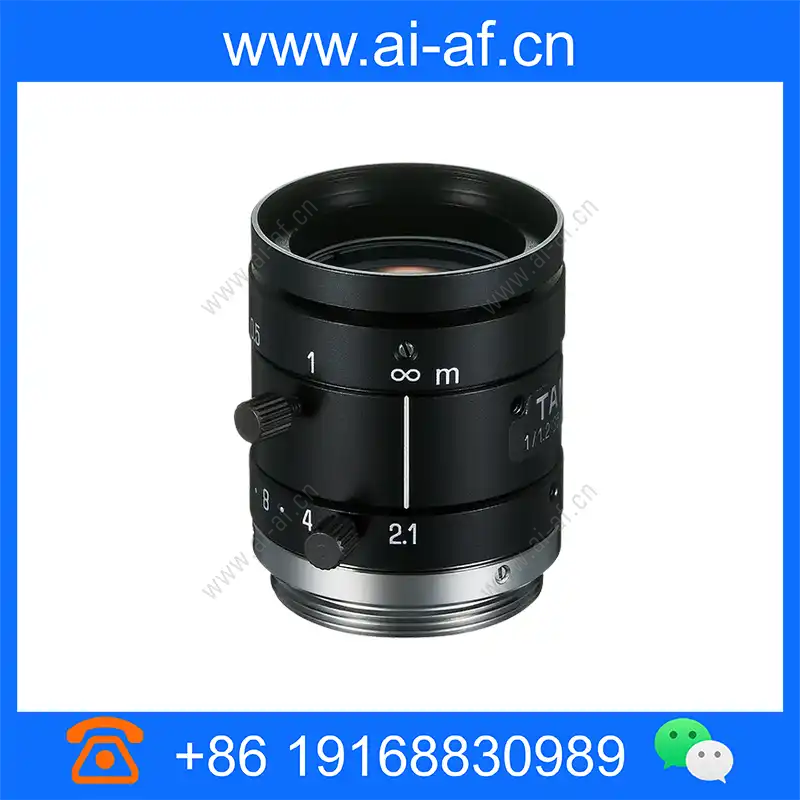

TAMRON M112FM35 1/1.2" 2/3" 35mm F/2.1-16 Manual Iris Machine Vision Lens C Mount
Brand: TAMRON
Model: M112FM35

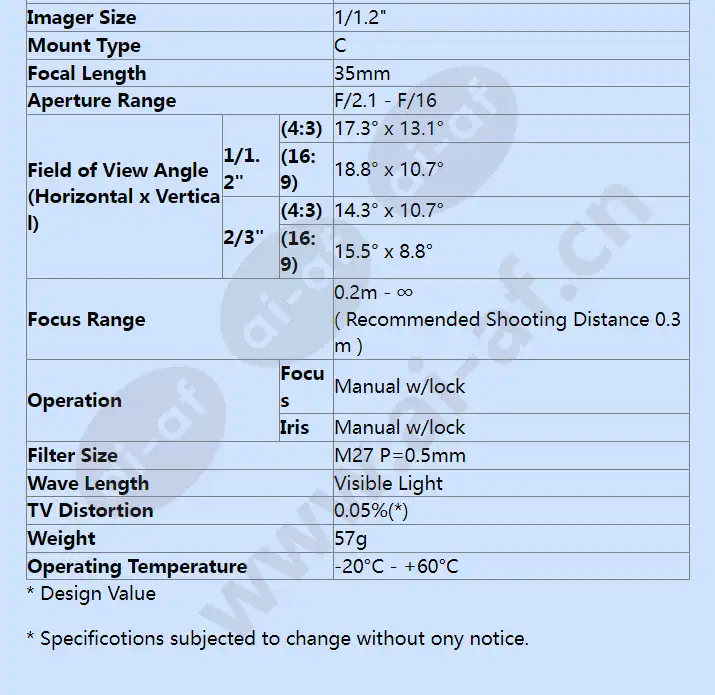

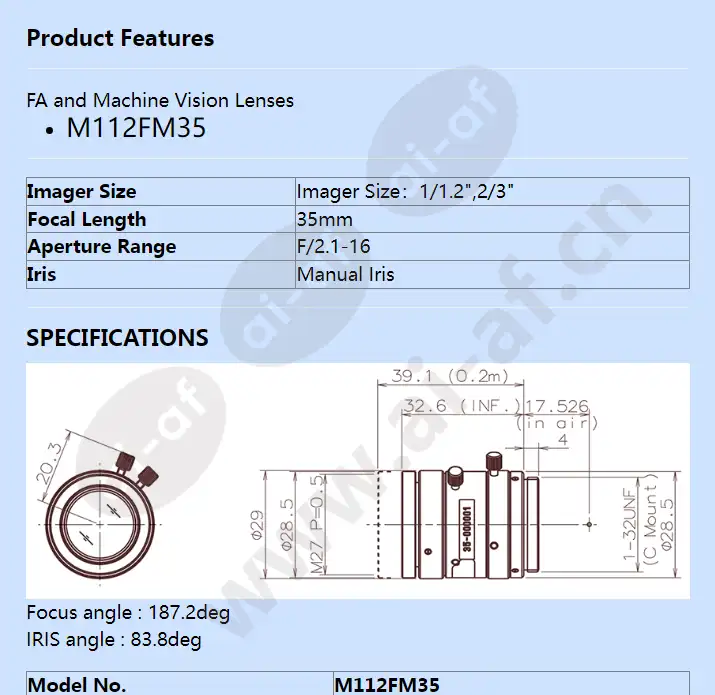

FA and Machine Vision Lenses M112FM35 Imager Size Imager Size：1/1.2",2/3" Focal Length 35mm Aperture Range F/2.1-16 Iris Manual Iris SPECIFICATIONS Focus angle : 187.2deg IRIS angle : 83.8deg Model No. M112FM35 Imager Size 1/1.2" Mount Type C Focal Length 35mm Aperture Range F/2.1 - F/16 Field of View Angle (Horizontal x Vertical) 1/1.2" (4:3) 17.3° x 13.1° (16:9) 18.8° x 10.7° 2/3" (4:3) 14.3° x 10.7° (16:9) 15.5° x 8.8° Focus Range 0.2m - ∞ ( Recommended Shooting Distance 0.3m ) Operation Focus Manual w/lock Iris Manual w/lock Filter Size M27 P=0.5mm Wave Length Visible Light TV Distortion 0.05%(*) Weight 57g Operating Temperature -20°C - +60°C * Design Value * Specificotions subjected to change without ony notice.
