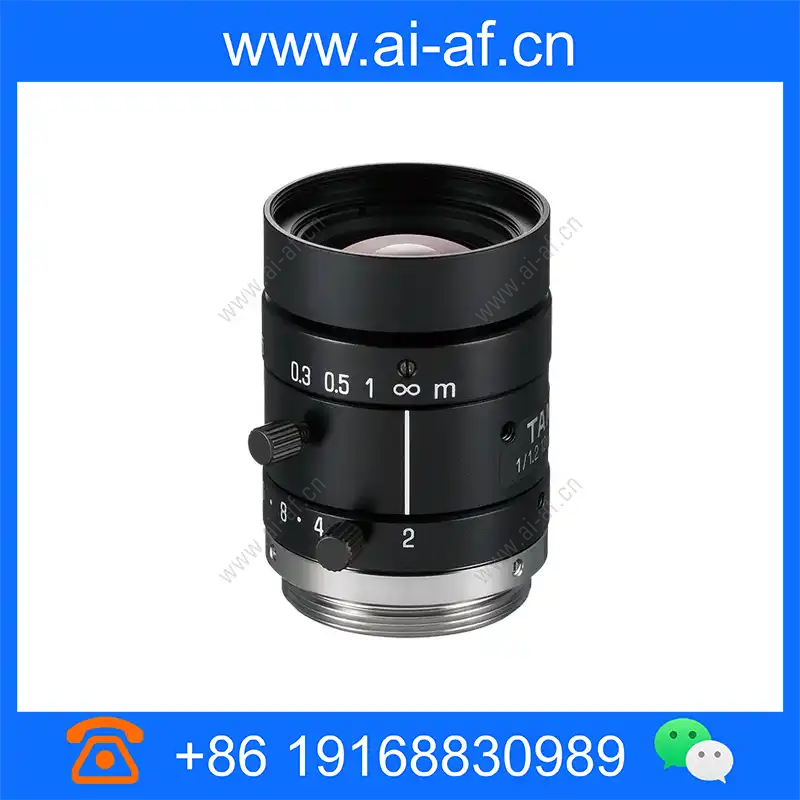

TAMRON M112FM12 1/1.2" 2/3" 12mm F/2.0-16 Manual Iris Machine Vision Lens C Mount

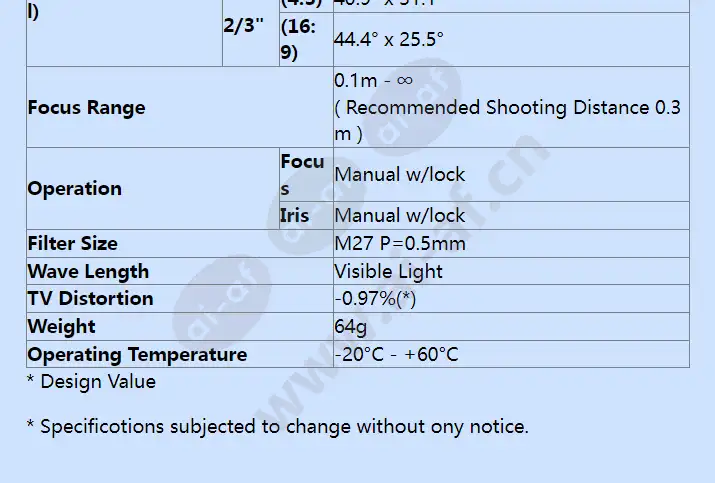

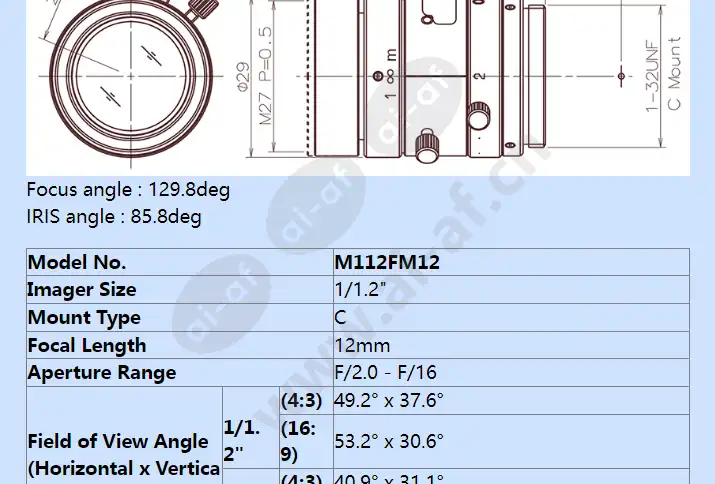

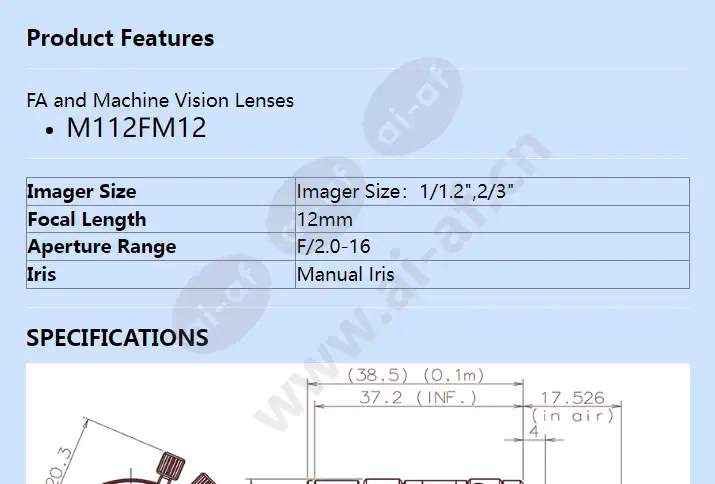

FA and Machine Vision Lenses M112FM12 Imager Size Imager Size：1/1.2",2/3" Focal Length 12mm Aperture Range F/2.0-16 Iris Manual Iris SPECIFICATIONS Focus angle : 129.8deg IRIS angle : 85.8deg Model No. M112FM12 Imager Size 1/1.2" Mount Type C Focal Length 12mm Aperture Range F/2.0 - F/16 Field of View Angle (Horizontal x Vertical) 1/1.2" (4:3) 49.2° x 37.6° (16:9) 53.2° x 30.6° 2/3" (4:3) 40.9° x 31.1° (16:9) 44.4° x 25.5° Focus Range 0.1m - ∞ ( Recommended Shooting Distance 0.3m ) Operation Focus Manual w/lock Iris Manual w/lock Filter Size M27 P=0.5mm Wave Length Visible Light TV Distortion -0.97%(*) Weight 64g Operating Temperature -20°C - +60°C * Design Value * Specificotions subjected to change without ony notice.
