Bosch ISC-PDL1-WC30G Professional Series TriTech Curtain Motion detector 100ft (30m) curtain F.01U.381.950

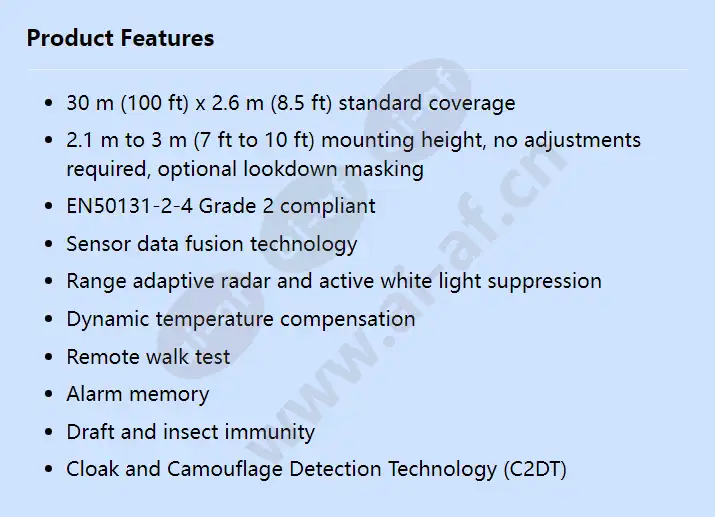

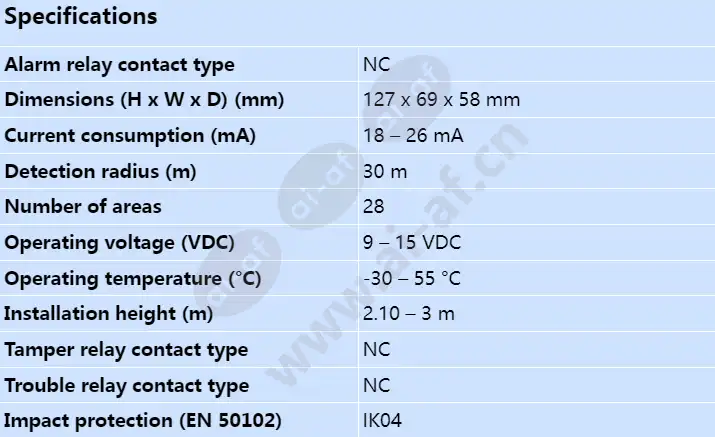

30 m (100 ft) x 2.6 m (8.5 ft) standard coverage 2.1 m to 3 m (7 ft to 10 ft) mounting height, no adjustments required, optional lookdown masking EN50131-2-4 Grade 2 compliant Sensor data fusion technology Range adaptive radar and active white light suppression Dynamic temperature compensation Remote walk test Alarm memory Draft and insect immunity Cloak and Camouflage Detection Technology (C2DT) Alarm relay contact type NC Current consumption (mA) 18 – 26 mA Detection radius (m) 30 m Dimensions (H x W x D) (mm) 127 x 69 x 58 mm Impact protection (EN 50102) IK04 Installation height (m) 2.10 – 3 m Number of areas 28 Operating temperature (°C) -30 – 55 °C Operating voltage (VDC) 9 – 15 VDC Tamper relay contact type NC Trouble relay contact type NC
