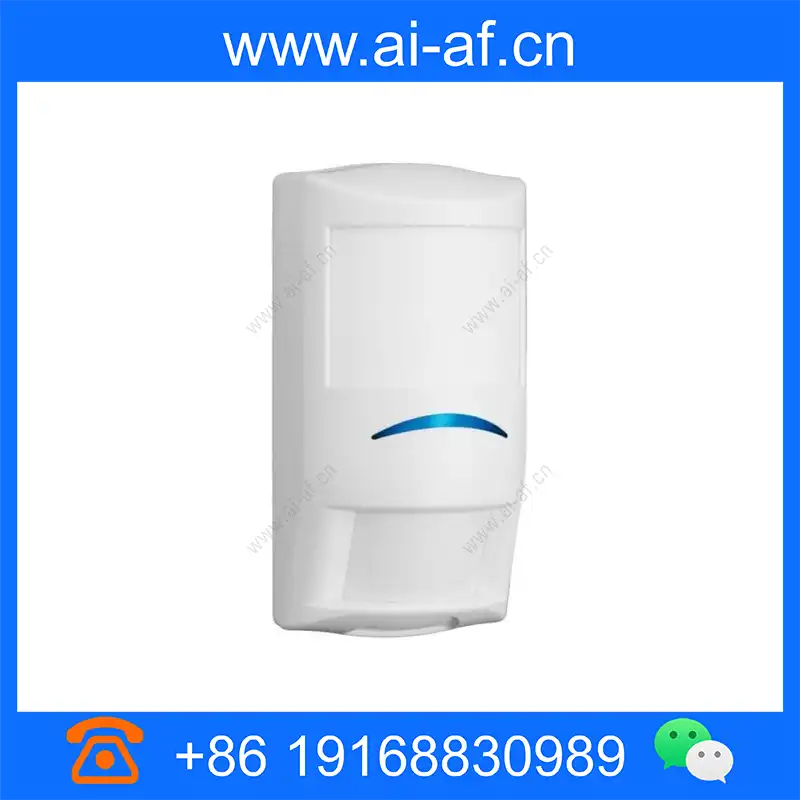

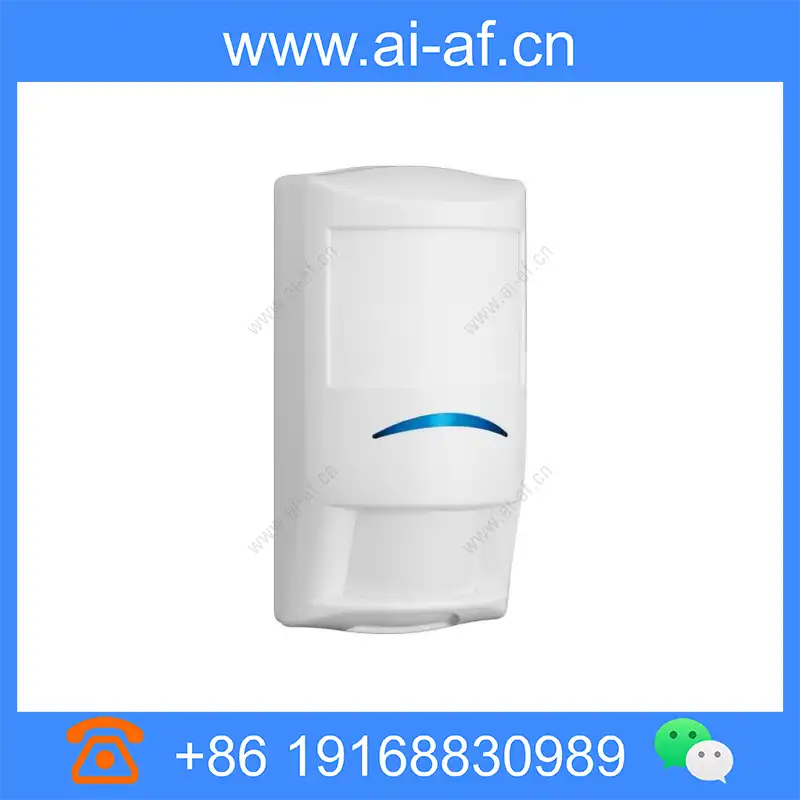

Bosch ISC-PDL1-W18G Professional Series TriTech Motion detector 60ft (18m) F.01U.381.620
Brand: Bosch
Model: ISC-PDL1-W18G
Dimensions: 136mm x 69mm x 58mm

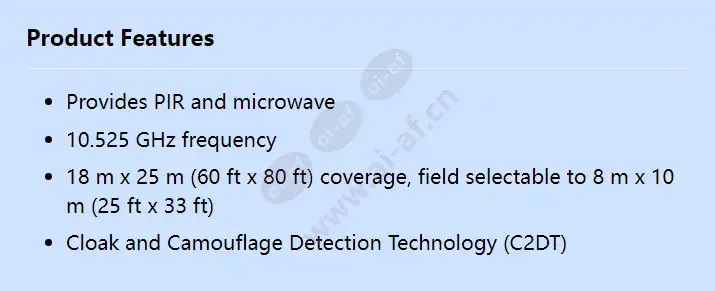

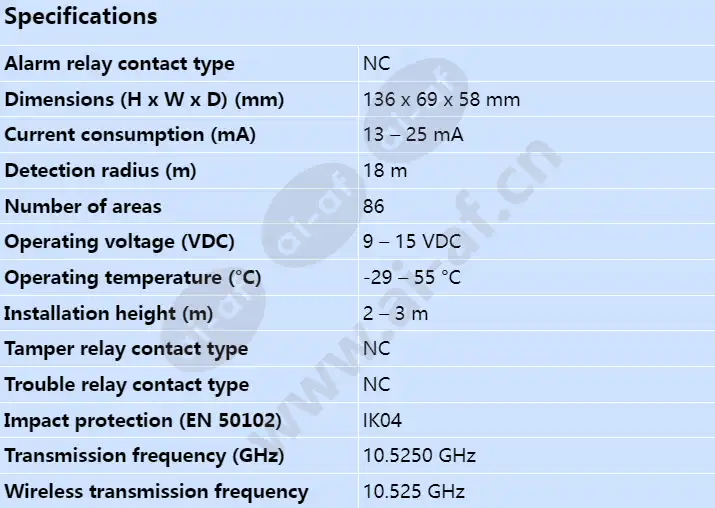

Provides PIR and microwave 10.525 GHz frequency 18 m x 25 m (60 ft x 80 ft) coverage, field selectable to 8 m x 10 m (25 ft x 33 ft) Cloak and Camouflage Detection Technology (C2DT) Alarm relay contact type NC Current consumption (mA) 13 – 25 mA Detection radius (m) 18 m Dimensions (H x W x D) (mm) 136 x 69 x 58 mm Impact protection (EN 50102) IK04 Installation height (m) 2 – 3 m Number of areas 86 Operating temperature (°C) -29 – 55 °C Operating voltage (VDC) 9 – 15 VDC Tamper relay contact type NC Transmission frequency (GHz) 10.5250 GHz Trouble relay contact type NC Wireless transmission frequency 10.525 GHz
