Bosch ISC-PDL1-W18G-CHI Motion detector 60ft (18m) F.01U.123.715

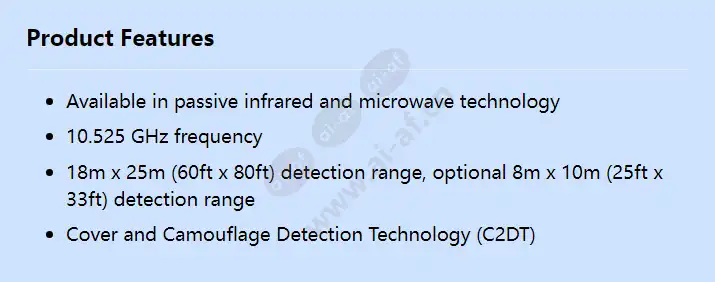

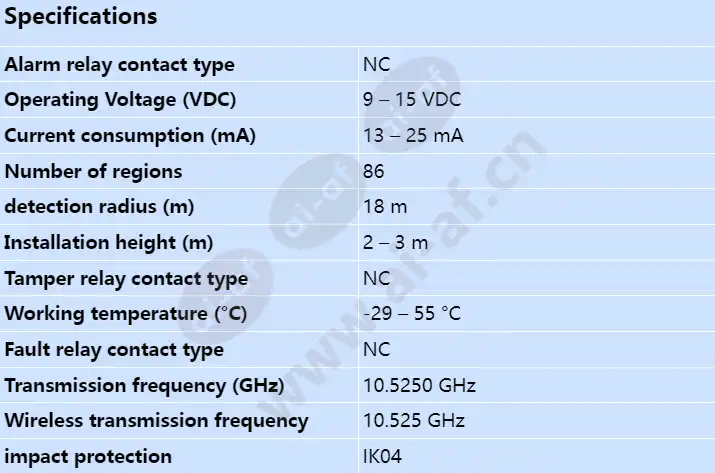

Available in passive infrared and microwave technology 10.525 GHz frequency 18m x 25m (60ft x 80ft) detection range, optional 8m x 10m (25ft x 33ft) detection range Cover and Camouflage Detection Technology (C2DT) Transmission frequency (GHz) 10.5250 GHz Number of regions 86 Installation height (m) 2 – 3 m Working temperature (°C) -29 – 55 °C Operating Voltage (VDC) 9 – 15 VDC Alarm relay contact type NC detection radius (m) 18 m impact protection IK04 Fault relay contact type NC Wireless transmission frequency 10.525 GHz Current consumption (mA) 13 – 25 mA Tamper relay contact type NC
