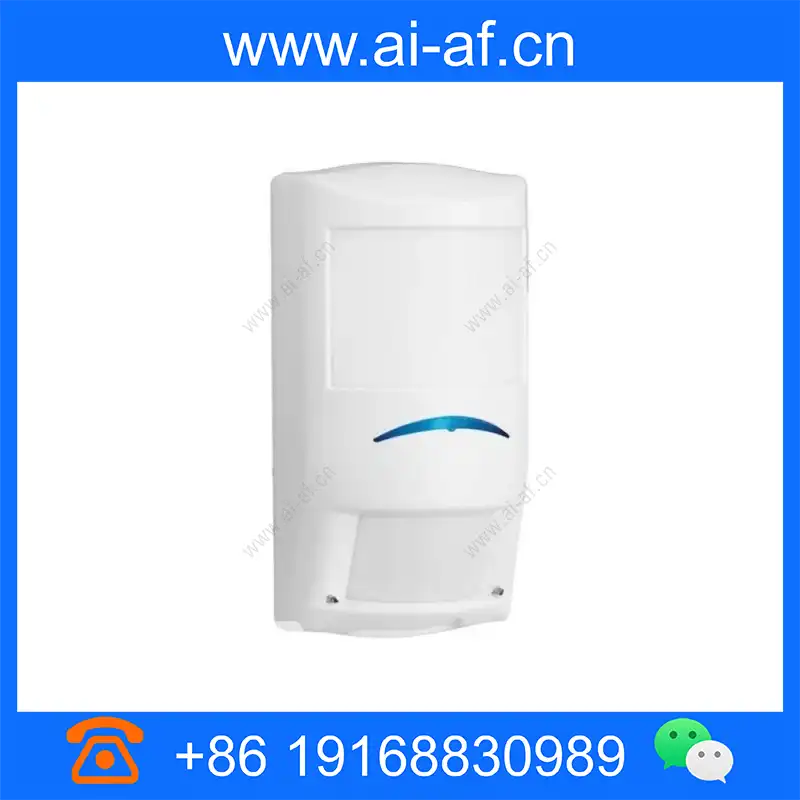

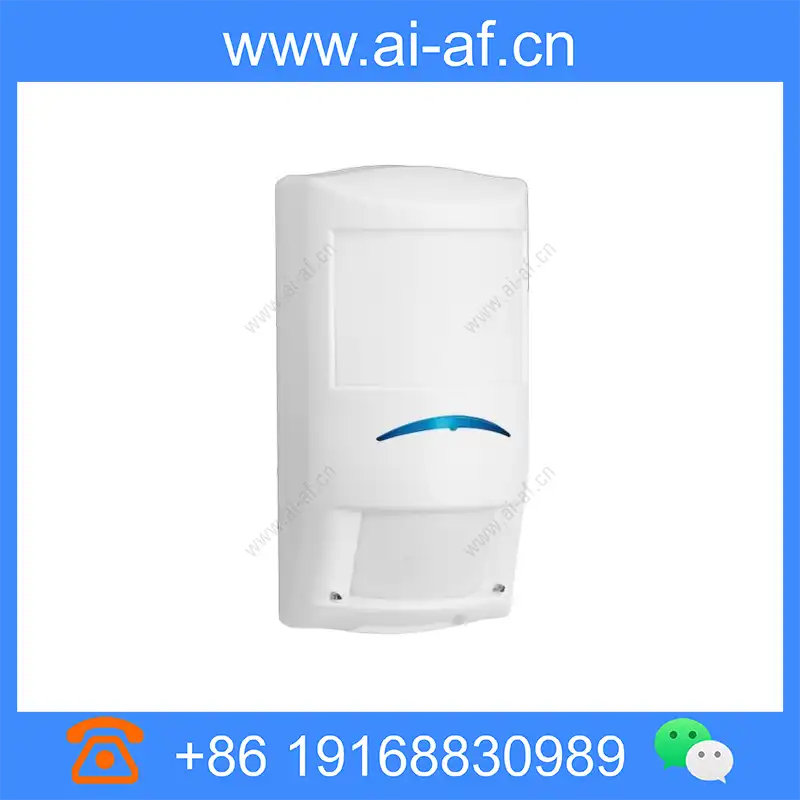

Bosch ISC-PDL1-WAC30G Professional Series TriTech+ Curtain Motion Detectors with Anti-mask Detector anti-mask (30m) curtain F.01U.381.684

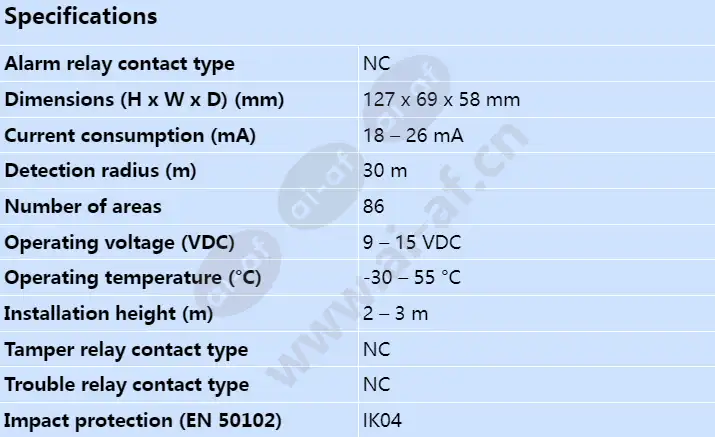

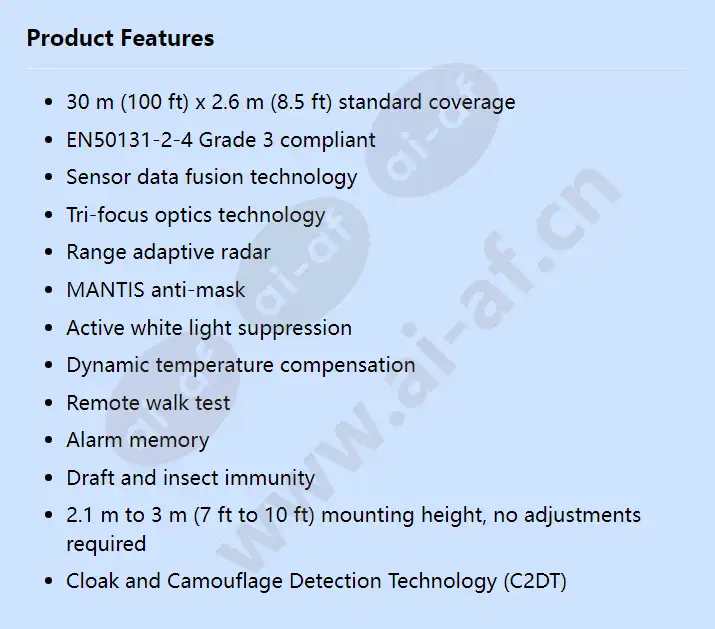

30 m (100 ft) x 2.6 m (8.5 ft) standard coverage EN50131-2-4 Grade 3 compliant Sensor data fusion technology Tri-focus optics technology Range adaptive radar MANTIS anti-mask Active white light suppression Dynamic temperature compensation Remote walk test Alarm memory Draft and insect immunity 2.1 m to 3 m (7 ft to 10 ft) mounting height, no adjustments required Cloak and Camouflage Detection Technology (C2DT) Alarm relay contact type NC Current consumption (mA) 18 – 26 mA Detection radius (m) 30 m Dimensions (H x W x D) (mm) 127 x 69 x 58 mm Impact protection (EN 50102) IK04 Installation height (m) 2 – 3 m Number of areas 86 Operating temperature (°C) -30 – 55 °C Operating voltage (VDC) 9 – 15 VDC Tamper relay contact type NC Trouble relay contact type NC
