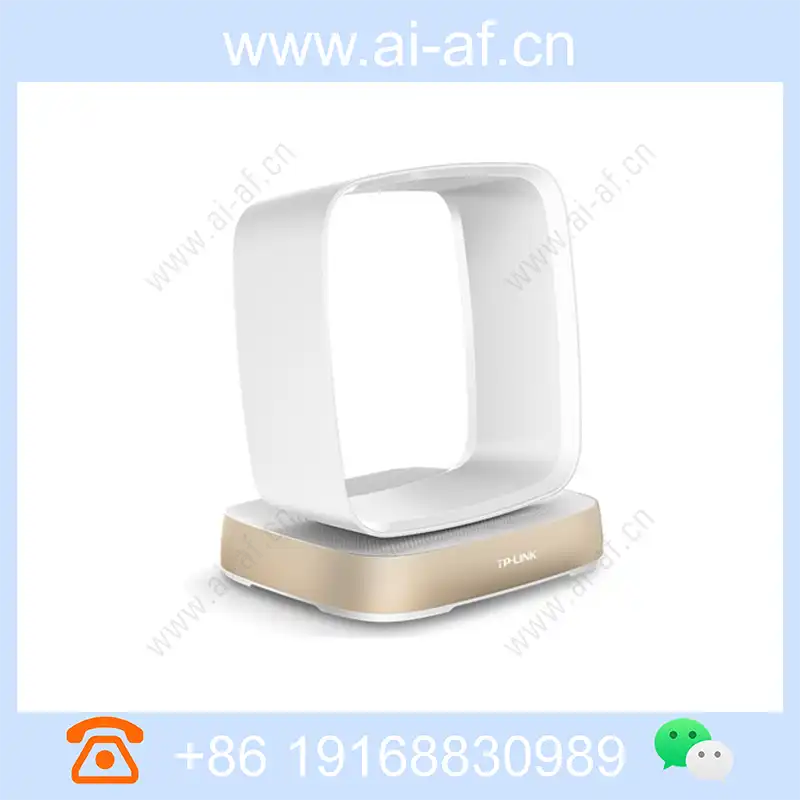

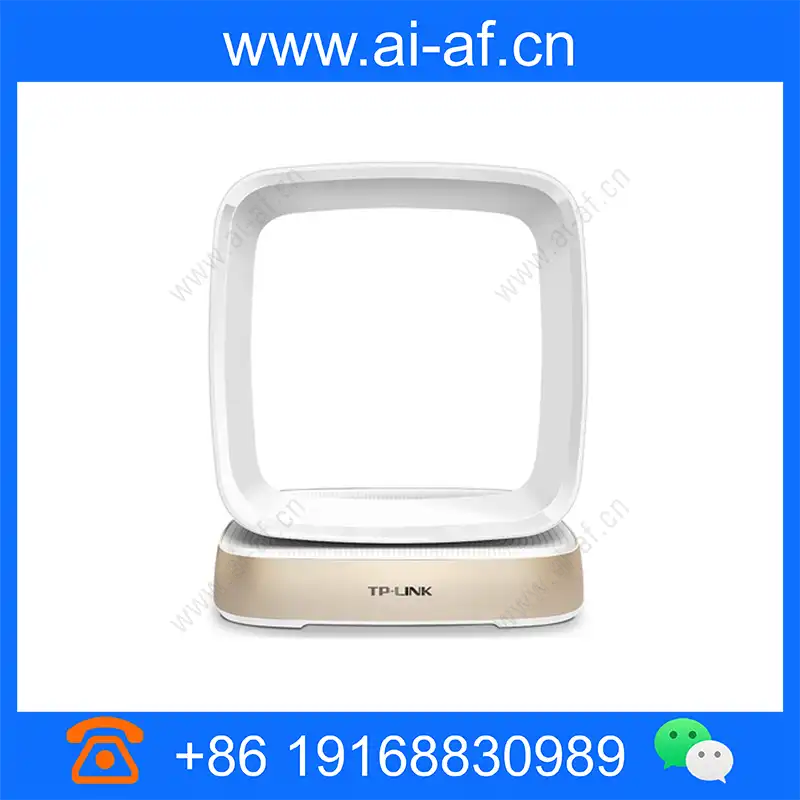

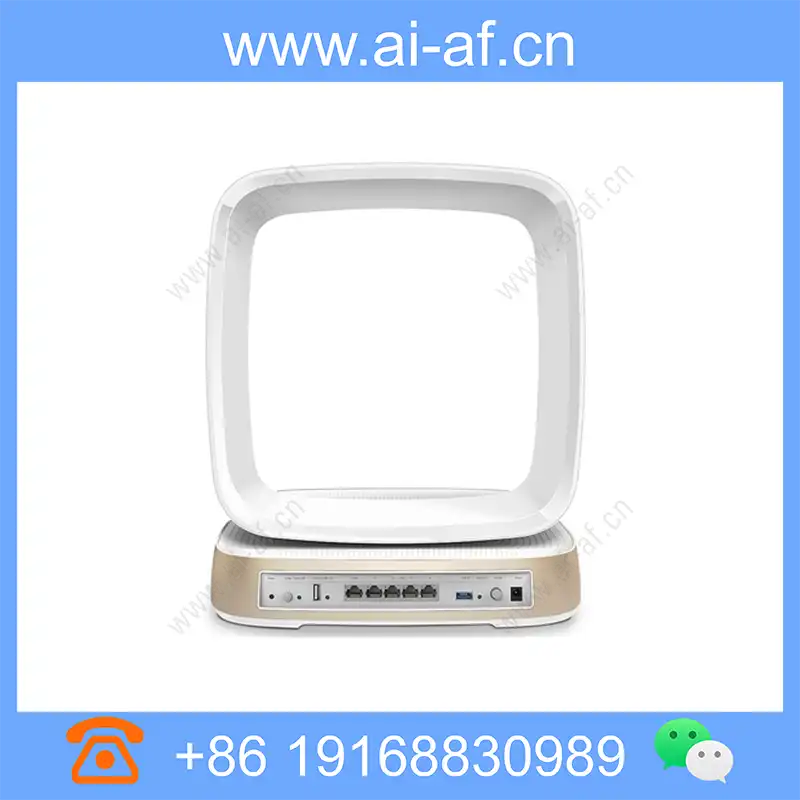

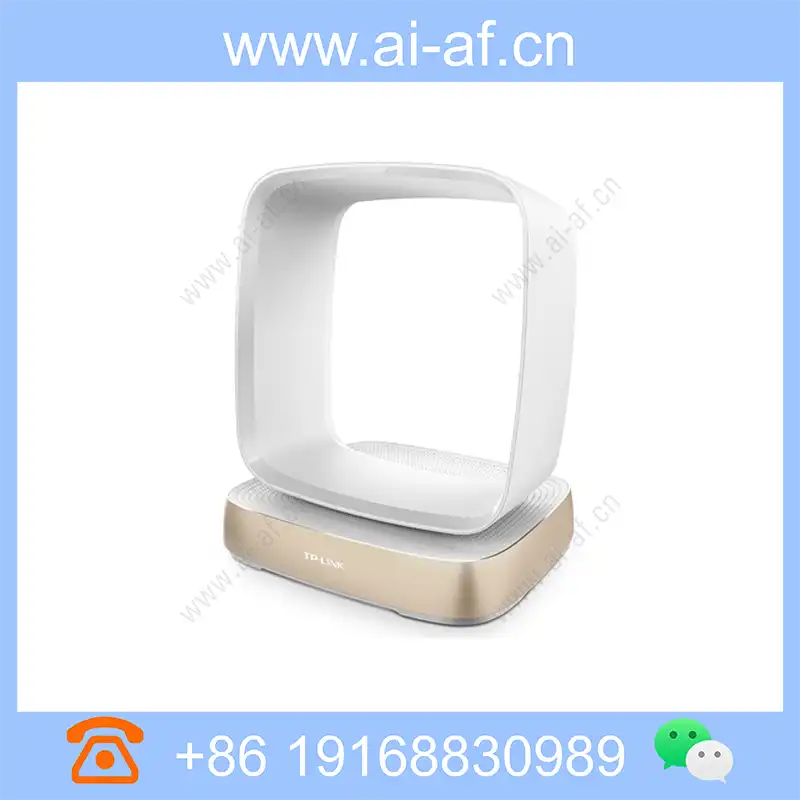

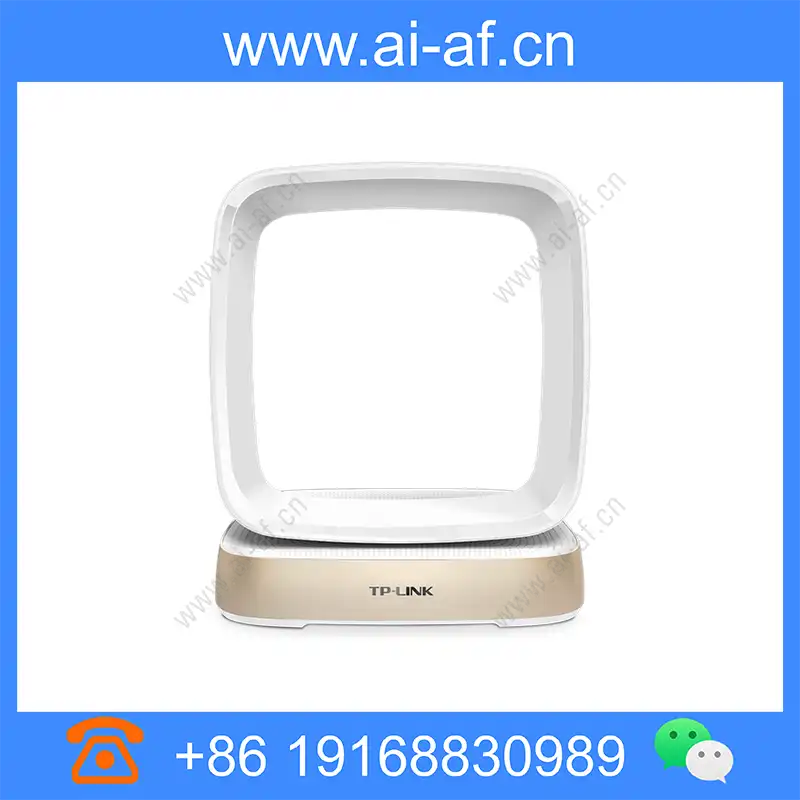

TP-LINK TL-WTR9500 AC5400 Tri-band Square Array Antenna Gigabit Wireless Router
Protocol standard IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab Wireless rate 2.4GHz band: 1000Mbps 5G BAND 1: 2167Mbps 5G BAND 4: 2167Mbps interface 4 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M/1000M adaptive WAN ports, support auto flip (Auto MDI/MDIX) 1 USB 2.0 interface 1 USB 3.0 interface Button Reset button Turbo button Power button LED SYS system indication Link/Act indication of each port Turbo indicator size 310x260x365MM (length, width, height) network status Wireless settings Guest network settings WAN port network status LAN port network status Equipment management Device information Disable device Application functions Guest network Signal conditioning IP and MAC address binding Administrator
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab |
| Wireless rate | 2.4GHz band: 1000Mbps 5G BAND 1: 2167Mbps 5G BAND 4: 2167Mbps |
| interface | 4 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M/1000M adaptive WAN ports, support auto flip (Auto MDI/MDIX) 1 USB 2.0 interface 1 USB 3.0 interface |
| Button | Reset button Turbo button Power button |
| LED | SYS system indication Link/Act indication of each port Turbo indicator |
| size | 310x260x365MM (length, width, height) |
| network status | Wireless settings Guest network settings WAN port network status LAN port network status |
| Equipment management | Device information Disable device |
| Application functions | Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS wireless device access control |
| Advanced Features | TP-LINK ID information Internet setting Wireless setting LAN port setting File sharing Software upgrade Modify administrator password Backup and load configuration Restart and restore factory log |
| Packaging accessories | AC5400 Tri-band Gigabit Wireless Router TL-WTR9500 Power Adapter User Manual Warranty Card |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
