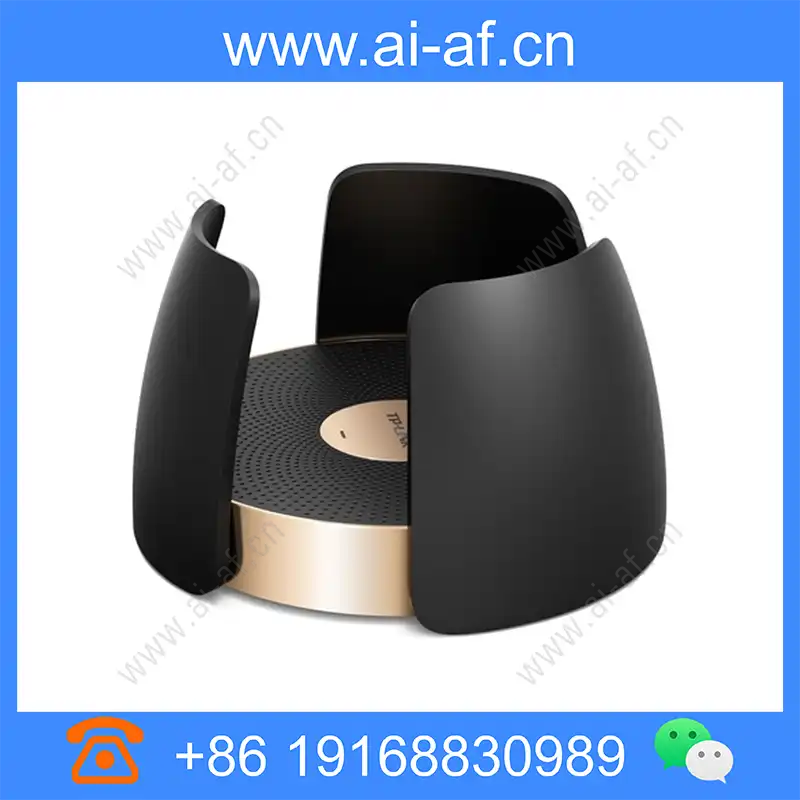

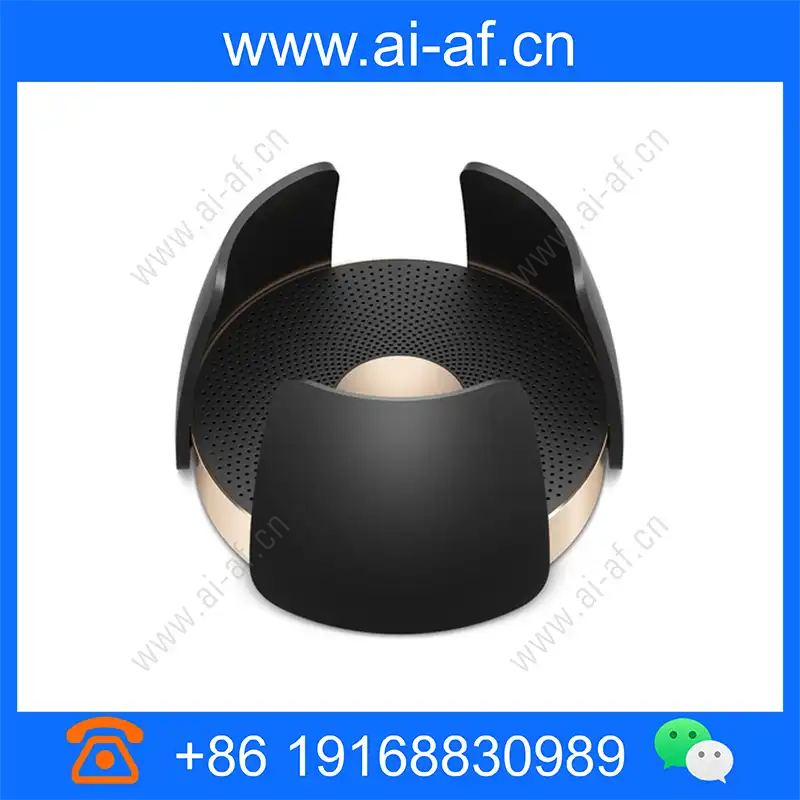

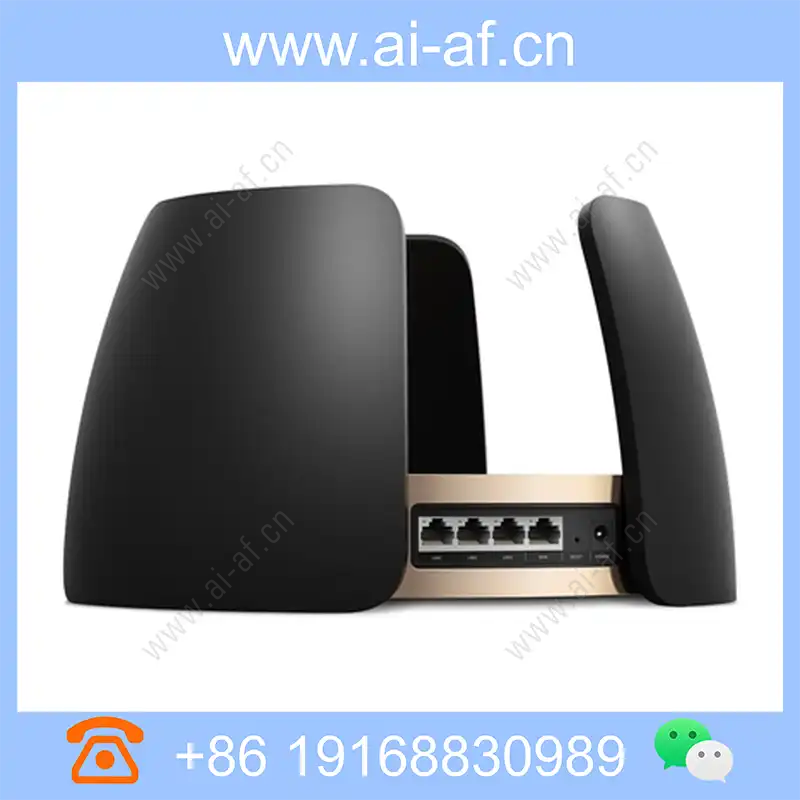

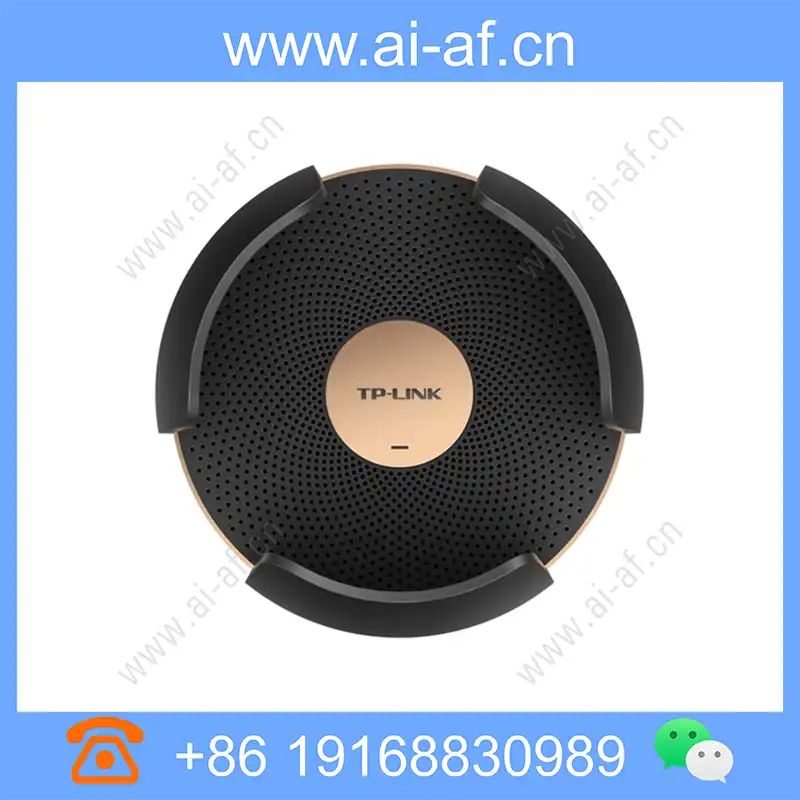

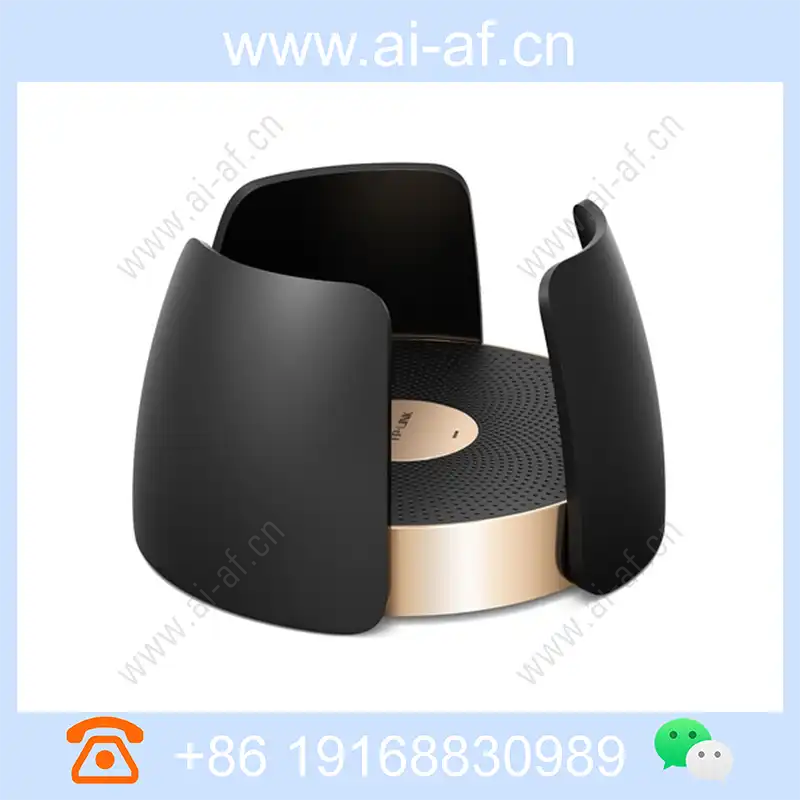

TP-LINK TL-WTR9300 AC3200 Tri-band Ring Array Antenna Gigabit Wireless Router
Protocol standard IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab Wireless rate 2.4GHz band: 600Mbps 5G BAND 1: 1300Mbps 5G BAND 4: 1300Mbps interface Three 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) One 10/100M/1000M adaptive WAN port, support auto flip (Auto MDI/MDIX) Button Reset button LED SYS system indication Link/Act indication for each port network status Wireless settings Guest network settings WAN port network status LAN port network status Equipment management Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device Application functions Wireless bridging Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab |
| Wireless rate | 2.4GHz band: 600Mbps 5G BAND 1: 1300Mbps 5G BAND 4: 1300Mbps |
| interface | Three 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) One 10/100M/1000M adaptive WAN port, support auto flip (Auto MDI/MDIX) |
| Button | Reset button |
| LED | SYS system indication Link/Act indication for each port |
| network status | Wireless settings Guest network settings WAN port network status LAN port network status |
| Equipment management | Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device |
| Application functions | Wireless bridging Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS Wireless device access control |
| Advanced Features | TP-LINK ID information Internet setting Wireless setting LAN port setting Software upgrade Modify administrator password Backup and load configuration Restart and restore factory system log |
| Packaging accessories | AC3200 Tri-band Gigabit Wireless Router TL-WTR9300 Power Adapter User Manual Warranty Card |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
