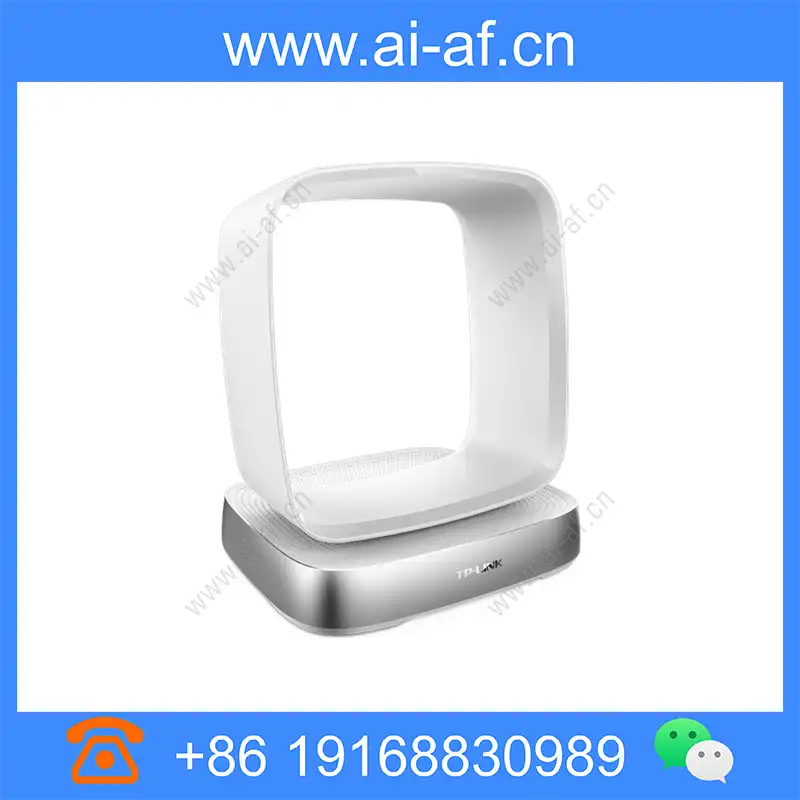

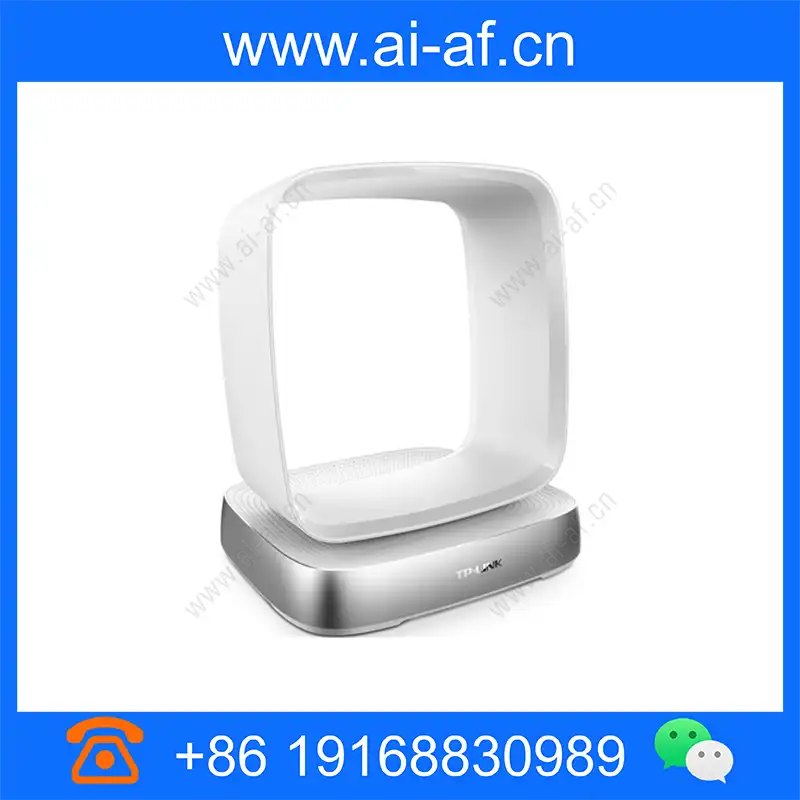

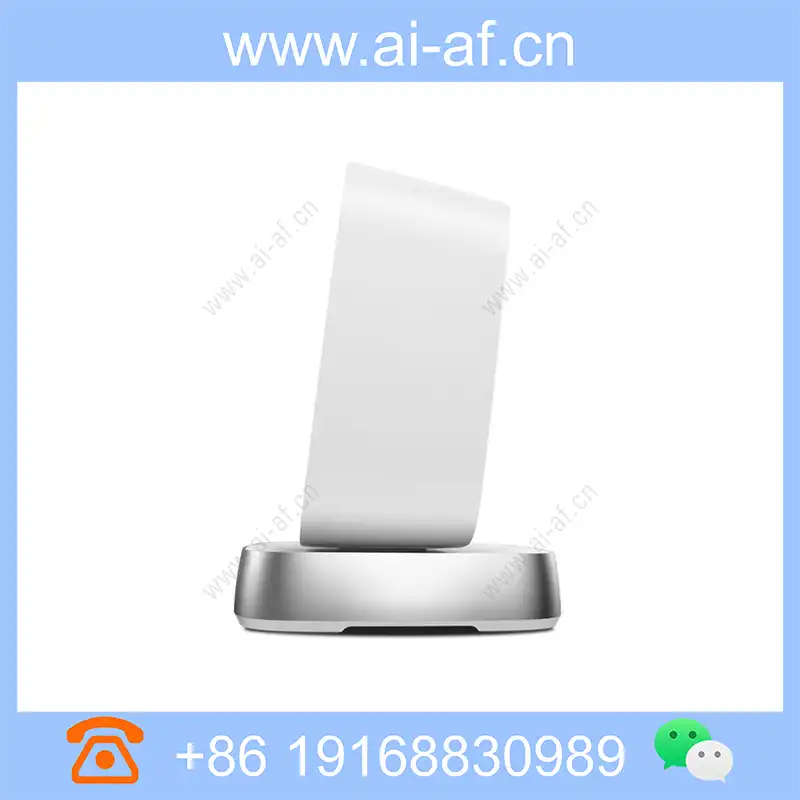

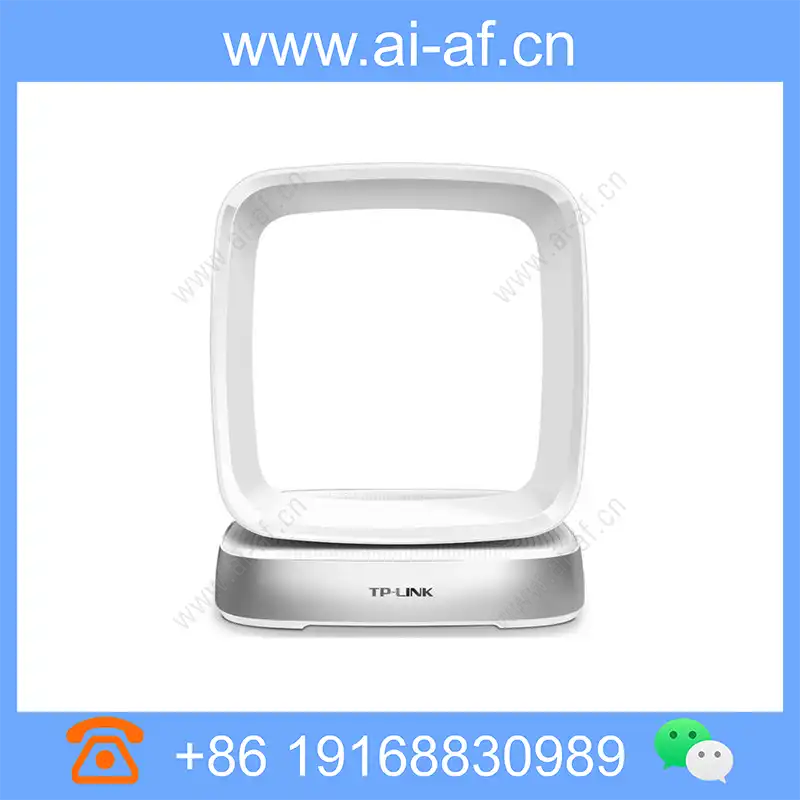

TP-LINK TL-WTR9400 AC4300 Tri-band Square Array Antenna Gigabit Wireless Router
Protocol standard IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab Wireless rate 2.4GHz band: 800Mbps 5G BAND 1: 1733Mbps 5G BAND 4: 1733Mbps interface 4 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M/1000M adaptive WAN ports, support auto flip (Auto MDI/MDIX) Button Reset button Turbo button Power button LED SYS system indication Link/Act indication of each port Turbo indicator size 310x260x365MM (length, width, height) network status Wireless settings Guest network settings WAN port network status LAN port network status Equipment management Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device Application functions Wireless bridging Guest network Signal conditioning IP
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab |
| Wireless rate | 2.4GHz band: 800Mbps 5G BAND 1: 1733Mbps 5G BAND 4: 1733Mbps |

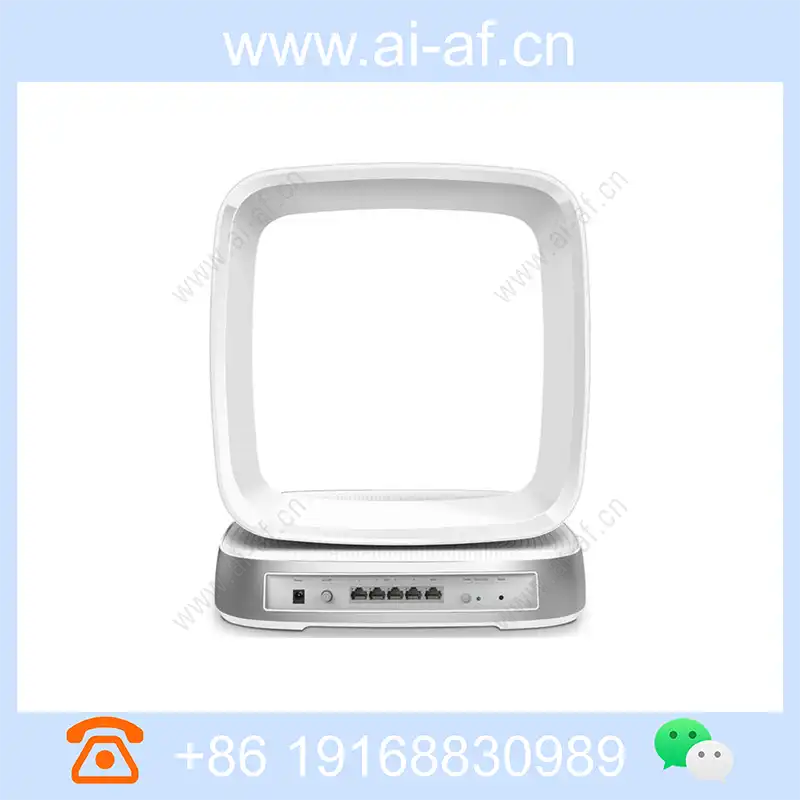

| interface | 4 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) 1 10/100M/1000M adaptive WAN ports, support auto flip (Auto MDI/MDIX) |
| Button | Reset button Turbo button Power button |
| LED | SYS system indication Link/Act indication of each port Turbo indicator |
| size | 310x260x365MM (length, width, height) |
| network status | Wireless settings Guest network settings WAN port network status LAN port network status |
| Equipment management | Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device |
| Application functions | Wireless bridging Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS Wireless device access control |
| Advanced Features | TP-LINK ID information Internet setting Wireless setting LAN port setting Software upgrade Modify administrator password Backup and load configuration Restart and restore factory system log |
| Packaging accessories | AC4300 Tri-band Gigabit Wireless Router TL-WTR9400 Power Adapter User Manual Warranty Card |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
