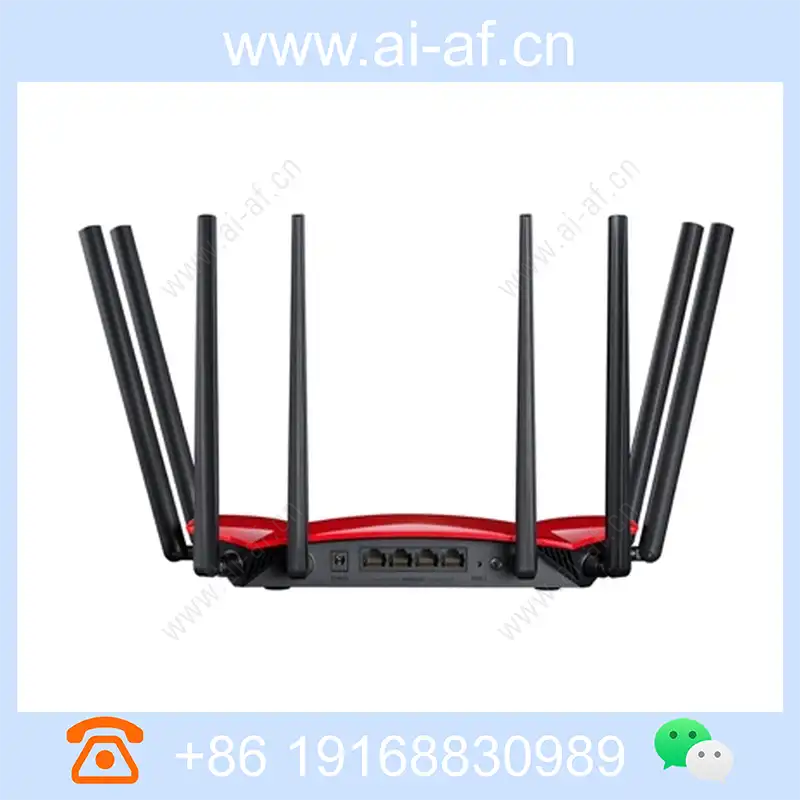

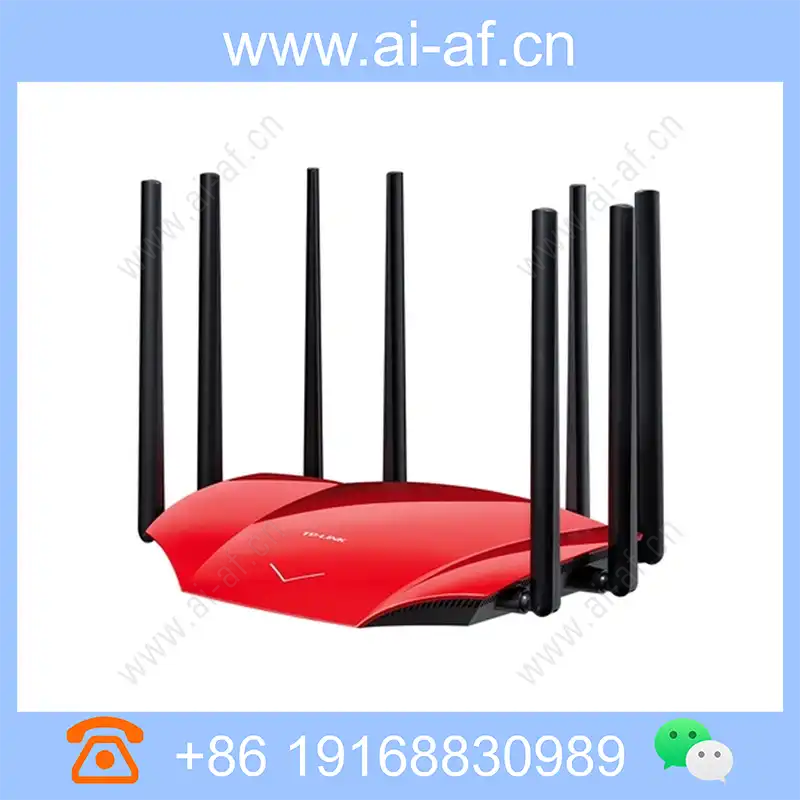

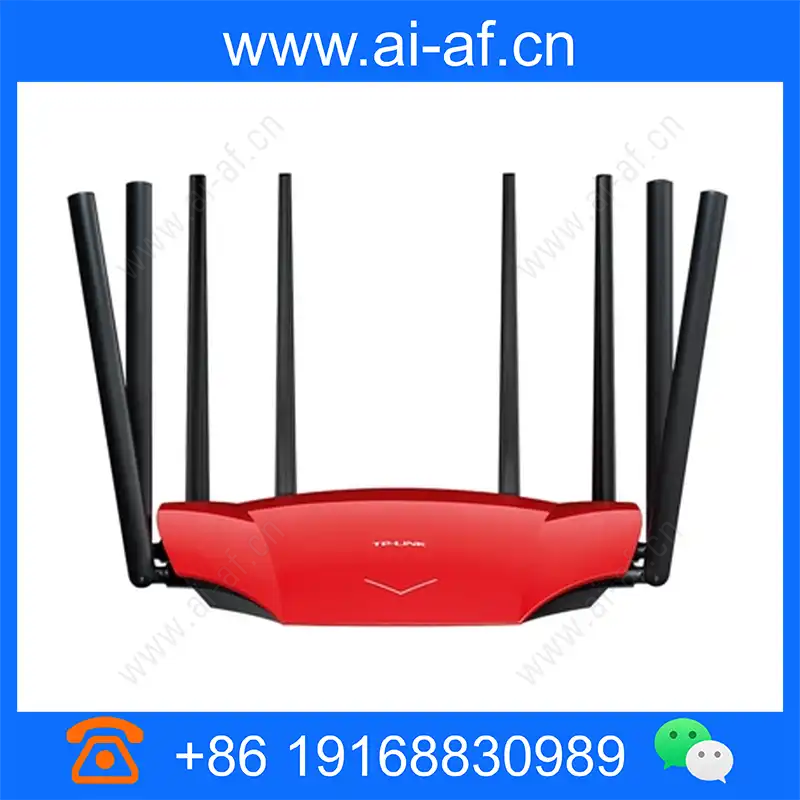

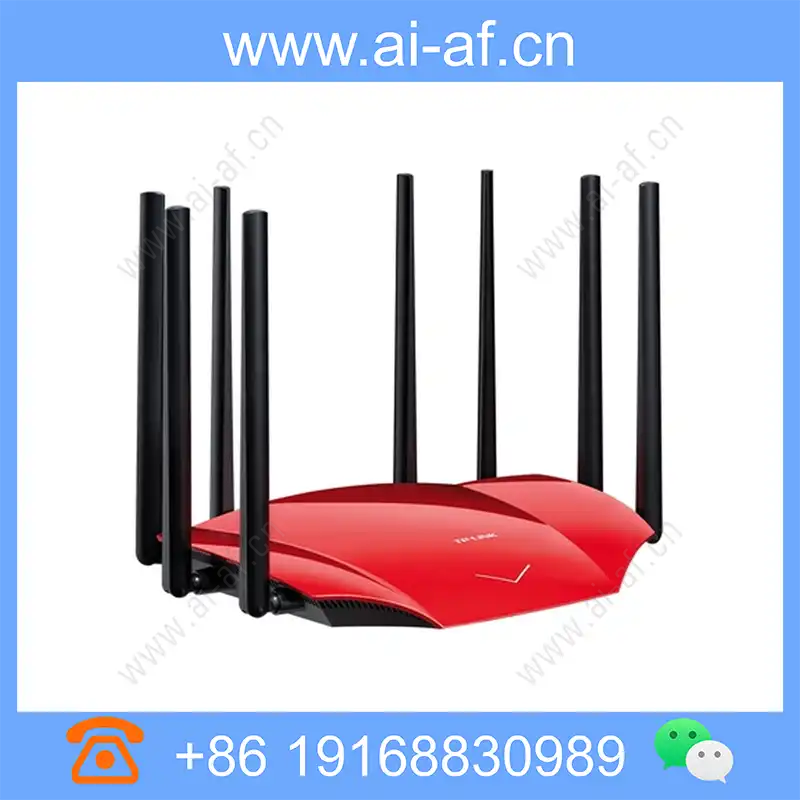

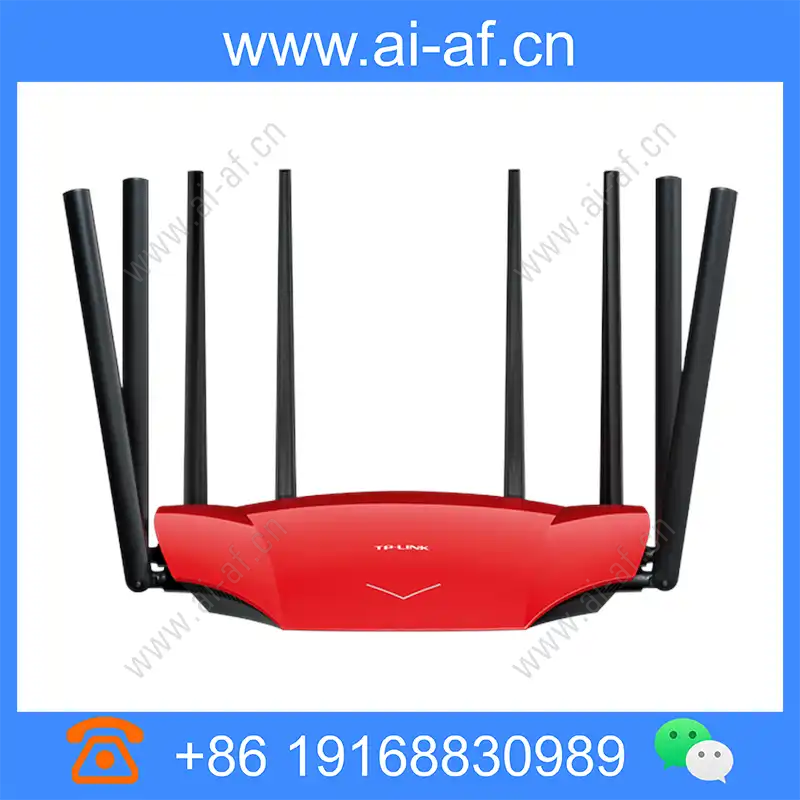

TP-LINK TL-WDR8690 Easy Exhibition Version AC2600 Dual Band Gigabit Wireless Router

Brand: TP-LINK

Model: TL-WDR8690-IZAN-version

Dimensions: 254mm x 188.50mm x 37.60mm

Protocol standard IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab Wireless rate 2.4GHz band: 800Mbps 5GHz band: 1733Mbps interface 4 10/100M/1000M adaptive WAN / LAN ports, support auto flip (Auto MDI / MDIX) Button Reset button Easy button LED Three-color SYS system indication Link/Act indication for each port size 254mm x 188.5mm x 37.6mm network status Wireless settings Guest network settings WAN port network status LAN port network status Equipment management Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device Application functions Wireless bridging Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS Wireless

Technical Specifications

Property Description	Property Value
Protocol standard	IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab
Wireless rate	2.4GHz band: 800Mbps 5GHz band: 1733Mbps
interface	4 10/100M/1000M adaptive WAN / LAN ports, support auto flip (Auto MDI / MDIX)
Button	Reset button Easy button
LED	Three-color SYS system indication Link/Act indication for each port
size	254mm x 188.5mm x 37.6mm
network status	Wireless settings Guest network settings WAN port network status LAN port network status
Equipment management	Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device
Application functions	Wireless bridging Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS Wireless device access control Wireless timing switch Automatic cleaning
Advanced Features	TP-LINK ID information Internet setting Wireless setting LAN port setting Software upgrade Modify administrator password Backup and load configuration Restart and restore factory system log
Packaging accessories	AC2600 dual-band Gigabit wireless router TL-WDR8690 easy to show version power adapter user manual router parameter record label
Use environment	Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing
