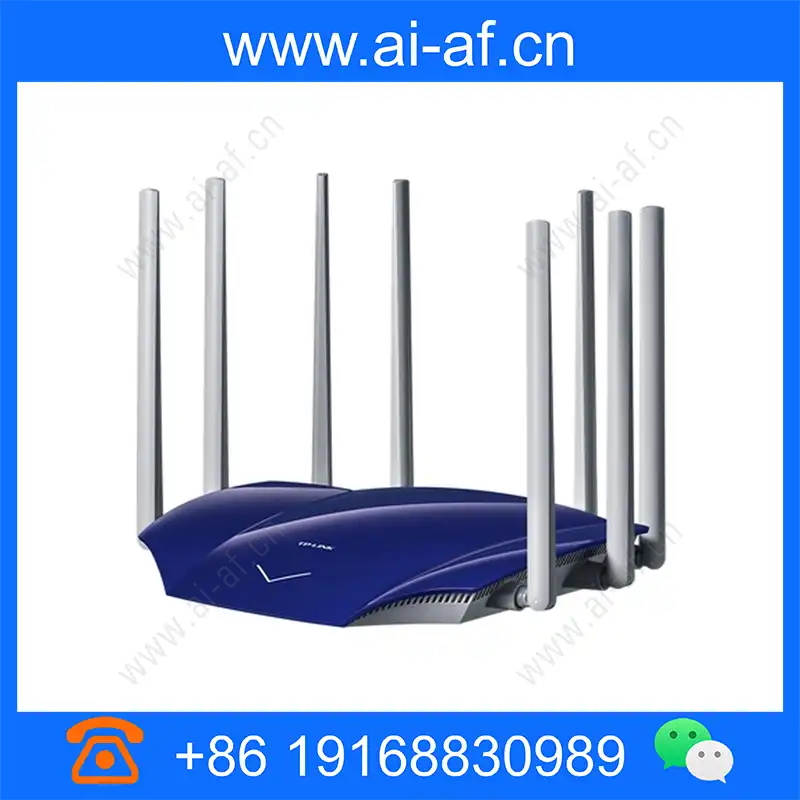

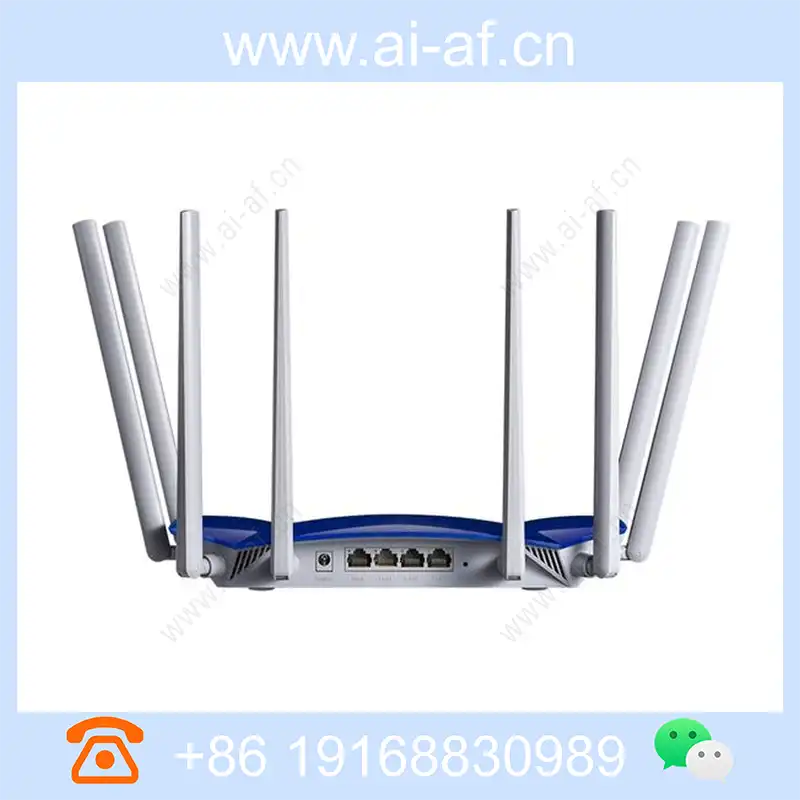

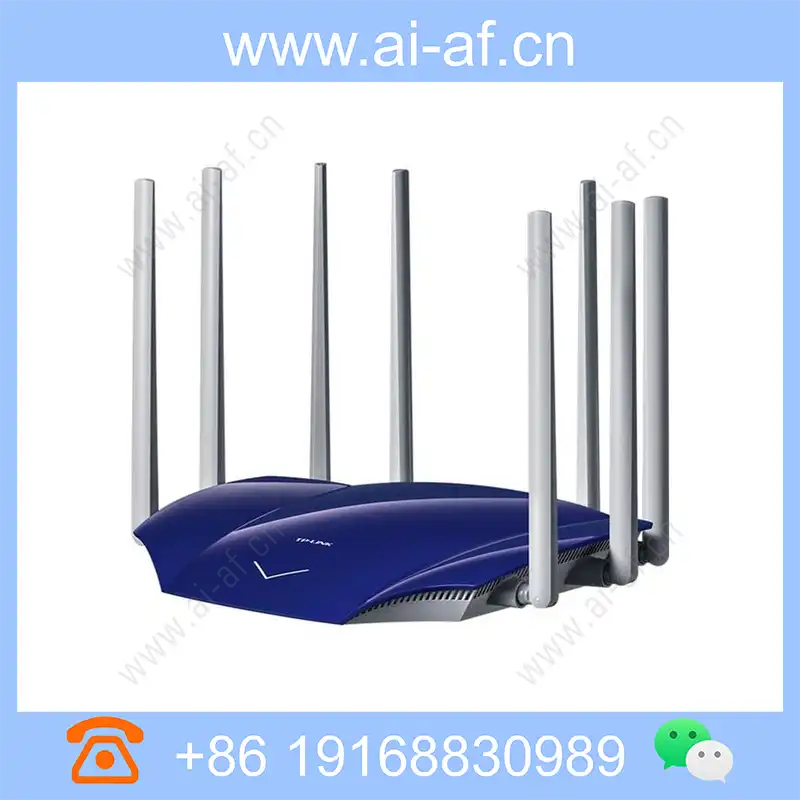

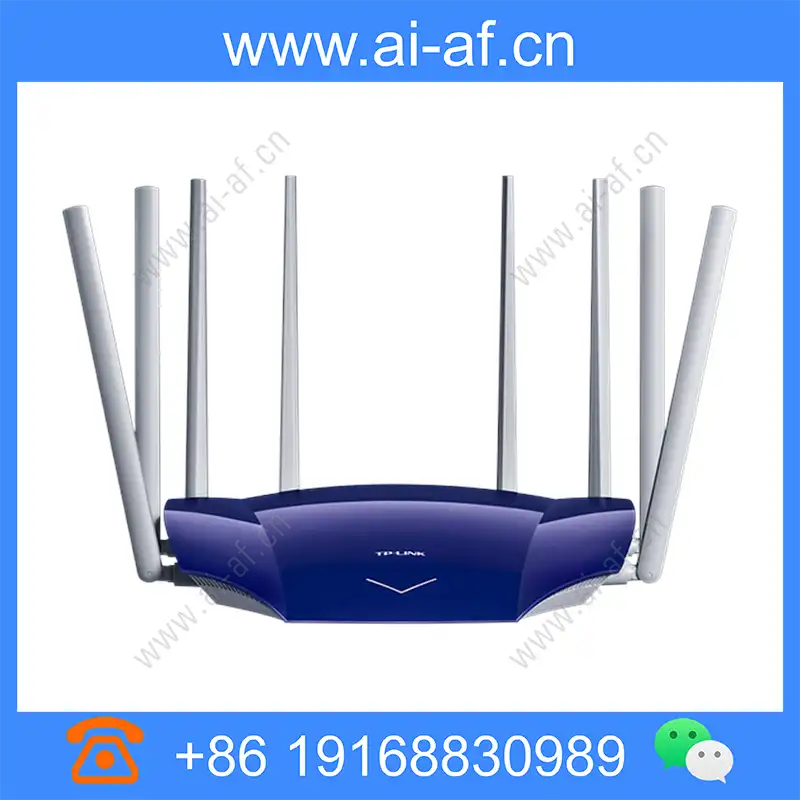

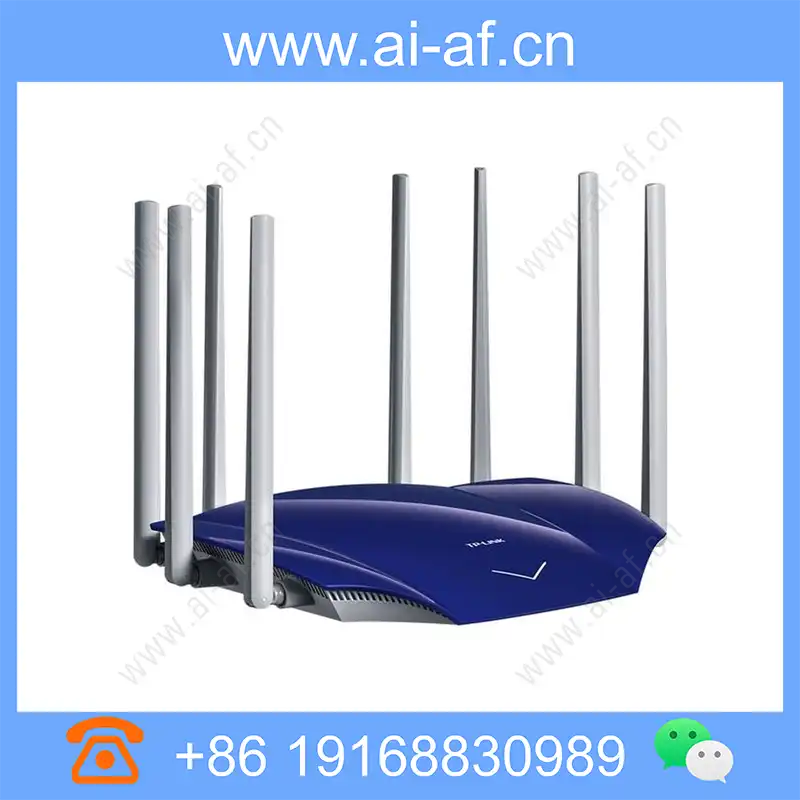

TP-LINK TL-WDR8690 Deep Sea Blue AC2600 Dual Band Gigabit Wireless Router

Brand: TP-LINK

Model: TL-WDR8690-deep-blue

Weight: 0.49kg

Dimensions: 285mm x 202mm x 210mm

Protocol standard IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab Wireless rate 2.4GHz band: 800Mbps 5GHz band: 1733Mbps interface Three 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) One 10/100M/1000M adaptive WAN port, support auto flip (Auto MDI/MDIX) Button Reset button LED SYS system indication Link/Act indication for each port antenna 4 external 2.4GHz non-removable omniDirectional antennas 4 external 5GHz non-removable omniDirectional antennas size 254mm x 188.5mm x 37.6mm network status Wireless settings Guest network settings WAN port network status LAN port network status Equipment management Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device Application functions

Technical Specifications

Property Description	Property Value
Protocol standard	IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab
Wireless rate	2.4GHz band: 800Mbps 5GHz band: 1733Mbps
interface	Three 10/100M/1000M adaptive LAN ports, support auto flip (Auto MDI/MDIX) One 10/100M/1000M adaptive WAN port, support auto flip (Auto MDI/MDIX)
Button	Reset button
LED	SYS system indication Link/Act indication for each port
antenna	4 external 2.4GHz non-removable omniDirectional antennas 4 external 5GHz non-removable omniDirectional antennas
size	254mm x 188.5mm x 37.6mm
network status	Wireless settings Guest network settings WAN port network status LAN port network status
Equipment management	Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device
Application functions	Wireless bridging Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS Wireless device access control Wireless timing switch Automatic cleaning
Advanced Features	TP-LINK ID information Internet setting Wireless setting LAN port setting Software upgrade Modify administrator password Backup and load configuration Restart and restore factory system log
Packaging accessories	AC2600 Dual Frequency Gigabit Wireless Router TL-WDR8690 Power Adapter User Manual Warranty Card
Use environment	Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing
