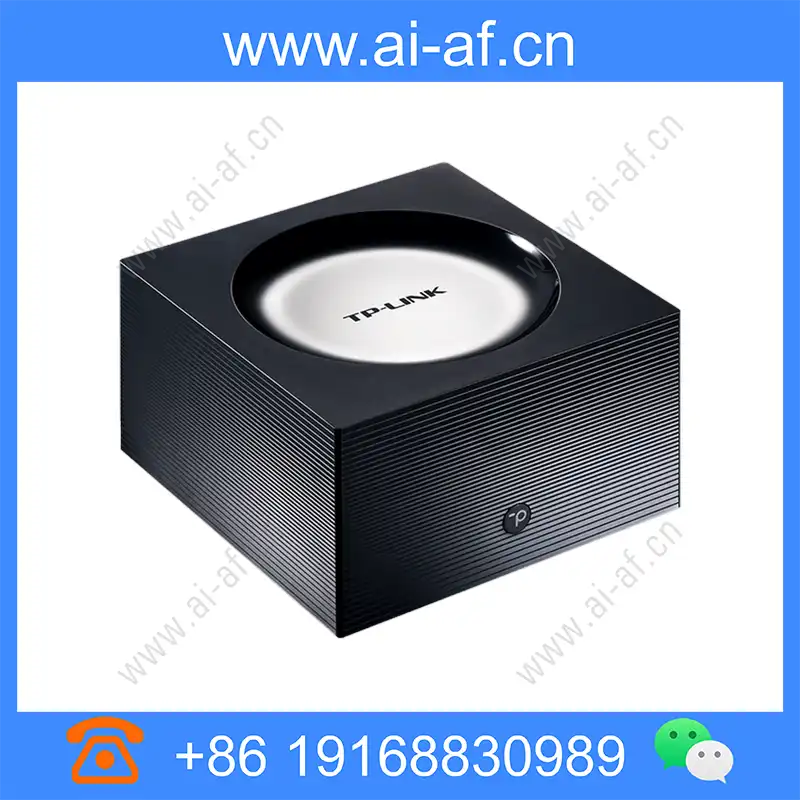

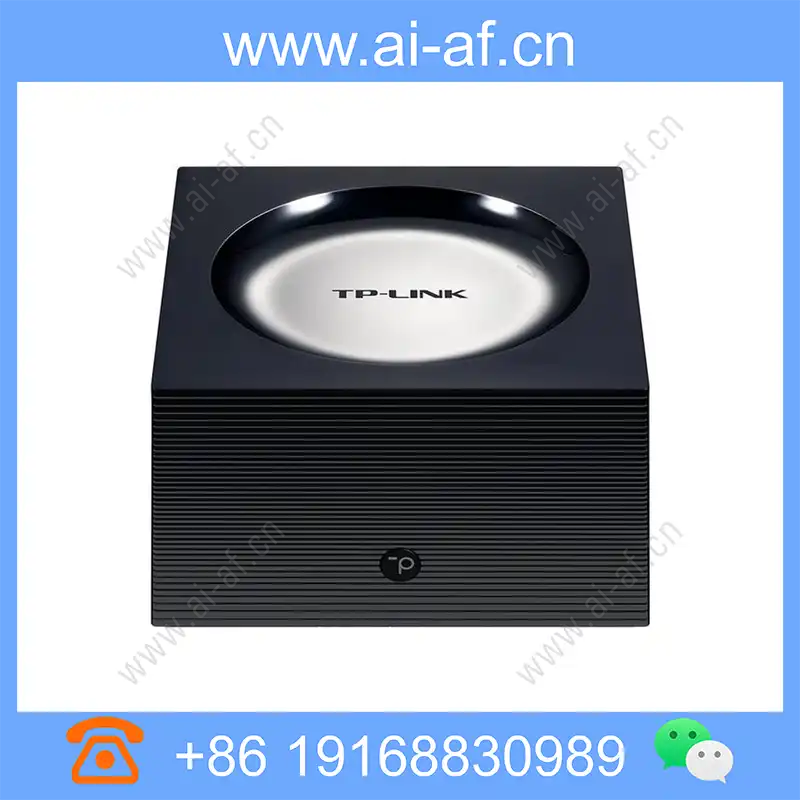

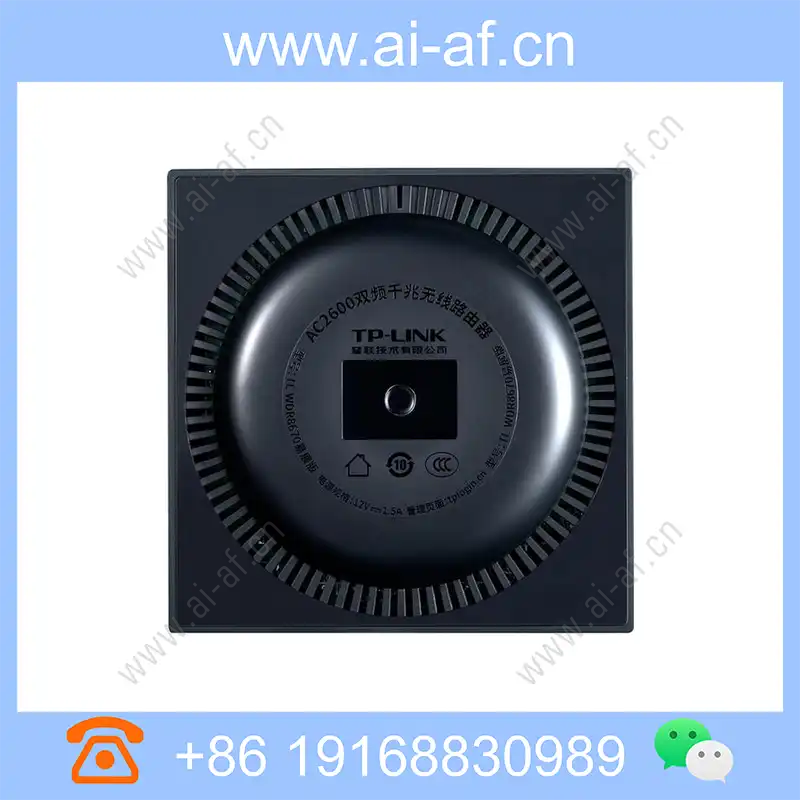

TP-LINK TL-WDR8670 Easy Exhibition Edition AC2600 Easy Exhibition Mesh Distributed Routing
Protocol standard IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab Wireless rate 2.4GHz band: 800Mbps 5GHz band: 1733Mbps interface Three 10/100M/1000M adaptive WAN / LAN ports, support auto flip (Auto MDI / MDIX) Button Reset button Easy button LED Three-color SYS system indication Link/Act indication for each port size 113mm*113mm*71.5mm network status Wireless settings Guest network settings WAN port network status LAN port network status Equipment management Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device Application functions Wireless bridging Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS Wireless
Technical Specifications
| Property Description | Property Value |
|---|---|
| Protocol standard | IEEE802.11a IEEE802.11b IEEE802.11g IEEE802.11n IEEE802.11ac IEEE802.3 IEEE802.3u IEEE802.3ab |
| Wireless rate | 2.4GHz band: 800Mbps 5GHz band: 1733Mbps |

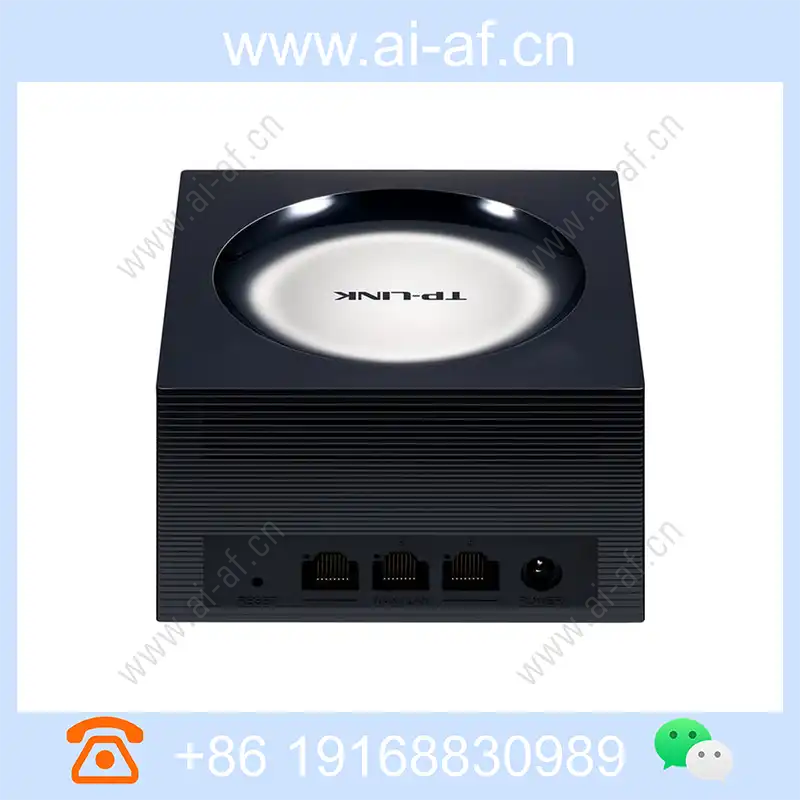

| interface | Three 10/100M/1000M adaptive WAN / LAN ports, support auto flip (Auto MDI / MDIX) |
| Button | Reset button Easy button |
| LED | Three-color SYS system indication Link/Act indication for each port |
| size | 113mm*113mm*71.5mm |
| network status | Wireless settings Guest network settings WAN port network status LAN port network status |
| Equipment management | Device Information Real-time Internet Speed Speed Limit Internet Time Management Disable Device |
| Application functions | Wireless bridging Guest network Signal conditioning IP and MAC address binding Administrator identity limitation AP isolation Virtual server DMZ host DDNS Wireless device access control Wireless timing switch Automatic cleaning |
| Advanced Features | TP-LINK ID information Internet setting Wireless setting LAN port setting Software upgrade Modify administrator password Backup and load configuration Restart and restore factory system log |
| Packaging accessories | AC2600 dual-band Gigabit wireless router TL-WDR8670 easy to show version power adapter user manual router parameter record label |
| Use environment | Operating temperature: 0°C to 40°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90%RH non-condensing Storage humidity: 5% to 90%RH non-condensing |
