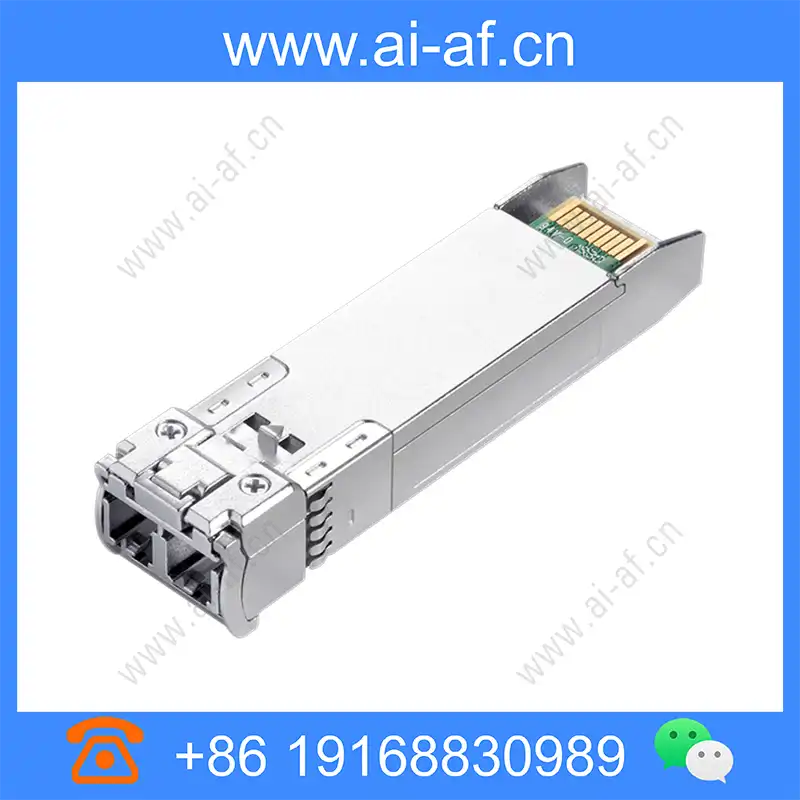

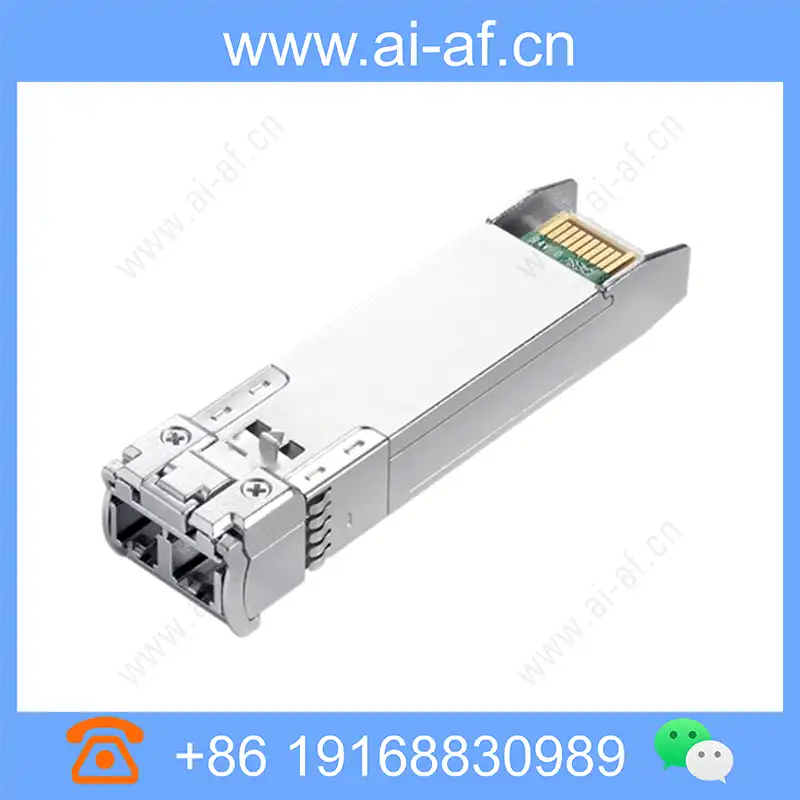

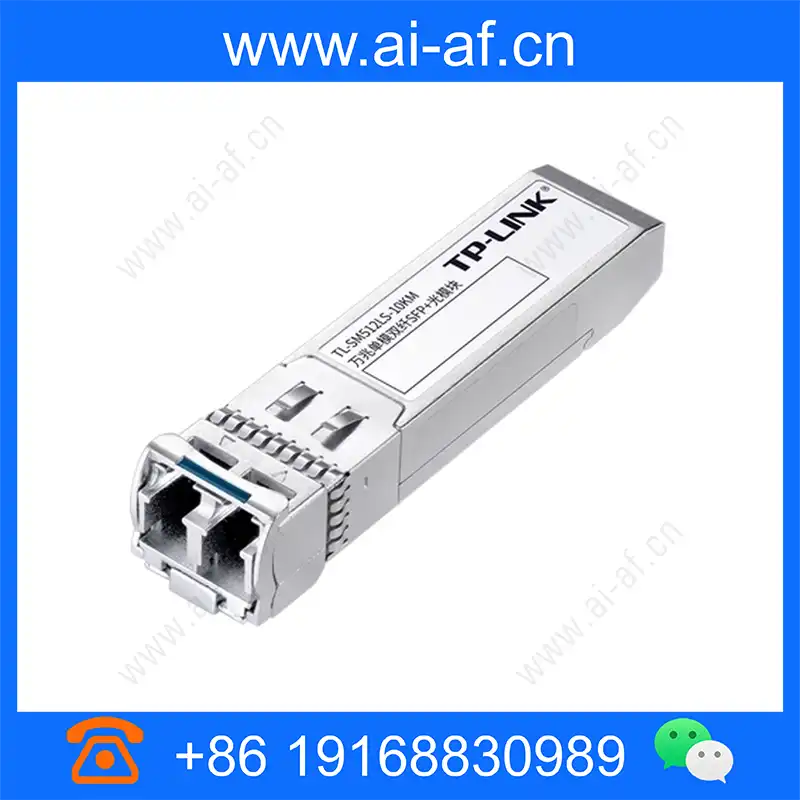

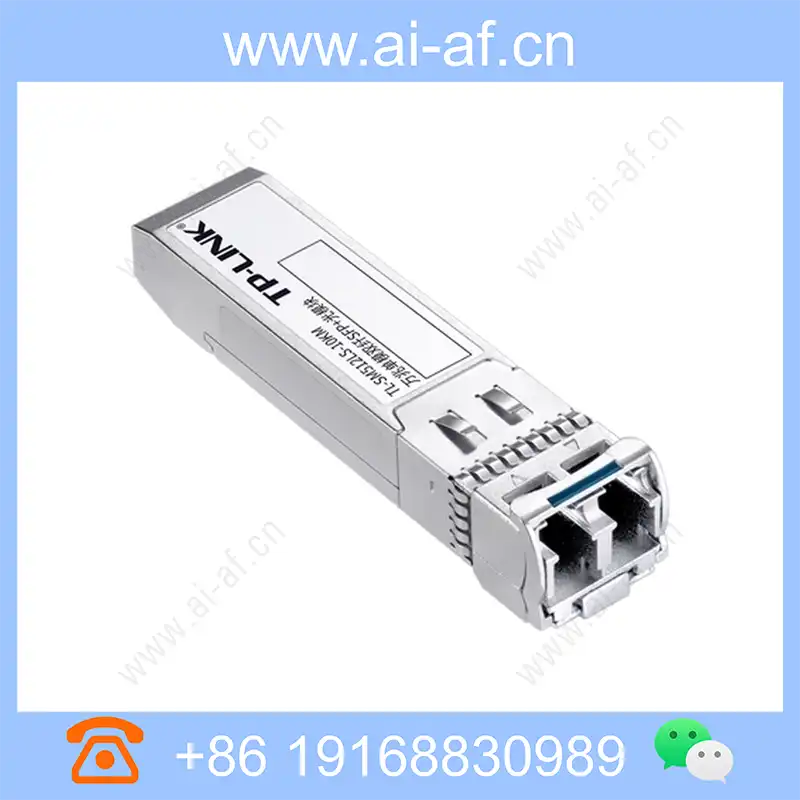

TP-LINK TL-SM512LS-10KM 10GM Single Mode double-Fiber SFP+ Optical Module
Brand: TP-LINK
Model: TL-SM512LS-10KM
Available in hot-swappable SFP+ package Full-duplex optical transceiver module Complies with SFP+ MSA, IEEE 802.3ae standards Up to 10.3125Gbps Single-mode fiber transmission, up to 10KM Dual-fiber LC optical port, working wavelength 1310nm Built-in digital diagnostic function DDM Working voltage 3.3V Shell working temperature 0℃ ~ 70℃ Supported standards IEEE 802.3ae Transmission medium Single mode fiber Transmission distance 10KM Transmission rate 10.3125Gbps Port type Dual Fiber LC Working wavelength 1310nm Operating Voltage 3.3V Working temperature of housing 0°C ~ 70°C Light parameter Average transmit optical power: -8.2 ~ 0.5dBm Receive sensitivity: -14.4dBm
Product Features
|
Technical Specifications
| Property Description | Property Value |
|---|---|
| Supported standards | IEEE 802.3ae |
| Transmission medium | Single mode fiber |
| Transmission distance | 10KM |
| Transmission rate | 10.3125Gbps |
| Port type | Dual Fiber LC |
| Working wavelength | 1310nm |
| Operating Voltage | 3.3V |
| Working temperature of housing | 0°C ~ 70°C |
| Light parameter | Average transmit optical power: -8.2 ~ 0.5dBm Receive sensitivity: -14.4dBm |
