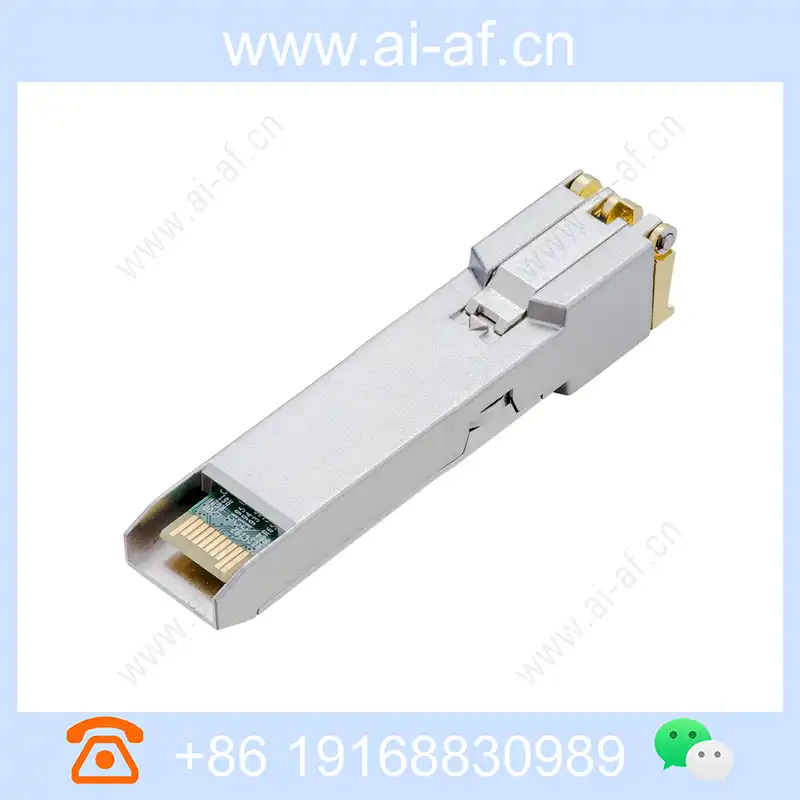

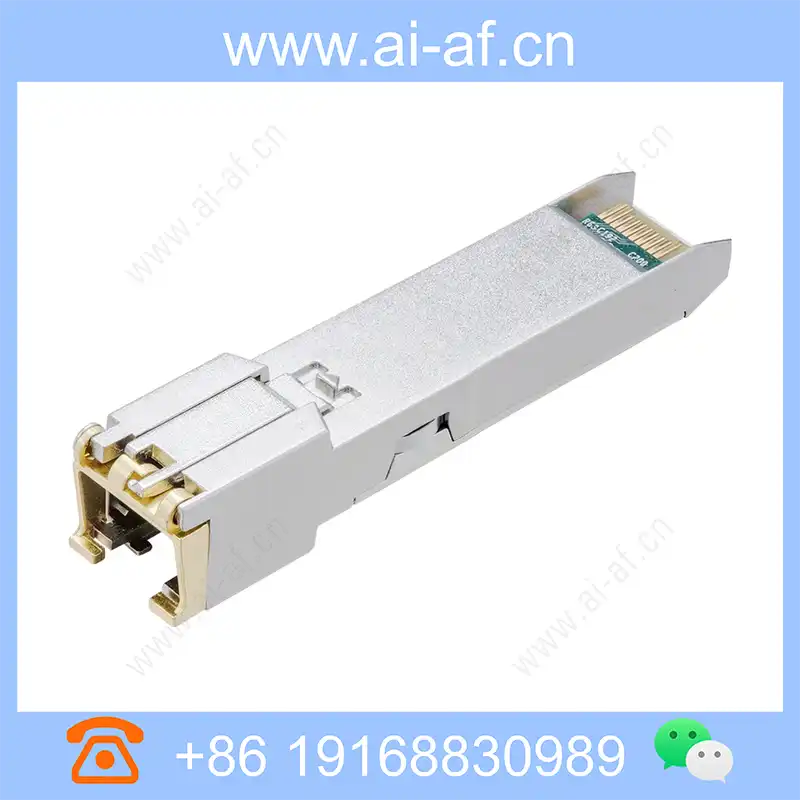

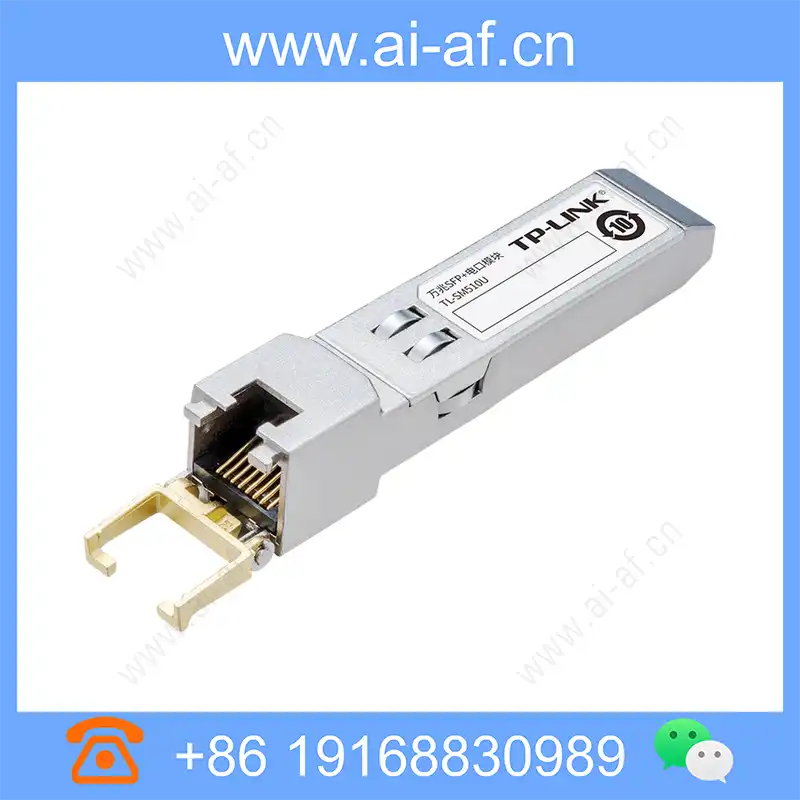

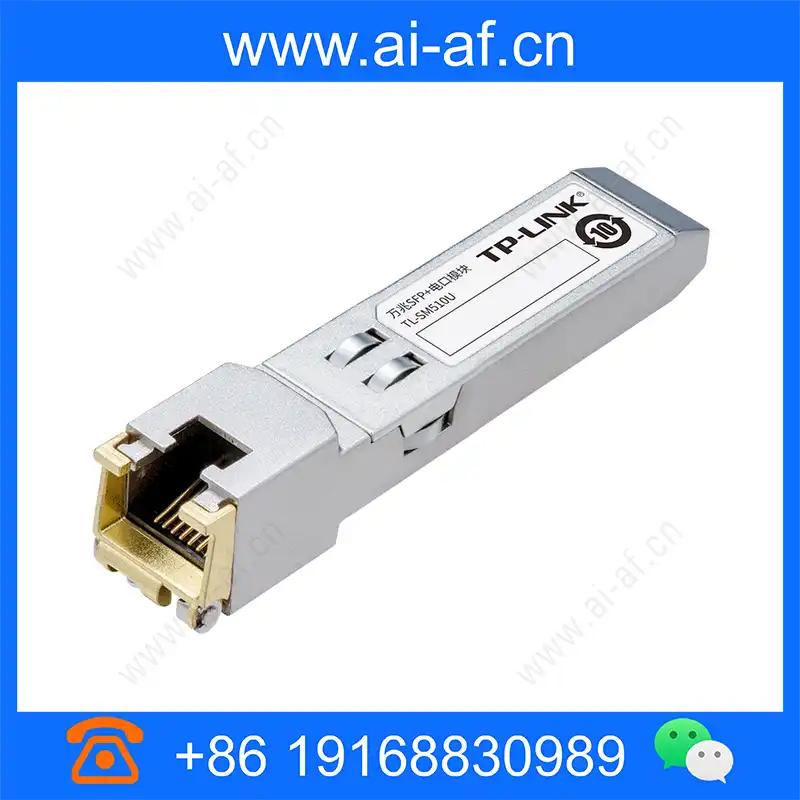

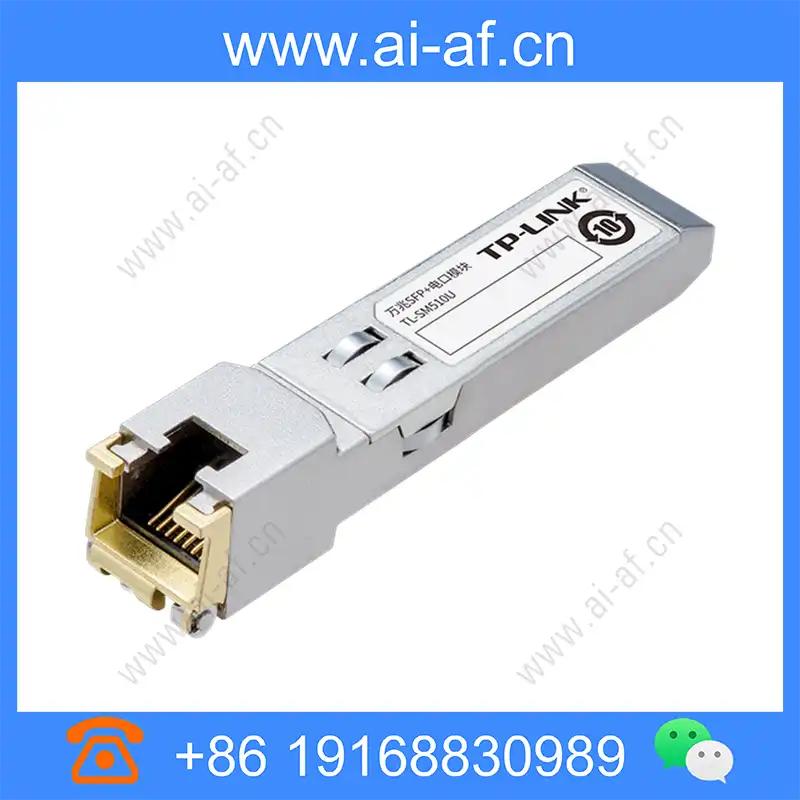

TP-LINK TL-SM510U 10G SFP+ Electrical Port Module

Brand: TP-LINK

Model: TL-SM510U

Available in hot-swappable SFP+ package The rate supports up to 10Gbps, Cat6e network cable transmission, up to 30m And backward compatible with 2.5Gbps and 1Gbps, super five network cable transmission, up to 100m RJ45 interface Working voltage 3.3V Maximum power consumption 2.7W Shell working temperature 0℃ ~ 70℃ *Version 1.0 of this product does not support 2.5G, only version 2.0 supports it, the version number can be obtained from the product label Supported standards

IEEE 802.3an、IEEE 802.3bz、IEEE 802.3ab

Transmission rate

10G/2.5G/1Gbps

Transmission distance

30m@Cat6a(10Gbps)
100m@Cat5e(2.5G/1Gbps)

Operating Voltage

3.3V

Maximum power consumption

2.7W

Working temperature of housing

Product Features

Available in hot-swappable SFP+ package
The rate supports up to 10Gbps, Cat6e network cable transmission, up to 30m
And backward compatible with 2.5Gbps and 1Gbps, super five network cable transmission, up to 100m
RJ45 interface
Working voltage 3.3V
Maximum power consumption 2.7W
Shell working temperature 0℃ ~ 70℃
*Version 1.0 of this product does not support 2.5G, only version 2.0 supports it, the version number can be obtained from the product label

Technical Specifications

Property Description	Property Value
Supported standards	IEEE 802.3an、IEEE 802.3bz、IEEE 802.3ab
Transmission rate	10G/2.5G/1Gbps
Transmission distance	30m@Cat6a(10Gbps) 100m@Cat5e(2.5G/1Gbps)
Operating Voltage	3.3V
Maximum power consumption	2.7W
Working temperature of housing	0°C~70°C
