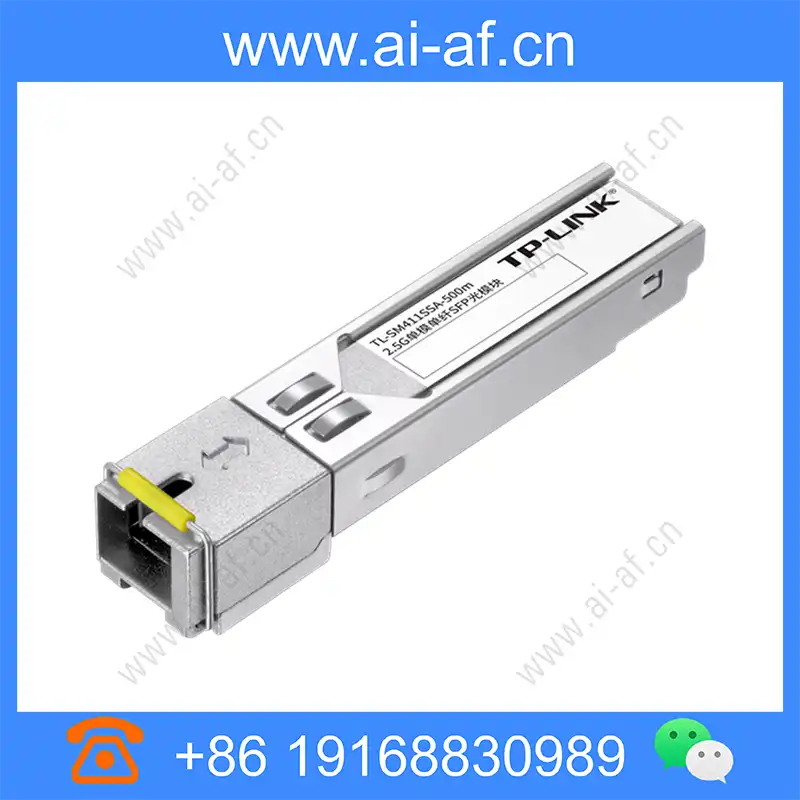

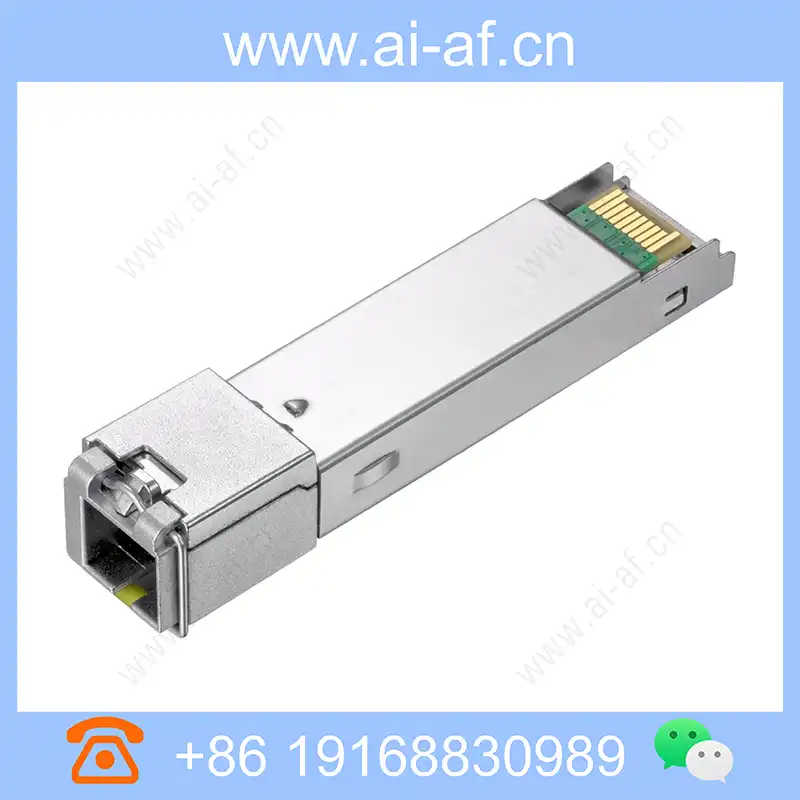

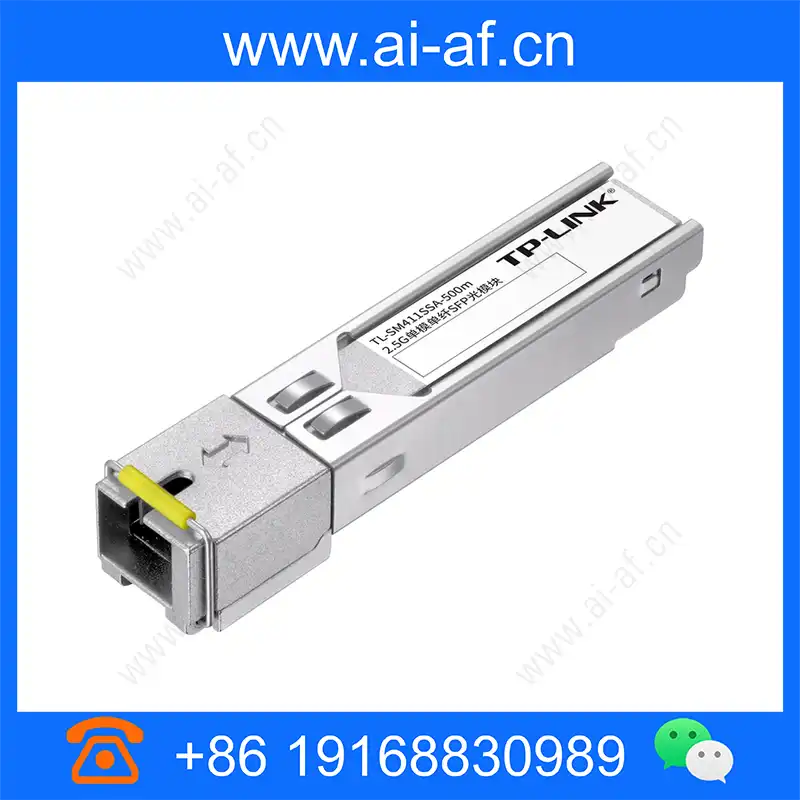

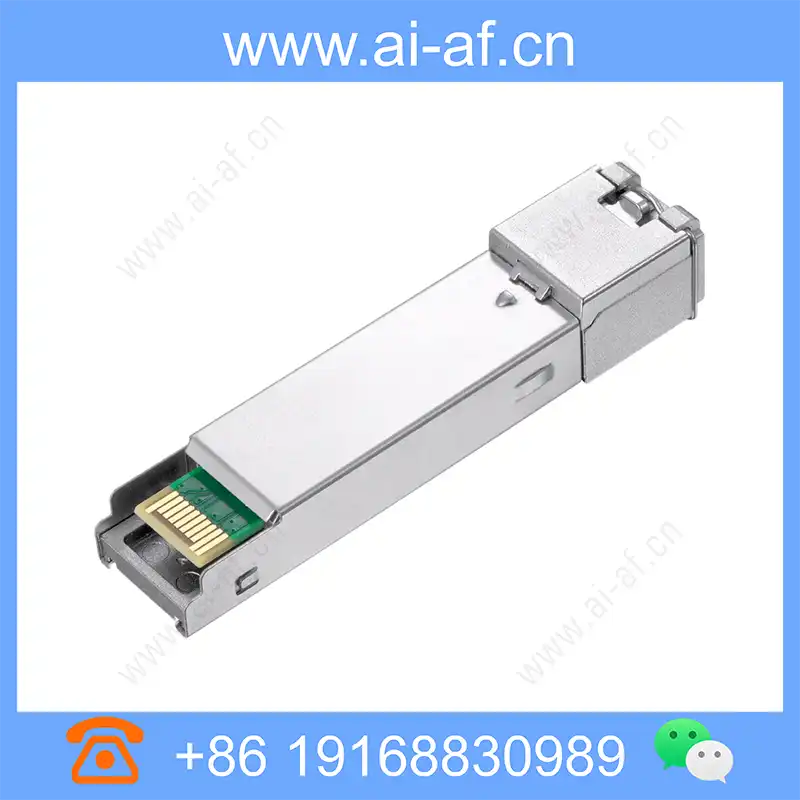

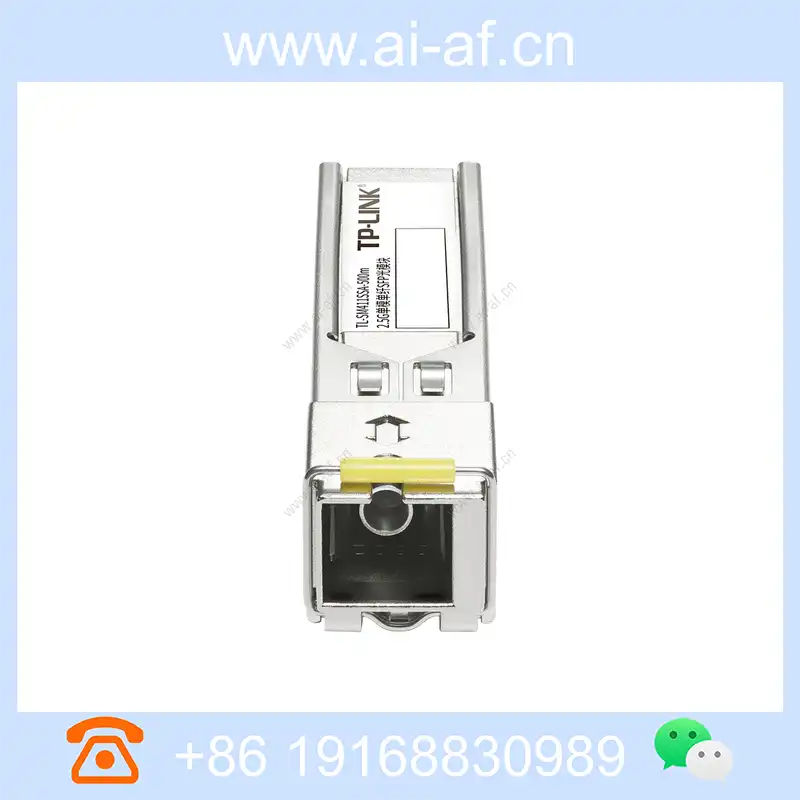

TP-LINK TL-SM411SSA-500M 2.5G Single Mode Single Fiber SFP Optical Module

Brand: TP-LINK

Model: TL-SM411SSA-500m

Use hot-swappable SFP package Full-duplex optical transceiver module Rate up to 3.125Gbps Single mode fiber transmission, up to 500m Single fiber SC optical port, working wavelength 1550nm / 1310 nm Built-in digital diagnosis function Working voltage 3.3V Shell working temperature 0℃ ~ 70℃ Use TL-SM411SB-500M with Transmission rate

3.125Gbps

Transmission distance

500m

Transmission medium

single mode fiber

Interface Type

single fiber SC

Center wavelength

TX:1550nm·
RX:1310nm

Operating Voltage

3.3V

Working temperature of housing

0°C ~ 70°C

Light parameter

Average emission optical power: -9 ~ 1dBm
Receive sensitivity: -14dbm

Product Features

Use hot-swappable SFP package
Full-duplex optical transceiver module
Rate up to 3.125Gbps
Single mode fiber transmission, up to 500m
Single fiber SC optical port, working wavelength 1550nm / 1310 nm
Built-in digital diagnosis function
Working voltage 3.3V
Shell working temperature 0℃ ~ 70℃
Use TL-SM411SB-500M with

Technical Specifications

Property Description	Property Value
Transmission rate	3.125Gbps
Transmission distance	500m
Transmission medium	single mode fiber
Interface Type	single fiber SC
Center wavelength	TX:1550nm· RX:1310nm
Operating Voltage	3.3V
Working temperature of housing	0°C ~ 70°C
Light parameter	Average emission optical power: -9 ~ 1dBm Receive sensitivity: -14dbm
