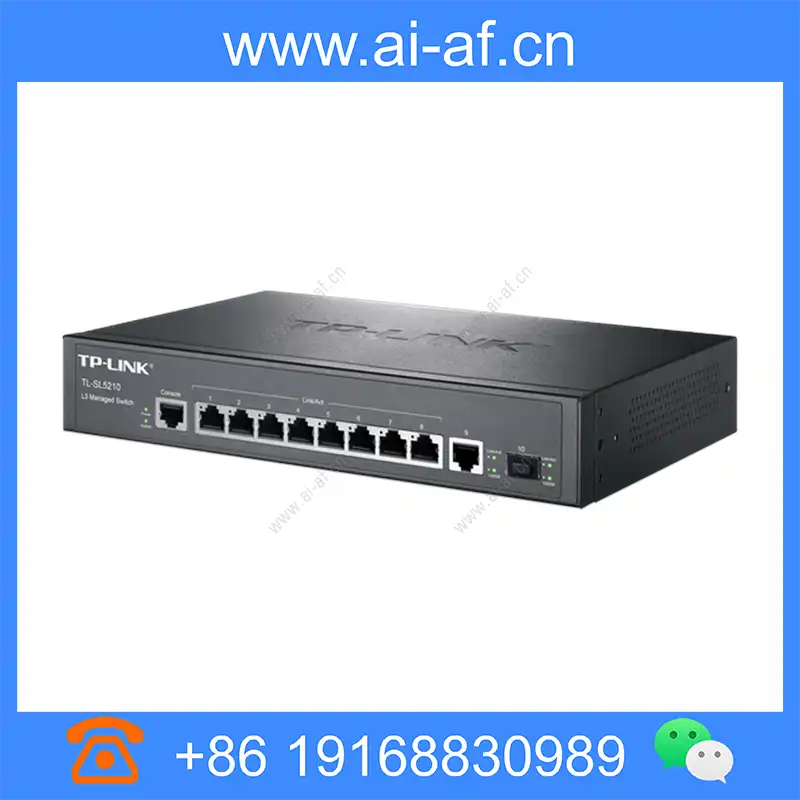

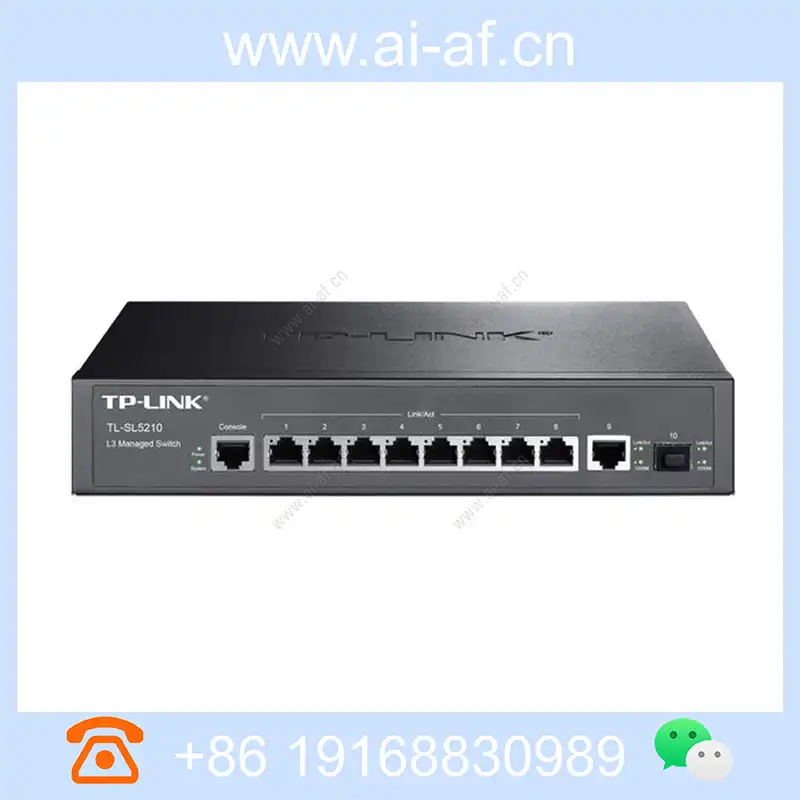

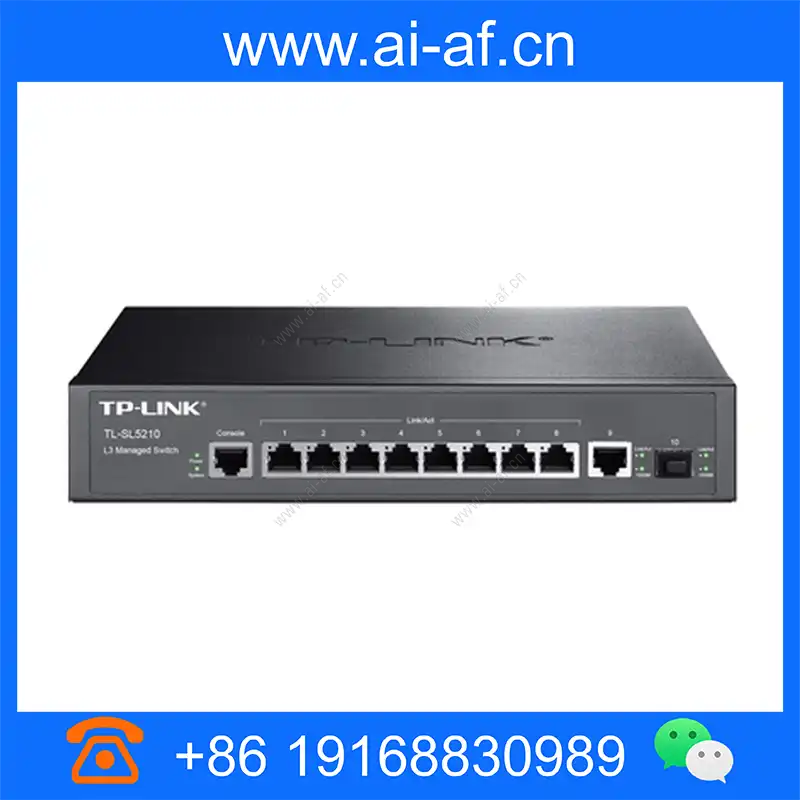

TP-LINK TL-SL5210 gigabit uplink layer 3 managed switch 8FE 1GE 1SFP iron shell layer 2

Brand: TP-LINK

Model: TL-SL5210

Dimensions: 440mm x 220mm x 44mm

8 10/100Base-T RJ45 ports 1 10/100/1000Base-T RJ45 port 1 independent Gigabit SFP port Support RIP dynamic routing, static routing, ARP proxy Support DHCP server, DHCP relay, DHCP Snooping Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication Support VLAN, QoS, ACL, spanning tree, multicast, IPv6 Support Web network management, CLI command line, SNMP Product model TL-SL5452-Combo TL-SL5428-Combo TL-SL5218-Combo TL-SL5210 100M RJ45 port 48 24 16 8 Gigabit RJ45 port 2 (multiplexed) 4 2 1 Gigabit SFP port 4 4 (multiplexed) 2 (multiplexed) 1 RJ45 Console port 1 MAC address capacity 16K 8K 8K 8K routing Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy DHCP Support DHCP server Support DHCP relay Support DHCP Snooping Support Option138, Option82

Product Features

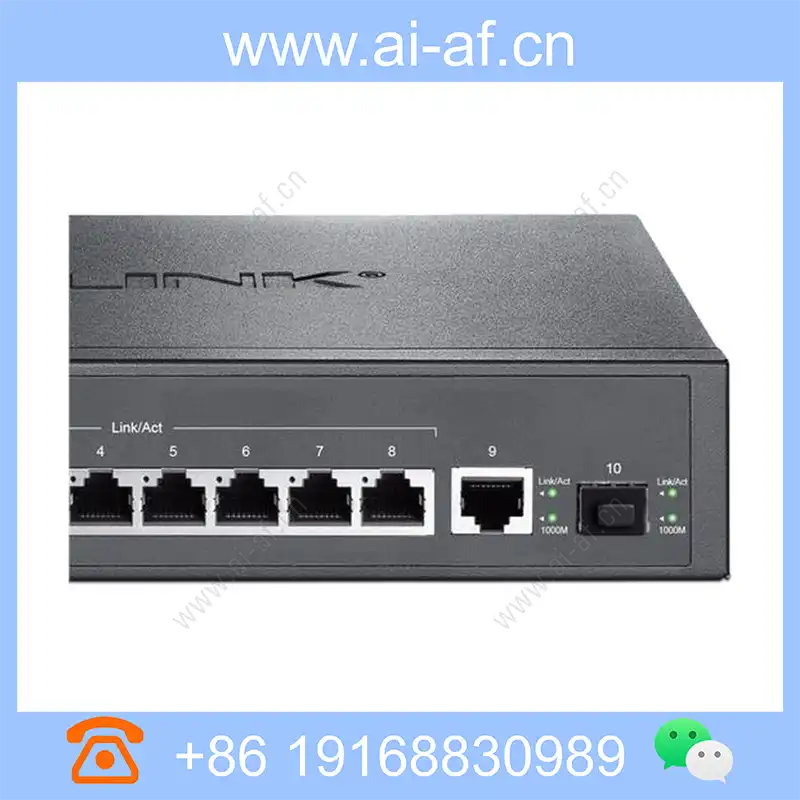

8 10/100Base-T RJ45 ports
1 10/100/1000Base-T RJ45 port
1 independent Gigabit SFP port
Support RIP dynamic routing, static routing, ARP proxy
Support DHCP server, DHCP relay, DHCP Snooping
Support quaternary binding, ARP/IP/DoS protection, 802.1X authentication
Support VLAN, QoS, ACL, spanning tree, multicast, IPv6
Support Web network management, CLI command line, SNMP

Product model	TL-SL5452-Combo	TL-SL5428-Combo	TL-SL5218-Combo	TL-SL5210
100M RJ45 port	48	24	16	8
Gigabit RJ45 port	2 (multiplexed)	4	2	1
Gigabit SFP port	4	4 (multiplexed)	2 (multiplexed)	1
RJ45 Console port	1
MAC address capacity	16K	8K	8K	8K
routing	Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy
DHCP	Support DHCP server Support DHCP relay Support DHCP Snooping Support Option138, Option82, Option60
VLAN	Support 4K VLANs Support 802.1Q VLAN, MAC VLAN, Protocol VLAN, Private VLAN Support Guest VLAN, Voice VLAN Support VLAN VPN (QinQ) Support GVRP protocol Support 1:1 and N:1 VLAN Mapping function
MAC address table	Follows IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic, filtering address table
Safety features	Based on user hierarchical management and password protection Support to restrict user access based on port number, IP address, MAC address Support HTTPS, SSL V3, TLS V1, SSH V1/V2 Support IP-MAC-PORT-VLAN quaternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping, DHCP attack protection Support 802.1X authentication, AAA Support port security, port isolation Support CPU protection function
Access Control (ACL)	Support L2(Layer 2)~L4(Layer 4) packet filtering function Support port mirroring, port redirection, flow rate limit, QoS remarking
Quality of Service (QoS)	Support 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, Equ priority scheduling algorithm
Spanning tree	Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
Multicast	Support IGMP v1/v2/v3 Snooping Support quick leave mechanism Multicast VLAN supported Support multicast filtering, packet statistics, unknown multicast discard
IPv6	Support MLD Snooping Support IPv6 Ping, IPv6 Tracert, IPv6 Telnet Support IPv6 SNMP, IPv6 SSH, IPv6 SSL
Management and maintenance	Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs Support LLDP, RMON Support ARP protection, IP source protection, DoS protection Support CPU monitoring, memory monitoring Support system logs, graded warnings Support Ping, Tracert detection, cable detection
Shell size (mm)	440×220×44	440×180×44	440×180×44	250×158×44
Input power	100~240VAC, 50/60Hz
Use environment	Work temperature: 0°C ~ 40°C Storage temperature: -40℃~70℃ Working humidity: 10% ~ 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Recommended for supporting optical module/electrical port module

Module type	Product model	rate	distance	Transmission medium	Center wavelength	Working temperature of housing
Optical module	TL-SM311LSA/B-20KM	1.25Gbps	20km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311LSA/B-2KM	1.25Gbps	2km	SMF, single fiber LC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM311SSA/B-2KM	1.25Gbps	2km	SMF, Single Fiber SC	A:1550/1310nm B:1310/1550nm	0~70℃
	TL-SM312LS-40KM	1.25Gbps	40km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM	1.25Gbps	20km	SMF, double fiber LC	1310nm	0~70℃
	TL-SM312LS-20KM Industrial Grade	1.25Gbps	20km	SMF, double fiber LC	1310nm	-40~85℃
	TL-SM311LM	1.25Gbps	550m	OM2 MMF, Double Fiber LC	850nm	0~70℃
Electrical port module	TL-SM310U	1Gbps	100m	Super five network cable	—	0~70℃

Technical Specifications

Property Description	Property Value
100M RJ45 port	8
Gigabit RJ45 port	1
Gigabit SFP port	1
RJ45 Console port	1
MAC address capacity	8K
routing	Support RIP V1/V2 dynamic routing Support static routing Support ARP proxy
DHCP	Support DHCP server Support DHCP relay Support DHCP Snooping Support Option138, Option82, Option60
VLAN	Support 4K VLANs Support 802.1Q VLAN, MAC VLAN, protocol VLAN, Private VLAN Support Guest VLAN, Voice VLAN Support VLAN VPN (QinQ) Support GVRP protocol Support 1:1 and N:1 VLAN Mapping function
MAC address table	Comply with IEEE 802.1d standard Support MAC address automatic learning and aging Support static, dynamic and filtered address table
Safety features	Based on user hierarchical management and password protection Support based on port number, IP address, MAC address to restrict user access Support HTTPS, SSL V3, TLS V1, SSH V1/V2 Support IP-MAC-PORT-VLAN four yuan binding Support ARP protection, IP Source protection, DoS protection support DHCP Snooping, DHCP attack protection support 802.1X authentication, AAA support port security, port isolation support CPU protection function
Access Control (ACL)	Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function Support port mirroring, port reDirection, flow rate limiting, QoS re-marking
Quality of Service (QoS)	Support 8 port queues Support port priority, 802.1P priority, DSCP priority Support SP, WRR, SP+WRR, Equ priority scheduling algorithm
Spanning tree	Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering
Multicast	Support IGMP v1/v2/v3 Snooping Support fast leave mechanism Support multicast VLAN Support multicast filtering, packet statistics, unknown multicast drop
IPv6	Support MLD Snooping Support IPv6 Ping, IPv6 Tracert, IPv6 Telnet Support IPv6 SNMP, IPv6 SSH, IPv6 SSL
Management and maintenance	Support WEB network management (HTTP, HTTPS, SSL V3, TLS V1) Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3, compatible with public MIBS and TP-LINK private MIBs Support LLDP, RMON Support ARP Protection, IP source protection, DoS protection support CPU monitoring, memory monitoring support system logs, graded warning support Ping, Tracert detection, cable detection
Shell size (mm)	250x158x44
Input power	100~240VAC,50/60Hz
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
